Techwise Solar TW-620HTS-02
Techwise Solar Brand review

TW-620HTS-02

620 Wp TOPCon
ComparePV verdict

Middle of its segment, short guarantee

Rank 4,022 of 14,005
Compare panels Datasheet PDF
Power (Wp)
620
Typical for its class
Efficiency (%)
22.61
Typical · median 22.80%
Density (Wp/m²)
229.5
Typical · median 227.7
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
34.6
Weak · 1.9 kg above median
Warranty (yrs)
25
Weak · bottom 3%

The Techwise Solar Sun-Pursuit Plus series is designed to maximize energy yield in situations where every square meter and stable performance in variable conditions matter. Its foundation is TOPCon technology, which helps maintain high module efficiency in daily operation, even under lower sunlight conditions. Bifacial variants also allow for further utilization of reflected light from the ground, which realistically increases energy production on flat roofs and in ground-mounted installations with sufficient surface area beneath the module.

Using half-cut cells minimizes losses and improves panel performance under partial shading, and the multi-busbar (16BB) design supports better current transport within the cell. For investors who prioritize aesthetics, Full Black versions are available - particularly desirable on modern residential and commercial roofs.

Sun-Pursuit Plus is a good choice for prosumers, companies, and PV farms that expect high-end technology and predictable yields without compromising.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.61% 22.80% Typical 3,643
Power density 229.5 227.7 Typical 2,191
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 55.8 53.1 Weak · bottom 8% 10,192
Performance warranty 25 yrs 30 yrs Weak · bottom 3% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial, utility-scale and shaded-installations.

Not ideal for

Owners who want a long output guarantee and weight-limited structures.

Watch-outs
25 year performance warranty

Bottom 3% of the TOPCon 600-650 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

55.8 kg per kWp

Bottom 8% of the TOPCon 600-650 W segment, against a median of 53.1. Ranked 10,192nd in the whole database.

Notes from the database
  • Efficiency of 22.6% matches the TOPCon 600-650W median
  • At 229.5 W/m² power density, roof space requirements are typical for TOPCon 600-650W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 600-650W panels
  • Weight of 34.6 kg is 1.9 kg above TOPCon 600-650W median (32.7 kg) - verify structural support
  • In the top 26% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 620 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.61 % Typical Segment median 22.80%
Vmpp · Impp 43.11 V · 14.38 A Operating point at max power
Voc · Isc 50.10 V · 15.30 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×30 mm · 2.70 m² of roof
Weight 34.6 kg Weak Weak · 1.9 kg above median
Cells 132 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 3% · median 30 yrs

Datasheet charts

Open datasheet PDF

Measured curves published by Techwise Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 620 Wp appear here. The rest cover the whole series.

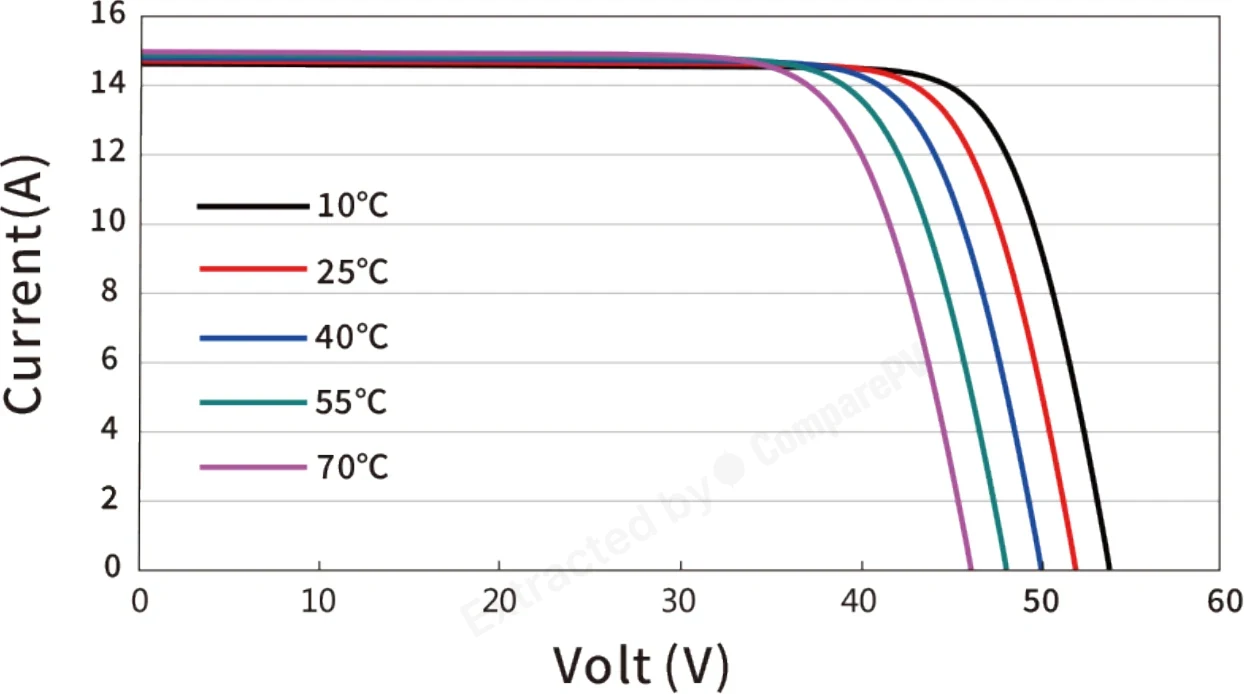

I-V Curve at Different Irradiance Levels I-V Curve at Different Irradiance Levels Whole series I-V Curve at Different Temperatures I-V Curve at Different Temperatures Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Techwise Solar TW-620HTS-02 620 W 22.61% -0.290 34.6 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg Lighter, +2.6 pp, +5 yr warranty
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Lighter, +2.4 pp, +5 yr warranty
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +50 W, lighter, +2.2 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +50 W, lighter, +2.2 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Lighter, +2.2 pp, +5 yr warranty
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +50 W, +2.2 pp, +5 yr warranty
TW-615HT-02-595W 595 W 23.00% -0.300 32.5 kg -25 W, lighter, +5 yr warranty
TW-600HT-02-600W 600 W 21.50% -0.300 32.5 kg Lighter, -1.1 pp, +5 yr warranty
TW-605HT-02-605W 605 W 21.68% -0.300 32.5 kg Lighter, -0.9 pp, +5 yr warranty
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +60 W, lighter, +2.6 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +55 W, lighter, +2.4 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +80 W, +2.4 pp, +5 yr warranty
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +75 W, +2.3 pp, +5 yr warranty

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How many Techwise Solar Sun-Pursuit Plus panels are needed for a 10 kWp system?
With a module power of 625 Wp, only 16 panels are required to reach a 10 kWp system (16 x 625 Wp = 10,000 Wp). This is significantly fewer modules than with older 350-400 Wp panels, resulting in fewer mounting points, faster installation, and better use of limited roof or ground space.
How does TOPCon technology in the Sun-Pursuit Plus differ from classic PERC panels?
TOPCon (Tunnel Oxide Passivated Contact) uses an additional passivation layer that reduces electron recombination on the rear side of the cell. As a result, Sun-Pursuit Plus modules achieve higher efficiency and a smaller power drop at rising temperatures compared to older PERC panels. In practice, this means higher yields, especially in summer and under partial sunlight conditions.
What is the warranty on Sun-Pursuit Plus panels and what does it cover?
Techwise Solar provides a 15-year product warranty covering material and workmanship defects, along with a 30-year power warranty guaranteeing a minimum energy output level throughout the module's service life. This is in line with current market standards for premium TOPCon panels, giving investors greater confidence in long-term return on investment.
Do Sun-Pursuit Plus Full Black panels lose performance compared to the standard version?
The Full Black version uses the same TOPCon technology and identical half-cut cell design, so the difference in efficiency is minimal to none - the black frame and backsheet do not significantly affect energy production. Choosing this version is mainly a matter of aesthetics, valued for installations on modern residential and commercial building roofs where visual appearance matters.
Do Sun-Pursuit Plus panels handle partial shading better than standard modules?
Yes, thanks to half-cut cell technology, the panel is divided into independent electrical sections, so shading part of the module - for example from a chimney or branch - doesn't shut down the entire panel, only reduces output in the affected section. The 16BB multi-busbar layout further improves current flow and reduces resistive losses under non-uniform lighting conditions.
Is the Sun-Pursuit Plus series better suited for residential or commercial installations?
The series is designed for both prosumers and businesses or utility-scale PV farms. The high per-module power output (625 Wp) works well for large ground-mounted and industrial installations where scale matters, while the availability of a Full Black version makes it equally attractive for residential installations focused on roof aesthetics.
