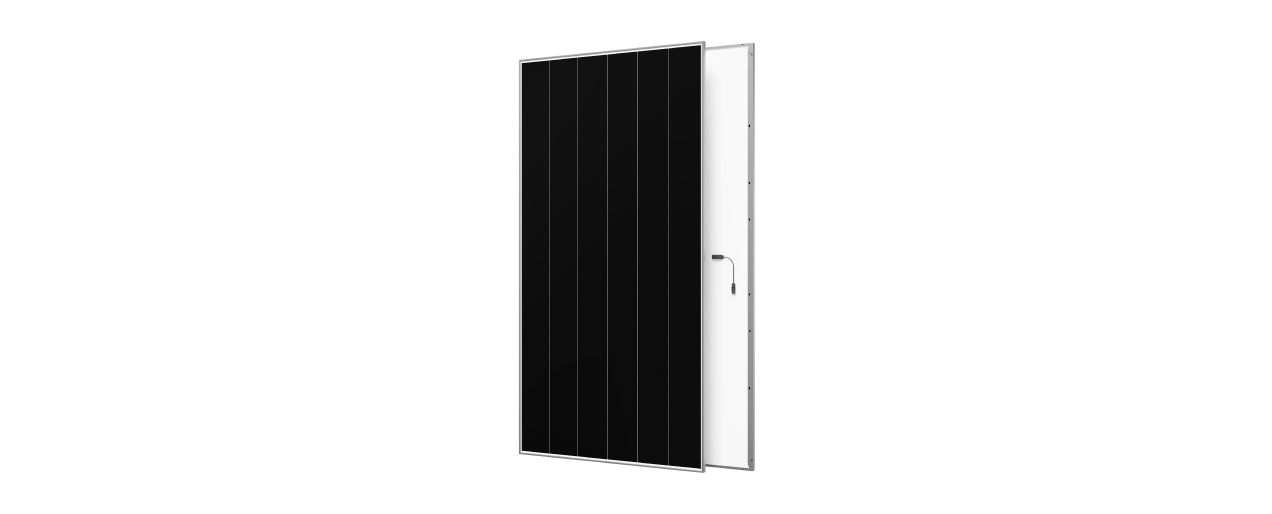

AIKO AIKO-A650-MAE72Mw

AIKO AIKO-A650-MAE72Mw

650 Wp Back Contact
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 333 of 14,129
Compare panels Datasheet PDF
Power (Wp)
650
Weak · bottom 10%
Efficiency (%)
25.20
Strong · top 1%
Density (Wp/m²)
251.6
Strong · top 2%
Temp (%/°C)
-0.260
Typical · median -0.260
Weight (kg)
27.0
Strong · 5.8 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The AIKO Comet 3N72e (mono-glass) series is designed to maximize energy yield from every square meter of roof space - where high power density and real investment profitability are crucial. The key advantage is the n-type ABC (all back contact) cell technology, which enables a more efficient active surface, an aesthetically pleasing module design, and no performance loss due to traditional front-side elements.

In practice, the Comet 3N72e helps address common challenges in commercial installations: better performance under partial shading (reduced losses during the day), more stable power output in high temperatures, and slower degradation and high parameter repeatability over the long term. The mono-glass construction facilitates installations where optimal balancing between mass, mounting, and performance is a priority.

This solution performs exceptionally well on the rooftops of halls, warehouses, retail spaces, and public utility buildings, where limited space demands uncompromising efficiency and a rapid return on investment.

Ranking

88 panels in the segment Back Contact 650-700 W
Metric This panel Median Position in segment Overall rank
Module efficiency 25.20% 24.40% Strong · top 1% 1
Power density 251.6 244.3 Strong · top 2% 2
Temperature coefficient -0.260 -0.260 Typical 515
Weight per kWp 41.5 49.8 Strong · top 3% 182
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

8 positive · 1 caution
Best for

Commercial, utility-scale and hot-climate.

Strengths
25.20% module efficiency

Top 1% of the Back Contact 650-700 W segment, against a median of 24.40%. Ranked 1st in the whole database.

251.6 watts per square metre

Top 2% of the Back Contact 650-700 W segment, against a median of 244.3. Ranked 2nd in the whole database.

41.5 kg per kWp

Top 3% of the Back Contact 650-700 W segment, against a median of 49.8. Ranked 182nd in the whole database.

What owners get
Highest efficiency compared to other similar companies

The module's efficiency ranges from 24.2-25.2%, while the direct equivalents in the same power range (625-650 Wp) achieve: BYD AURO N 23.25%, Astronergy ASTRO N5 23.3%, Jinko Tiger Neo 24.06%. This difference of 1.1-2.0% translates into a significantly higher energy yield per square meter of roof area.

ABC Technology - Low Temperature Coefficient

The All Back Contact architecture eliminates shading of front electrodes and ensures a Pmax temperature coefficient of -0.26%/°C - better than typical TOPCon modules (-0.29 to -0.30%/°C). During peak summer sunlight (when the module reaches 65°C), the difference in energy production is realistically around 1.5% more than a typical TOPCon module.

Free degradation - ≥88.85% after 30 years

The datasheet guarantees ≤1% degradation per year from year 1, and ≤0.35%/year from year 2 to year 30, resulting in ≥88.85% retention after a full lifespan. For comparison: TOPCon modules of the same generation retain approximately 87.4% after 30 years, while standard PERC modules retain approximately 84.8% after 25 years - this represents approximately 1.5% higher cumulative energy yield over 30 years.

BNEF Tier 1 - bankability confirmed for Q1 2026

AIKO is listed on BloombergNEF's Tier 1 PV Module Manufacturers (Q1 2026 update), meeting the requirement of supplying modules to at least 6 >10 MW projects funded by independent commercial banks within 24 months. This makes it easier for investors in commercial and industrial (C&I) projects to secure financing and obtain insurance coverage.

30-year power guarantee with a high retention rate.

The linear warranty covers 30 years with a guaranteed minimum power output of ≥88.85% - assuming a 650 Wp system, this translates to ≥577.5 Wp at the end of the warranty period. The product warranty is 15 years, which is the standard for premium products in this power range.

Trade-offs
IEC Class C fire extinguisher (not Class A)

The manufacturer's official datasheet indicates IEC 61730 Class C fire resistance. For installations in buildings requiring a higher fire resistance rating (e.g., public buildings with specific local or insurance requirements for Class A), this may constitute a formal limitation and require consultation with a designer or insurer.

Notes from the database
  • 25.2% module efficiency - 0.8pp better than the Back Contact 650-700W median of 24.4%
  • Power density of 251.6 W/m² packs 7.3 W/m² more into the same footprint vs Back Contact 650-700W median (244.3 W/m²)
  • At -0.26%/°C, hot weather performance is typical for Back Contact 650-700W panels
  • 27.0 kg weight - 5.8 kg lighter than Back Contact 650-700W median (32.8 kg), reducing installation effort
  • Ranked #1 out of 14129 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 650 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 25.20 % Strong Segment median 24.40%
Vmpp · Impp 45.68 V · 14.23 A Operating point at max power
Voc · Isc 54.99 V · 15.00 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 27.0 kg Strong Strong · 5.8 kg below median
Cells 144 · Back Contact Monocrystalline
Coefficient Pmax -0.260 %/°C Typical median -0.260 of its segment
Coefficient Voc · Isc -0.220 · 0.050 %/°C
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 88.8 % Equals 578 W guaranteed
Degradation 1.00 → 0.35 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by AIKO in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 650 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.260 %/°C against a segment median of -0.260
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
AIKO AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg You are here
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +30 W, heavier
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +25 W, heavier
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Very close match
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +50 W, heavier
WST-675BKX72-A2 675 W 25.00% -0.260 32.1 kg +25 W, heavier
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +45 W, heavier, -0.3 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +20 W, heavier, -0.4 pp
M530M-144 530 W 20.50% -0.360 29.0 kg -120 W, hotter, -4.7 pp
M535M-144 535 W 20.70% -0.360 29.0 kg -115 W, hotter, -4.5 pp
M540M-144 540 W 20.90% -0.360 29.0 kg -110 W, hotter, -4.3 pp
M545M-144 545 W 21.10% -0.360 29.0 kg -105 W, hotter, -4.1 pp
M550M-144 550 W 21.30% -0.360 29.0 kg -100 W, hotter, -3.9 pp
AIKO-A-600-MAH72Mw 600 W 23.20% -0.290 28.2 kg -50 W, hotter, -2.0 pp
AIKO-A-605-MAH72Mw 605 W 23.40% -0.290 28.2 kg -45 W, hotter, -1.8 pp
AIKO-A-610-MAH72Mw 610 W 23.60% -0.290 28.2 kg -40 W, hotter, -1.6 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg -10 W, -0.4 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the Comet 3N72e (Mono-glass Module 625W-650W) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the ABC technology used in AIKO Comet 3N72e panels, and why is it important?
ABC (All Back Contact) is a technology for n-type solar cells, in which all electrical contacts are located on the back of the cell. This allows the front surface of the panel to be fully active, without metallic strips that block light. In practice, the AIKO Comet 3N72e achieves an efficiency of up to 25.2%, which is one of the highest results available on the market for mono-glass modules.
What is the warranty on Aiko Comet 3N72e solar panels?
The manufacturer offers a 15-year product warranty for material and workmanship defects, as well as a 30-year linear warranty for power output. Degradation is no more than 1% in the first year and a maximum of 0.35% per year from the second year, which means that after 30 years, the panel should maintain at least 87.4% of its nominal power. These parameters are significantly better than those of standard PERC modules.
How does the AIKO Comet 3N72e perform in hot and high-temperature conditions?
The temperature coefficient of the Pmax power for PERC modules is as low as -0.26%/°C, while typical PERC modules lose approximately -0.35%/°C. This means that at 45°C, the temperature causes a power loss of approximately 5.2% instead of 8.75% in PERC. In practice, on the roofs of industrial halls and warehouses, where modules heat up significantly in the summer, this translates to a significantly higher daily energy yield.
Is the AIKO Comet 3N72e 650W solar panel suitable for the roof of an industrial building?
Yes, the 3N72e mono-glass series is designed for both pitched and flat commercial roofs. The module operates within a temperature range of -40°C to +85°C and has a maximum system voltage of 1500 V DC, allowing for the creation of longer strings with fewer chains. It is advisable to check the weight of the module and the roof structure's load-bearing capacity before installation, as specified in the datasheet.
Is the AIKO Comet 3N72e a bifacial module?
No, the Comet 3N72e model in the mono-glass version is a single-sided (monofacial) module. The glass is mounted only on the front, while the back is a durable backsheet. This means there is no additional production of light reflection from the substrate, but it also results in a lighter weight and simpler installation compared to the dual-glass bifacial versions offered by Aiko in other series.
Is the AIKO Comet 3N72e series still available for sale?
Yes, the AIKO Comet 3N72e (625W-650W) series is currently available and has not been discontinued. AIKO Solar is a Tier 1 manufacturer based in China, and modules from this series are regularly imported to Europe. When planning larger installations, it is advisable to confirm the availability of specific power ratings (e.g., 650W) with a distributor, as lead times for peak power ratings may be longer.
