680Wp
AIKO AIKO-A680-MDE72Mw
AIKO Review

AIKO-A680-MDE72Mw

Monocrystalline
25.20%
Efficiency
251.7 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
604W from 680W
Power after 30 years
  • 25.2% module efficiency - 0.8pp better than the Back Contact 650-700W median of 24.4%
  • Power density of 251.7 W/m² packs 7.9 W/m² more into the same footprint vs Back Contact 650-700W median (243.8 W/m²)
  • Temperature coefficient of -0.26%/°C matches the Back Contact 650-700W median
  • 29.0 kg weight - 4.0 kg lighter than Back Contact 650-700W median (33.0 kg), reducing installation effort
  • In the top 0% for efficiency among all Back Contact panels
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Comet 3N72 Mono-glass Module (AIKO-A-MDE72Mw) 6 variants
Efficiency Range 24.2% - 25.2%
Avg. Efficiency 24.70%
Technology Back Contact
Dimensions 2382 × 1134 mm
Show series description

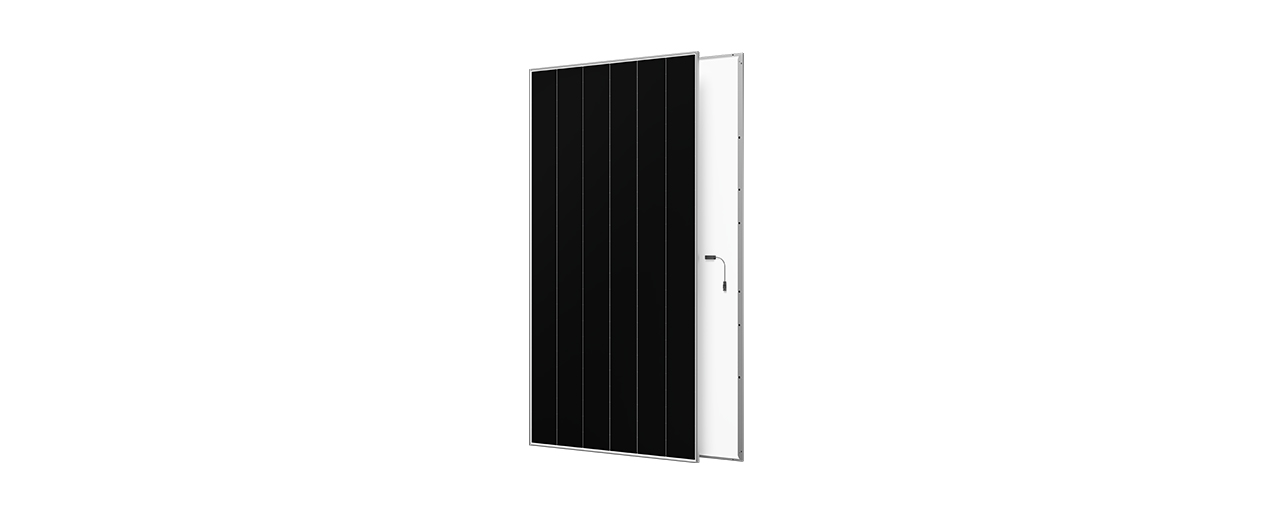

The AIKO Comet 3N72 Mono-glass (AIKO-A-MDE72Mw) was developed with the goal of maximizing yield from every square meter, especially in installations where space is limited and power requirements are high. Its advantages begin with the architecture of back-contact (XBC/ABC) cells, where the active surface operates without front-side shading elements, translating into better light utilization and high aesthetics.

In practice, the Comet 3N72 helps reduce losses on hot days thanks to its favorable behavior at high temperatures, and supports stable energy production under challenging operating conditions. The mono-glass construction is designed for safety and durability during operation – crucial for large modules installed on warehouse roofs and ground structures.

This is an excellent choice for commercial and industrial installations as well as PV farms, where low BOS costs and a fast return on investment matter. Compared to many competitive modules, the series stands out through the combination of back-contact technology, refined reliability, and long manufacturer warranties.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)680 Wp
Module Efficiency25.20%
Voltage at Max Power (Vmpp)45.70 V
Current at Max Power (Impp)14.88 A
Open Circuit Voltage (Voc)55.00 V
Short Circuit Current (Isc)15.48 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.220%/°C
Temp. Coeff. Isc0.050%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count144
BifacialNo
Bifaciality Factor-
Dimensions & Weight
Length2382 mm
Width1134 mm
Height30 mm
Weight29.0 kg
Area2.70 m²
Power Density251.7 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
25.20%
Efficiency
680 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
