Talesun TM9G72M-605W
Talesun Brand review

TM9G72M-605W

605 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 3,733 of 14,005
Compare panels Datasheet PDF
Power (Wp)
605
Weak · bottom 15%
Efficiency (%)
22.40
Weak · bottom 23%
Density (Wp/m²)
224.0
Weak · bottom 23%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
33.8
Weak · 1.1 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Talesun TM9G72M (Bipro) 600-620W series was designed to maximize energy yield where every square meter counts, ensuring reliable performance even in challenging conditions. Its key advantage is the bifacial construction, which harnesses reflected light from the ground, significantly boosting energy production in ground-mounted installations, on light-colored roofs, and in gravel or concrete surroundings. The applied TOPCon N-type cell technology supports high efficiency and good resistance to common degradation mechanisms, ensuring the module maintains predictable performance for years.

Equally noteworthy is the half-cut technology with dense busbar layout (16BB), which improves performance under partial shading and lower irradiance - crucial for Polish conditions. This is complemented by enhanced PID resistance and solutions that increase durability in humid, windy, and dusty environments. This is an excellent choice for PV farms, large industrial rooftops, and projects where the goal is to achieve low energy costs over the entire lifetime.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.40% 22.80% Weak · bottom 23% 4,774
Power density 224.0 227.7 Weak · bottom 23% 4,780
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 55.9 53.1 Weak · bottom 7% 10,239
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Weight-limited structures, tight roof space and roofs where every square metre has to count.

Watch-outs
55.9 kg per kWp

Bottom 7% of the TOPCon 600-650 W segment, against a median of 53.1. Ranked 10,239th in the whole database.

22.40% module efficiency

Bottom 23% of the TOPCon 600-650 W segment, against a median of 22.80%.

224.0 watts per square metre

Bottom 23% of the TOPCon 600-650 W segment, against a median of 227.7.

Notes from the database
  • At 22.4% efficiency, this panel is on par with typical TOPCon 600-650W modules
  • Power density of 224.0 W/m² is 3.7 W/m² below TOPCon 600-650W median (227.7 W/m²) - needs more roof space
  • Temperature coefficient of -0.29%/°C matches the TOPCon 600-650W median
  • At 33.8 kg, this panel is 1.1 kg heavier than the TOPCon 600-650W median (32.7 kg) - more demanding for installation crews
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 605 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.40 % Weak Segment median 22.80%
Vmpp · Impp 43.37 V · 13.95 A Operating point at max power
Voc · Isc 51.60 V · 14.71 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×30 mm · 2.70 m² of roof
Weight 33.8 kg Weak Weak · 1.1 kg above median
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.240 · 0.043 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 529 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Talesun in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 605 Wp appear here. The rest cover the whole series.

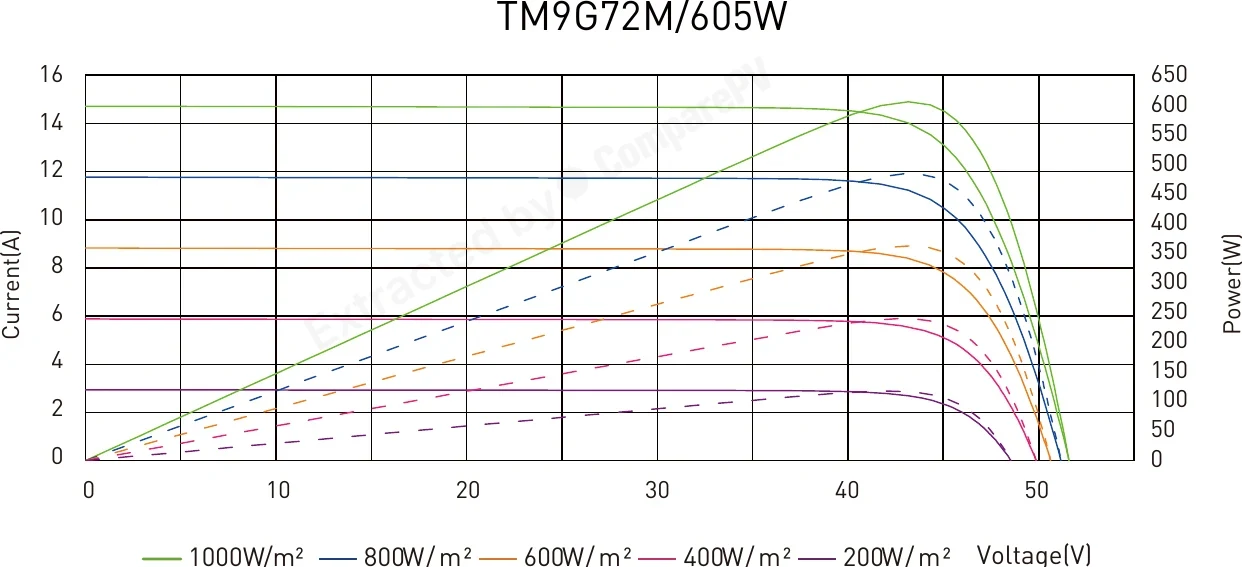

Linear Performance Warranty (12/30-Year Guarantee) Linear Performance Warranty (12/30-Year Guarantee) Whole series Current-Voltage / Power-Voltage Curves at Various Irradiance Levels (TM9G72M/605W) Current-Voltage / Power-Voltage Curves at Various Irradiance Levels (TM9G72M/605W) 605 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Talesun TM9G72M-605W 605 W 22.40% -0.290 33.8 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +45 W, lighter, +2.8 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +40 W, lighter, +2.6 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -45 W, lighter, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +35 W, lighter, +2.4 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -50 W, lighter, +2.2 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +30 W, lighter, +2.2 pp
TM3G66M-600 600 W 22.20% -0.290 33.7 kg Very close match
TM9G72M-610W 610 W 22.60% -0.290 33.8 kg +0.2 pp
TM9G72M-615W 615 W 22.80% -0.290 33.8 kg +10 W, +0.4 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +75 W, lighter, +2.8 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +70 W, lighter, +2.6 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +95 W, cooler, +2.6 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +90 W, cooler, +2.5 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +65 W, lighter, +2.4 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +65 W, lighter, +2.4 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +65 W, cooler, +2.4 pp

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are the bifacial Talesun TM9G72M panels suitable for ground-mount installations and light-colored roofs?
Yes, this is one of the series' main use cases. The bifacial construction captures light reflected from the ground, so on ground-mount solar farms, roofs covered with light membranes, or surfaces surrounded by gravel or concrete, the additional energy yield can reach several to over a dozen percent compared to a monofacial module. The lighter and more reflective the surface, the higher the gain from the rear side of the panel.
What warranty comes with Talesun TM9G72M modules?
The manufacturer provides a 12-year product warranty covering material and workmanship defects, plus a 30-year power output warranty, which is standard for modern TOPCon panels. This guarantees a minimum energy production level over three decades, with a gradual, predictable efficiency decline. It's a key factor when calculating investment payback over a 25-30 year horizon.
How does the TOPCon technology in the Talesun TM9G72M differ from older PERC cells?
N-type TOPCon cells have higher base efficiency and lower first-year power degradation than conventional P-type PERC cells. An extra passivation layer reduces electron recombination, improving performance at higher temperatures and slowing long-term degradation. In practice, this means a higher energy yield from the same roof area over the module's entire lifespan.
Do Talesun TM9G72M panels perform well under partial shading, for example from a chimney or antenna?
Yes, thanks to half-cut cell technology and dense 16-busbar routing, the module is electrically divided into smaller sections, so shading on one part has a smaller impact on the whole string's output. This reduces power losses from spot shading and improves production on overcast days, which matters especially under Central European sunlight conditions.
What are the dimensions and weight of the Talesun TM9G72M 620W panel?
The 620W module measures approximately 2382 x 1134 x 30 mm and weighs about 33.8 kg. It's a large, heavy 144-cell panel intended mainly for ground-mount installations and large industrial roofs, where the mounting structure needs to be properly sized for its dimensions and mass.
Is Talesun a reliable manufacturer choice for a large-scale PV installation?
Talesun is a Tier 1 manufacturer headquartered in China, offering financial stability, extensive manufacturing experience, and reliable warranty backing even for large-scale projects. Combined with TOPCon technology, bifacial construction, and enhanced PID resistance, the TM9G72M series is a solid choice for solar farms and large industrial roofs where lowest lifetime energy cost is the priority.
