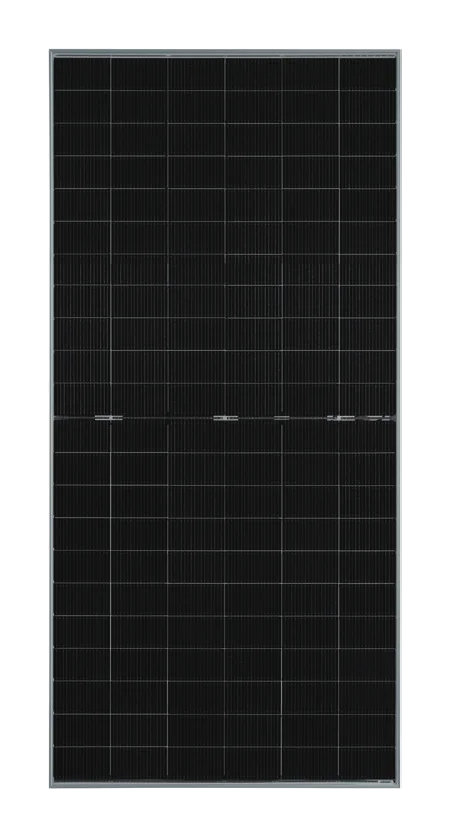

Runergy HY-DH132N11-625

Runergy HY-DH132N11-625

625 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 2,501 of 14,354
Compare panels Datasheet PDF
Power (Wp)
625
Typical for its class
Efficiency (%)
23.10
Typical · median 22.77%
Density (Wp/m²)
231.4
Typical · median 227.7
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
41.0
Weak · 8.2 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The HY-DH132N11 Pro Turbo series from Runergy is engineered for utility-scale solar farms and large commercial installations, where every extra kilowatt-hour of yield matters. The panel is built on N-Type cells using the 210R technology platform in a half-cut cell layout, delivering higher production stability and reduced losses under partial shading. The bifacial dual-glass design allows the module to capture additional energy reflected off the ground on its rear side, boosting overall system output and lowering the levelized cost of energy (LCOE). The series stands out with its low temperature coefficient and improved low-light performance, maintaining high efficiency even in more demanding climate conditions. Another advantage is its enhanced hail resistance, thanks to thickened, fully tempered front glass, making the module a solid choice for sites exposed to extreme weather events. Strict manufacturing quality control combined with low annual degradation make this panel a recommended option for both utility-scale PV investors and EPC companies seeking a solution that pairs high unit power with long-term reliability and a predictable return on investment.

Ranking

378 panels in the segment N-type 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.10% 22.77% Typical 1,690
Power density 231.4 227.7 Typical 1,630
Temperature coefficient -0.290 -0.290 Typical 2,288
Weight per kWp 65.6 52.8 Weak · bottom 1% 13,418
Performance warranty 30 yrs 30 yrs Typical 31
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Best for

Utility-scale, commercial, hot-climate and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
65.6 kg per kWp

Bottom 1% of the N-type 600-650 W segment, against a median of 52.8. Ranked 13,418th in the whole database.

What owners get
Highest efficiency in the segment (24.1%)

The 650 Wp variant reaches up to 24.1% efficiency, outperforming Jinko Tiger Neo (24.06%), Astronergy ASTRO N5 (23.3%), and BYD AURO N (23.25%) at the same 650 Wp power class. This translates into a real advantage in power density per m² for utility-scale PV farms where land area is constrained.

N-type 210R platform with half-cut cell layout

N-type cells built on the 210R platform in a half-cut configuration deliver lower LID/LeTID degradation and reduced partial-shading losses compared to older PERC designs, resulting in higher annual energy yield in commercial installations.

Bifacial dual-glass construction

The module uses the bifacial effect to capture additional ground-reflected irradiance on the rear side. In typical ground-mount conditions (20-30% albedo) this can boost total energy yield by several to low-double-digit percentage points, lowering project LCOE.

30-year linear power warranty

The manufacturer offers a 30-year power warranty, matching the current standard for latest-generation N-type modules from Tier-1 manufacturers (e.g., Jinko Tiger Neo) and clearly exceeding the 25-year terms typical of older PERC lines.

Enhanced hail resistance

Thickened, fully tempered front glass increases the module's mechanical resistance to hail impact, a key advantage for PV farms sited in regions prone to extreme weather events (e.g., hailstorms in Central Europe).

Trade-offs
12-year product warranty below market trend

The product warranty stands at 12 years, while an increasing number of Tier-1 N-type manufacturers (e.g., Jinko, Trina, LONGi) are moving to a 15-year standard alongside the same 30-year power warranty. This can be a counterargument for investors comparing total service-risk cost.

Limited public documentation for the 650 Wp variant

Publicly available distributor datasheets for the HY-DH132N11 Pro/Pro Turbo series most commonly show 600-630 Wp variants; a widely available, independently verifiable datasheet for the top 650 Wp variant was not found in search, which could complicate quick parameter verification by EPCs before contract signing.

Notes from the database
  • Efficiency of 23.1% matches the N-type 600-650W median
  • Power density of 231.4 W/m² packs 3.7 W/m² more into the same footprint vs N-type 600-650W median (227.7 W/m²)
  • At -0.29%/°C, hot weather performance is typical for N-type 600-650W panels
  • Weight of 41.0 kg is 8.2 kg above N-type 600-650W median (32.8 kg) - verify structural support
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 625 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.10 % Typical Segment median 22.77%
Vmpp · Impp 41.62 V · 15.02 A Operating point at max power
Voc · Isc 49.11 V · 15.93 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×35 mm · 2.70 m² of roof
Weight 41.0 kg Weak Weak · 8.2 kg above median
Cells 132 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 546 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH132N11-625 625 W 23.10% -0.290 41.0 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg Cooler, lighter, +2.1 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +50 W, lighter, +1.9 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, lighter, +1.9 pp
WST-675BKX72-A2 675 W 25.00% -0.260 32.1 kg +50 W, lighter, +1.9 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +45 W, lighter, +1.7 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +45 W, lighter, +1.7 pp
HY-DH132N11-600 600 W 22.20% -0.290 41.0 kg -25 W, -0.9 pp
HY-DH132N11-605 605 W 22.40% -0.290 41.0 kg -20 W, -0.7 pp
HY-DH132N11-610 610 W 22.60% -0.290 41.0 kg -15 W, -0.5 pp
HY-DH132N11-615 615 W 22.80% -0.290 41.0 kg -10 W, -0.3 pp
HY-DH132N11-620 620 W 23.00% -0.290 41.0 kg Very close match
HY-DH132N11-630 630 W 23.30% -0.290 41.0 kg Very close match
HY-DH132N11-635 635 W 23.50% -0.290 41.0 kg +10 W, +0.4 pp
HY-DH132N11-640 640 W 23.70% -0.290 41.0 kg +15 W, +0.6 pp
HY-DH132N11-645 645 W 23.90% -0.290 41.0 kg +20 W, +0.8 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +55 W, lighter, +2.1 pp

Found 1161 panels of the same or similar size to this one, within ±10 mm. See them here Found 1167 panels of the same or similar size to this one, within ±25 mm. See them here Found 1278 panels of the same or similar size to this one, within ±50 mm. See them here Found 1970 panels of the same or similar size to this one, within ±100 mm. See them here

About the HY-DH132N11 Pro Turbo series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

How do the N-Type 210R cells in the Runergy HY-DH132N11 Pro Turbo series differ from standard P-Type cells?
N-Type cells offer lower annual degradation and are free from LID (light-induced degradation), a common issue with older P-Type cells. The 210R platform combined with a half-cut cell layout further improves production stability and reduces power loss under partial shading, resulting in higher and more predictable energy yield over the module's lifetime.
Does the bifacial design of the Runergy HY-DH132N11 Pro Turbo panels actually increase energy output?
Yes, thanks to its dual-glass construction the module captures additional light reflected from the ground on its rear side. The actual gain depends on the albedo of the surface beneath the installation (e.g., light gravel, white roofing membrane) and mounting height, but in typical utility-scale installations it can add several to over ten percent more energy compared to a monofacial module of the same nominal power.
What warranty comes with Runergy HY-DH132N11 Pro Turbo panels?
The manufacturer provides a 12-year product warranty and a 30-year power performance warranty. This covers both material and workmanship defects as well as protection against power output dropping below the guaranteed level over the long term, which is important when calculating ROI for PV farm and commercial installation projects.
Are Runergy HY-DH132N11 Pro Turbo modules suitable for hail-prone locations?
Yes, the series uses thickened, fully tempered front glass with enhanced mechanical resistance, improving impact resistance against hail compared to standard modules. This is a key advantage for utility-scale installations in regions with volatile climate conditions and a higher risk of mechanical damage.
How does the 650 Wp power rating of the HY-DH132N11 Pro Turbo affect the number of modules needed for a PV farm?
A maximum power of 650 Wp is among the higher unit power values on the market, meaning fewer modules are needed to reach a target system capacity. This reduces costs for mounting structures, cabling, and installation labor, while also shortening installation time on large-scale solar farms.
Is Runergy a Tier 1 manufacturer, and what does that mean for investors?
Yes, Runergy holds Tier 1 manufacturer status, indicating financial stability, significant production capacity, and inclusion in leading module bankability rankings. For investors, this translates to lower project financing risk, easier access to bank funding, and greater assurance that the manufacturer will remain operational throughout the full warranty period.
