Runergy Brand review

HY-DH132N11-615

615 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 3,024 of 14,005
Compare panels Datasheet PDF
Power (Wp)
615
Typical for its class
Efficiency (%)
22.80
Typical · median 22.77%
Density (Wp/m²)
227.7
Typical · median 227.7
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
41.0
Weak · 8.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The HY-DH132N11 Pro series represents Runergy's flagship modules, engineered for utility-scale ground-mount projects and large industrial or commercial installations. At their core are N-type TOPCon cells in a half-cut architecture, arranged in a 132-cell configuration that reduces resistive losses and delivers more stable performance under partial shading. The panel features bifacial technology in a dual-glass construction, allowing it to harvest additional energy from the rear side through light reflected off the ground or mounting surface. This meaningfully boosts total energy yield from the same rooftop or land footprint, driving down the levelized cost of energy (LCOE) over the full lifetime of the system. The Pro series also stands out for its low temperature coefficient, meaning less performance loss during hot weather, along with a rugged build designed to withstand mechanical loads and the variable climate conditions typical of Poland. This makes it a strong fit for solar farm investors, industrial project developers, and owners of large warehouse rooftops seeking high power density and predictable returns over decades of operation.

Ranking

359 panels in the segment N-type 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.80% 22.77% Typical 2,714
Power density 227.7 227.7 Typical 3,077
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 66.7 52.7 Weak · bottom 1% 13,180
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Utility-scale, commercial and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
66.7 kg per kWp

Bottom 1% of the N-type 600-650 W segment, against a median of 52.7. Ranked 13,180th in the whole database.

Notes from the database
  • At 22.8% efficiency, this panel is on par with typical N-type 600-650W modules
  • Power density of 227.7 W/m² matches the N-type 600-650W median
  • At -0.29%/°C, hot weather performance is typical for N-type 600-650W panels
  • Weight of 41.0 kg is 8.5 kg above N-type 600-650W median (32.5 kg) - verify structural support
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 615 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.80 % Typical Segment median 22.77%
Vmpp · Impp 41.06 V · 14.98 A Operating point at max power
Voc · Isc 48.71 V · 15.87 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×35 mm · 2.70 m² of roof
Weight 41.0 kg Weak Weak · 8.5 kg above median
Cells 132 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 538 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 615 Wp appear here. The rest cover the whole series.

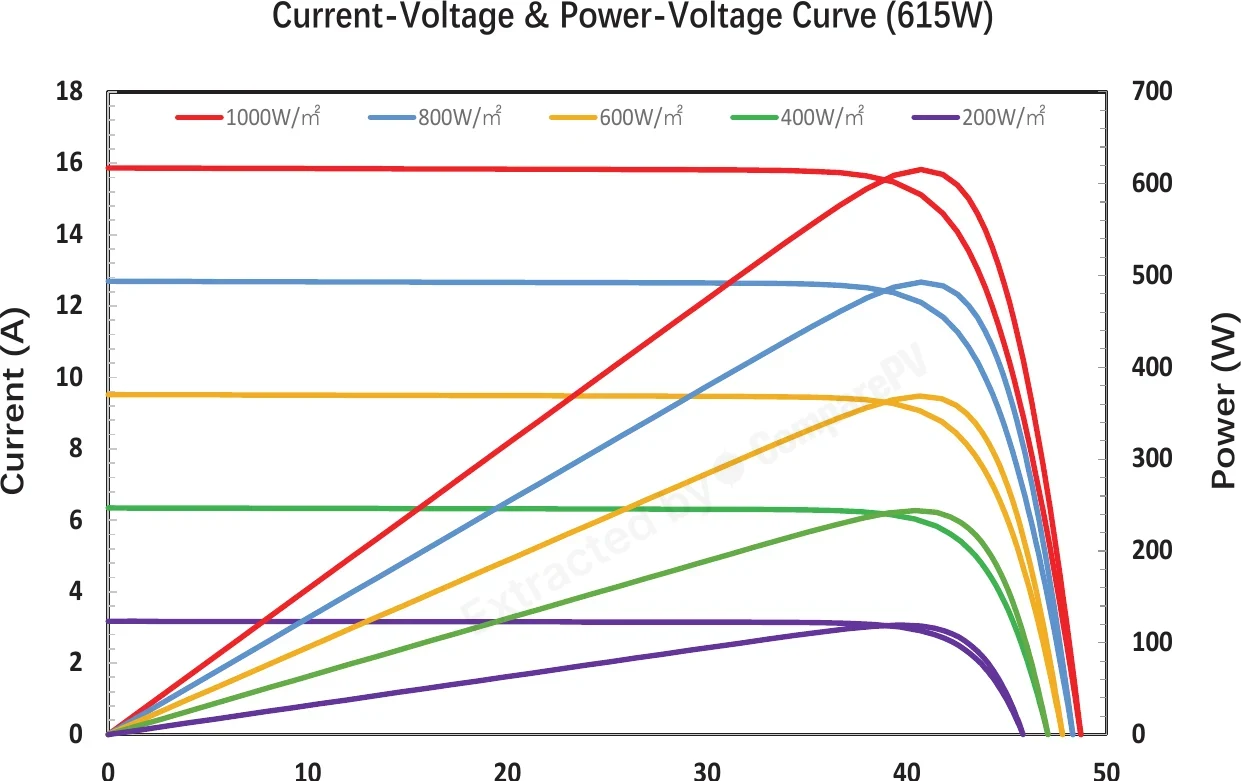

Current-Voltage & Power-Voltage Curve (615W) Current-Voltage & Power-Voltage Curve (615W) 615 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH132N11-615 615 W 22.80% -0.290 41.0 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +35 W, lighter, +2.4 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +30 W, lighter, +2.2 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +2.0 pp
LR8-66HVD-665M 665 W 24.62% -0.260 33.5 kg +50 W, lighter, +1.8 pp
JKM650-670N-66QL6-BDV (665W class) 665 W 24.62% -0.260 32.5 kg +50 W, lighter, +1.8 pp
HY665-B144DSS 665 W 24.62% -0.260 27.6 kg +50 W, lighter, +1.8 pp
SPDG665-BC132R12 665 W 24.62% -0.260 33.5 kg +50 W, lighter, +1.8 pp
HY-DH132N11-600 600 W 22.20% -0.290 41.0 kg -15 W, -0.6 pp
HY-DH132N11-605 605 W 22.40% -0.290 41.0 kg -10 W, -0.4 pp
HY-DH132N11-610 610 W 22.60% -0.290 41.0 kg Very close match
HY-DH132N11-620 620 W 23.00% -0.290 41.0 kg Very close match
HY-DH132N11-625 625 W 23.10% -0.290 41.0 kg +10 W, +0.3 pp
HY-DH132N11-630 630 W 23.30% -0.290 41.0 kg +15 W, +0.5 pp
HY-DH132N11-635 635 W 23.50% -0.290 41.0 kg +20 W, +0.7 pp
HY-DH132N11-640 640 W 23.70% -0.290 41.0 kg +25 W, +0.9 pp
HY-DH132N11-645 645 W 23.90% -0.290 41.0 kg +30 W, +1.1 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +65 W, lighter, +2.4 pp

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of Runergy HY-DH132N11 Pro panels and which installations are they suited for?
The HY-DH132N11 Pro series reaches up to 615 Wp, delivering very high power density per square meter. This makes it particularly well suited for large ground-mounted installations, solar farms, and expansive warehouse or industrial roofs, where maximizing energy yield from limited surface area is the priority.
What is bifacial dual-glass technology in Runergy Pro panels, and does it really increase energy output?
Bifacial dual-glass technology means the module has glass on both sides, allowing the cells to capture sunlight not only from the front but also reflected light from the ground on the rear side. In practice, with a light-colored surface or ground-mounted setup, this can boost total energy production by several to over a dozen percent compared to a monofacial panel, lowering the LCOE over the system's lifetime.
How do N-type TOPCon cells in the Runergy HY-DH132N11 Pro differ from standard P-type cells?
N-type TOPCon cells offer higher efficiency and lower resistive losses than traditional P-type PERC cells, while also showing better resistance to light-induced degradation (LID) and potential-induced degradation (PID). This series uses them in a half-cut architecture with a 132-cell configuration, improving module performance under partial shading and increasing long-term stability.
What warranty comes with Runergy HY-DH132N11 Pro panels and what does it cover?
The manufacturer provides a 12-year product warranty covering material and workmanship defects, along with a 30-year linear power output warranty. This means that after 30 years of operation, the panel should still deliver a guaranteed percentage of its initial rated power, a key factor when calculating long-term ROI for large industrial or utility-scale projects.
Do Runergy HY-DH132N11 Pro panels perform well in high summer temperatures?
Yes, the Pro series features a low temperature coefficient, meaning it loses less power output during hot weather compared to older P-type technology. This is especially important for large ground-mounted installations, where panels are exposed to intense heat throughout the day, and stable summer performance directly affects the system's annual energy yield.
Is Runergy a Tier 1 manufacturer, and can it be trusted for a large-scale investment?
Yes, Runergy is listed as a Tier 1 manufacturer, reflecting long-term financial stability, proven large-scale production, and backing from established banking institutions. Headquartered in China, the company is a significant global supplier of PV modules, which supports the credibility of its long-term warranty and service availability for large commercial and industrial projects.
