Jinko Solar JKM650-670N-66QL6-BDV-F2-EU (665W)
Jinko Solar Review

JKM650-670N-66QL6-BDV-F2-EU (665W)

MonocrystallineBifacial
Datasheet
24.62%
Efficiency
246.2 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
591W from 665W
Power after 30 years
Smart Insights (data-driven)
  • At 24.6% efficiency, this panel is 2.2pp above typical TOPCon 650-700W modules (median: 22.4%)
  • At 246.2 W/m² power density, this panel generates 22.5 W/m² more per unit area than TOPCon 650-700W median (223.7 W/m²)
  • -0.26%/°C temperature coefficient (median: -0.29%/°C) - retains ~1% more power at high temperatures
  • At 32.5 kg, this panel is 2.4 kg lighter than TOPCon 650-700W median (34.9 kg) - easier handling during installation
  • 85% bifaciality enables rear-side power generation, boosting yield by 4-13% on reflective surfaces
Performance Profile
Price Offers 0
Shop Country Price Price/kWp

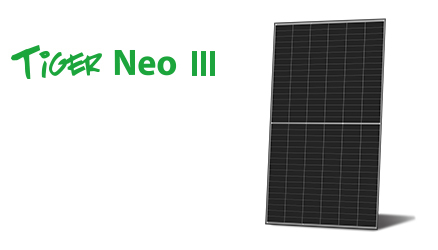

Series Tiger Neo III 66QL6-BDV 10 variants
Efficiency Range 24.1% - 24.8%
Avg. Efficiency 24.43%
Technology TOPCon
Dimensions 2382 × 1134 mm
Show series description

Jinko Solar’s Tiger Neo III 66QL6-BDV series are bifacial modules with a dual glass construction, designed to genuinely increase energy yield without complicating the installation project. The application of N-type TOPCon cells translates into excellent performance under challenging conditions – during low light, early morning and evening hours, and overcast skies, where many standard modules lose efficiency. Another distinguishing feature is high bifaciality: the rear side effectively uses reflected light, which is significant on light-colored grounds, membrane-covered roofs, gravel, or elevated structure installations.

This series is tailored for investors who focus on LCOE and aim to “extract more” from the same surface area – from ground-mounted farms and floating projects to large commercial and industrial (C&I) rooftops. In practice, it helps reduce BOS costs, as the high power per module means fewer units, fewer connections, and faster installation. It stands out from the competition by combining efficiency with a focus on stable, long-term yield and structural durability.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)665 Wp
Module Efficiency24.62%
Voltage at Max Power (Vmpp)42.96 V
Current at Max Power (Impp)15.48 A
Open Circuit Voltage (Voc)50.80 V
Short Circuit Current (Isc)16.16 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.240%/°C
Temp. Coeff. Isc0.046%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count264
BifacialYes
Bifaciality Factor85%
Dimensions & Weight
Length2382 mm
Width1134 mm
Height30 mm
Weight32.5 kg
Area2.70 m²
Power Density246.2 Wp/m²
Warranty
Product Warranty12 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
24.62%
Efficiency
665 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
