Middle of its segment, weak in heat
The HT-SAAE HT66-18X(ND)-F series solar panel is designed for installations prioritizing long-term high energy production, even in challenging environmental conditions. Utilizing N-type TOPCon cells reduces susceptibility to light-induced degradation, helping maintain stable module performance over an extended lifespan. The double glass (dwuszybowa) construction enhances weather resistance and minimizes risks associated with microcracks, which is crucial for large rooftop and ground installations. Thanks to half-cut technology, the panel performs better under partial shading and minimizes internal losses, while efficiently dissipating heat, supporting operational safety. An additional advantage is bifacial operation, enabling the use of reflected light from the ground where conditions permit. This makes it an excellent choice for utility-scale PV farms and commercial/industrial projects where longevity and predictable energy yield are key.
Ranking
Signals from the data
Commercial, utility-scale and shaded-installations.
Hot climates.
Bottom 4% of the TOPCon 600-650 W segment, against a median of -0.290. Ranked 8,005th in the whole database.
The highest-efficiency variant in the series reaches 23% module efficiency, matching direct competitors (Weran Solar LR7-72HTH 23%, Astronergy ASTRO N7 23%). Lower-tier variants (22.2%) still rank within the top 15% of the 600+ Wp module market.
The rated value of -0.31%/°C (per HT-SAAE datasheet) is more favorable than typical PERC modules (-0.35%/°C), translating into measurably higher energy yield on heated rooftops and utility-scale PV plants during summer peak hours.
The manufacturer guarantees ≥87.4% of nominal power after 30 years, with annual degradation ≤0.45% from year 2 onward. The mainstream market standard (JA Solar, Trina) is 25 years at 84.8%; HT-SAAE extends this by 5 years while maintaining a higher end-of-life power floor.
The series earned a PV Top Performers distinction (2024) across all 7 performance categories: thermal cycling, damp heat, mechanical stress, hail stress, PID, LID+LETID, and PAN performance — validated by independent third-party testing, not solely manufacturer claims.
The module withstands dynamic loads of 5,400 Pa (front) and 2,400 Pa (rear), exceeding the IEC 61215 industry baseline of 4,000/2,400 Pa. This is particularly relevant for utility-scale PV sites in high snow- and wind-load zones, as well as tracker-mounted systems.
The full 30-year product warranty applies exclusively to rooftop installations. For ground-mounted systems — the primary target market for this series — the manufacturer limits product warranty coverage to 15 years. This means modules may fall outside product warranty protection at the midpoint of a typical utility-scale plant's operational life.
HT-SAAE warranty terms exclude installations located less than 500 m from the sea, restricting the series' applicability in coastal and island projects. Some competitors (e.g., Astronergy) offer dedicated marine-grade variants without this limitation.
- At 23.0% efficiency, this panel is on par with typical TOPCon 600-650W modules
- At 229.5 W/m² power density, roof space requirements are typical for TOPCon 600-650W panels
- At -0.31%/°C, loses 0.02pp more power per degree than TOPCon 600-650W median (-0.29%/°C)
- Bifacial design (73% factor) captures reflected light - adds 4-11% yield on ground-mount or white roof
- In the top 14% for efficiency among all TOPCon panels
Specifications

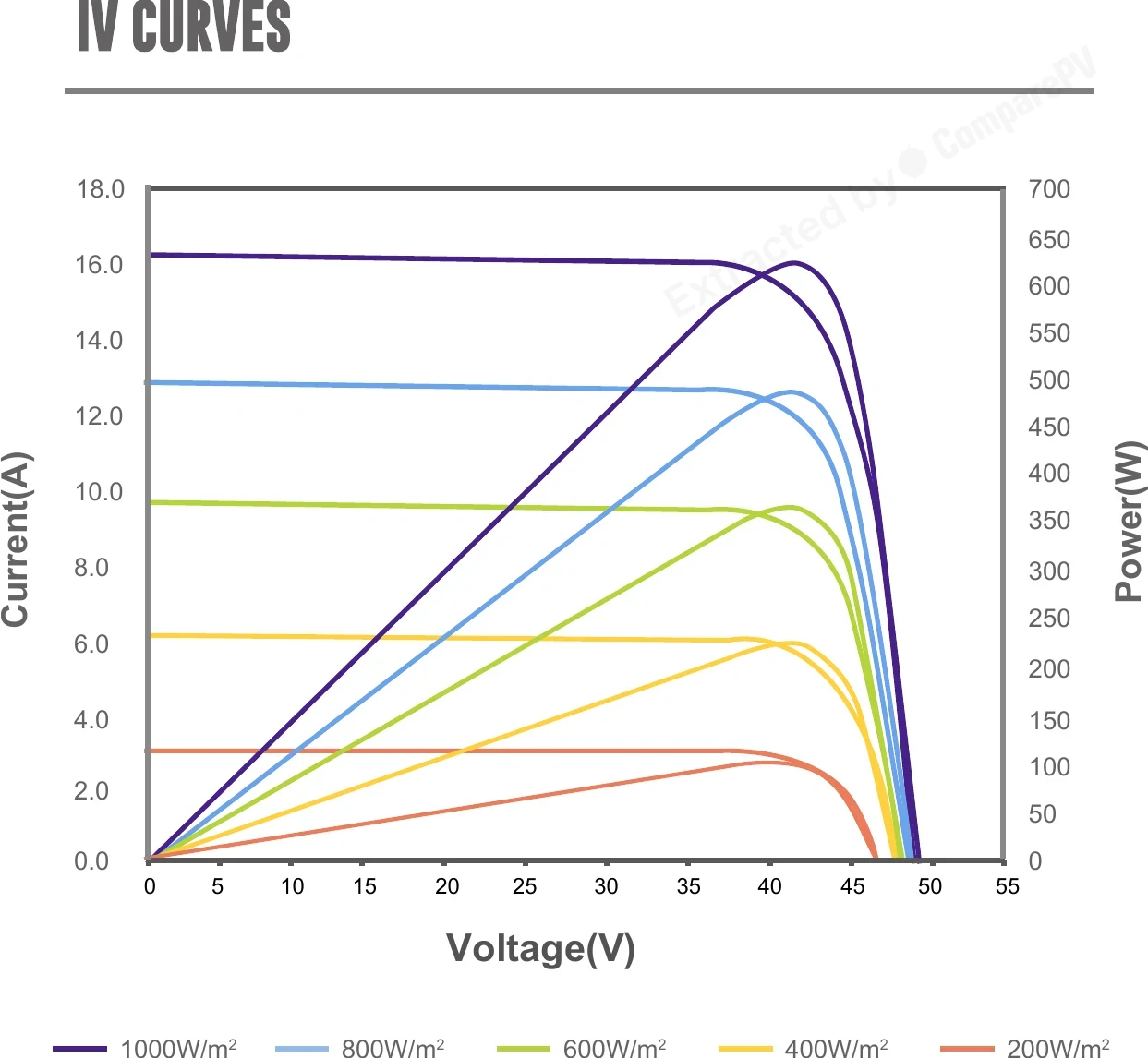

Datasheet charts
Measured curves published by HT-SAAE in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 620 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
