Vikram Solar HYPERSOL VSMDH.66.725.05
Vikram Solar Brand review

HYPERSOL VSMDH.66.725.05

725 Wp N-type Bifacial 80%
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 402 of 14,129
Compare panels Datasheet PDF
Power (Wp)
725
Strong · top 12%
Efficiency (%)
23.34
Strong · top 10%
Density (Wp/m²)
233.4
Strong · top 12%
Temp (%/°C)
-0.280
Strong · top 22%
Weight (kg)
37.5
Strong · top 22%
Warranty (yrs)
30
Typical · median 30 yrs

The Vikram Solar HYPERSOL VSMDH.66.AAA.05 (690-715) series are modules designed for maximum yield in projects where every meter of construction and every hour of installer work counts. The use of N-type cells minimizes typical operational losses and helps maintain stable performance over time, even under more demanding conditions. The bifacial design allows for a real increase in energy production by utilizing reflected light - particularly on roofs with light-colored surfaces and in ground-mounted farms with properly prepared substrates.

A key feature of this series is 0% negative power tolerance, which simplifies string design and reduces the risk of losses due to underestimating module parameters. The modules are designed with a focus on PID resistance and lower susceptibility to LID and LeTID effects, making them well-suited for commercial and large-scale installations, where predictability of production and energy costs are priorities. This is a good choice for C&I and utility investors who want to increase yield without complicating the project.

Ranking

93 panels in the segment N-type 700-750 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.34% 22.90% Strong · top 10% 981
Power density 233.4 228.6 Strong · top 12% 974
Temperature coefficient -0.280 -0.290 Strong · top 22% 1,347
Weight per kWp 51.7 53.4 Strong · top 22% 5,114
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 0 caution
Best for

Commercial, utility-scale and hot-climate.

Strengths
23.34% module efficiency

Top 10% of the N-type 700-750 W segment, against a median of 22.90%. Ranked 981st in the whole database.

233.4 watts per square metre

Top 12% of the N-type 700-750 W segment, against a median of 228.6.

-0.280 %/°C temperature coefficient

Top 22% of the N-type 700-750 W segment, against a median of -0.290.

Notes from the database
  • Efficiency of 23.3% matches the N-type 700-750W median
  • 233.4 W/m² power density - 4.8 W/m² more than N-type 700-750W median (228.6 W/m²), more power per roof area
  • Temperature coefficient of -0.28%/°C matches the N-type 700-750W median
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof
  • #981 for efficiency, #1347 for temperature performance out of 14129 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 725 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.34 % Strong Segment median 22.90%
Vmpp · Impp 41.40 V · 17.52 A Operating point at max power
Voc · Isc 49.60 V · 18.56 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×33 mm · 3.11 m² of roof
Weight 37.5 kg Strong Strong · top 22%
Cells 132 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.280 %/°C Strong top 22% of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 634 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Vikram Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 725 Wp appear here. The rest cover the whole series.

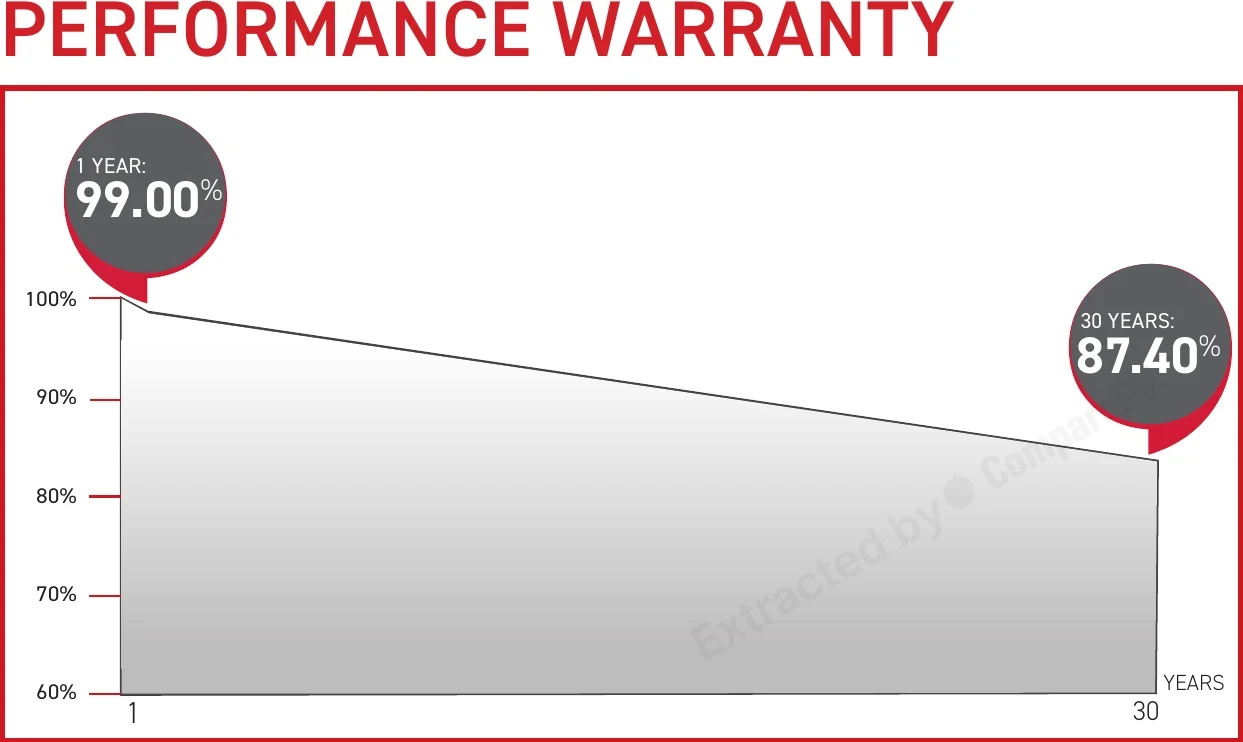

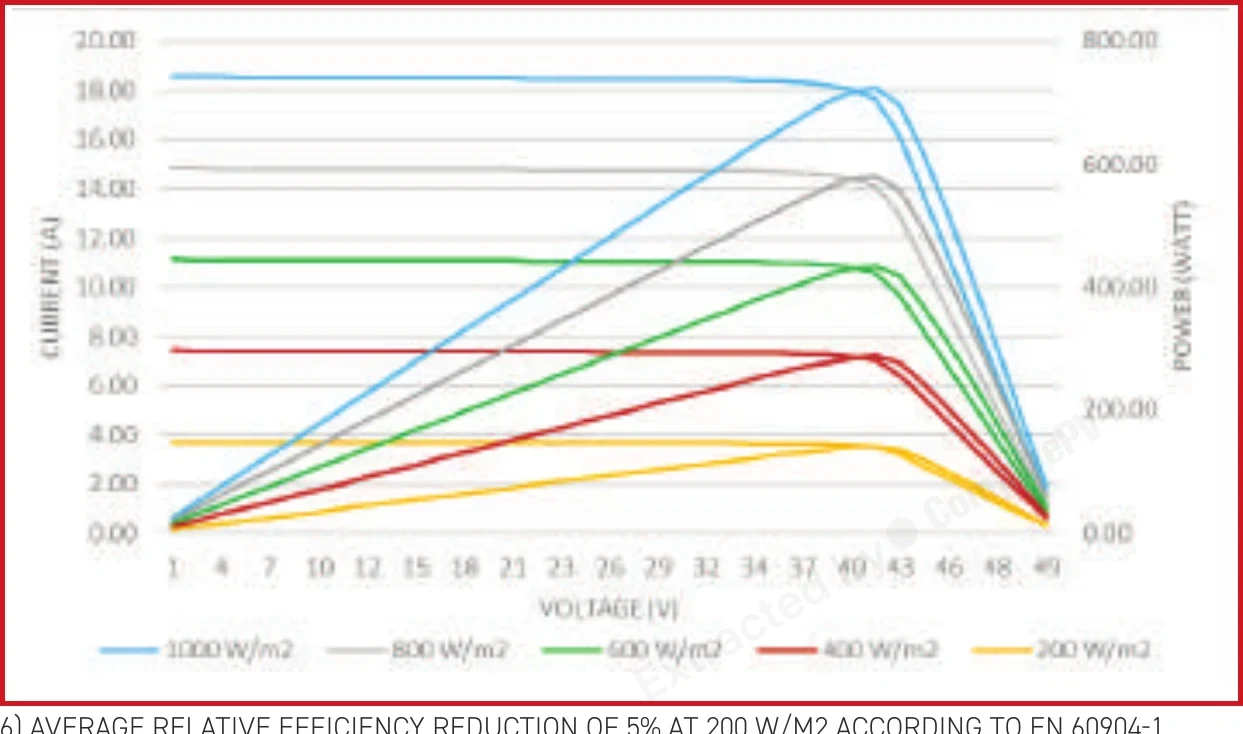

I-V Curves at Different Irradiance Levels I-V Curves at Different Irradiance Levels Whole series Performance Warranty Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.280 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Vikram Solar HYPERSOL VSMDH.66.725.05 725 W 23.34% -0.280 37.5 kg You are here
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg -45 W, lighter, +1.9 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg -50 W, lighter, +1.7 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg -25 W, lighter, +1.7 pp
WST-675BKX72-A2 675 W 25.00% -0.260 32.1 kg -50 W, lighter, +1.7 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg -30 W, lighter, +1.6 pp
AIKO-A690-MAE78Dw 690 W 24.70% -0.260 34.5 kg -35 W, lighter, +1.4 pp
AIKO-A685-MAE78Dw 685 W 24.50% -0.260 34.5 kg -40 W, lighter, +1.2 pp
TSM-NEG21C.20Q-760 760 W 24.50% -0.260 38.3 kg +35 W, cooler, +1.2 pp
AIKO-A680-MAH78Dw 680 W 24.30% -0.260 34.7 kg -45 W, lighter, +1.0 pp
PARADEA VSMDH.66.AAA.05-655 655 W 21.09% -0.350 39.5 kg -70 W, hotter, -2.2 pp
PARADEA VSMDH.66.AAA.05-660 660 W 21.25% -0.350 39.5 kg -65 W, hotter, -2.1 pp
PARADEA VSMDH.66.AAA.05-665 665 W 21.41% -0.350 39.5 kg -60 W, hotter, -1.9 pp
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +80 W, heavier, +1.8 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +75 W, heavier, +1.6 pp
AIKO-A795-GRH78Dw 795 W 24.80% -0.260 39.8 kg +70 W, heavier, +1.5 pp
AIKO-A790-GRH78Dw 790 W 24.60% -0.260 39.8 kg +65 W, heavier, +1.3 pp

Found 1393 panels of the same or similar size to this one, within ±10 mm. See them here Found 1403 panels of the same or similar size to this one, within ±25 mm. See them here Found 1403 panels of the same or similar size to this one, within ±50 mm. See them here Found 1435 panels of the same or similar size to this one, within ±100 mm. See them here

About the HYPERSOL VSMDH.66.AAA.05 (AAA = 690–715) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

Is the Vikram Solar HYPERSOL VSMDH.66.AAA.05 (690-715) series still available for purchase?
The HYPERSOL VSMDH.66.AAA.05 series has been discontinued from current production by Vikram Solar and replaced by newer variants within the Hypersol lineup. Availability is now limited to distributor stock clearance and remaining batches from earlier shipments. For new projects, check the manufacturer's current lineup or ask your supplier about remaining stock, as replacement models may have slightly different power ratings and dimensions.
How much extra energy does the bifacial design deliver on HYPERSOL VSMDH.66.AAA.05 panels?
These modules feature bifacial technology with bifaciality up to 80%, meaning the rear side generates as much as 80% of the front side's power under full illumination. In practice, with a high-albedo surface (white gravel, light-colored roofing) or elevated ground-mount installation, the realistic annual energy gain is typically 5-15%, depending on surrounding albedo and mounting height.
How do the N-type cells in HYPERSOL differ from standard P-type PERC cells?
The N-type cells used in this series have a lower power temperature coefficient (-0.3%/°C) than typical P-type cells, meaning smaller production losses on hot days. N-type technology is essentially immune to LID degradation and far less susceptible to LeTID, so the module retains higher efficiency throughout its service life compared to comparable P-type PERC panels.
What warranty comes with Vikram Solar HYPERSOL VSMDH.66.AAA.05 panels?
The manufacturer provides a 12-year product warranty covering material and workmanship defects, plus a 30-year linear power warranty guaranteeing at least 87.4% of initial output after 30 years. In the first year, output is guaranteed at 99% of nameplate power, a stronger term than the standard 97-98% offered by many competitors.
What does 0% negative power tolerance on HYPERSOL panels mean, and why does it matter?
Power tolerance defines how much a module's actual output can differ from its rated label value. With 0% negative tolerance, the manufacturer guarantees every unit meets or exceeds its rated power, never falling short. For system designers, this means confidence in actual string output without risk of underestimating energy production, which simplifies inverter sizing and ROI planning.
Are HYPERSOL VSMDH.66.AAA.05 panels suitable for large ground-mount and utility-scale solar farms?
Yes, given their high power output (up to 715 Wp), dimensions of roughly 2384x1303 mm, and weight of about 39.5 kg, this series is designed primarily for commercial and industrial (C&I) installations and ground-mounted solar farms. The bifacial design further boosts profitability in ground-mount projects with high-albedo surfaces, while PID resistance ensures stable operation across long series strings.
