Techwise Solar TW-615HT-02-615W
Techwise Solar Brand review

TW-615HT-02-615W

615 Wp TOPCon Bifacial
ComparePV verdict

Efficiency leader, weak in heat

Rank 1,630 of 14,005
Compare panels Datasheet PDF
Power (Wp)
615
Typical for its class
Efficiency (%)
23.80
Strong · top 3%
Density (Wp/m²)
227.7
Typical · median 227.7
Temp (%/°C)
-0.300
Weak · bottom 19%
Weight (kg)
32.5
Typical · median 32.7 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Techwise Solar Sun-Pursuit Pro Series is designed for installations where high energy yield is crucial, even under challenging operating conditions. These modules utilize the TOPCon technology, available in both standard and bifacial versions. This allows them to better utilize reflected light from the ground, resulting in real benefits for solar farms, carports, and large industrial rooftops. The use of a half-cut design helps minimize losses and improves the module's performance under partial shading. Additionally, the denser multi-busbar (16BB) connection system ensures stable operation and resistance to micro-cracks during operation. In practice, this series solves a common problem for projects with limited space - it allows for maximizing energy production from the same area. For investors focused on aesthetics, FULL BLACK versions are also available, particularly desirable for residential and premium rooftop installations.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.80% 22.80% Strong · top 3% 433
Power density 227.7 227.7 Typical 3,077
Temperature coefficient -0.300 -0.290 Weak · bottom 19% 6,093
Weight per kWp 52.8 53.1 Typical 6,546
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Hot climates.

Strengths
23.80% module efficiency

Top 3% of the TOPCon 600-650 W segment, against a median of 22.80%. Ranked 433rd in the whole database.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 19% of the TOPCon 600-650 W segment, against a median of -0.290.

Notes from the database
  • At 23.8% efficiency, this panel is 1.0pp above typical TOPCon 600-650W modules (median: 22.8%)
  • At 227.7 W/m² power density, roof space requirements are typical for TOPCon 600-650W panels
  • Temperature coefficient of -0.30%/°C matches the TOPCon 600-650W median
  • #433 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 615 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.80 % Strong Segment median 22.80%
Vmpp · Impp 38.28 V · 16.16 A Operating point at max power
Voc · Isc 44.42 V · 17.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×30 mm · 2.70 m² of roof
Weight 32.5 kg Typical Typical · median 32.7 kg
Cells 132 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 19% of its segment
Coefficient Voc · Isc -0.250 · 0.050 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

Datasheet charts

Open datasheet PDF

Measured curves published by Techwise Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 615 Wp appear here. The rest cover the whole series.

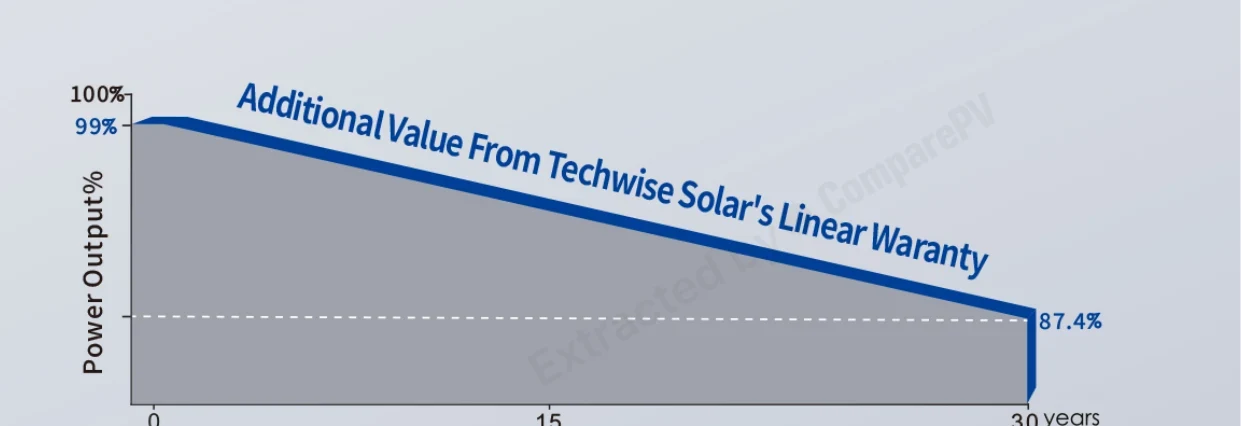

I-V Curves at Different Irradiance Levels I-V Curves at Different Irradiance Levels Whole series Additional Value From Techwise Solar's Linear Warranty (Power Output vs. Years) Additional Value From Techwise Solar's Linear Warranty (Power Output vs. Years) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Techwise Solar TW-615HT-02-615W 615 W 23.80% -0.300 32.5 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg Cooler, lighter, +1.4 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, lighter, +1.2 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +1.0 pp
LR8-66HVD-665M 665 W 24.62% -0.260 33.5 kg +50 W, cooler, +0.8 pp
JKM650-670N-66QL6-BDV (665W class) 665 W 24.62% -0.260 32.5 kg +50 W, cooler, +0.8 pp
HY665-B144DSS 665 W 24.62% -0.260 27.6 kg +50 W, lighter, +0.8 pp
SPDG665-BC132R12 665 W 24.62% -0.260 33.5 kg +50 W, cooler, +0.8 pp
TW-615HT-02-595W 595 W 23.00% -0.300 32.5 kg -20 W, -0.8 pp
TW-600HT-02-600W 600 W 21.50% -0.300 32.5 kg -15 W, -2.3 pp
TW-605HT-02-605W 605 W 21.68% -0.300 32.5 kg -10 W, -2.1 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +65 W, cooler, +1.4 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +60 W, cooler, +1.2 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +85 W, cooler, +1.2 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +80 W, cooler, +1.1 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +55 W, lighter, +1.0 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +55 W, lighter, +1.0 pp

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Techwise Solar Sun-Pursuit Pro Series panels suitable for a pitched roof?
Yes, the Sun-Pursuit Pro Series works well on pitched roofs, especially in the FULL BLACK variant, which is a popular aesthetic choice for residential and premium installations. The half-cut cell design reduces energy losses under partial shading, such as from chimneys or dormers, a common challenge in single-family homes.
What is the maximum power output of a Sun-Pursuit Pro Series module?
Sun-Pursuit Pro Series modules reach up to 620 Wp of maximum power. Thanks to TOPCon cell technology and a dense multi-busbar (16BB) grid, these panels deliver high energy yield from a limited roof or land area, which matters for projects with space constraints.
What warranty comes with Techwise Solar Sun-Pursuit Pro Series panels?
The manufacturer provides a 15-year product warranty and a 30-year power output warranty. This gives long-term protection for the investment, covering both build quality and guaranteed energy performance of the module throughout its service life.
What is TOPCon technology and is it worth choosing panels built with it?
TOPCon (Tunnel Oxide Passivated Contact) is a modern cell technology that delivers higher efficiency and better performance compared to older solutions like PERC. In the Sun-Pursuit Pro Series, this translates into higher energy yield, especially under challenging conditions such as elevated temperatures or lower irradiance, making it a solid choice for installations focused on maximizing production.
Is a bifacial version of the Sun-Pursuit Pro Series available?
Yes, the series is offered in both a standard and a bifacial variant, which additionally captures light reflected from the ground surface. The bifacial version is particularly effective in PV farms, carports, and large industrial rooftops, where installation conditions allow the rear side of the module to contribute to output.
How do the half-cut and multi-busbar design in the Sun-Pursuit Pro Series differ from standard panels?
The half-cut design splits cells in half, reducing current losses and improving module behavior under partial shading. The denser multi-busbar (16BB) grid increases the number of current-carrying pathways, improving operational stability and resistance to microcracks over years of use, which supports longer system lifespan.
