Sunova Brand review

TS-BGT66(700)-G12

700 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, modest efficiency

Rank 944 of 14,005
Compare panels Datasheet PDF
Power (Wp)
700
Weak · bottom 10%
Efficiency (%)
22.50
Weak · bottom 3%
Density (Wp/m²)
225.3
Weak · bottom 10%
Temp (%/°C)
-0.300
Weak · bottom 16%
Weight (kg)
37.8
Typical · median 38.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Sunova Tangra L Pro HD solar panel series represents a breakthrough in energy yield optimization through the use of advanced N-type TOPCon cell technology. The use of this solution allows for the near-complete elimination of the LID degradation phenomenon, which, combined with excellent PID resistance, guarantees stable power for decades. These modules are characterized by a high bifaciality factor, meaning they can generate additional energy from reflected radiation, which is key to increasing the profitability of ground-mounted farms and large commercial roofs. The Bifacial Double Glass construction not only reinforces the mechanical structure of the panel but also provides extreme resistance to harsh weather conditions, including high humidity and snow loads. The Tangra L Pro HD series addresses the issue of performance drops at high temperatures through an exceptionally low temperature coefficient, distinguishing it from standard market solutions. Thanks to the use of precision Half-Cut cell technology, these panels perform excellently in partial shading conditions, minimizing internal losses. It is a product dedicated to demanding business investors and developers who care about the lowest Levelized Cost of Energy (LCOE) and maximum reliability of PV systems.

Ranking

90 panels in the segment N-type 700-750 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.50% 22.88% Weak · bottom 3% 4,222
Power density 225.3 228.6 Weak · bottom 10% 3,989
Temperature coefficient -0.300 -0.290 Weak · bottom 16% 6,093
Weight per kWp 54.0 53.5 Typical 8,183
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale, hot-climate and shaded-installations.

Not ideal for

Tight roof space, roofs where every square metre has to count and hot climates.

Watch-outs
22.50% module efficiency

Bottom 3% of the N-type 700-750 W segment, against a median of 22.88%. Ranked 4,222nd in the whole database.

225.3 watts per square metre

Bottom 10% of the N-type 700-750 W segment, against a median of 228.6. Ranked 3,989th in the whole database.

-0.300 %/°C temperature coefficient

Bottom 16% of the N-type 700-750 W segment, against a median of -0.290.

Notes from the database
  • Efficiency of 22.5% matches the N-type 700-750W median
  • 225.3 W/m² power density is 3.3 W/m² below N-type 700-750W median (228.6 W/m²) - requires larger installation area
  • Temperature coefficient of -0.30%/°C matches the N-type 700-750W median
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
  • In the top 30% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 700 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.50 % Weak Segment median 22.88%
Vmpp · Impp 40.50 V · 17.29 A Operating point at max power
Voc · Isc 48.60 V · 18.32 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×35 mm · 3.11 m² of roof
Weight 37.8 kg Typical Typical · median 38.0 kg
Cells 132 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 16% of its segment
Coefficient Voc · Isc -0.280 · 0.040 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 612 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Sunova in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 700 Wp appear here. The rest cover the whole series.

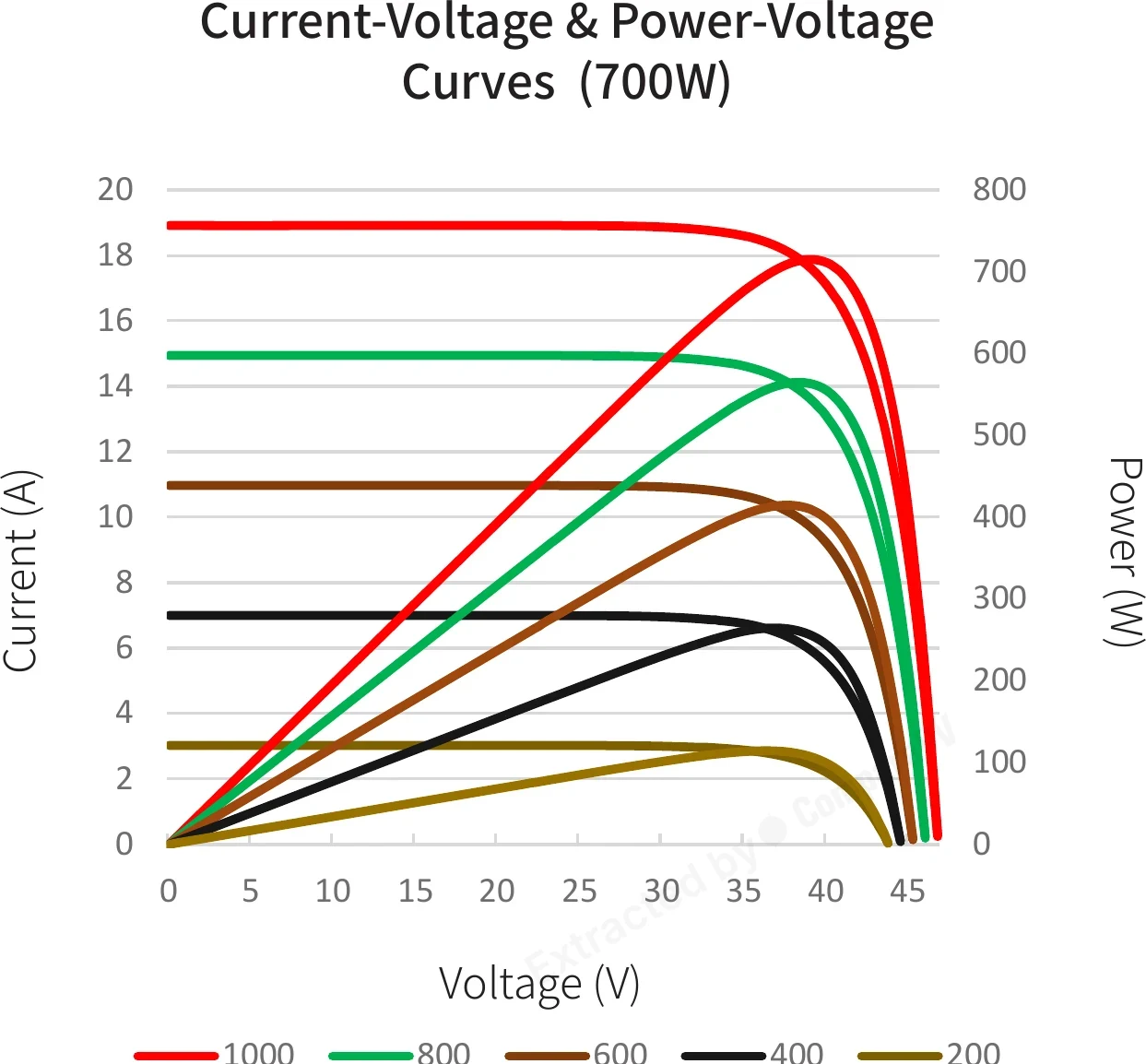

Linear Performance Warranty Linear Performance Warranty Whole series Current-Voltage & Power-Voltage Curves (700W) Current-Voltage & Power-Voltage Curves (700W) 700 W Temperature Dependence of Isc, Voc, Pmax Temperature Dependence of Isc, Voc, Pmax Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All Sunova panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sunova TS-BGT66(700)-G12 700 W 22.50% -0.300 37.8 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg -50 W, lighter, +2.7 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg Cooler, lighter, +2.7 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg Cooler, lighter, +2.5 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg Cooler, lighter, +2.5 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg Cooler, lighter, +2.4 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg Cooler, lighter, +2.3 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg Cooler, lighter, +2.3 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg Cooler, lighter, +2.3 pp
RS645~665S9B-132 (645W) 645 W 20.80% -0.354 33.0 kg -55 W, hotter, -1.7 pp
RS645~665S9B-132 (650W) 650 W 20.90% -0.354 33.0 kg -50 W, hotter, -1.6 pp
RS645~665S9B-132 (655W) 655 W 21.10% -0.354 33.0 kg Hotter, -1.4 pp, -5 yr warranty
RS645~665S9B-132 (660W) 660 W 21.20% -0.354 33.0 kg Hotter, -1.3 pp, -5 yr warranty
RS645~665S9B-132 (665W) 665 W 21.40% -0.354 33.0 kg Hotter, -1.1 pp, -5 yr warranty
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +105 W, cooler, +2.6 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +100 W, cooler, +2.4 pp
AIKO-A795-GRH78Dw 795 W 24.80% -0.260 39.8 kg +95 W, cooler, +2.3 pp

Found 1390 panels of the same or similar size to this one, within ±10 mm. See them here Found 1400 panels of the same or similar size to this one, within ±25 mm. See them here Found 1400 panels of the same or similar size to this one, within ±50 mm. See them here Found 1432 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of the Sunova Tangra L Pro HD panels?
The Tangra L Pro HD series reaches a maximum power output of up to 720 Wp. This high output is achieved through N-type TOPCon cell technology combined with precise Half-Cut cell cutting, which minimizes internal losses. A higher power rating per module means fewer panels are needed to reach a target system size, reducing mounting structure and installation labor costs.
What warranty comes with the Sunova Tangra L Pro HD panels?
The manufacturer provides a 15-year product warranty and a 30-year linear power output warranty. This means that even after three decades of operation, the panel is expected to retain a significant share of its original rated power. This level of coverage is typical for modern N-type modules and reflects the manufacturer's confidence in the durability of the cell technology used.
What is bifaciality, and do the Tangra L Pro HD panels have it?
Yes, the Tangra L Pro HD modules are bifacial, meaning they generate electricity from both the front and rear side of the panel by capturing reflected light from the surrounding surface. Thanks to the Bifacial Double Glass construction, the additional energy yield can range from a few to over ten percent, especially in ground-mounted installations over bright or reflective surfaces such as gravel or white roofing membrane.
Are the Sunova Tangra L Pro HD panels suitable for solar farms and large commercial roofs?
Yes, this series is designed for large ground-mount installations and commercial flat roofs where minimizing the levelized cost of energy (LCOE) is a priority. The high per-module power output, bifacial design, and robust Bifacial Double Glass construction resistant to humidity and snow loads make it a strong choice for investors seeking maximum reliability at utility scale.
Does N-type TOPCon technology in the Tangra L Pro HD reduce power degradation?
Yes, the N-type TOPCon cells virtually eliminate light-induced degradation (LID), the power loss that typically occurs during a panel's first hours of operation. The technology also offers excellent PID resistance, allowing the module to maintain stable performance over many years, which translates into higher real-world energy yield compared to conventional P-type panels.
Do the Sunova Tangra L Pro HD panels perform well in high temperatures?
Yes, the Tangra L Pro HD series features an exceptionally low temperature coefficient, resulting in smaller power losses on hot days compared to standard market modules. This is a key advantage in high-irradiance regions with elevated ambient temperatures, where modules regularly operate well above the STC reference test temperature.
