SunLink Brand review

SL5N144D-605W

605 Wp TOPCon Bifacial 2500%
ComparePV verdict

Middle of its segment, weak in heat

Rank 3,097 of 14,005
Compare panels Datasheet PDF
Power (Wp)
605
Weak · bottom 15%
Efficiency (%)
22.40
Weak · bottom 23%
Density (Wp/m²)
224.0
Weak · bottom 23%
Temp (%/°C)
-0.300
Weak · bottom 19%
Weight (kg)
33.1
Weak · bottom 21%
Warranty (yrs)
30
Typical · median 30 yrs

The SunLink SL5N144D series is a premium, bifacial module designed to maximize energy yield from the same surface area, even when the roof or ground does not allow for expansion of the installation. The use of N-type cells in combination with modern half-cut architecture results in more stable performance in real-world conditions and better resistance to typical operating factors that can reduce panel performance over time. A key advantage of this series is the bifacial design, which can "collect" additional light reflected from the ground, allowing the installation to produce more energy without increasing the number of modules.

The SL5N144D also features double-glazed glass and encapsulation materials selected for long life and high reliability in varying weather conditions. This is a good choice for PV farms, commercial installations, and modern flat roofs, where high power density and long-term profitability are important.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.40% 22.80% Weak · bottom 23% 4,774
Power density 224.0 227.7 Weak · bottom 23% 4,780
Temperature coefficient -0.300 -0.290 Weak · bottom 19% 6,093
Weight per kWp 54.7 53.1 Weak · bottom 21% 9,097
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Hot climates, weight-limited structures and tight roof space.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 19% of the TOPCon 600-650 W segment, against a median of -0.290.

54.7 kg per kWp

Bottom 21% of the TOPCon 600-650 W segment, against a median of 53.1.

22.40% module efficiency

Bottom 23% of the TOPCon 600-650 W segment, against a median of 22.80%.

Notes from the database
  • At 22.4% efficiency, this panel is on par with typical TOPCon 600-650W modules
  • Power density of 224.0 W/m² is 3.7 W/m² below TOPCon 600-650W median (227.7 W/m²) - needs more roof space
  • Temperature coefficient of -0.30%/°C matches the TOPCon 600-650W median
  • Ranked #4774 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 605 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.40 % Weak Segment median 22.80%
Vmpp · Impp 43.94 V · 13.77 A Operating point at max power
Voc · Isc 52.60 V · 14.56 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×30 mm · 2.70 m² of roof
Weight 33.1 kg Weak Weak · bottom 21%
Cells 144 · TOPCon Monocrystalline
Bifaciality 2500 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 19% of its segment
Coefficient Voc · Isc -0.260 · 0.046 %/°C
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 529 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunLink in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 605 Wp appear here. The rest cover the whole series.

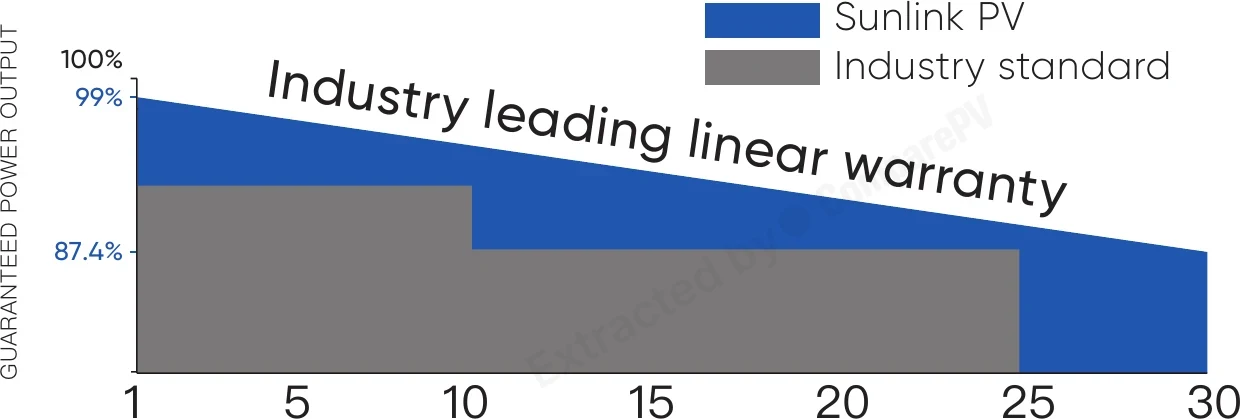

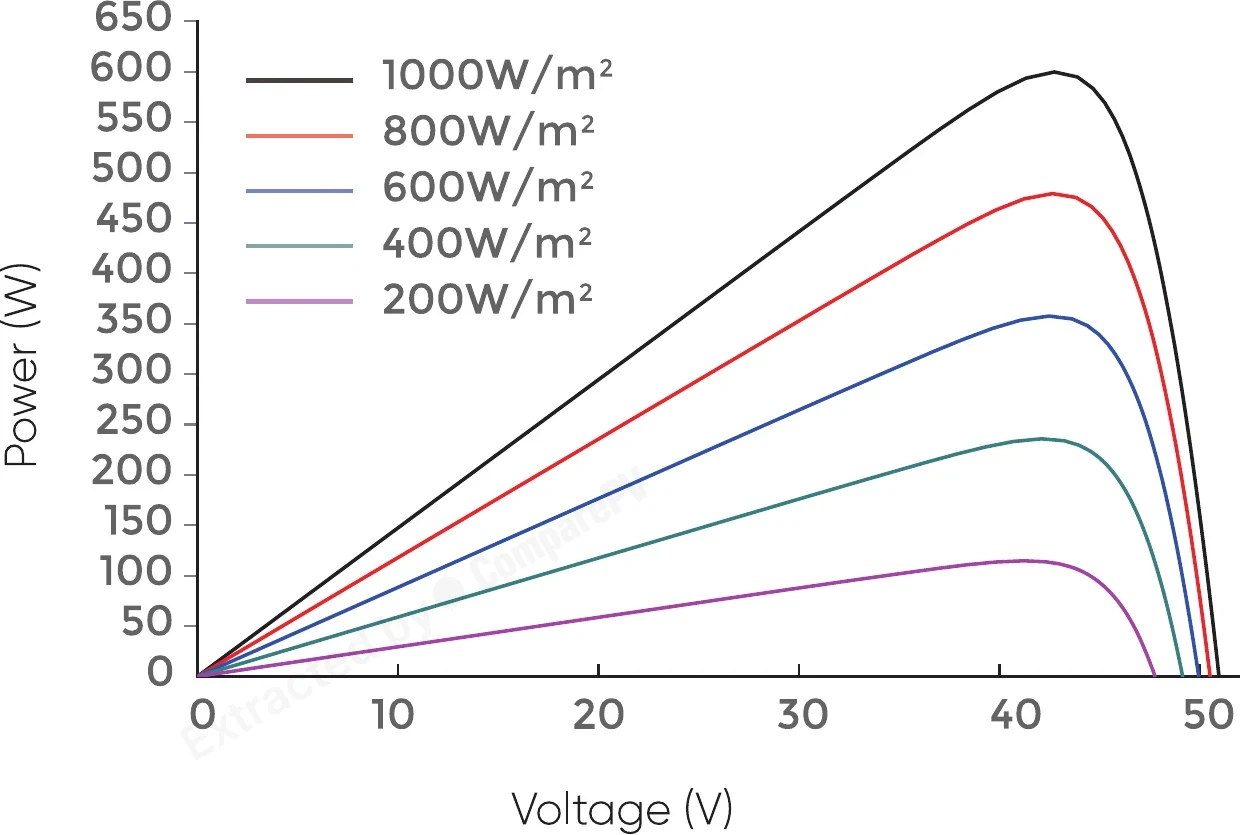

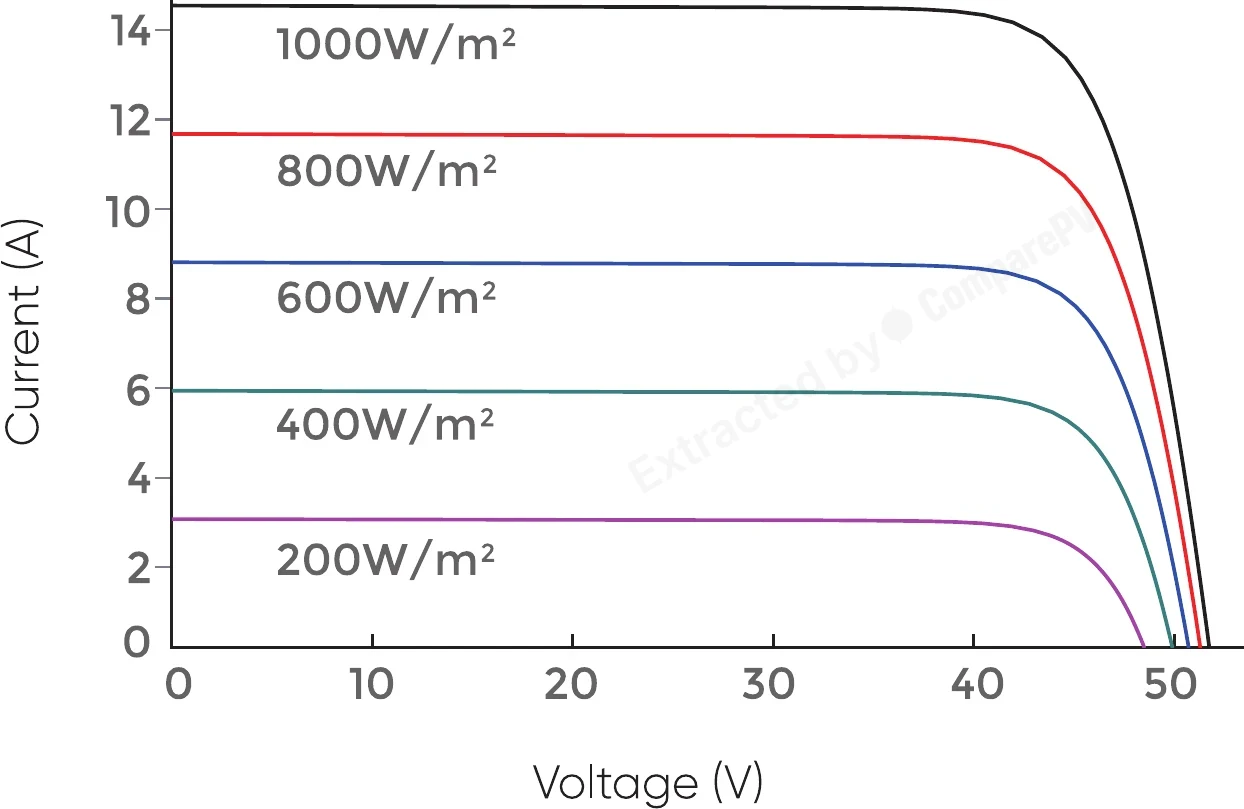

Industry Leading Linear Warranty (Guaranteed Power Output vs Years) Industry Leading Linear Warranty (Guaranteed Power Output vs Years) Whole series Current-Voltage (I-V) Curves Current-Voltage (I-V) Curves Whole series Power-Voltage (P-V) Curves Power-Voltage (P-V) Curves Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunLink SL5N144D-605W 605 W 22.40% -0.300 33.1 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +45 W, lighter, +2.8 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +40 W, lighter, +2.6 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -45 W, lighter, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +2.4 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -50 W, lighter, +2.2 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg Cooler, lighter, +2.2 pp
SL5N144D-610W 610 W 22.60% -0.300 33.1 kg +0.2 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +75 W, lighter, +2.8 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +70 W, lighter, +2.6 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +95 W, cooler, +2.6 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +90 W, cooler, +2.5 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +65 W, lighter, +2.4 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +65 W, lighter, +2.4 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +65 W, cooler, +2.4 pp

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of SunLink SL5N144D panels and what does it mean in practice?
The SunLink SL5N144D series reaches a peak output of up to 610 Wp under Standard Test Conditions (STC). This is significantly higher than typical premium modules available just a few years ago. In practice, it means you can generate more energy from the same roof or ground area without adding extra panels, which lowers the overall system cost per kilowatt of installed capacity.
What warranty does SunLink offer on the SL5N144D series?
SunLink provides a 15-year product warranty on the SL5N144D modules, covering material and manufacturing defects. A separate 30-year linear power output warranty guarantees that the modules maintain a specified performance level throughout their service life. Before purchasing, confirm that your local distributor or installer has an established warranty claims process directly with SunLink.
What is TOPCon technology in the SL5N144D panels and why does it matter?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology that adds a thin tunnel oxide layer to reduce carrier recombination at the contact interface. Compared to standard PERC modules, this results in higher cell efficiency and a lower temperature coefficient, meaning SL5N144D panels lose less power on hot days and degrade more slowly over their operational lifetime.
Are the bifacial SunLink SL5N144D modules a good fit for flat-roof installations?
Yes, flat roofs are one of the ideal use cases for the SL5N144D series. The bifacial design captures albedo light reflected from a bright membrane or gravel surface beneath the modules, potentially boosting yield by several percentage points. The dual-glass construction also protects the rear surface from moisture, which is particularly important where airflow under the modules may be limited.
Are SunLink SL5N144D panels compatible with popular inverters available in Europe?
The SL5N144D modules produce open-circuit voltage and short-circuit current values typical of 600+ Wp panels, so compatibility depends on your inverter's maximum DC input voltage and MPPT voltage range. Most string inverters from established brands such as SMA, Fronius, Huawei, and SolarEdge can handle these parameters, but always ask your installer to verify compatibility against the module datasheet before purchase.
Is SunLink a Tier 1 manufacturer and does it matter when buying SL5N144D panels?
SunLink does not currently appear on Tier 1 lists published by analytical agencies such as BloombergNEF. This does not automatically indicate lower product quality, but it is worth considering the availability of warranty service and the financial stability of the distributor in your region. For commercial installations and utility-scale PV farms in particular, we recommend verifying the importer's track record and the specific terms of the warranty claims procedure before committing to a purchase.
