SunKean SKT695M12-132D5
SunKean Brand review

SKT695M12-132D5

695 Wp HJT Bifacial 77%
ComparePV verdict

Space saver, weak in heat

Rank 1,100 of 14,005
Compare panels Datasheet PDF
Power (Wp)
695
Strong · top 15%
Efficiency (%)
22.40
Strong · top 17%
Density (Wp/m²)
223.7
Strong · top 16%
Temp (%/°C)
-0.260
Weak · bottom 24%
Weight (kg)
38.7
Typical · median 38.5 kg
Warranty (yrs)
30
Typical · median 30 yrs

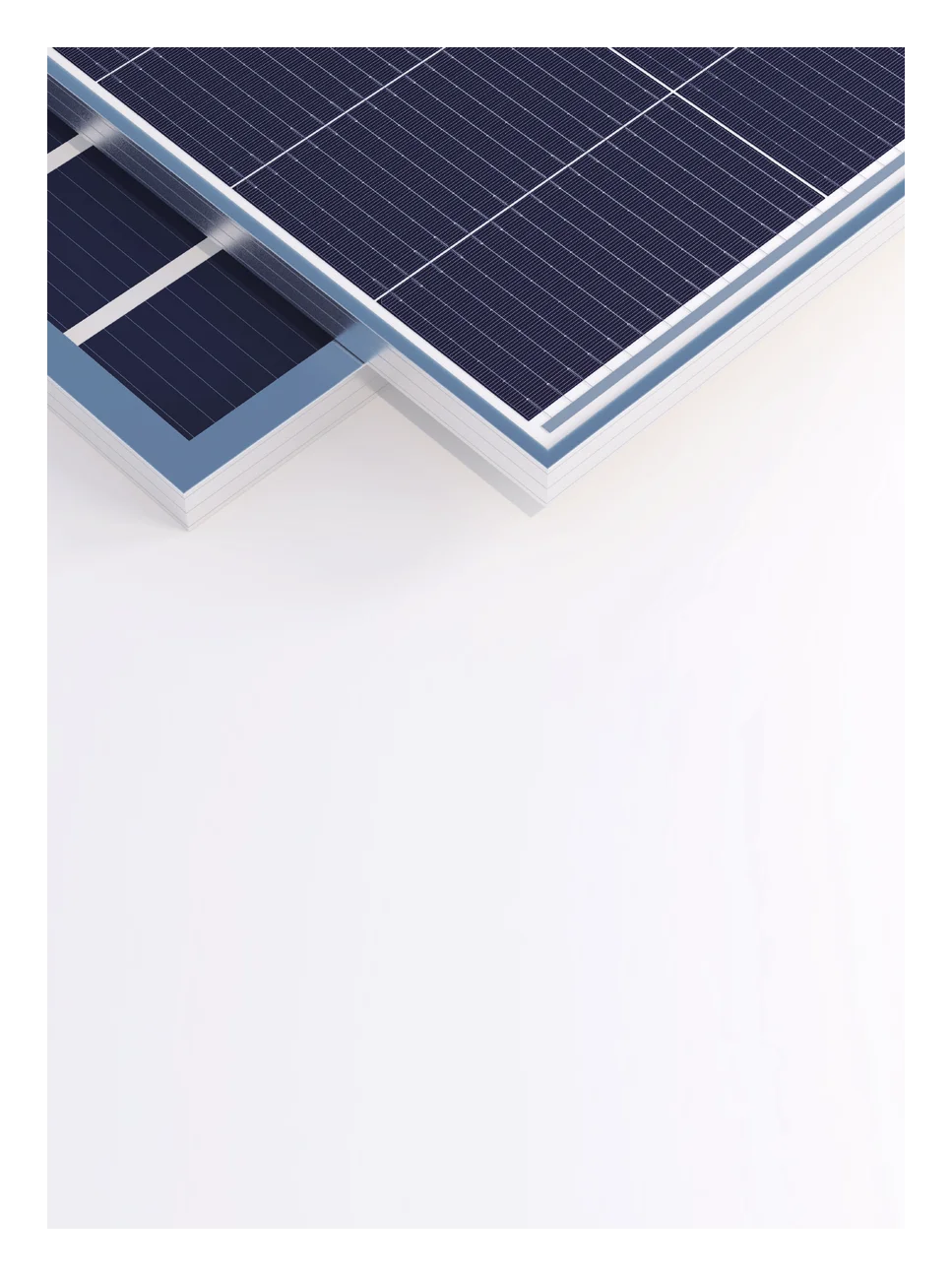

The SunKean SKT680~700M12-132D5 series are high-density power modules designed to maximize energy output from a limited surface area - particularly in PV farms and commercial projects where every square meter counts. The use of a bifacial design allows for the recovery of additional energy from reflected light, which significantly improves production in ground-mounted installations, on clear ground, or with appropriate racking configurations.

The double-glass construction is also noteworthy, as it increases resistance to moisture, mechanical stress, and material aging, stabilizing parameters over the long term. The modules utilize HJT technology, which is valued for its excellent performance at higher temperatures and low degradation, resulting in predictable energy yields. Another important feature is the POE sealing, which supports durability and reduces the risk of degradation in demanding conditions. This is a proposal for investors who expect high production, long-term durability, and a safe LCOE balance.

Ranking

61 panels in the segment HJT 650-700 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.40% 22.20% Strong · top 17% 4,774
Power density 223.7 222.1 Strong · top 16% 4,877
Temperature coefficient -0.260 -0.240 Weak · bottom 24% 511
Weight per kWp 55.7 55.7 Typical 10,084
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 1 caution
Best for

Commercial, utility-scale, hot-climate and shaded-installations.

Not ideal for

Hot climates.

Strengths
223.7 watts per square metre

Top 16% of the HJT 650-700 W segment, against a median of 222.1.

22.40% module efficiency

Top 17% of the HJT 650-700 W segment, against a median of 22.20%.

Watch-outs
-0.260 %/°C temperature coefficient

Bottom 24% of the HJT 650-700 W segment, against a median of -0.240.

Notes from the database
  • Efficiency of 22.4% matches the HJT 650-700W median
  • At 223.7 W/m² power density, roof space requirements are typical for HJT 650-700W panels
  • -0.26%/°C temperature coefficient - 0.02pp worse than HJT 650-700W median (-0.24%/°C), expect higher hot weather losses
  • Bifaciality factor of 77% can add 4-12% extra yield with reflective mounting surface
  • In the top 34% for efficiency among all HJT panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 695 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.40 % Strong Segment median 22.20%
Vmpp · Impp 41.95 V · 16.57 A Operating point at max power
Voc · Isc 49.98 V · 17.37 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×35 mm · 3.11 m² of roof
Weight 38.7 kg Typical Typical · median 38.5 kg
Cells 132 · HJT Monocrystalline
Bifaciality 77 % Rear output as a share of front
Coefficient Pmax -0.260 %/°C Weak bottom 24% of its segment
Coefficient Voc · Isc -0.240 · 0.040 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 88.0 % Equals 612 W guaranteed

Datasheet charts

Open datasheet PDF

Measured curves published by SunKean in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 695 Wp appear here. The rest cover the whole series.

Sunket HJT Linear Warranty (30-Year Linear Power Warranty) Sunket HJT Linear Warranty (30-Year Linear Power Warranty) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.260 %/°C against a segment median of -0.240
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All SunKean panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunKean SKT695M12-132D5 695 W 22.40% -0.260 38.7 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg -45 W, lighter, +2.8 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg -15 W, lighter, +2.8 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg -20 W, lighter, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg -50 W, lighter, +2.6 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg Lighter, +2.6 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg Lighter, +2.5 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg -25 W, lighter, +2.4 pp
SKT680M12-132D5 680 W 21.90% -0.260 38.7 kg -15 W, -0.5 pp
SKT685M12-132D5 685 W 22.10% -0.260 38.7 kg -10 W, -0.3 pp
SKT690M12-132D5 690 W 22.20% -0.260 38.7 kg Very close match
SKT700M12-132D5 700 W 22.50% -0.260 38.7 kg Very close match
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +110 W, heavier, +2.7 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +105 W, heavier, +2.5 pp
AIKO-A795-GRH78Dw 795 W 24.80% -0.260 39.8 kg +100 W, heavier, +2.4 pp
AIKO-A790-GRH78Dw 790 W 24.60% -0.260 39.8 kg +95 W, heavier, +2.2 pp
TSM-NEG21C.20Q-760 760 W 24.50% -0.260 38.3 kg +65 W, +2.1 pp

Found 1390 panels of the same or similar size to this one, within ±10 mm. See them here Found 1400 panels of the same or similar size to this one, within ±25 mm. See them here Found 1400 panels of the same or similar size to this one, within ±50 mm. See them here Found 1432 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is HJT technology and why is it used in the SunKean SKT680~700M12-132D5 series?
HJT (Heterojunction Technology) combines monocrystalline silicon with thin amorphous silicon layers. In the SKT680~700M12-132D5 series, this results in a lower temperature coefficient than PERC or TOPCon modules, meaning less power loss on hot days. HJT also delivers an exceptionally low annual degradation rate, which directly supports predictable energy yields over the full service life of the installation.
What warranty does the SunKean SKT680~700M12-132D5 series come with?
The SKT680~700M12-132D5 series includes a 15-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means the manufacturer guarantees a defined percentage of rated power will be maintained for three decades — one of the longest warranty packages currently available in the utility-scale PV module market.
Is the bifacial design of the SunKean SKT680~700M12-132D5 worth it for ground-mount installations?
Yes — the bifacial construction of the SKT680~700M12-132D5 is specifically advantageous in ground-mount systems. The rear surface captures light reflected from the ground, and with bright surfaces such as gravel, sand, or grass, this bifacial gain can add several percentage points to overall energy yield. The effect is significantly lower in rooftop applications where there is no reflective surface directly beneath the modules.
How does the double glass design of the SKT680~700M12-132D5 compare to standard modules with a polymer backsheet?
Unlike conventional modules that use a polymer backsheet, the SKT680~700M12-132D5 features glass on both sides of the laminate. This substantially reduces moisture ingress, improves resistance to mechanical loads, and slows material aging of the encapsulant. In practice, it results in more stable long-term electrical performance and a lower risk of moisture-induced degradation such as PID or delamination.
What is the peak power of the SunKean SKT680~700M12-132D5 and what type of projects is it designed for?
The top variant in the series reaches 700 Wp, making these modules a solution aimed primarily at utility-scale solar farms and large commercial installations. The high per-unit power output reduces the total module count on a racking structure, which lowers BoS costs and installation time. This series makes the most sense wherever limited surface area must deliver maximum energy production.
How do the SunKean SKT680~700M12-132D5 modules perform during hot summer conditions?
The HJT technology used in the SKT680~700M12-132D5 series features a lower temperature coefficient than standard PERC cells. This means the modules lose proportionally less power on hot, sunny days compared to lower-cost technologies. In climates where peak summer temperatures can significantly reduce output, this thermal advantage translates into measurable improvements in annual energy yield and a more favorable LCOE.
