Seraphim SRP-625-BTZ-HV
Seraphim Brand review

SRP-625-BTZ-HV

625 Wp TOPCon
ComparePV verdict

Light for its output, modest efficiency

Rank 2,431 of 14,005
Compare panels Datasheet PDF
Power (Wp)
625
Typical for its class
Efficiency (%)
22.36
Weak · bottom 18%
Density (Wp/m²)
223.6
Weak · bottom 18%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
29.5
Strong · 3.2 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

Seraphim Sable 625-640W is a series of modules designed to maximize energy yield from every square meter - particularly in situations where high power output from a single panel and stable operation in demanding conditions are crucial. The use of N-type cells in TOPCon technology results in improved resistance to typical degradation losses and more predictable energy production over the long term. The glass-glass construction also deserves attention, as it increases the durability of the laminate and helps to minimize the risk of microcracks during transport and installation.

The series utilizes a half-cell design and a multi-busbar architecture, which promotes even module performance and supports the reduction of losses associated with partial shading. It is a good choice for large ground-mounted and commercial rooftop installations, where lower BOS costs, high reliability, and easier string design are key considerations. Compared to the competition, Sable stands out for its combination of modern N-type technology and a robust, double-glass construction - without compromising on practical performance.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.36% 22.80% Weak · bottom 18% 5,007
Power density 223.6 227.7 Weak · bottom 18% 4,955
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 47.2 53.1 Strong · top 12% 1,578
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 2 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Tight roof space and roofs where every square metre has to count.

Strengths
47.2 kg per kWp

Top 12% of the TOPCon 600-650 W segment, against a median of 53.1.

Watch-outs
22.36% module efficiency

Bottom 18% of the TOPCon 600-650 W segment, against a median of 22.80%.

223.6 watts per square metre

Bottom 18% of the TOPCon 600-650 W segment, against a median of 227.7.

Notes from the database
  • At 22.4% efficiency, this panel is on par with typical TOPCon 600-650W modules
  • At 223.6 W/m², this panel generates 4.1 W/m² less per unit area than TOPCon 600-650W median (227.7 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 600-650W panels
  • Weight of 29.5 kg (3.2 kg below TOPCon 600-650W median of 32.7 kg) allows easier transport and roof mounting
  • #5007 for efficiency, #2165 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 625 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.36 % Weak Segment median 22.80%
Vmpp · Impp 46.93 V · 13.32 A Operating point at max power
Voc · Isc 56.24 V · 14.01 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2465×1134×35 mm · 2.80 m² of roof
Weight 29.5 kg Strong Strong · 3.2 kg below median
Cells 156 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 546 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Seraphim in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 625 Wp appear here. The rest cover the whole series.

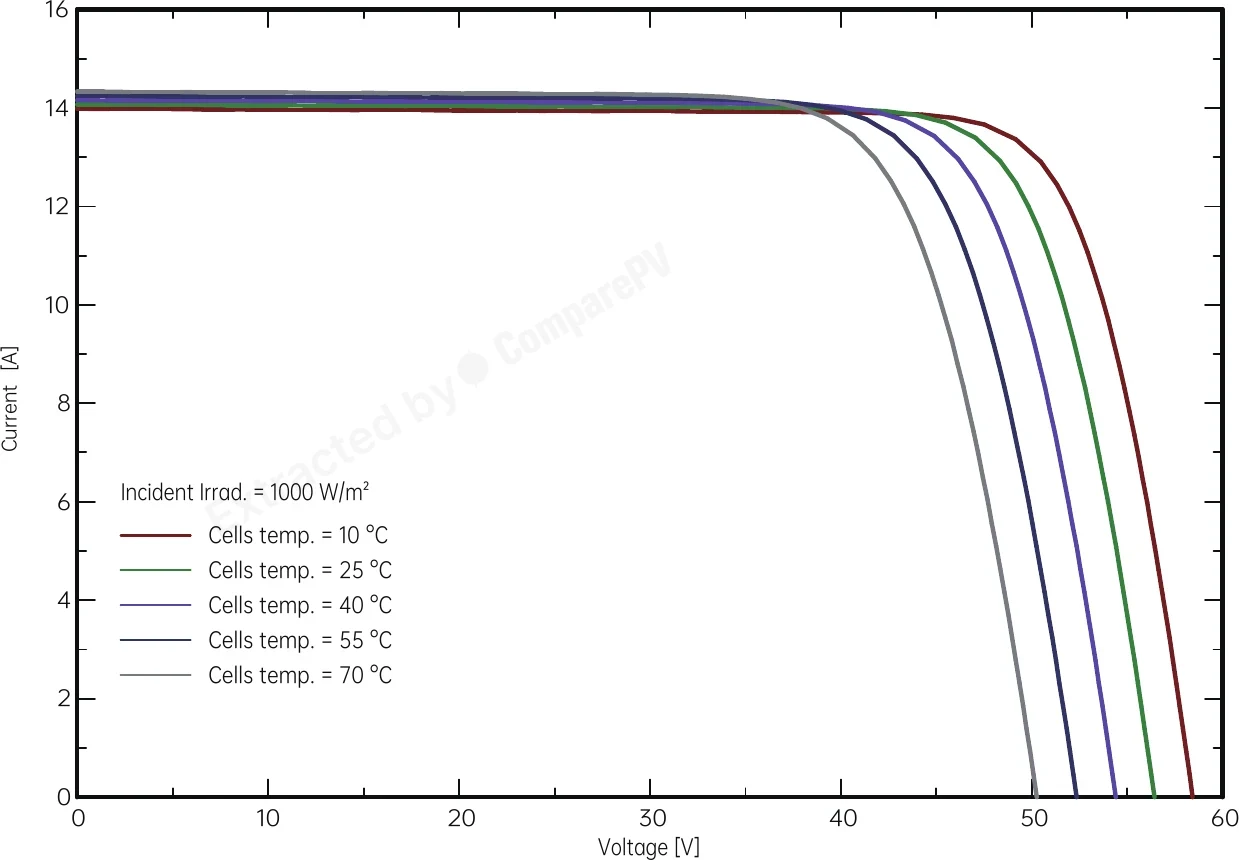

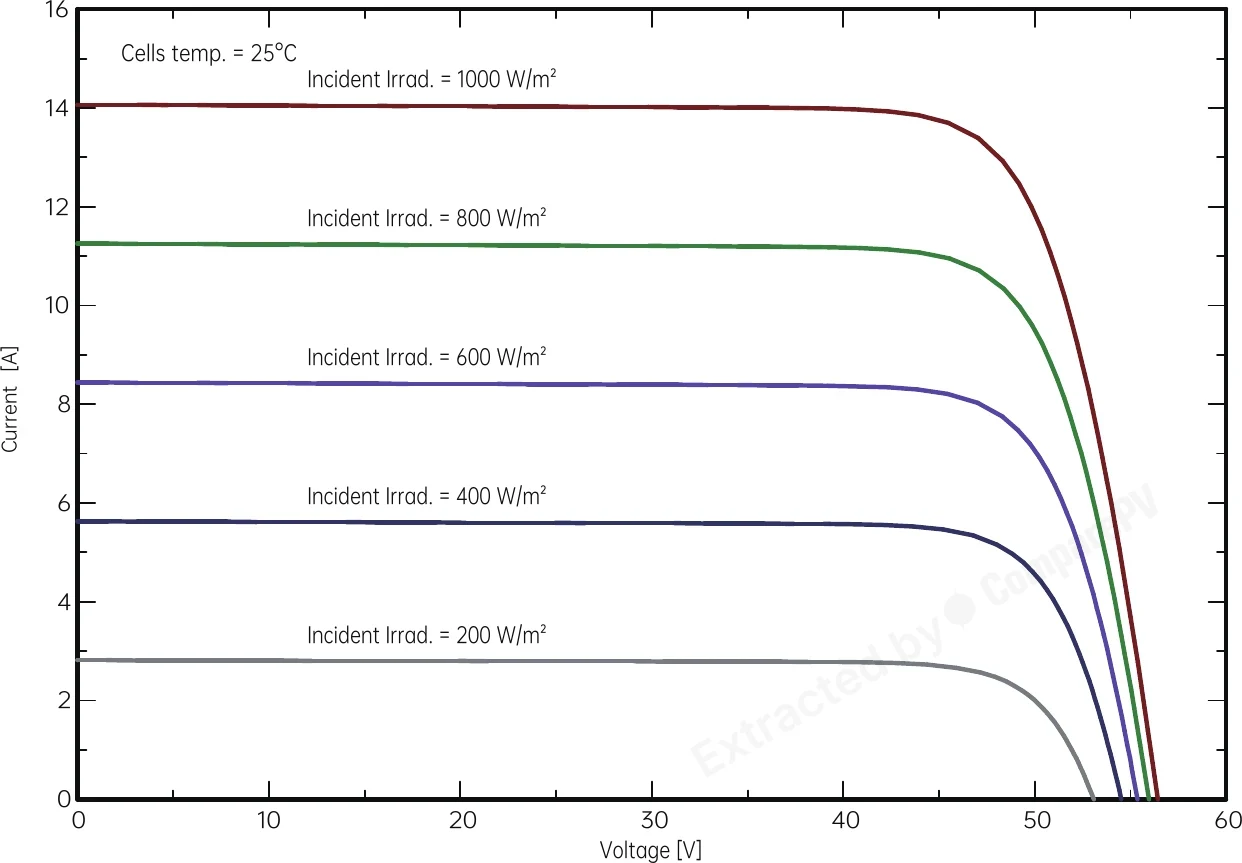

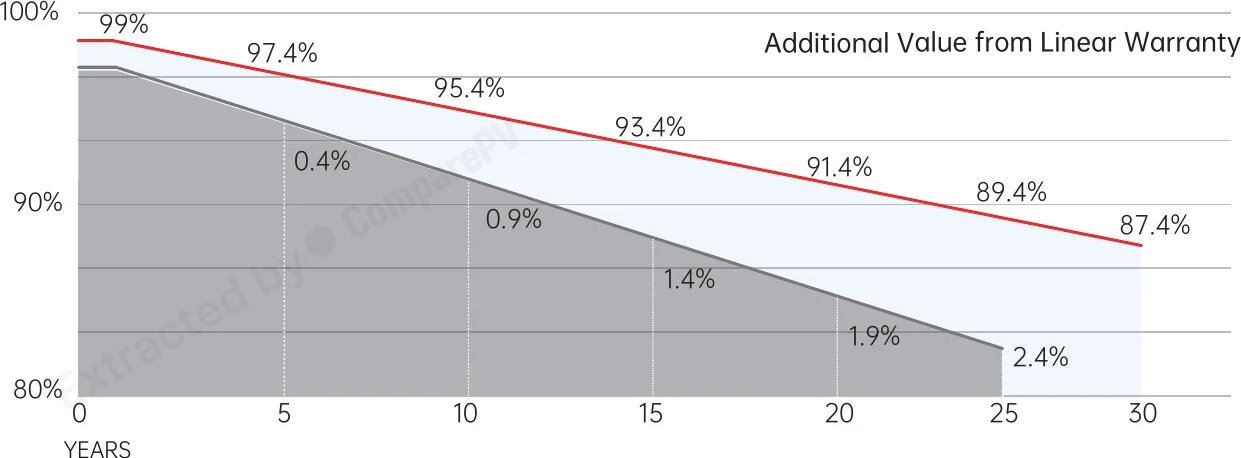

Additional Value from Linear Warranty Additional Value from Linear Warranty Whole series I-V Curve I-V Curve Whole series I-V Curve (varying cell temperature) I-V Curve (varying cell temperature) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Seraphim SRP-625-BTZ-HV 625 W 22.36% -0.290 29.5 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +25 W, cooler, +2.8 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +50 W, cooler, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, lighter, +2.6 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +45 W, cooler, +2.4 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +45 W, cooler, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +2.4 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +45 W, heavier, +2.4 pp
SRP-580-BMZ-HV 580 W 20.75% -0.340 29.5 kg Hotter, -1.6 pp, -5 yr warranty
SRP-585-BMZ-BG 585 W 20.93% -0.340 34.6 kg Hotter, heavier, -1.4 pp
SRP-590-BMZ-BG 590 W 21.11% -0.340 34.6 kg Hotter, heavier, -1.2 pp
SRP-595-BMZ-HV 595 W 21.29% -0.340 29.5 kg Hotter, -1.1 pp, -5 yr warranty
SRP-600-BMZ-HV 600 W 21.46% -0.340 29.5 kg Hotter, -0.9 pp, -5 yr warranty
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +55 W, cooler, +2.8 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +75 W, heavier, +2.6 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +70 W, heavier, +2.5 pp

Found 616 panels of the same or similar size to this one, within ±10 mm. See them here Found 616 panels of the same or similar size to this one, within ±25 mm. See them here Found 616 panels of the same or similar size to this one, within ±50 mm. See them here Found 1813 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What product warranty and power output warranty does the Seraphim Sable 625-640W series offer?
Seraphim provides a 15-year product warranty covering material and workmanship defects, along with a 30-year linear power output warranty. This guarantees predictable energy production with minimal power degradation over three decades of operation — one of the stronger warranty standards available in this panel class.
Do N-type TOPCon cells in the Sable series actually deliver better yields than conventional PERC?
Yes. TOPCon N-type technology offers a lower temperature coefficient and higher conversion efficiency compared to PERC cells. On hot summer days and under diffuse light conditions, the panel loses less power than older designs. Over a multi-year energy balance, this translates into more kilowatt-hours from the same surface area and more predictable system output.
What types of installations is the Seraphim Sable 625-640W series best suited for?
The Sable series is primarily designed for large utility-scale ground-mounted systems and commercial rooftop installations. With up to 640 Wp per module, fewer panels are required for the same installed capacity, directly lowering BoS costs — fewer mounting structures, less cabling, and simpler string design. On residential rooftops, it makes sense where roof area is large and maximum power density per module matters.
What does glass-glass construction mean in Seraphim Sable panels and why does it matter when choosing a module?
Glass-glass construction replaces the conventional polymer backsheet with a second glass layer. This significantly increases mechanical durability, reduces the risk of microcracks during transport and installation, and provides superior long-term protection against moisture ingress and UV degradation. Over a 30-year operational horizon, laminate integrity directly affects how well the module holds its guaranteed power output.
How do half-cut cells and multi-busbar architecture in Sable panels handle partial shading?
Half-cut cell design reduces resistive losses and localized thermal stress within the module, while the multi-busbar architecture enables more uniform current collection across each cell's surface. In practice, shading from a chimney, antenna, or tree branch has a smaller impact on the overall string output compared to older conventional modules with fewer busbars — a real advantage in real-world installation conditions.
Is Seraphim a reliable manufacturer for a long-term investment in 640W panels?
Seraphim holds Tier 1 status according to Bloomberg NEF, placing it among the most bankable solar module manufacturers globally. The company supplies panels to large commercial and utility-scale projects across multiple countries. The 15-year product warranty and 30-year power output warranty further confirm that the manufacturer stands behind its modules over the full operational lifecycle of a PV system.
