Leapton Brand review

LP182*199-M-72-NH-630W

630 Wp TOPCon
ComparePV verdict

Light for its output, weak in heat

Rank 1,049 of 14,005
Compare panels Datasheet PDF
Power (Wp)
630
Typical for its class
Efficiency (%)
22.54
Typical · median 22.80%
Density (Wp/m²)
225.4
Typical · median 227.7
Temp (%/°C)
-0.300
Weak · bottom 19%
Weight (kg)
29.0
Strong · 3.7 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Leapton LP182*199-M-72-NH panel series is an advanced solution based on innovative N-type TOPCon cell technology, which redefines efficiency standards in variable lighting conditions. Thanks to the use of larger silicon wafers and a bifacial design, these modules maximize energy yield not only from direct solar radiation, but also from light reflected from the ground. This is a key advantage for investors building ground-mounted farms or large commercial installations, where every watt obtained from the available surface counts. The use of the SMBB (Super Multi Busbar) structure allows for a significant reduction in resistive losses and better current flow, which directly translates into stable system operation for decades. This series effectively solves the problem of light-induced degradation, offering exceptional resistance to LID and LeTID phenomena, which significantly distinguishes it from older P-type solutions available on the market. By choosing these modules, the investor gains a product with an exceptionally low temperature coefficient, which guarantees high production even on hot days. It is an optimal choice for large-scale projects that require the highest reliability and maximization of profits through increased power density while maintaining high mechanical resistance of the entire structure.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.54% 22.80% Typical 3,920
Power density 225.4 227.7 Typical 3,907
Temperature coefficient -0.300 -0.290 Weak · bottom 19% 6,093
Weight per kWp 46.0 53.1 Strong · top 7% 963
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 2 caution
Best for

Utility-scale, commercial and hot-climate.

Not ideal for

Hot climates.

Strengths
46.0 kg per kWp

Top 7% of the TOPCon 600-650 W segment, against a median of 53.1. Ranked 963rd in the whole database.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 19% of the TOPCon 600-650 W segment, against a median of -0.290.

What owners get
Low -0.3%/°C temperature coefficient

N-type TOPCon cells lose power more slowly as temperature rises compared to conventional PERC cells (typically -0.35 to -0.40%/°C), resulting in higher real-world energy yield on hot days and in high-irradiance climates.

Tier-1, bankable manufacturer

Leapton is classified as a Tier-1 manufacturer, headquartered in Japan and operating since 2012. Bankable status simplifies project financing through banks and investment funds, reducing risk for large-scale investors.

30-year linear power warranty

A 30-year power warranty (minimum 87.4% of nominal power retained) alongside a 25-year product warranty places the series on par with peer comparables (Canadian Solar, Resun Solar, Jinko Solar), strengthening long-term investment security.

SMBB structure reduces resistive losses

Super Multi Busbar technology lowers resistive losses and micro-crack risk on cells, translating into more stable module performance over the panel's lifetime, especially in high power-density installations.

Resistant to LID/LeTID degradation

N-type TOPCon technology eliminates the light-induced degradation (LID) and LeTID issues typical of P-type cells, limiting power loss in the early years of operation compared to older PERC solutions.

Trade-offs
Lower efficiency than competitors

Efficiency of 22.18-22.54% is noticeably lower than comparable 630 Wp competitor models: Canadian Solar TOPBiHiKu6 (23.3%), Resun RS8H-M-BD TOPCon (23.32%), and Jinko Tiger Neo 66HL4M-BDV (23.32%). At the same peak power, this means a larger module footprint, which can matter on roof- or land-constrained sites.

Notes from the database
  • At 22.5% efficiency, this panel is on par with typical TOPCon 600-650W modules
  • Power density of 225.4 W/m² matches the TOPCon 600-650W median
  • Temperature coefficient of -0.30%/°C matches the TOPCon 600-650W median
  • 29.0 kg weight - 3.7 kg lighter than TOPCon 600-650W median (32.7 kg), reducing installation effort
  • In the top 28% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 630 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.54 % Typical Segment median 22.80%
Vmpp · Impp 43.88 V · 14.36 A Operating point at max power
Voc · Isc 52.49 V · 15.21 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2465×1134×30 mm · 2.80 m² of roof
Weight 29.0 kg Strong Strong · 3.7 kg below median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 19% of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 41 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 551 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Leapton in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 630 Wp appear here. The rest cover the whole series.

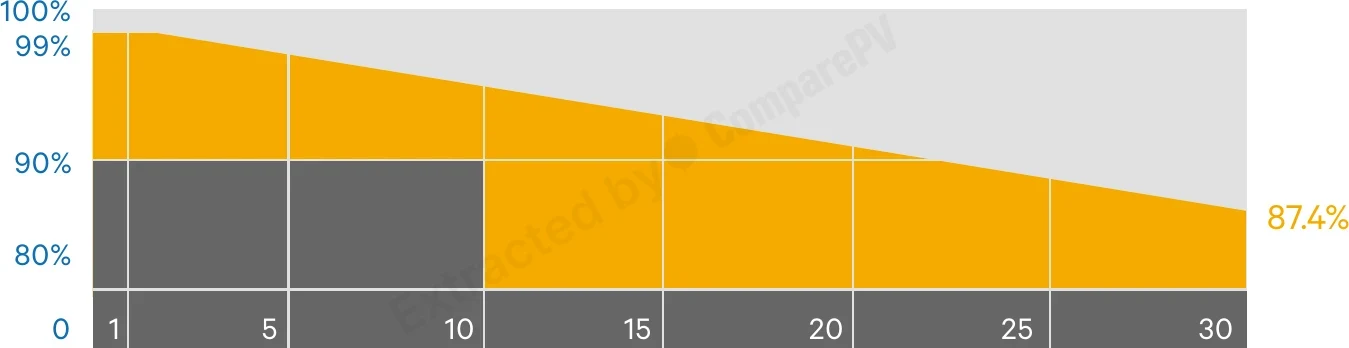

30-Year Linear Power Warranty 30-Year Linear Power Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Leapton LP182*199-M-72-NH-630W 630 W 22.54% -0.300 29.0 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +20 W, cooler, +2.7 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +50 W, cooler, +2.7 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +45 W, cooler, +2.5 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, lighter, +2.5 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +40 W, cooler, +2.3 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +40 W, cooler, +2.3 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +2.3 pp
LP182*182-M-78-NH-610W 610 W 21.82% -0.300 29.0 kg -20 W, -0.7 pp
LP182*182-M-78-NH-615W 615 W 22.00% -0.300 29.0 kg -15 W, -0.5 pp
LP182*199-M-72-NH-620W 620 W 22.18% -0.300 29.0 kg -10 W, -0.4 pp
LP182*199-M-72-NB-625W 625 W 22.36% -0.300 34.3 kg Heavier
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +70 W, heavier, +2.5 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +65 W, heavier, +2.4 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +40 W, cooler, +2.3 pp

Found 616 panels of the same or similar size to this one, within ±10 mm. See them here Found 616 panels of the same or similar size to this one, within ±25 mm. See them here Found 616 panels of the same or similar size to this one, within ±50 mm. See them here Found 1813 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Leapton LP182*199-M-72-NH series come with?
The LP182*199-M-72-NH series carries a 25-year product warranty covering material and workmanship defects. In addition, Leapton provides a 30-year linear power output warranty guaranteeing at least 87.4% of nominal power after three decades of operation. This is one of the longest warranty packages available in the PV module market, reflecting the manufacturer's confidence in the long-term reliability of its N-type TOPCon technology.
How do Leapton LP182*199-M-72-NH panels compare to standard PERC modules?
The primary difference is cell technology: LP182*199-M-72-NH uses N-type TOPCon instead of the older P-type PERC. N-type cells are virtually immune to light-induced degradation (LID and LeTID), which progressively reduces PERC module output in the first years of operation. Leapton's module efficiency reaches 22.54%, compared to a typical PERC at 20–21%, delivering more energy from the same roof or ground area.
Do Leapton LP182*199-M-72-NH panels perform well during hot summer days?
Yes. The power temperature coefficient for this series is -0.30%/°C, meaning lower thermal losses than typical PERC modules (-0.35%/°C). For example, at a module temperature of 65°C — common in summer — the panel loses approximately 13.5% of its rated power rather than ~16%. In practice this translates to noticeably higher real-world energy yield during peak summer months.
What are the dimensions and weight of the Leapton LP182*199-M-72-NH module, and does it affect installation?
Each module measures 2465 × 1134 × 30 mm and weighs 29 kg. This is a large-format module intended primarily for ground-mount utility-scale projects and large commercial rooftops, where mechanical handling equipment is used. For residential rooftop installations, the size and weight require careful logistics planning and a larger installation crew compared to standard residential-size panels.
Is the LP182*199-M-72-NH series a good choice for a solar farm over 1 MW?
Yes, this series is purpose-built for utility-scale projects. The 630 Wp peak power and up to 22.54% module efficiency allow reaching target capacity with fewer modules and shorter wiring runs. Leapton holds Bloomberg NEF Tier-1 status, which simplifies project bankability. The SMBB structure minimizes resistive losses, ensuring stable output throughout the full 30-year power warranty period.
Are Leapton LP182*199-M-72-NH modules monofacial or bifacial?
The LP182*199-M-72-NH series is monofacial — the NH suffix in the model name denotes a standard opaque backsheet. Leapton offers a separate bifacial variant under the designation LP182*199-M-72-NB, which harvests reflected albedo light from the ground surface. For typical rooftop installations the monofacial NH version is fully sufficient and is generally available at a lower price point.
