700Wp
JA Solar JAM66D46-700/LB
JA Solar Review

JAM66D46-700/LB

MonocrystallineBifacial
Datasheet
22.50%
Efficiency
225.3 Wp/m²
Power Density
-0.290%/°C
Temp. Coeff. Pmax chart
612W from 700W
Power after 30 years
Smart Insights (data-driven)
  • At 22.5% efficiency, this panel is on par with typical TOPCon 700-750W modules
  • Power density of 225.3 W/m² is 3.5 W/m² below TOPCon 700-750W median (228.8 W/m²) - needs more roof space
  • Temperature coefficient of -0.29%/°C matches the TOPCon 700-750W median
  • #3342 for efficiency, #1739 for temperature performance out of 11672 panels

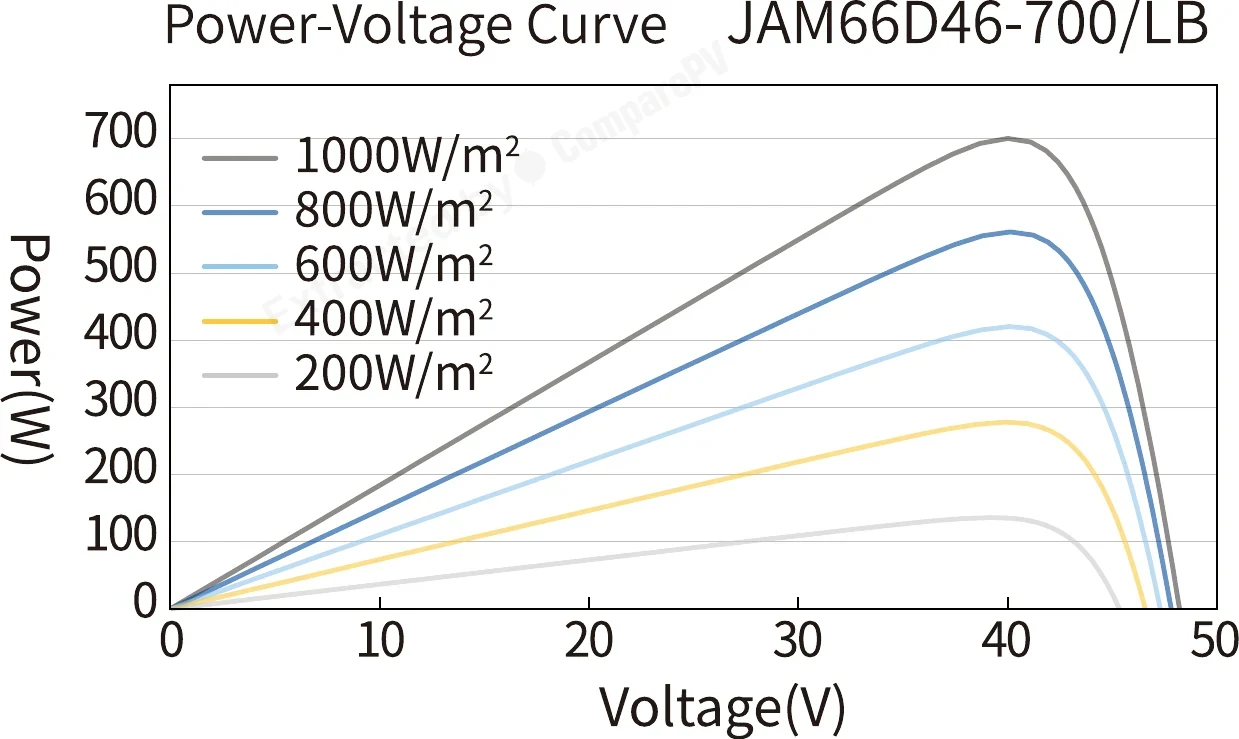

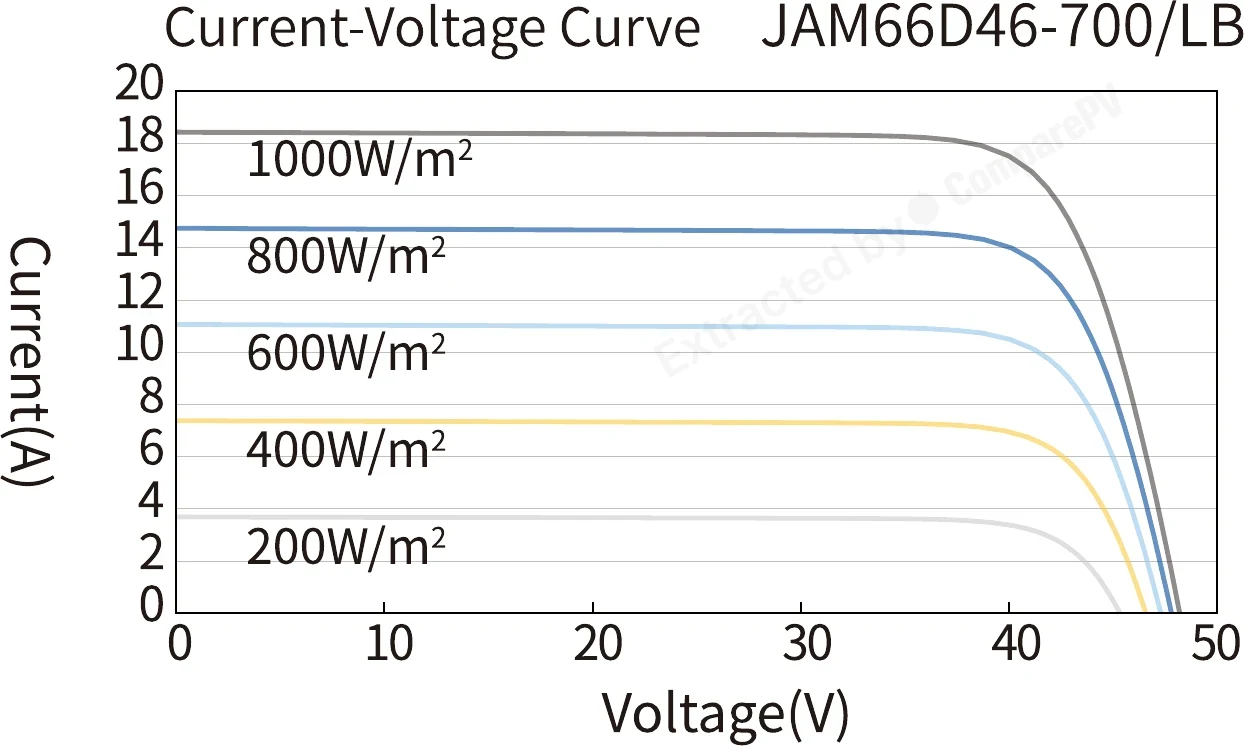

Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series JAM66D46 LB 10 variants
Efficiency Range 22.4% - 23.8%
Avg. Efficiency 23.10%
Technology TOPCon
Dimensions 2384 × 1303 mm
Show series description

The JA Solar JAM66D46 LB series is designed for maximizing yield in installations where every square meter counts and ensuring stable performance year after year – especially on warehouse roofs, large industrial halls, and extensive PV farms. The application of N-type TOPCon cells translates to high resistance to light-induced degradation, facilitating predictable energy production over the long term. The bifacial double-glass construction allows for the use of reflected light while simultaneously enhancing the module's resistance to environmental factors critical for ground and industrial applications. The half-cut layout improves performance under partial shading and minimizes losses in practical installation conditions. It also helps that the better temperature coefficient supports efficiency during hot periods, and the refined performance under low-light conditions is another advantage. Compared to many standard PERC modules, JAM66D46 LB offers a more future-oriented technology and a more favorable long-term production profile.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)700 Wp
Module Efficiency22.50%
Voltage at Max Power (Vmpp)40.24 V
Current at Max Power (Impp)17.28 A
Open Circuit Voltage (Voc)48.04 V
Short Circuit Current (Isc)18.39 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.290%/°C
Temp. Coeff. Voc-0.250%/°C
Temp. Coeff. Isc0.045%/°C
NOCT45°C
Cell Technology
Cell TypeMonocrystalline
Cell Count132
BifacialYes
Bifaciality Factor-
Dimensions & Weight
Length2384 mm
Width1303 mm
Height33 mm
Weight38.2 kg
Area3.11 m²
Power Density225.3 Wp/m²

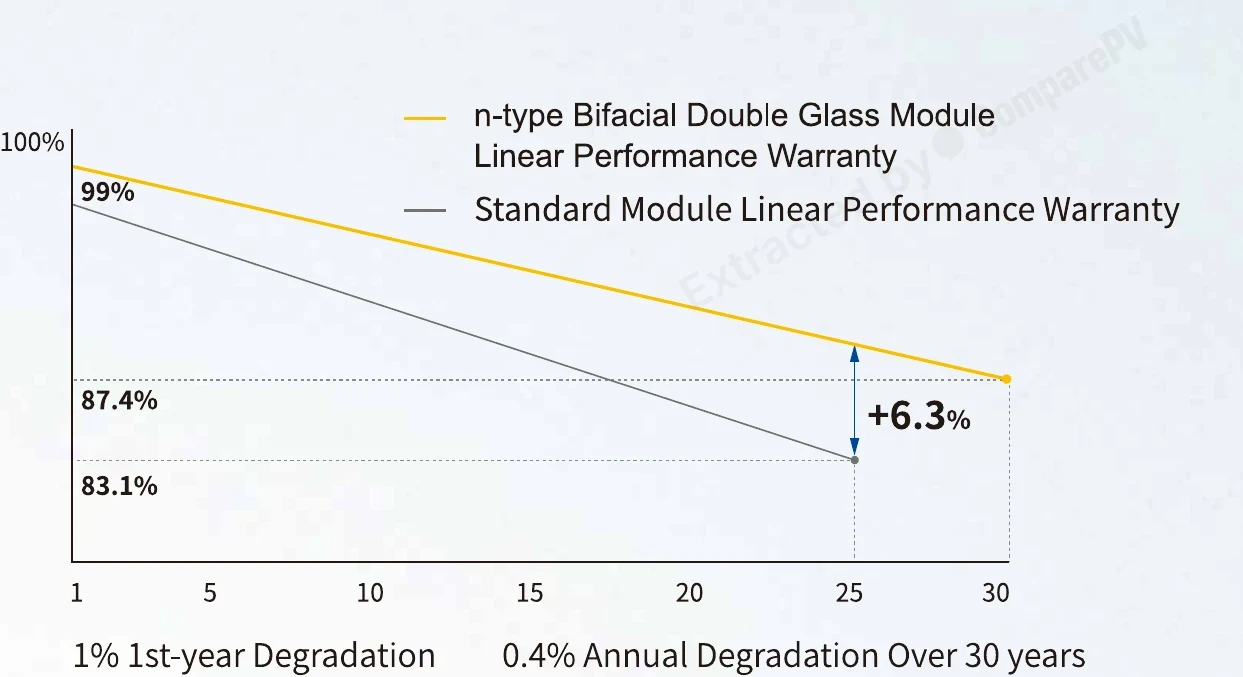

Warranty
Product Warranty12 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
22.50%
Efficiency
700 Wp
Power
-0.29%/°C
Temp Coeff
30 yrs
Warranty
