630Wp
AIKO AIKO-A630-MAH72Dw
AIKO Review

AIKO-A630-MAH72Dw

MonocrystallineBifacial
24.40%
Efficiency
243.9 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
560W from 630W
Power after 30 years
  • At 24.4% efficiency, this panel is 0.7pp above typical Back Contact 600-650W modules (median: 23.7%)
  • At 243.9 W/m² power density, this panel generates 7.0 W/m² more per unit area than Back Contact 600-650W median (236.9 W/m²)
  • At -0.26%/°C, hot weather performance is typical for Back Contact 600-650W panels
  • Bifacial design (70% factor) captures reflected light - adds 4-10% yield on ground-mount or white roof
  • In the top 1% for efficiency among all Back Contact panels
Performance Profile
Price Offers 0
Shop Country Price Price/kWp

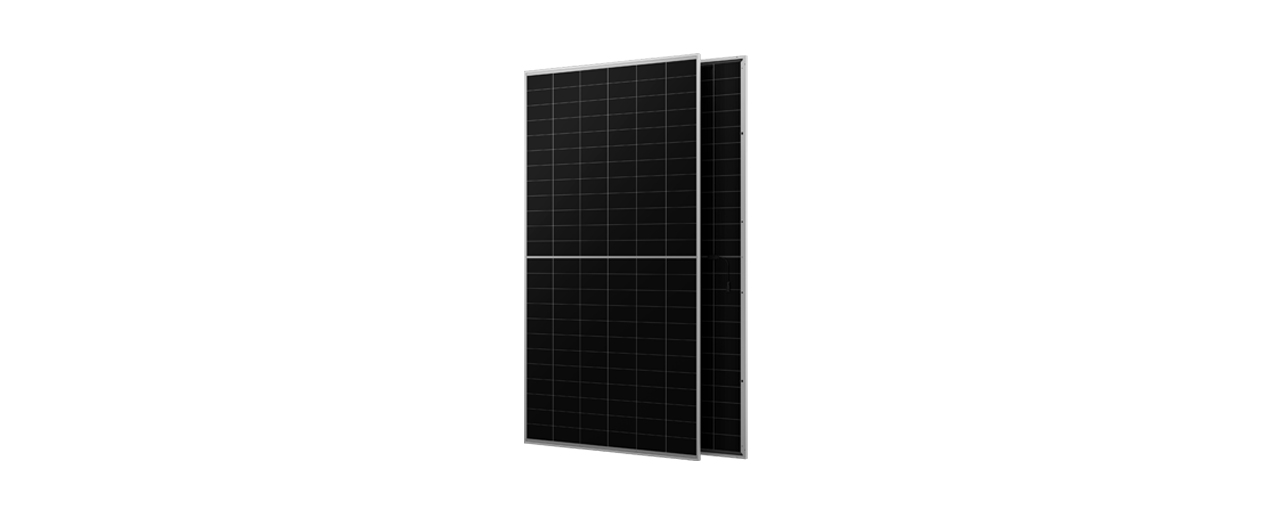

Series Comet 1N+ Dual-Glass Module (610W-630W) 5 variants
Efficiency Range 23.6% - 24.4%
Avg. Efficiency 24.00%
Technology Back Contact
Dimensions 2278 × 1134 mm
Show series description

The AIKO Comet 1N+ Dual-Glass (610W-630W) series is designed for maximum yield from every square meter of commercial and industrial installations. Its key advantage is the application of N-type cells in ABC technology (back contact), where conductive elements are moved to the rear side of the cell. The effect is cleaner front side operation, better light utilization, and high visual cleanliness without compromising performance.

The dual-glass (glass-glass) version targets longevity – the construction is mechanically stronger and better withstands typical operating conditions for roof of halls, warehouses, and carports. In practice, it helps reduce the risk of micro-cracks, thereby minimizing power degradation over time – a tangible benefit for investors focusing on LCOE and reliability.

Modules also feature optimized performance under partial shading, which is crucial where roof tiles, dirt, or diffuse light occur. Additionally, behavior at high temperatures supports stable energy production during summer, when many standard panels suffer the most. This is the choice for projects where yield, safety, and robust construction matter just as much as catalog specifications.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)630 Wp
Module Efficiency24.40%
Voltage at Max Power (Vmpp)45.40 V
Current at Max Power (Impp)13.88 A
Open Circuit Voltage (Voc)54.83 V
Short Circuit Current (Isc)14.62 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.220%/°C
Temp. Coeff. Isc0.050%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count144
BifacialYes
Bifaciality Factor70%
Dimensions & Weight
Length2278 mm
Width1134 mm
Height30 mm
Weight32.5 kg
Area2.58 m²
Power Density243.9 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
24.40%
Efficiency
630 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
