655Wp
AE Solar ICME-132BDS-655
AE Solar Review

ICME-132BDS-655

MonocrystallineBifacial
Datasheet
24.25%
Efficiency
242.5 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
582W from 655W
Power after 30 years
Smart Insights (data-driven)
  • At 24.2% efficiency, this panel is on par with typical Back Contact 650-700W modules
  • At 242.5 W/m² power density, roof space requirements are typical for Back Contact 650-700W panels
  • At -0.26%/°C, hot weather performance is typical for Back Contact 650-700W panels
  • Bifacial design (75% factor) captures reflected light - adds 4-11% yield on ground-mount or white roof
  • Ranked #120 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series ECLIPSE 15 variants
Efficiency Range 23.0% - 24.4%
Avg. Efficiency 23.88%
Technology Back Contact
Dimensions 1800 × 1134 mm
Show series description

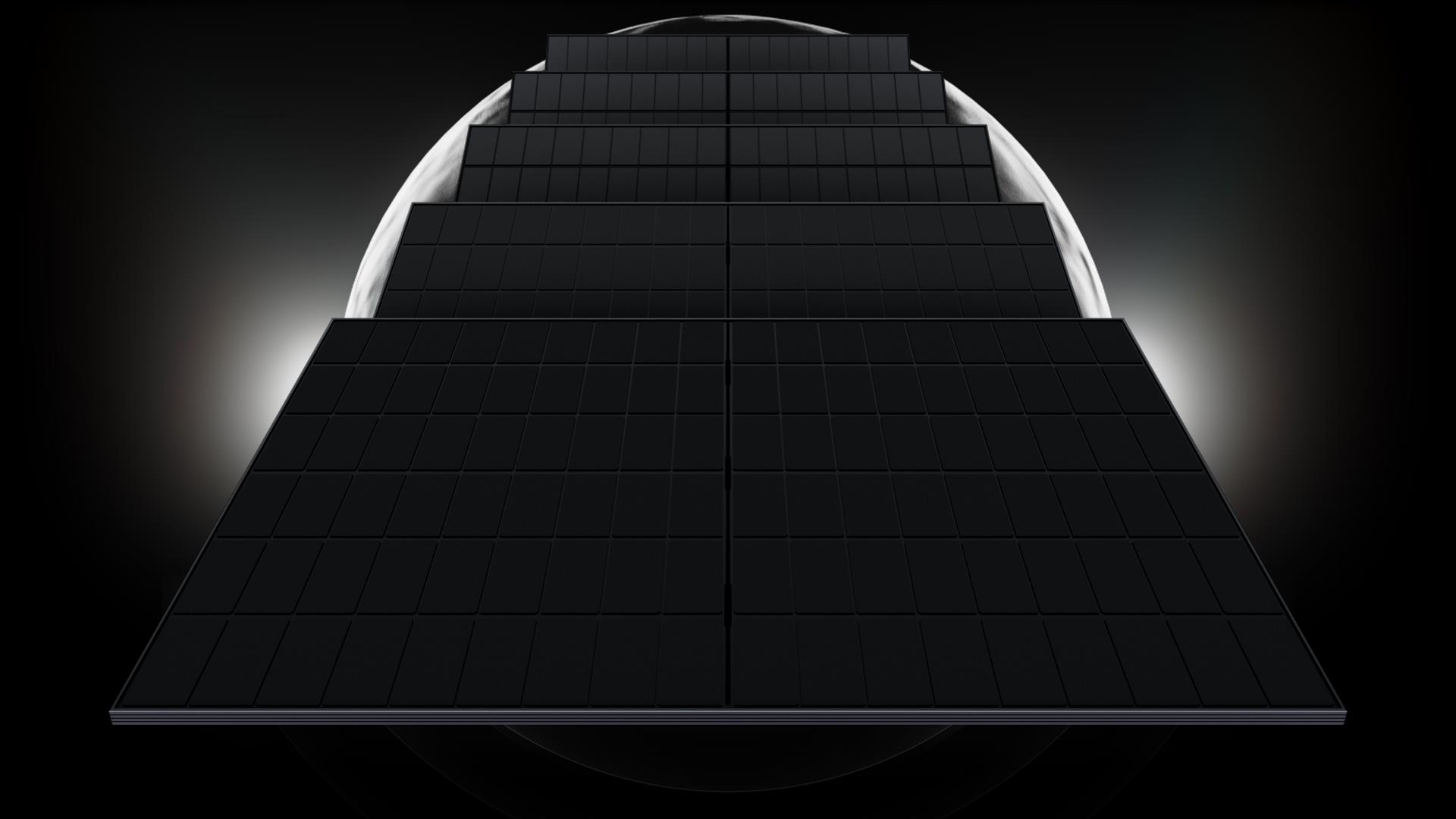

The AE Solar ECLIPSE series features N-type Back Contact (BC) technology, where all electrical connections are located on the back of the module. This eliminates the traditional rails and lines on the front, effectively increasing the active surface area and allowing for greater energy generation from the same roof area – especially in situations where every meter counts. The double-glass (bifacial) construction improves resistance to environmental factors and ensures stable operation over a long period.

The ECLIPSE also boasts high resistance to partial shading – the module design minimizes energy losses and reduces the risk of hotspots, which translates to increased safety and reduced risk of failures in real-world conditions (chimneys, trees, skylights). An additional advantage is the premium aesthetics – a uniform appearance with no visible connections, making it a popular choice for modern roofs.

It is a good choice for residential installations, commercial buildings, and projects where maximizing energy output from a limited area, durability, and a consistent design are priorities.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)655 Wp
Module Efficiency24.25%
Voltage at Max Power (Vmpp)41.08 V
Current at Max Power (Impp)15.94 A
Open Circuit Voltage (Voc)49.82 V
Short Circuit Current (Isc)16.62 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.200%/°C
Temp. Coeff. Isc0.050%/°C
NOCT45°C
Cell Technology
Cell TypeMonocrystalline
Cell Count132
BifacialYes
Bifaciality Factor75%
Dimensions & Weight
Length2382 mm
Width1134 mm
Height30 mm
Weight33.5 kg
Area2.70 m²
Power Density242.5 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation-
Key Specifications
24.25%
Efficiency
655 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
