720Wp
Trina Solar TSM-NEG21C.20-720
Trina Solar Review

TSM-NEG21C.20-720

MonocrystallineBifacial
23.20%
Efficiency
231.8 Wp/m²
Power Density
-0.290%/°C
Temp. Coeff. Pmax chart
629W from 720W
Power after 30 years
  • Efficiency of 23.2% matches the TOPCon 700-750W median
  • At 231.8 W/m² power density, roof space requirements are typical for TOPCon 700-750W panels
  • Temperature coefficient of -0.29%/°C matches the TOPCon 700-750W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
  • In the top 8% for efficiency among all TOPCon panels
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Vertex N (TSM-NEG21C.20 715-740W) 6 variants
Efficiency Range 23.0% - 23.8%
Avg. Efficiency 23.42%
Technology TOPCon
Dimensions 2384 × 1303 mm
Show series description

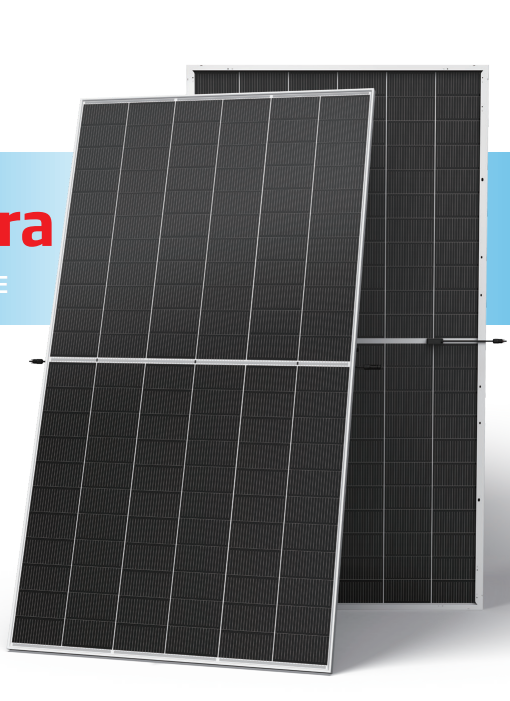

Trina Solar's Vertex N TSM-NEG21C.20 71 (715-740W) is designed for maximum energy yield in large-scale projects where every cost element counts and reliability matters. The use of n-type cells in i-TOPCon technology helps reduce typical power losses over time and stabilizes module performance in real-world conditions, even at higher temperatures. The bifacial glass-glass construction enables additional rear-side generation, particularly effective on farms with light backgrounds or in light-reflective systems – without the need to add more rowsof panels.

A key feature of this series is the low-voltage design, which facilitates longer strings and truly reduces BOS costs, leading to a lower LCOE in large plants. The multi-busbar technology improves light capture and supports uniform current transport, while the focus on high environmental resistance aids applications exposed to dust, humidity, or industrial atmospheres. This is an excellent choice for PV farms and large commercial rooftops, where yield, durability, and predictable performance are top priorities.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)720 Wp
Module Efficiency23.20%
Voltage at Max Power (Vmpp)41.30 V
Current at Max Power (Impp)17.44 A
Open Circuit Voltage (Voc)49.40 V
Short Circuit Current (Isc)18.49 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.290%/°C
Temp. Coeff. Voc-0.240%/°C
Temp. Coeff. Isc0.040%/°C
NOCT43°C
Cell Technology
Cell TypeMonocrystalline
Cell Count132
BifacialYes
Bifaciality Factor80%
Dimensions & Weight
Length2384 mm
Width1303 mm
Height33 mm
Weight38.3 kg
Area3.11 m²
Power Density231.8 Wp/m²
Warranty
Product Warranty12 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
23.20%
Efficiency
720 Wp
Power
-0.29%/°C
Temp Coeff
30 yrs
Warranty
