Trina Solar TSM-NE21 720W
Trina Solar Brand review

TSM-NE21 720W

720 Wp TOPCon
ComparePV verdict

Light for its output, short guarantee

Rank 968 of 14,005
Compare panels Datasheet PDF
Power (Wp)
720
Typical for its class
Efficiency (%)
23.20
Strong · top 25%
Density (Wp/m²)
231.8
Typical · median 230.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.9
Strong · 5.1 kg below median
Warranty (yrs)
25
Weak · bottom 1%

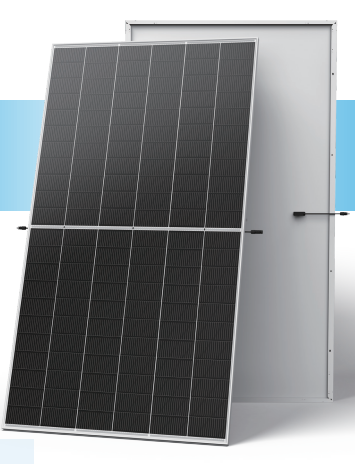

Trina Solar Vertex N TSM-NE21 695-725W modules are designed for maximum energy production on large-scale projects, where rapid return and reliable operation over the long term are crucial. The application of N-type cells in TOPCon technology translates to more stable performance and lower power degradation over time, effectively improving project profitability without the need for "overprovisioning."

The key advantage is the bifacial dual-glass construction - the module can also utilize reflected light from the ground, increasing yield in PV farms and ground-mounted installations. Furthermore, high power output with a low-voltage concept facilitates cost optimization in the Balance of System (BOS): fewer modules, fewer components, faster installation, and simpler on-site logistics.

This solution is tailored for investors, EPC contractors, and developers of solar farms who aim to lower the levelized cost of energy (LCOE) and build installations resilient to operational risks. Against competitors, this series stands out with its longer warranty period and emphasis on reliability, which is significant for financing and project bankability.

Ranking

420 panels in the segment TOPCon 700-750 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.20% 23.00% Strong · top 25% 1,306
Power density 231.8 230.2 Typical 1,347
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 45.7 52.9 Strong · top 9% 845
Performance warranty 25 yrs 30 yrs Weak · bottom 1% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 1 caution
Best for

Utility-scale and hot-climate.

Not ideal for

Owners who want a long output guarantee.

Strengths
45.7 kg per kWp

Top 9% of the TOPCon 700-750 W segment, against a median of 52.9. Ranked 845th in the whole database.

23.20% module efficiency

Top 25% of the TOPCon 700-750 W segment, against a median of 23.00%.

Watch-outs
25 year performance warranty

Bottom 1% of the TOPCon 700-750 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

Notes from the database
  • At 23.2% efficiency, this panel is on par with typical TOPCon 700-750W modules
  • At 231.8 W/m² power density, roof space requirements are typical for TOPCon 700-750W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 700-750W panels
  • Weight of 32.9 kg (5.1 kg below TOPCon 700-750W median of 38.0 kg) allows easier transport and roof mounting
  • In the top 9% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 720 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.20 % Strong Segment median 23.00%
Vmpp · Impp 41.30 V · 17.44 A Operating point at max power
Voc · Isc 49.40 V · 18.48 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×33 mm · 3.11 m² of roof
Weight 32.9 kg Strong Strong · 5.1 kg below median
Cells 132 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.240 · 0.040 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 1% · median 30 yrs
End-of-warranty output 89.4 % Equals 629 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Trina Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 720 Wp appear here. The rest cover the whole series.

Performance Warranty Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Trina Solar TSM-NE21 720W 720 W 23.20% -0.290 32.9 kg You are here
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg -40 W, +2.0 pp, +5 yr warranty
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg -45 W, +1.8 pp, +5 yr warranty
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg Cooler, +1.8 pp, +5 yr warranty
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg Cooler, +1.7 pp, +5 yr warranty
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg -50 W, +1.6 pp, +5 yr warranty
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg -50 W, +1.6 pp, +5 yr warranty
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg -50 W, +1.6 pp, +5 yr warranty
TSM-DEG21C.20-645 645 W 20.80% -0.340 38.3 kg -75 W, heavier, -2.4 pp
TSM-DEG21C.20-650 650 W 20.90% -0.340 38.3 kg -70 W, heavier, -2.3 pp
TSM-DE21-655W 655 W 21.10% -0.340 32.3 kg -65 W, hotter, -2.1 pp
TSM-DE21-660W 660 W 21.20% -0.340 32.3 kg -60 W, hotter, -2.0 pp
TSM-DE21-665W 665 W 21.40% -0.340 32.3 kg -55 W, hotter, -1.8 pp
TSM-DE21-670W 670 W 21.50% -0.340 32.3 kg -50 W, hotter, -1.7 pp
TSM-DE21-675W 675 W 21.70% -0.340 32.3 kg -45 W, hotter, -1.5 pp
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +85 W, heavier, +1.9 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +80 W, heavier, +1.7 pp

Found 1390 panels of the same or similar size to this one, within ±10 mm. See them here Found 1400 panels of the same or similar size to this one, within ±25 mm. See them here Found 1400 panels of the same or similar size to this one, within ±50 mm. See them here Found 1432 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does TOPCon technology in Trina Vertex N TSM-NE21 panels differ from standard PERC cells?
N-type TOPCon cells have lower power degradation over time and perform better at higher temperatures than conventional P-type PERC cells. In practice, this means higher energy yield over a 25-year lifespan and reduced risk of performance loss, which matters most on large solar farms where every percentage point of efficiency counts.
Are the Vertex N TSM-NE21 panels bifacial?
Yes, the modules use a dual-glass bifacial construction, so the rear side also generates power from light reflected off the ground surface. With a bifaciality factor of around 80%, this translates into a real yield boost, especially on ground-mounted installations over light-colored surfaces, gravel, or white membrane, where the albedo effect is significant.
What warranty does Trina Solar offer on the Vertex N TSM-NE21 695-725W series?
The manufacturer provides a 12-year product warranty and a 25-year power output warranty, guaranteeing 89.4% of original power retention after that period. As a Tier 1 manufacturer, Trina Solar offers stable service support, which is an important factor when financiers assess the bankability of a project.
How many Vertex N 725W panels are needed to build a 1 MW PV plant?
With a maximum unit power of 725 Wp, roughly 1,380 modules are needed to reach 1 MWp, fewer than with lower-power panels. This reduces the number of mounting structures, connectors, and installation time, directly lowering BOS costs and speeding up project completion.
Are Vertex N TSM-NE21 panels suitable for residential sloped roofs?
This series is designed mainly for large commercial and ground-mounted installations rather than typical residential sloped roofs. The module's large dimensions and high unit power make it better suited to large, flat, or gently sloped areas where maximizing power per square meter is the priority.
Is the Trina Vertex N TSM-NE21 695-725W series still available for purchase?
Yes, the series remains part of the manufacturer's current lineup and has not been discontinued. Trina Solar continues to develop it alongside newer Vertex N variants, so these modules are still supplied to distributors and used in new farm and commercial installation projects.
