Tata Power Solar Brand review

GSD7S72T-595WT

595 Wp TOPCon Bifacial 80%
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 1,408 of 14,005
Compare panels Datasheet PDF
Power (Wp)
595
Strong · top 5%
Efficiency (%)
23.03
Strong · top 5%
Density (Wp/m²)
230.3
Strong · top 7%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
32.0
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Tata Power Solar GSD7S72T series of photovoltaic panels is designed for installations where maximizing energy yield from a given area is the priority. The use of a bifacial construction allows for the utilization of reflected light from the ground, which significantly improves energy production in ground-mounted systems, on bright roofs, and on carport structures. The modules are based on N-type cells using TOPCon technology, which improves their ability to handle typical operational losses and maintain high efficiency for longer periods. Another key feature is the dual-glass design, which increases resistance to moisture and stress, and reduces the risk of micro-cracks during transport and installation. Additionally, the half-cut technology with multiple busbars improves performance under partial shading and stabilizes parameters in more challenging conditions. This makes it a good choice for PV farms, commercial projects, and modern industrial installations, where durability, predictable energy yields, and lower long-term energy costs are important.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.03% 22.44% Strong · top 5% 1,744
Power density 230.3 224.4 Strong · top 7% 1,758
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 53.8 53.8 Typical 7,849
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 0 caution
Best for

Utility-scale, commercial and shaded-installations.

Strengths
23.03% module efficiency

Top 5% of the TOPCon 550-600 W segment, against a median of 22.44%. Ranked 1,744th in the whole database.

230.3 watts per square metre

Top 7% of the TOPCon 550-600 W segment, against a median of 224.4. Ranked 1,758th in the whole database.

Notes from the database
  • Efficiency of 23.0% is 0.6pp above the TOPCon 550-600W median (22.4%)
  • At 230.3 W/m² power density, this panel generates 5.9 W/m² more per unit area than TOPCon 550-600W median (224.4 W/m²)
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
  • #1744 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 595 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.03 % Strong Segment median 22.44%
Vmpp · Impp 42.82 V · 13.90 A Operating point at max power
Voc · Isc 51.44 V · 14.71 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 32.0 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 520 W guaranteed
Degradation 0.40 % Per year after the first

Datasheet charts

Open datasheet PDF

Measured curves published by Tata Power Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 595 Wp appear here. The rest cover the whole series.

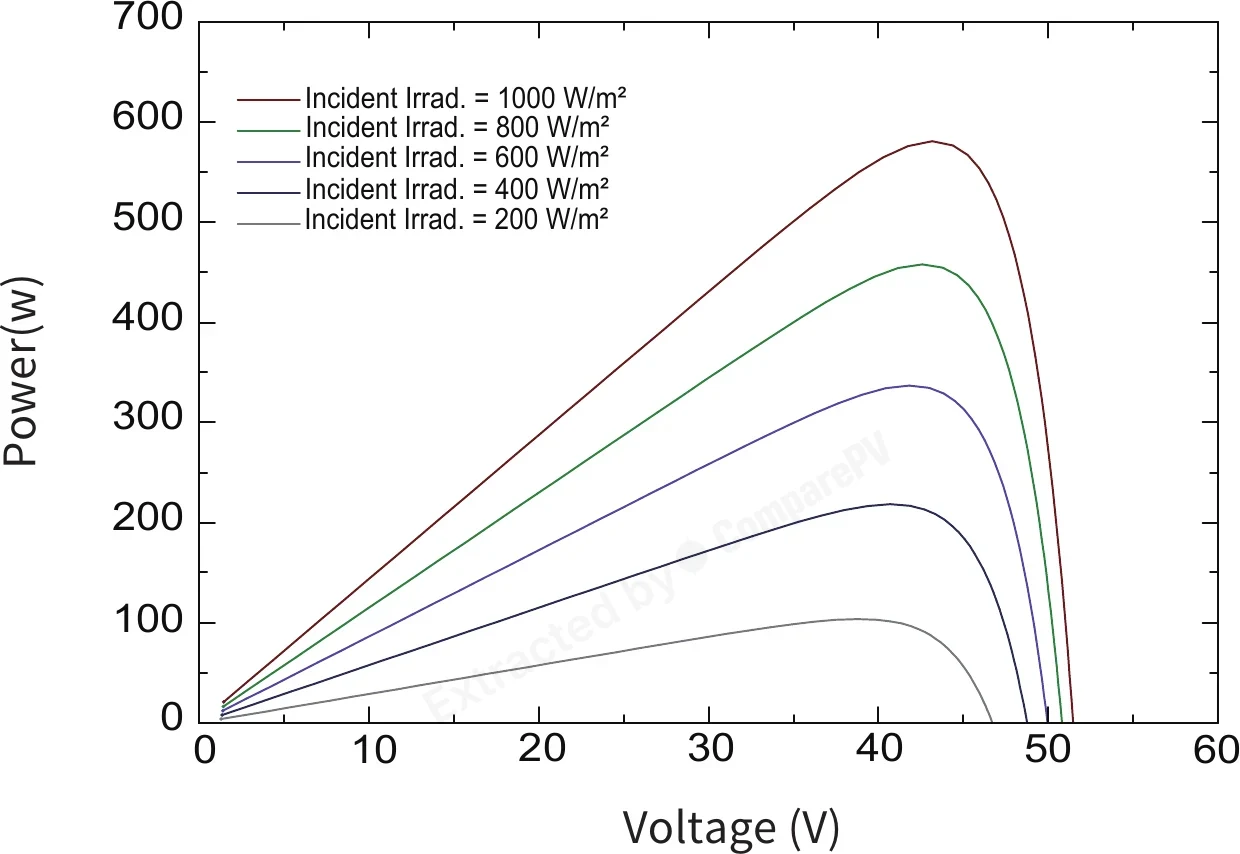

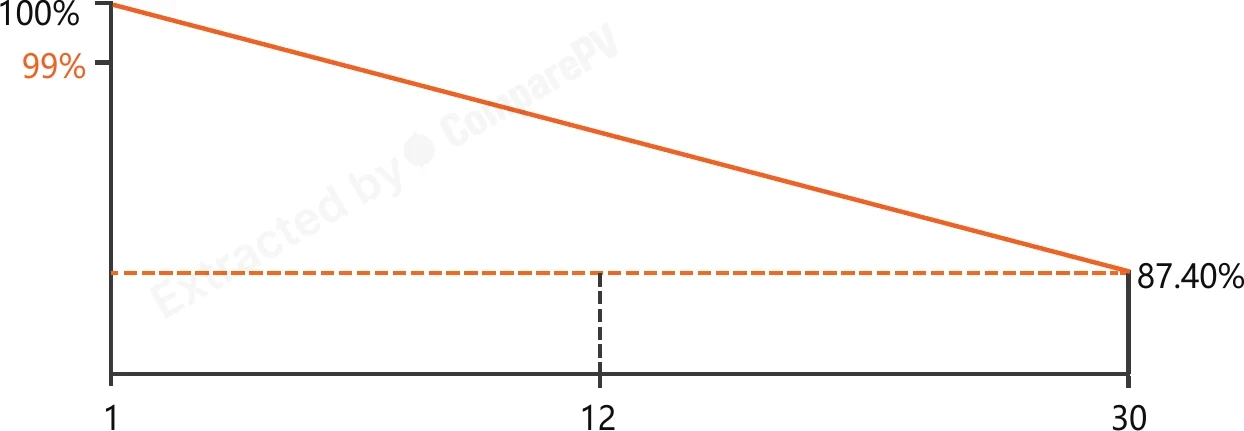

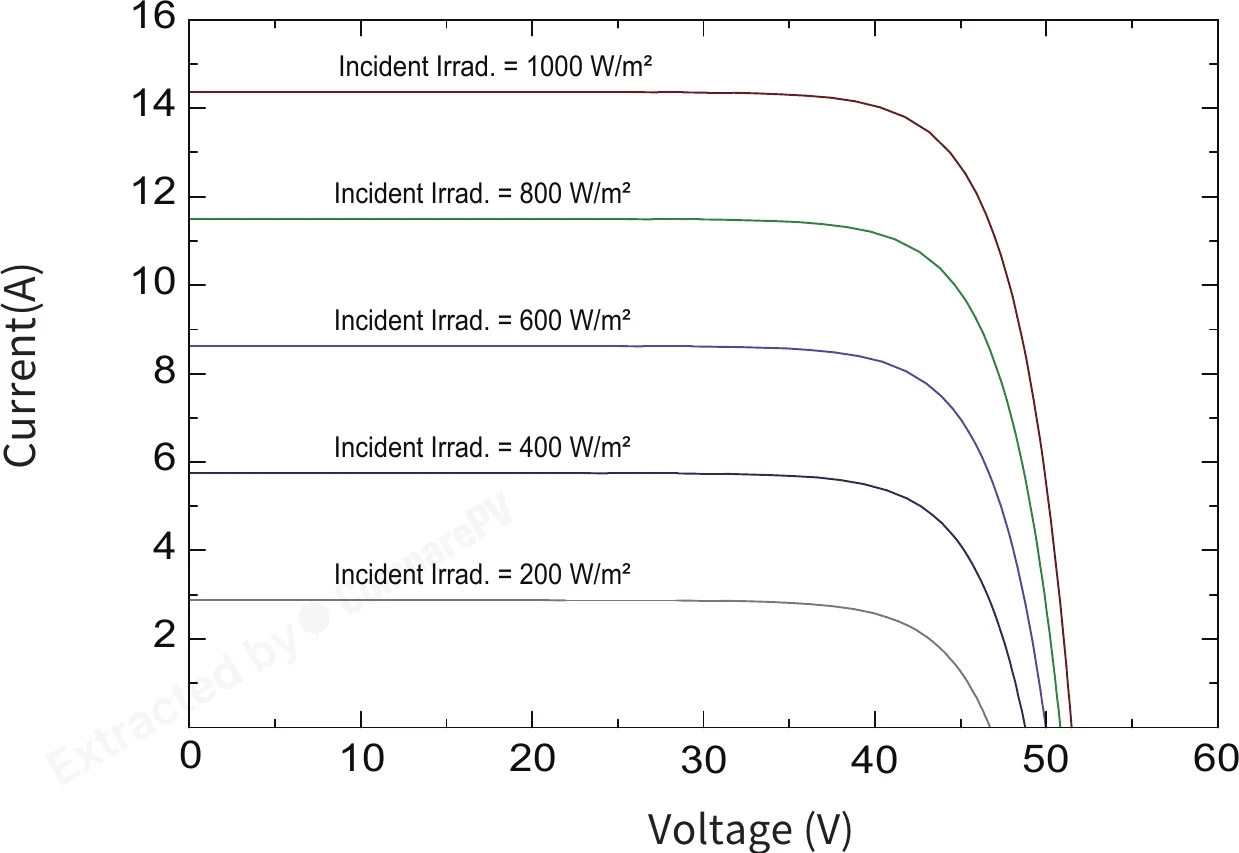

Linear Power Warranty (100% at Year 1 to 87.40% at Year 30) Linear Power Warranty (100% at Year 1 to 87.40% at Year 30) Whole series Power-Voltage (P-V) Curve Power-Voltage (P-V) Curve Whole series Current-Voltage (I-V) Curve Current-Voltage (I-V) Curve Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Tata Power Solar GSD7S72T-595WT 595 W 23.03% -0.300 32.0 kg You are here
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +50 W, lighter, +2.0 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +1.8 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +45 W, lighter, +1.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -40 W, lighter, +1.6 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +40 W, lighter, +1.6 pp
TP540HG10B-530 530 W 20.52% -0.370 33.0 kg -65 W, hotter, -2.5 pp
TP540HG10B-535 535 W 20.71% -0.370 33.0 kg -60 W, hotter, -2.3 pp
TP540HG10B-540 540 W 20.90% -0.370 33.0 kg -55 W, hotter, -2.1 pp
TP545HG10TB 545 W 21.10% -0.360 29.0 kg -50 W, hotter, -1.9 pp
TP550HG10TB 550 W 21.29% -0.360 29.0 kg Hotter, -1.7 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +55 W, lighter, +2.2 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +35 W, cooler, +1.4 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does the Tata Power Solar GSD7S72T series differ from standard monofacial panels?
The key difference is the bifacial design – the panel generates power from both the front and rear sides, capturing light reflected off the ground. On light-colored surfaces such as gravel or white rooftops, this can add several extra percentage points of energy yield compared to a monofacial module rated at the same 595 Wp.
What is TOPCon technology in the GSD7S72T and does it actually improve output?
TOPCon uses N-type cells that reduce recombination losses, delivering higher efficiency than older P-type PERC cells. In practice this means better performance at high temperatures, lower power degradation over time, and more stable energy yield throughout the system's lifetime.
What warranty comes with the Tata Power Solar GSD7S72T panels?
The manufacturer provides a 25-year product warranty and a 30-year power output warranty. This gives long-term coverage against material and workmanship defects as well as assurance that the module maintains its rated efficiency, supporting a predictable LCOE over the system's service life.
Does the dual glass construction in the GSD7S72T affect durability and weight?
The dual glass design increases resistance to moisture and PID degradation and improves mechanical load tolerance while reducing the risk of cell microcracks during transport and installation. The panel is somewhat heavier than a backsheet version, so this should be factored in when selecting a mounting structure, especially on roofs with limited load capacity.
What installation types is the GSD7S72T series best suited for?
Thanks to its bifacial design and high 595 Wp rating, the panel performs particularly well in ground-mounted PV farms, carport installations, and light-colored flat roofs, where reflected light can be captured by the rear side. It's a strong fit for commercial and industrial projects focused on maximizing yield per square meter.
Does the half-cut, multi-busbar cell technology in the GSD7S72T help with partial shading?
Yes, splitting cells into halves (half-cut) combined with a denser busbar grid reduces current losses and limits the impact of partial shading, such as from chimneys or adjacent panel rows. This keeps the array performing more consistently under less-than-ideal light conditions.
