660Wp
Solarspace SS9-66HD-660M
Solarspace Review

SS9-66HD-660M

MonocrystallineBifacial
21.25%
Efficiency
212.5 Wp/m²
Power Density
-0.330%/°C
Temp. Coeff. Pmax chart
561W from 660W
Power after 30 years
  • Efficiency of 21.2% matches the PERC 650-700W median
  • At 212.5 W/m² power density, roof space requirements are typical for PERC 650-700W panels
  • Temperature coefficient of -0.33%/°C matches the PERC 650-700W median
  • 37.5 kg weight exceeds %!s(float64=3) median by %!f(string=P) kg (34.5 kg) - heavier for installation crews
  • 70% bifaciality enables rear-side power generation, boosting yield by 4-10% on reflective surfaces
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series SS9-66HD 645-670M 6 variants
Efficiency Range 20.8% - 21.6%
Avg. Efficiency 21.17%
Technology PERC
Dimensions 2384 × 1303 mm
Show series description

The Solarspace SS9-66HD 645-670M series are large-format modules designed to maximize energy yield from a limited surface area and ensure stable operation in demanding conditions. The use of bifacial construction allows for a real increase in energy production by utilizing reflected light from the ground – which works particularly well on roofs with light-colored membranes, carports, and ground-mounted installations.

The half-cut architecture also deserves attention, as it reduces losses at connections and improves the module's performance under partial shading – a common scenario, for example, along the edges of roofs, chimneys, or rows of structures. Another distinguishing feature is the anti-reflective glass coating, which supports efficient radiation collection in less favorable lighting conditions.

This is a good choice for investors who value not only high yield but also predictability – this is facilitated by the long linear power warranty and a robust, weather-resistant construction with a sealed connection box. The SS9-66HD series is aimed at C&I and PV farm projects, where performance from each module and ease of scalability are key.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)660 Wp
Module Efficiency21.25%
Voltage at Max Power (Vmpp)35.50 V
Current at Max Power (Impp)14.09 A
Open Circuit Voltage (Voc)42.70 V
Short Circuit Current (Isc)14.99 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.330%/°C
Temp. Coeff. Voc-0.260%/°C
Temp. Coeff. Isc0.046%/°C
NOCT45°C
Cell Technology
Cell TypeMonocrystalline
Cell Count132
BifacialYes
Bifaciality Factor70%
Dimensions & Weight
Length2384 mm
Width1303 mm
Height33 mm
Weight37.5 kg
Area3.11 m²
Power Density212.5 Wp/m²

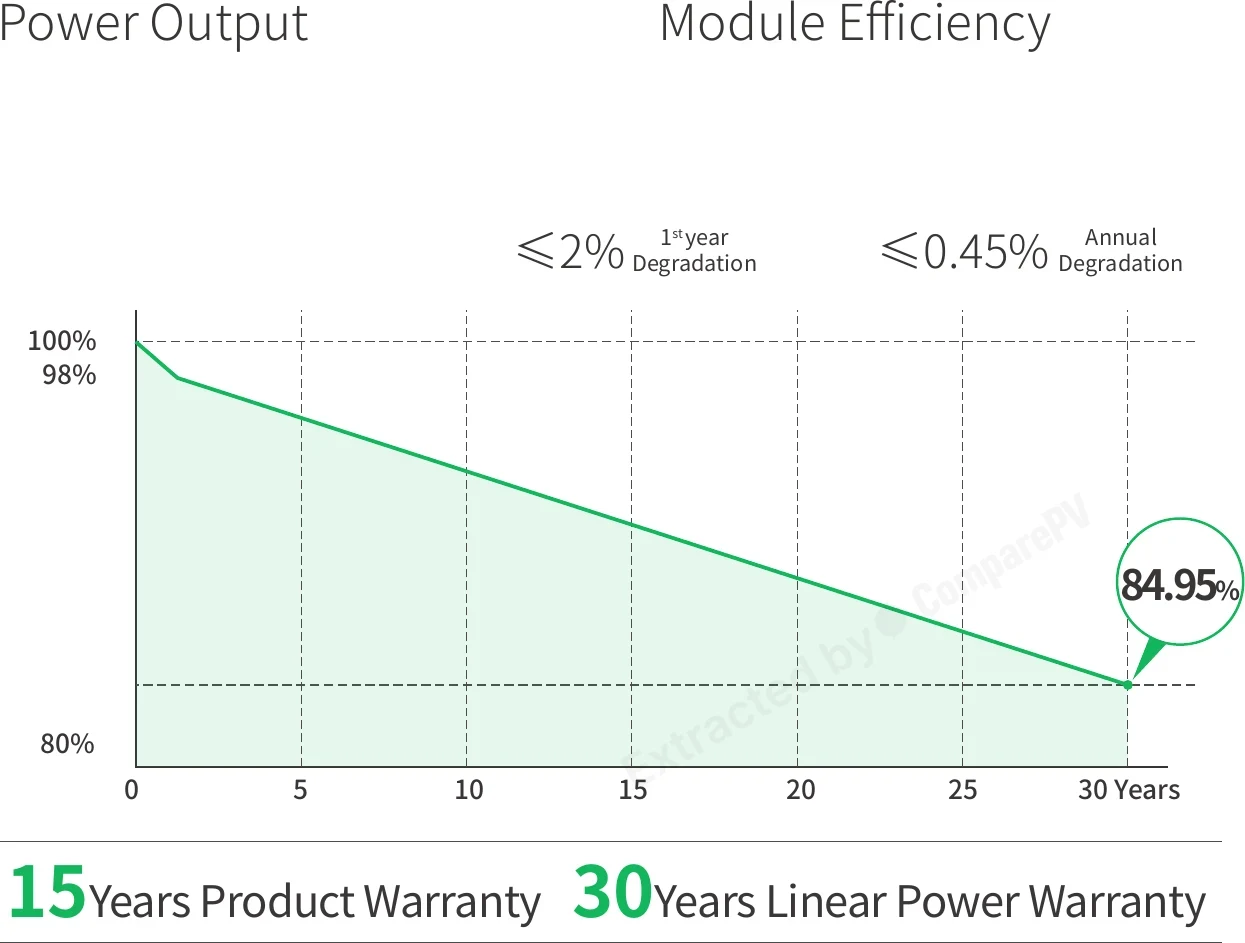

Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output85.0%
First Year Degradation2.00%
Annual Degradation0.45%/year
Key Specifications
21.25%
Efficiency
660 Wp
Power
-0.33%/°C
Temp Coeff
30 yrs
Warranty
