Recom RCM-680-8NM
Recom Brand review

RCM-680-8NM

680 Wp TOPCon
ComparePV verdict

Light for its output, modest efficiency

Rank 278 of 14,005
Compare panels Datasheet PDF
Power (Wp)
680
Typical for its class
Efficiency (%)
21.89
Weak · bottom 19%
Density (Wp/m²)
218.9
Weak · bottom 19%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
33.9
Strong · top 23%
Warranty (yrs)
30
Typical · median 30 yrs

The Recom Lynx series consists of modules based on N-type TOPCon cells, designed for high efficiency and stable performance over long periods. A key advantage is minimal LID degradation and the absence of LeTID risk, which translates directly into more predictable energy production throughout the entire lifespan of the installation. In practice, this means fewer disappointments after several seasons and a better return on investment - especially in situations where long-term performance is critical.

The Lynx series is available in mono- and bi-facial versions, including a double-sided (glass-glass) construction, which enhances resistance to weather conditions and mechanical loads. Thanks to its bi-facial design, the module can utilize reflected light from the ground, improving efficiency without increasing the surface area. This makes it a good choice for PV farms, commercial and industrial rooftops, and demanding prosumers who require low temperature coefficients and high performance in hot weather. Furthermore, the series is supported by a long warranty, which simplifies cost and risk planning for the project.

Ranking

249 panels in the segment TOPCon 650-700 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.89% 22.40% Weak · bottom 19% 6,882
Power density 218.9 223.7 Weak · bottom 19% 6,804
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 49.9 53.2 Strong · top 23% 3,248
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 4 caution
Best for

Utility-scale, commercial and hot-climate.

Not ideal for

Tight roof space and roofs where every square metre has to count.

Strengths
49.9 kg per kWp

Top 23% of the TOPCon 650-700 W segment, against a median of 53.2.

Watch-outs
21.89% module efficiency

Bottom 19% of the TOPCon 650-700 W segment, against a median of 22.40%.

218.9 watts per square metre

Bottom 19% of the TOPCon 650-700 W segment, against a median of 223.7.

What owners get
N-type TOPCon cell technology

N-type TOPCon cells exhibit negligible LID degradation and no LeTID risk, and combined with up to 23.5% efficiency deliver a more predictable and stable energy yield throughout the system's operating life.

30-year linear power warranty

The manufacturer guarantees at least 87.4% of nominal power retained after 30 years, backed by a 30-year product warranty - well above the market-standard 25 years, simplifying long-term project risk and cost planning.

Efficiency on par with segment leaders

The 23.5% peak efficiency matches the best comparable series, such as Huasun Himalaya V-ocean and Phono Solar Monocrystalline132/Helios, which reach the same 23.5% at the same maximum power of 730 Wp.

Wide power range of 440-730 Wp

A 33-variant portfolio spanning 440 to 730 Wp allows the right module to be selected for both C&I rooftops and utility-scale PV farms without switching suppliers.

Glass-glass variant for added durability

The double-glass construction available in the series improves mechanical and weather resistance, reducing the risk of microcracking and laminate degradation over the long term, consistent with the 30-year product warranty.

Trade-offs
No current Tier-1 (bankability) status

Recom achieved BNEF Tier 1 status back in 2019, but according to current data the manufacturer is not presently classified as tier-1 bankable, which can complicate project financing for banks and funds screening suppliers against the current BNEF list.

Base series lacks bifacial gain

The flagship Lynx specification indicates a monofacial module, while a direct competitor at the same power and efficiency (Huasun Himalaya V-ocean, 730 Wp/23.5%) offers a bifacial construction with additional rear-side yield - in ground-mount farm applications this means forgoing a potential energy gain of several percent.

Notes from the database
  • Module efficiency of 21.9% is 0.5pp below average for TOPCon 650-700W panels (median: 22.4%)
  • At 218.9 W/m², this panel generates 4.8 W/m² less per unit area than TOPCon 650-700W median (223.7 W/m²)
  • At -0.30%/°C, hot weather performance is typical for TOPCon 650-700W panels
  • #6882 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 680 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.89 % Weak Segment median 22.40%
Vmpp · Impp 39.70 V · 17.13 A Operating point at max power
Voc · Isc 47.50 V · 18.11 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×30 mm · 3.11 m² of roof
Weight 33.9 kg Strong Strong · top 23%
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 30 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 594 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Recom in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 680 Wp appear here. The rest cover the whole series.

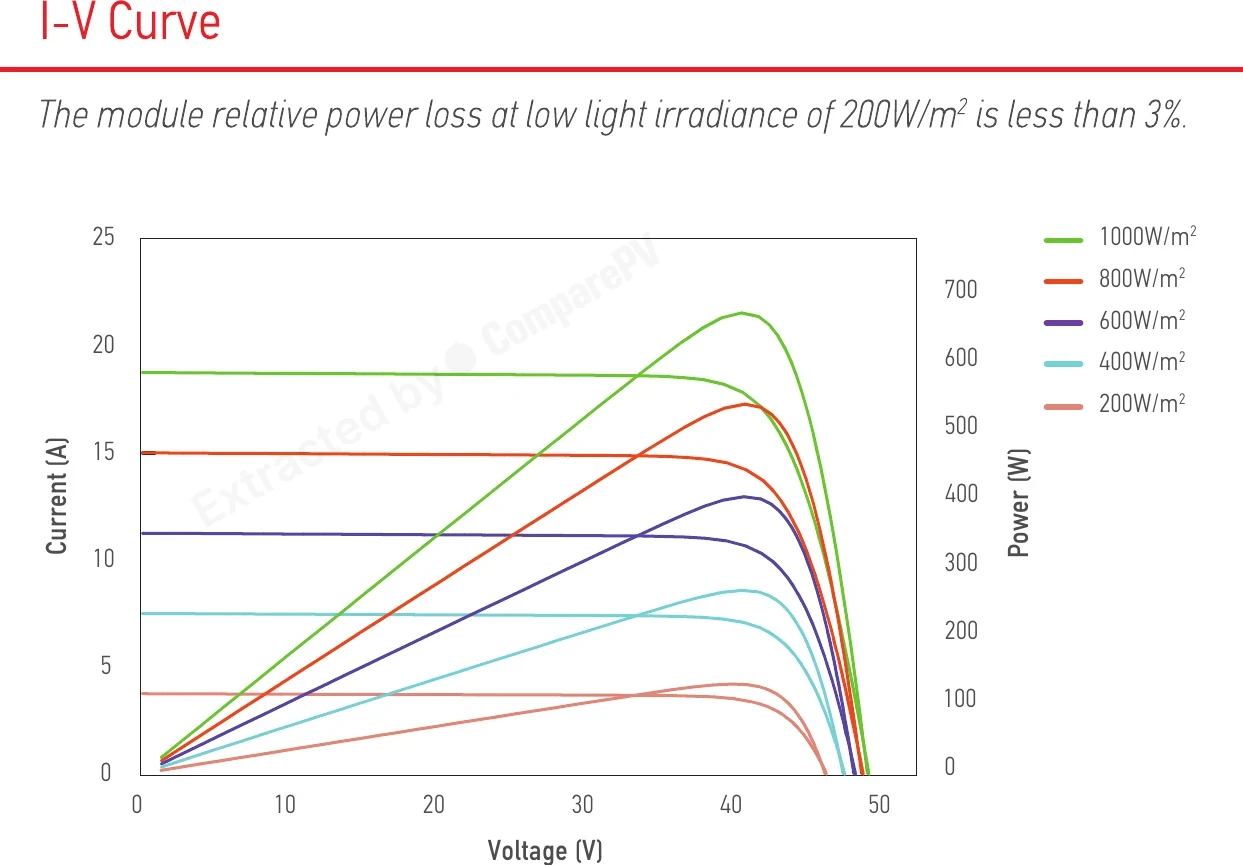

I-V Curve I-V Curve Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Recom RCM-680-8NM 680 W 21.89% -0.300 33.9 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg Cooler, lighter, +3.3 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg Cooler, lighter, +3.3 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg Cooler, lighter, +3.1 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, lighter, +3.1 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +20 W, cooler, +3.1 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +15 W, cooler, +3.0 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg Cooler, lighter, +2.9 pp
RCM-685-8NM 685 W 22.05% -0.300 33.9 kg Very close match
RCM-690-8NM 690 W 22.21% -0.300 33.9 kg +10 W, +0.3 pp
RCM-695-8NM 695 W 22.37% -0.300 33.9 kg +15 W, +0.5 pp
RCM-700-8NM 700 W 22.53% -0.300 33.9 kg +20 W, +0.6 pp
RCM-705-8DBNM 705 W 22.70% -0.290 37.8 kg +25 W, heavier, +0.8 pp
RCM-710-8DBNM 710 W 22.90% -0.290 37.8 kg +30 W, heavier, +1.0 pp
RCM-715-8DBNM 715 W 23.00% -0.290 37.8 kg +35 W, heavier, +1.1 pp
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +125 W, heavier, +3.2 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +120 W, heavier, +3.0 pp

Found 1390 panels of the same or similar size to this one, within ±10 mm. See them here Found 1400 panels of the same or similar size to this one, within ±25 mm. See them here Found 1400 panels of the same or similar size to this one, within ±50 mm. See them here Found 1432 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Recom Lynx series come with and what does it cover?
The Recom Lynx series includes a 30-year product warranty and a 30-year linear power output guarantee. At the end of the warranty period, the module must retain at least 87.4% of its nominal power. For a 730 Wp panel, that means a guaranteed minimum of approximately 637 W after three decades of operation — one of the longer warranty commitments on the market and a meaningful factor when calculating project LCOE.
What is TOPCon technology and why does the Recom Lynx series use it?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology that uses a thin tunnel oxide layer to suppress carrier recombination. The result is higher module efficiency and virtually no LID (Light Induced Degradation) or LeTID risk compared to conventional PERC cells. In practice, Recom Lynx panels lose less power in the first seasons of operation and deliver more predictable energy output over their entire service life.
Are Recom Lynx panels a good fit for large-scale solar farms and commercial or industrial rooftops?
Yes. The Lynx series reaches up to 730 Wp per module, placing it squarely in the large-format segment suited for utility-scale PV farms and C&I installations. Higher per-module power reduces the number of panels needed for a given capacity, lowering BoS costs and installation labor. The series is also available in bifacial glass-glass variants that capture reflected irradiance and further improve overall energy yield.
How does the Recom Lynx series handle temperature losses during hot summer days?
The N-type TOPCon cells used in the Lynx series have a lower power temperature coefficient than conventional PERC cells. This means smaller power losses when module temperatures are high — a common condition on sun-exposed rooftops and ground-mounted arrays during summer. For installations in warm climates or on dark roofing materials, this translates into a measurably better annual energy yield compared to older PERC-based modules.
Is Recom a reliable manufacturer and is the Lynx series still available?
Recom Technologies is an Italian-headquartered manufacturer that continues to actively develop the Lynx line — the latest models exceed 720 Wp at efficiencies above 23%. The company is not currently listed on major Tier 1 agency rankings, but the Lynx series remains in active production and is commercially available. When purchasing, it is worth verifying local distributor warranty support as an additional safeguard for your investment.
How does the Recom Lynx series differ from PERC-based modules?
The key distinction is N-type TOPCon cells versus the more common P-type PERC architecture. N-type cells do not exhibit LID or LeTID, which can reduce PERC module output by a few percent within the first months of operation. Lynx modules also achieve higher efficiency for the same footprint, making them a strong choice wherever roof or land area is constrained and maximizing yield per square meter is a priority.
