Panasonic Brand review

EVPV410HK

410 Wp HJT
ComparePV verdict

Middle of its segment, short guarantee

Rank 9,060 of 14,005
Compare panels Datasheet PDF
Power (Wp)
410
Weak · bottom 14%
Efficiency (%)
22.20
Typical · median 22.20%
Density (Wp/m²)
221.6
Typical · median 221.6
Temp (%/°C)
-0.260
Weak · bottom 23%
Weight (kg)
20.5
Typical · median 23.0 kg
Warranty (yrs)
25
Weak · bottom 8%

The Panasonic EverVolt Solar Module Black Series redefines efficiency standards through the use of advanced heterojunction cell technology (HJT), which minimizes energy losses at the silicon layer boundaries. These panels are a direct response to the problem of efficiency drops on hot days - they feature one of the market's lowest temperature coefficients, guaranteeing stable power production even in extreme sunlight. The unique design of the frame and deep black cells makes the installation nearly invisible on the roof, which will be appreciated by investors who value premium aesthetics without compromising on power. Unlike standard solutions, this series is characterized by exceptionally low degradation, offering users a power guarantee of at least 92% after 25 years. This is an ideal choice for homeowners with limited roof space, where every square meter must generate maximum yields. By choosing these modules, the investor gains confidence backed by comprehensive protection covering not only the hardware, but also performance and labor, which clearly distinguishes the offer from mass competition. An innovative water drainage system further prevents dirt accumulation, resulting in longevity and maintenance-free operation of the system for many decades.

Ranking

113 panels in the segment HJT 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.20% 22.20% Typical 5,817
Power density 221.6 221.6 Typical 5,948
Temperature coefficient -0.260 -0.240 Weak · bottom 23% 511
Weight per kWp 50.0 52.4 Typical 3,317
Performance warranty 25 yrs 30 yrs Weak · bottom 8% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 4 caution
Best for

Residential and hot-climate.

Not ideal for

Owners who want a long output guarantee and hot climates.

Watch-outs
25 year performance warranty

Bottom 8% of the HJT 400-450 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

-0.260 %/°C temperature coefficient

Bottom 23% of the HJT 400-450 W segment, against a median of -0.240.

What owners get
Highest efficiency in the segment

Efficiency of 21.6-22.2% exceeds all comparable 410 Wp peer modules (VDS Renewable 20.4%, Sunket 21%, Luxor Solar TOPCon 21.33%), delivering higher energy yield from the same roof area.

Industry-leading temperature coefficient

The HJT cells achieve a temperature coefficient of -0.24%/°C, one of the best results on the market, limiting power losses during heat and ensuring more stable output in hot climates.

Comprehensive 25-year warranty

The warranty covers product, power performance (min. 92% after 25 years), and labor simultaneously - Panasonic confirmed in April 2025 that despite exiting production, all existing warranties remain valid.

Premium 'Full Black' aesthetics

The deep black frame and cells create a uniform, nearly invisible look on the roof, a key advantage for residential installations where facade aesthetics matter to the investor.

Low long-term degradation

The guaranteed minimum of 92% of rated power after 25 years is clearly better than the typical 84-87% offered by standard PERC modules with a 25-year linear warranty.

Trade-offs
Production discontinued (April 2025)

On April 28, 2025, Panasonic announced its complete exit from the solar panel and energy storage business. The EverVolt Black series is no longer available for purchase, limiting future access to service, module replacements, and system components - despite commitments to honor existing warranties.

No bifacial variant

Unlike the competing Luxor Solar Eco Line TOPCon (410-430 Wp, Glass-Glass, bifacial option), the EverVolt Black series is monofacial only, excluding the additional albedo-driven yield available with light-colored surfaces or ground-mounted installations.

Notes from the database
  • At 22.2% efficiency, this panel is on par with typical HJT 400-450W modules
  • Power density of 221.6 W/m² matches the HJT 400-450W median
  • -0.26%/°C temperature coefficient - 0.02pp worse than HJT 400-450W median (-0.24%/°C), expect higher hot weather losses
  • 20.5 kg weight - 2.5 kg lighter than HJT 400-450W median (23.0 kg), reducing installation effort
  • In the top 42% for efficiency among all HJT panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 410 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.20 % Typical Segment median 22.20%
Vmpp · Impp 42.70 V · 9.61 A Operating point at max power
Voc · Isc 49.00 V · 10.35 A Sizes the string length
Max system voltage 1000 V Longer strings than 1000 V modules
Dimensions 1821×1016×30 mm · 1.85 m² of roof
Weight 20.5 kg Typical Typical · median 23.0 kg
Cells 120 · HJT Monocrystalline
Coefficient Pmax -0.260 %/°C Weak bottom 23% of its segment
Coefficient Voc · Isc -0.240 · 0.040 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 25 years Weak bottom 8% · median 30 yrs
End-of-warranty output 92.0 % Equals 372 W guaranteed
Degradation 2.00 → 0.25 % First year, then annual

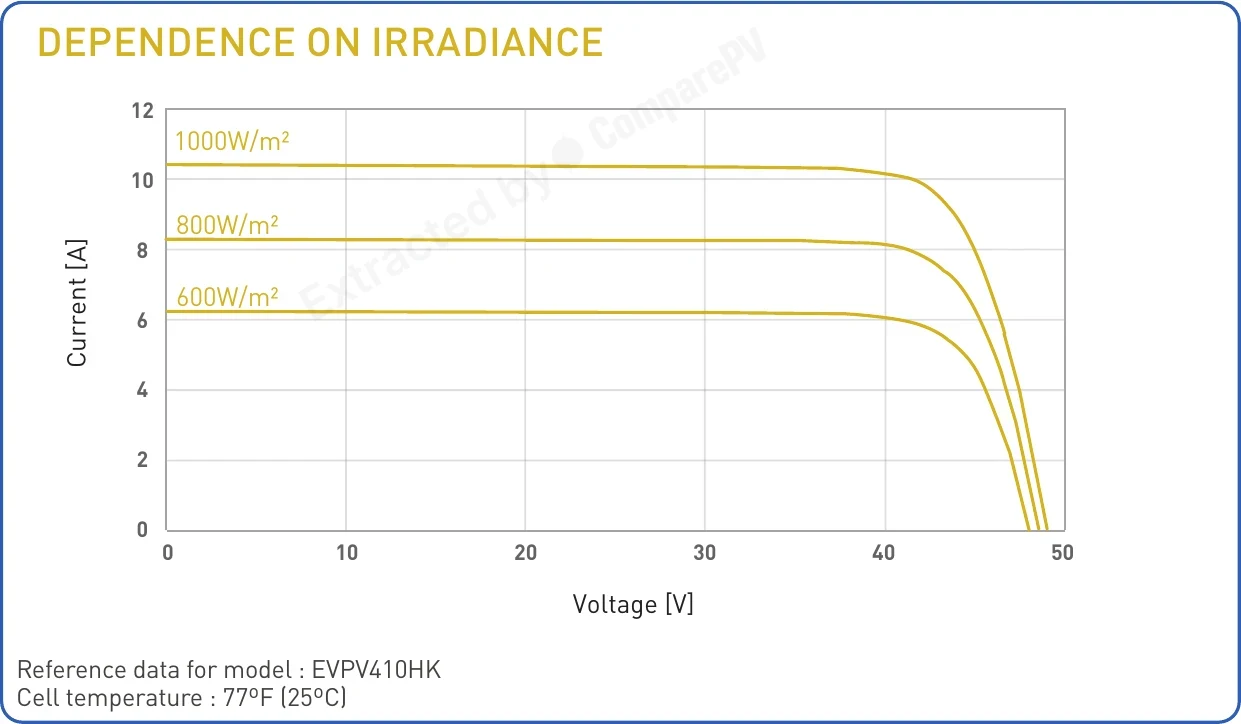

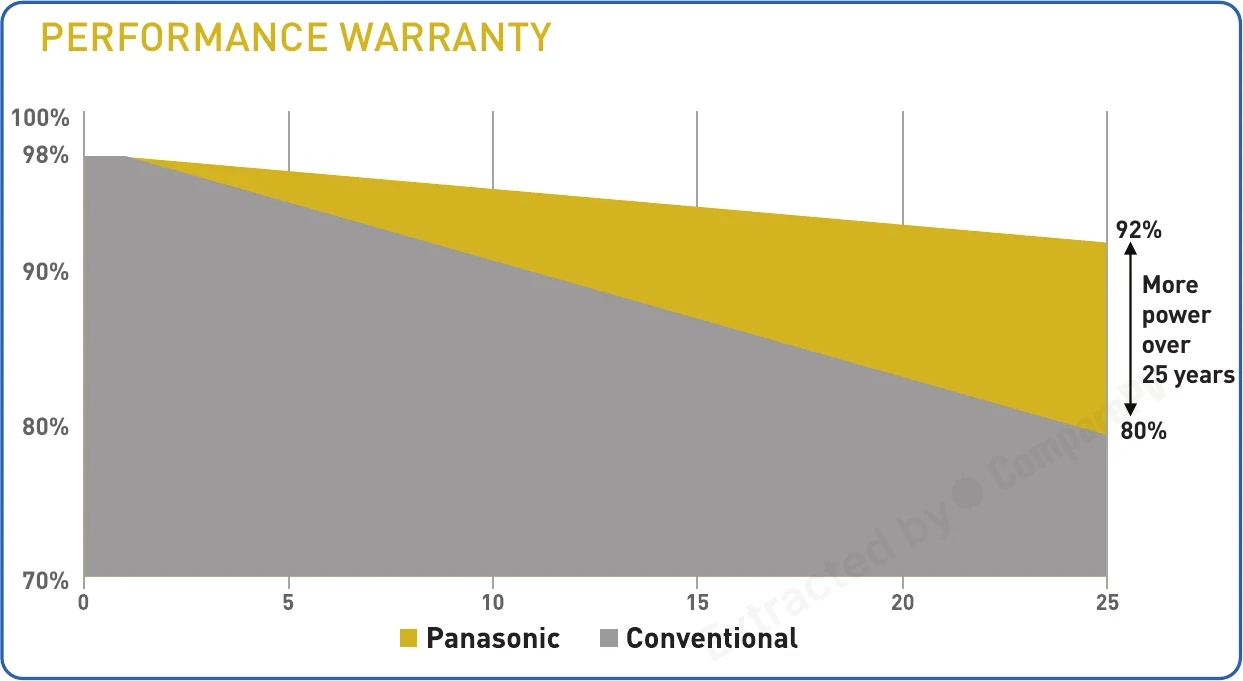

Datasheet charts

Open datasheet PDF

Measured curves published by Panasonic in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 410 Wp appear here. The rest cover the whole series.

Performance Warranty Performance Warranty Whole series Dependence on Irradiance Dependence on Irradiance Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.260 %/°C against a segment median of -0.240
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Panasonic EVPV410HK 410 W 22.20% -0.260 20.5 kg You are here
AIKO-A460-MAH54Mb 460 W 23.60% -0.290 20.5 kg +50 W, +1.4 pp, +5 yr warranty
JST-EDMH-(445-465)W-TD (460W class) 460 W 23.56% -0.300 20.5 kg +50 W, +1.4 pp, +5 yr warranty
LX-460M/182R-96+ GG 460 W 23.55% -0.260 23.5 kg +50 W, +1.4 pp, +5 yr warranty
PS-MNB108(HCBF)-460W 460 W 23.53% -0.290 20.5 kg +50 W, +1.3 pp, +5 yr warranty
JAT54S40-460/LR 460 W 23.50% -0.260 19.3 kg +50 W, +1.3 pp, +5 yr warranty
LX-460M/182R188-108+ GG 460 W 23.35% -0.290 24.5 kg +50 W, +1.2 pp, +5 yr warranty
AIKO-455-MAH54Db 455 W 23.30% -0.260 24.0 kg +45 W, +1.1 pp, +5 yr warranty
LR5-54HTH-455M 455 W 23.30% -0.290 20.8 kg +45 W, hotter, +1.1 pp
EVPV390HK 390 W 21.10% -0.260 20.5 kg -20 W, -1.1 pp
EVPV400H 400 W 21.60% -0.260 20.5 kg -10 W, -0.6 pp
SPR-MAX7-475 475 W 24.00% -0.270 21.1 kg +65 W, +1.8 pp, +15 yr warranty
SPR-MAX7-470 470 W 23.70% -0.270 21.1 kg +60 W, +1.5 pp, +15 yr warranty
SPR-MAX7-465 465 W 23.50% -0.270 21.1 kg +55 W, +1.3 pp, +15 yr warranty
JT440SYK(B) 440 W 22.90% -0.240 23.0 kg +30 W, +0.7 pp, +5 yr warranty
SPR-MAX6-440 440 W 22.80% -0.290 20.9 kg +30 W, +0.6 pp, +15 yr warranty
JT435SYk(B) 435 W 22.70% -0.240 23.0 kg +25 W, heavier, +5 yr warranty

Found 6 panels of the same or similar size to this one, within ±10 mm. See them here Found 10 panels of the same or similar size to this one, within ±25 mm. See them here Found 86 panels of the same or similar size to this one, within ±50 mm. See them here Found 532 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the power output warranty on Panasonic EverVolt Solar Module Black Series panels?
The EverVolt Black Series includes a 25-year power warranty guaranteeing at least 92% of nominal power output after 25 years — one of the strongest retention rates in the industry, compared to the 80–83% typically offered by standard modules. A separate 25-year product warranty covers manufacturing defects and material failures.
How do Panasonic EverVolt Black Series panels perform during hot summer days?
Thanks to HJT cell technology, EverVolt Black Series modules carry a temperature coefficient of -0.26%/°C, among the lowest in their class. This means significantly less power loss on hot days versus standard PERC panels. At a cell temperature of 65°C, these modules retain several percentage points more output — a measurable advantage in high-irradiance locations.
Is the Panasonic EverVolt Solar Module Black Series still available for purchase?
No. Panasonic officially announced the discontinuation of its entire EverVolt product line — solar modules and battery storage — in 2025. The EverVolt Black Series is no longer in production. All existing installations remain fully covered: Panasonic has confirmed it will honor all warranty obligations for installed and in-progress systems.
What are the real-world advantages of HJT technology in EverVolt Black Series over mainstream PERC cells?
HJT cells combine crystalline silicon with thin-film amorphous silicon layers, minimizing carrier recombination at cell boundaries. In practice: efficiency above 21%, lower temperature-related losses, and lower annual degradation than PERC. Over a 25-year system lifetime, HJT generates more kilowatt-hours per square meter, directly improving LCOE.
Are Panasonic EverVolt Black Series panels a good fit for a small roof with limited area?
Yes — with 410 Wp max power and efficiency above 21%, EverVolt Black Series modules are specifically well-suited to buildings with limited roof space. Fewer panels are needed to reach a target system output, reducing mechanical load on the roof structure and lowering BoS installation costs.
Does the all-black design of EverVolt Black Series affect panel performance?
The EverVolt Black Series features a uniform black frame, black backsheet, and deep-black HJT cells for a near-invisible rooftop appearance. The all-black aesthetic does not compromise performance — the 410 Wp HJT cells deliver full rated output, and the module's water drainage design prevents dirt buildup, keeping both efficiency and appearance stable over decades.
