Solid all-round for its segment
The Huayao Hyper M66 series are modules designed for high power density while maintaining convenient dimensions for roof and commercial installations. In practice, they stand out through their approach to energy yield under real-world conditions-helping produce electricity more stably, even when Poland's weather is variable and some panels are intermittently shaded. The use of half-cut cell architecture and a modern connection layout minimizes losses and improves performance under lower irradiance, leading to more predictable self-consumption and easier balancing of the system.
Compared to the competition, the Hyper M66 focuses on effective performance in partial shading, enhanced resistance to micro-cracking, and lower connection losses, which are highly valued by installers working on challenging rooftops. This is an excellent option for investors seeking a higher yield from the same surface area and wanting to build a system resistant to typical operational issues, without the need to oversize the installation.
Ranking
Signals from the data
Commercial, utility-scale and shaded-installations.
The efficiency range of 20.92-21.57% places the series at par with direct peers: Techwise Solar Summit (21.57%), ZNShine ZXM8-TP132 (21.57%), and Hiwatt HW-M12/132H (21.6%). The Hyper M66 reaches the upper bound of PERC capability in the 132-cell format, translating into higher energy yield per constrained roof area.
Splitting cells in half reduces per-cell current, lowering I²R resistive losses and improving performance under partial shading. Under typical Polish conditions (variable irradiance, intermittent shading from chimneys or vegetation), half-cut cells realistically improve annual energy yield by 1-3% compared to conventional full-cell modules.

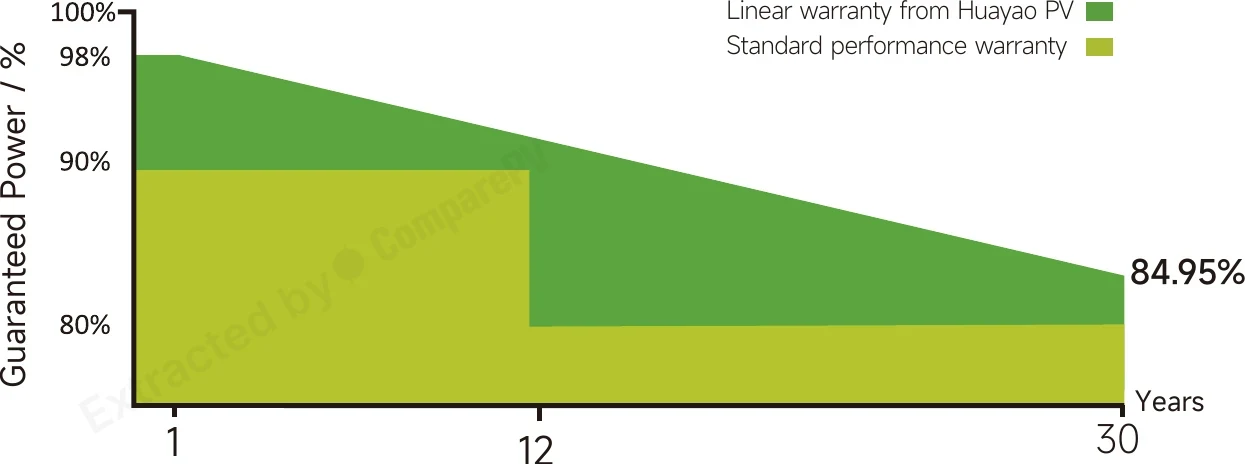

The extended 30-year warranty option exceeds the 25-year industry standard offered by most comparable manufacturers in the 650-670 Wp power class. For commercial investors with an ROI horizon beyond 25 years, this provides a meaningful contractual advantage in project financing discussions.
The M66 format (132 cells, ~2278 × 1134 mm) at 650-670 Wp allows building a higher-capacity system with the same number of mounting points, reducing BoS costs (cabling, racking, labor) in proportion to the increased module output.
Ten power variants within a single series enable precise string sizing without oversizing MPPT inputs or mixing products from multiple manufacturers - particularly relevant for projects where the number of mounting positions is fixed by roof geometry.
Huayao does not appear on the BNEF Tier-1 bankable list (as of Q1 2026), creating obstacles for securing project finance on installations above 1 MWp and triggering stricter due diligence from insurers and lenders. While direct peer competitors (ZNShine, Techwise) are in a similar position, this remains a real constraint when targeting corporate clients or externally financed projects.
P-type PERC technology carries a higher annual degradation rate (~0.6-0.8%/yr) versus TOPCon (~0.4-0.5%/yr) and a less favorable temperature coefficient (-0.34 to -0.38%/°C vs. -0.30%/°C for TOPCon). Over a 30-year horizon this amounts to ~4-6% lower cumulative energy yield compared to an equivalent N-type module of the same rated power.
The materials-and-workmanship warranty covers 15 years, whereas leading Tier-1 manufacturers (JA Solar, Trina Solar, Jinko Solar) standardly offer 25 years. The shorter coverage window increases the risk of out-of-warranty replacement costs in the middle phase of system operation (years 16-25), before the linear power warranty expires.
- At 21.2% efficiency, this panel is on par with typical PERC 650-700W modules
- At 212.5 W/m² power density, roof space requirements are typical for PERC 650-700W panels
- At -0.34%/°C, hot weather performance is typical for PERC 650-700W panels
- At 38.0 kg (3.5 kg above PERC 650-700W median of 34.5 kg), requires checking roof load capacity
- In the top 64% for efficiency among all PERC panels
Specifications
Datasheet charts
Measured curves published by Huayao in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 660 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Alternatives
Found 1393 panels of the same or similar size to this one, within ±10 mm. See them here Found 1403 panels of the same or similar size to this one, within ±25 mm. See them here Found 1403 panels of the same or similar size to this one, within ±50 mm. See them here Found 1435 panels of the same or similar size to this one, within ±100 mm. See them here
About the Hyper M66 series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
