685Wp

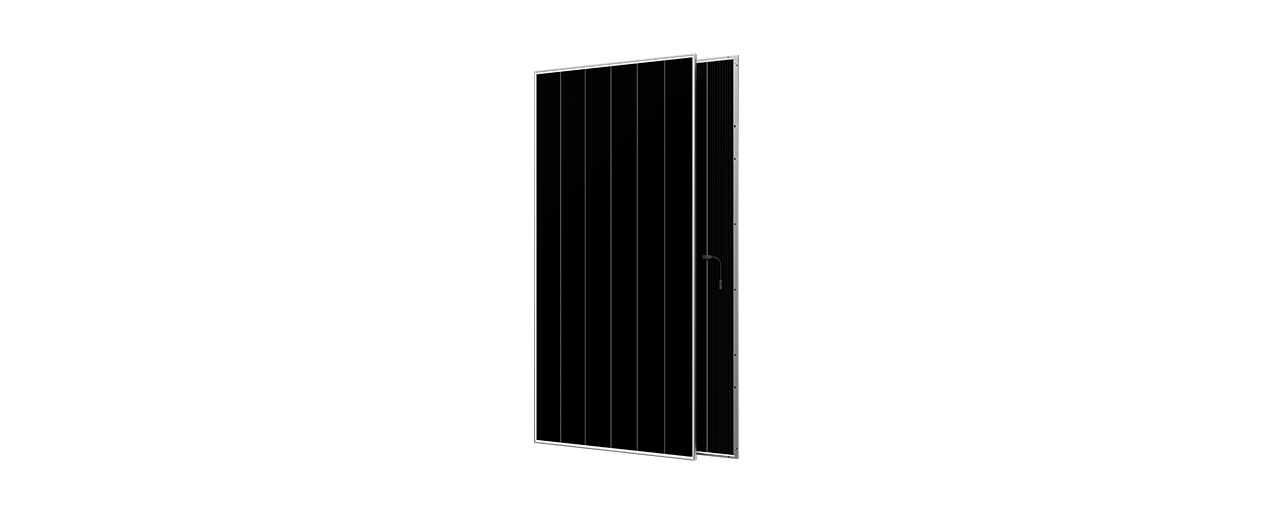

AIKO AIKO-A685-MAE78Dw
AIKO Review

AIKO-A685-MAE78Dw

Monocrystalline
24.50%
Efficiency
245.1 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
609W from 685W
Power after 30 years
  • At 24.5% efficiency, this panel is on par with typical Back Contact 650-700W modules
  • At 245.1 W/m² power density, roof space requirements are typical for Back Contact 650-700W panels
  • At -0.26%/°C, hot weather performance is typical for Back Contact 650-700W panels
  • 34.5 kg weight exceeds %!s(float64=1.5) median by %!f(string=B) kg (33.0 kg) - heavier for installation crews
  • Ranked #54 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Neostar 3N+78 Dual-glass Module (AIKO-A-MAE78Dw) 6 variants
Efficiency Range 24.1% - 25.0%
Avg. Efficiency 24.58%
Technology Back Contact
Dimensions 2465 × 1134 mm
Show series description

The AIKO Neostar 3N+78 Dual-glass (AIKO-A-MAE78Dw) is designed for investments where the maximum yield per square meter is key – without compromising on longevity. Using n-type cells with back-contact architecture eliminates front-side busbars and improves performance under real-world conditions, including when the module heats up or light is scattered. The dual-glass version is a practical solution for long-term durability – the rear glass supports laminate stability, reduces degradation risks related to moisture, and enhances material fatigue resistance.

For rooftops and complex installations, a major advantage is optimized performance under partial shading, preventing a single shadow from disproportionately blocking the entire module, thus reducing hotspot risks. Additionally, the series focuses on micro-cracking resistance, which is highly valued by installers for transportation and large-scale mounting.

This is an excellent choice for utility-scale solar farms, industry, and commercial applications – where lower BOS costs, stable performance, and high reliability over years are priorities.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)685 Wp
Module Efficiency24.50%
Voltage at Max Power (Vmpp)48.97 V
Current at Max Power (Impp)13.99 A
Open Circuit Voltage (Voc)59.10 V
Short Circuit Current (Isc)14.63 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.220%/°C
Temp. Coeff. Isc0.050%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count156
BifacialNo
Bifaciality Factor-
Dimensions & Weight
Length2465 mm
Width1134 mm
Height30 mm
Weight34.5 kg
Area2.80 m²
Power Density245.1 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
24.50%
Efficiency
685 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
