ZNShine ZXMR-UHLD132-585
ZNShine Brand review

ZXMR-UHLD132-585

585 Wp TOPCon Bifacial
ComparePV verdict

Strong in heat, no clear weak spot

Rank 3,548 of 14,005
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
22.64
Typical · median 22.44%
Density (Wp/m²)
226.4
Typical · median 224.4
Temp (%/°C)
-0.280
Strong · top 4%
Weight (kg)
31.5
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The ZXMR-UHLD132 series is ZNShine's response to the growing demand for high-performance, bifacial modules of premium quality, designed for both large commercial installations and advanced residential systems. A key advantage of this series is the use of N-Type TOPCon technology combined with half-cell configurations of 132 cells - this minimizes resistive losses and significantly improves energy yield, even in partially shaded conditions. The double-sided glass (double glass bifacial) construction not only provides exceptional mechanical durability but also allows for the recovery of additional energy from reflected light from the ground, which is particularly beneficial for ground-mounted or light-colored roof installations. The modules feature 16 busbars (16BB), which reduce thermal stress and extend the lifespan of the cells. The IP68 junction box with integrated bypass diodes provides effective protection against damage caused by moisture and partial shading. The ZXMR-UHLD132 series is particularly recommended to investors seeking reliable modules with a 30-year linear power warranty, who want to maximize their return on investment over a long operating period.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.64% 22.44% Typical 3,600
Power density 226.4 224.4 Typical 3,631
Temperature coefficient -0.280 -0.290 Strong · top 4% 1,309
Weight per kWp 53.8 53.8 Typical 7,897
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 0 caution
Best for

Commercial, utility-scale, shaded-installations and residential.

Strengths
-0.280 %/°C temperature coefficient

Top 4% of the TOPCon 550-600 W segment, against a median of -0.290. Ranked 1,309th in the whole database.

Notes from the database
  • At 22.6% efficiency, this panel is on par with typical TOPCon 550-600W modules
  • Power density of 226.4 W/m² matches the TOPCon 550-600W median
  • Temperature coefficient of -0.28%/°C matches the TOPCon 550-600W median
  • Ranked #3600 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.64 % Typical Segment median 22.44%
Vmpp · Impp 39.50 V · 14.82 A Operating point at max power
Voc · Isc 47.40 V · 15.65 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×30 mm · 2.58 m² of roof
Weight 31.5 kg Typical Typical · median 31.2 kg
Cells 132 · TOPCon Monocrystalline
Coefficient Pmax -0.280 %/°C Strong top 4% of its segment
Coefficient Voc · Isc -0.230 · 0.045 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 511 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by ZNShine in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

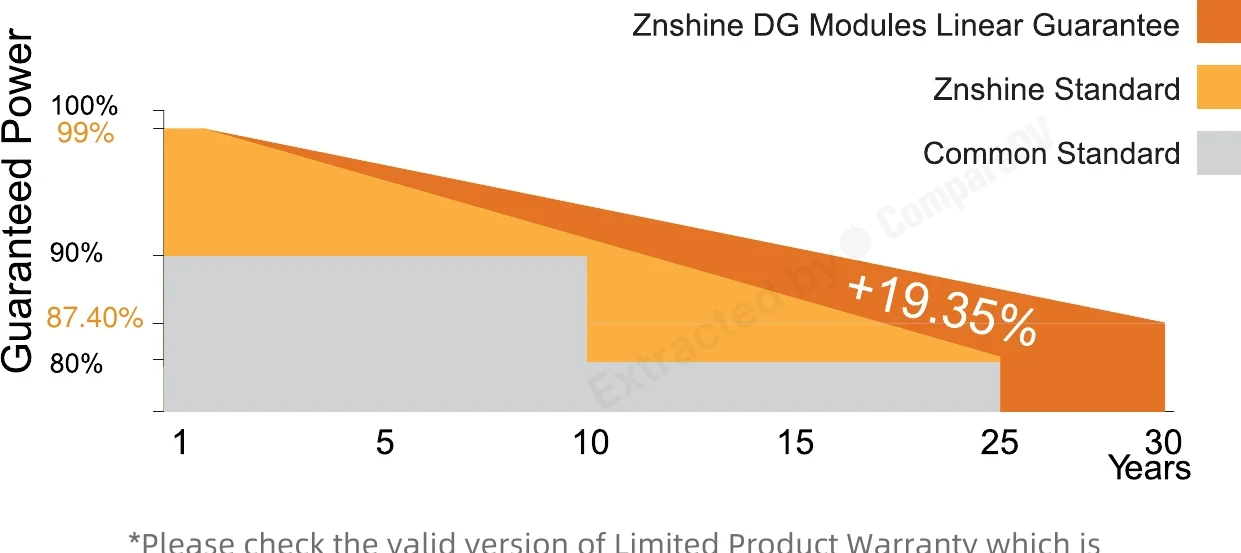

Linear Power Warranty (Guaranteed Power vs. Years) Linear Power Warranty (Guaranteed Power vs. Years) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.280 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
ZNShine ZXMR-UHLD132-585 585 W 22.64% -0.280 31.5 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -25 W, lighter, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -30 W, lighter, +2.0 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, lighter, +2.0 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +45 W, cooler, +1.8 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -35 W, 15 kg lighter, +1.8 pp
ZXM7-SHW144-520 520 W 20.29% -0.350 13.5 kg Hotter, 18 kg lighter, -2.4 pp
ZXM7-SHW144-525 525 W 20.49% -0.350 13.5 kg Hotter, 18 kg lighter, -2.2 pp
ZXM7-SHW144-530 530 W 20.68% -0.350 13.5 kg Hotter, 18 kg lighter, -2.0 pp
ZXM7-SHLD144-530W 530 W 20.51% -0.350 31.5 kg -55 W, hotter, -2.1 pp
ZXM7-SHW144-535 535 W 20.88% -0.350 13.5 kg Hotter, 18 kg lighter, -1.8 pp
ZXM7-SHLD144-535W 535 W 20.70% -0.350 31.5 kg -50 W, hotter, -1.9 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +65 W, lighter, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2542 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does N-Type TOPCon technology in the ZXMR-UHLD132 series differ from standard P-Type PERC panels?
N-Type TOPCon cells feature lower recombination losses and higher conversion efficiency than traditional PERC cells, resulting in better energy yield, lower annual degradation, and more stable performance at high temperatures. In the ZXMR-UHLD132 series, this technology is combined with half-cell cells, further reducing resistive losses and improving shading tolerance.
Are ZXMR-UHLD132 panels suitable for ground-mounted installations?
Yes, thanks to their double glass bifacial construction, ZXMR-UHLD132 panels are particularly recommended for ground-mounted installations and light-colored, highly reflective roofs. The rear side of the module captures additional energy from albedo reflected off the surface below, increasing total energy yield compared to monofacial panels.
What warranty comes with ZXMR-UHLD132 panels and how long can high power output be expected?
The ZXMR-UHLD132 series is backed by a 15-year product warranty and a 30-year linear power warranty. This means the manufacturer guarantees a specified performance level for three decades of operation, making the series an attractive investment for commercial installations and prosumer systems focused on long-term ROI.
What does the 16BB configuration in ZXMR-UHLD132 panels mean and how does it affect durability?
16BB refers to the use of 16 busbars on the cell surface. A higher number of thinner busbars reduces thermal stress caused by temperature fluctuations and shortens the current path, lowering resistive losses. In practice, this translates into higher module efficiency and extended cell lifespan compared to older configurations such as 9BB or 12BB.
What is the maximum power output of the ZXMR-UHLD132 series and what installations is it suited for?
Panels in the ZXMR-UHLD132 series reach a maximum power output of up to 590 Wp, making them suitable for both large solar farms and commercial installations as well as advanced prosumer systems where high power density on limited roof or ground area matters.
Does the IP68 connector on ZXMR-UHLD132 panels protect against moisture-related damage?
Yes, the modules are equipped with an IP68-rated connector along with built-in bypass diodes. This construction effectively protects the panel against moisture and dust ingress, while the bypass diodes limit the negative impact of local shading on overall module performance and protect against overheating.
