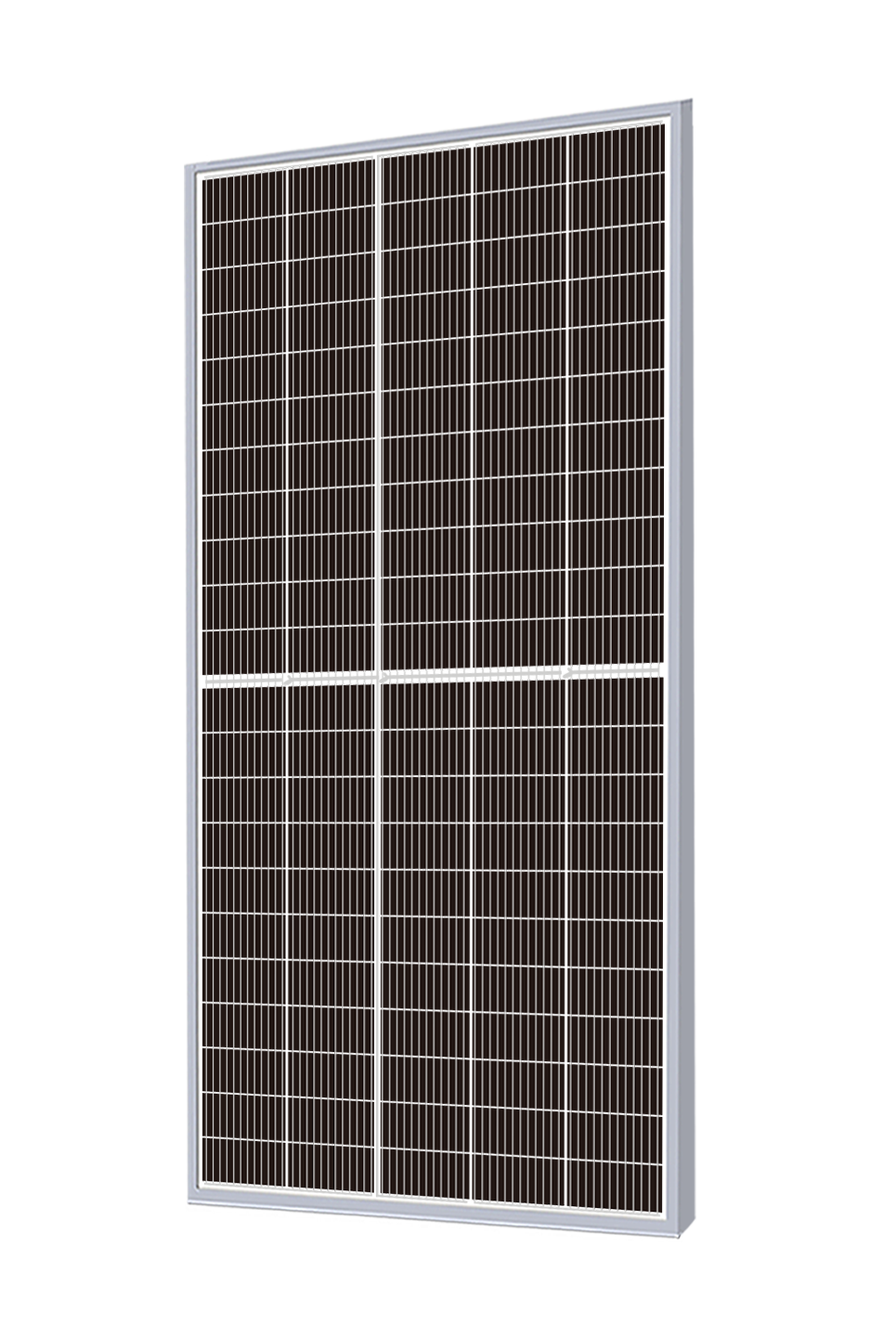

ZNShine ZXM8-TPLD110-545
ZNShine Brand review

ZXM8-TPLD110-545

545 Wp PERC
ComparePV verdict

Strong in heat, heavy for its output

Rank 7,726 of 14,005
Compare panels Datasheet PDF
Power (Wp)
545
Strong · top 12%
Efficiency (%)
20.86
Typical · median 20.90%
Density (Wp/m²)
208.6
Typical · median 209.0
Temp (%/°C)
-0.340
Strong · top 23%
Weight (kg)
32.0
Weak · 3.6 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The ZNShine ZXM8-TPLD110 series is designed for high energy production where every square meter counts-both on warehouse roofs and larger ground installations. The modules utilize cutting-edge monocrystalline cell architecture in a half-cut configuration, which practically means better performance under partial shading and reduced internal resistance losses. A key feature of the series is also high yield stability in hot weather-a favorable temperature coefficient helps maintain production on scorching days when standard panels significantly lose power. Additionally, modules are available in a dual-glass variant, enhancing resistance to moisture, micro-cracks, and demanding environmental conditions, crucial for instance in PV farms. The design, based on multi-string connection technology, improves current collection and minimizes the impact of micro-cracks. This is the choice for investors seeking predictable yields and longevity, not just specifications.

Ranking

706 panels in the segment PERC 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.86% 20.90% Typical 10,348
Power density 208.6 209.0 Typical 10,324
Temperature coefficient -0.340 -0.350 Strong · top 23% 8,778
Weight per kWp 58.7 53.0 Weak · bottom 23% 11,844
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Commercial, utility-scale, shaded-installations and hot-climate.

Not ideal for

Weight-limited structures.

Strengths
-0.340 %/°C temperature coefficient

Top 23% of the PERC 500-550 W segment, against a median of -0.350.

Watch-outs
58.7 kg per kWp

Bottom 23% of the PERC 500-550 W segment, against a median of 53.0.

Notes from the database
  • Efficiency of 20.9% matches the PERC 500-550W median
  • At 208.6 W/m² power density, roof space requirements are typical for PERC 500-550W panels
  • At -0.34%/°C, hot weather performance is typical for PERC 500-550W panels
  • Weight of 32.0 kg is 3.6 kg above PERC 500-550W median (28.4 kg) - verify structural support
  • In the top 74% for efficiency among all PERC panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 545 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.86 % Typical Segment median 20.90%
Vmpp · Impp 31.30 V · 17.42 A Operating point at max power
Voc · Isc 37.80 V · 18.34 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1096×30 mm · 2.61 m² of roof
Weight 32.0 kg Weak Weak · 3.6 kg above median
Cells 110 · PERC Monocrystalline
Coefficient Pmax -0.340 %/°C Strong top 23% of its segment
Coefficient Voc · Isc -0.290 · 0.050 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 85.0 % Equals 463 W guaranteed
Degradation 2.00 → 0.45 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.350
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
ZNShine ZXM8-TPLD110-545 545 W 20.86% -0.340 32.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +4.1 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +3.9 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +3.9 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +3.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +3.7 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +3.6 pp
ZXM8-TPLD110-535 535 W 20.48% -0.340 32.0 kg -10 W, -0.4 pp
ZXM8-TPLD110-540 540 W 20.67% -0.340 32.0 kg Very close match
ZXM8-TPLD110-550 550 W 21.05% -0.340 32.0 kg Very close match
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +135 W, cooler, +4.3 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +130 W, cooler, +4.1 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +155 W, cooler, +4.1 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg +150 W, cooler, +4.0 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg +125 W, cooler, +3.9 pp
LR7-72HVHF-670M 670 W 24.80% -0.260 28.5 kg +125 W, cooler, +3.9 pp
JKM650-670N-66QL6-BDV (670W class) 670 W 24.80% -0.260 32.5 kg +125 W, cooler, +3.9 pp

Found 72 panels of the same or similar size to this one, within ±10 mm. See them here Found 72 panels of the same or similar size to this one, within ±25 mm. See them here Found 1196 panels of the same or similar size to this one, within ±50 mm. See them here Found 1892 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of ZNShine ZXM8-TPLD110 panels and what cell technology do they use?
The ZXM8-TPLD110 series reaches up to 560 Wp of maximum power output. The modules use monocrystalline PERC cells in a half-cut configuration, which delivers higher conversion efficiency, better performance under partial shading, and lower resistive losses compared to standard full-size cells.
What warranty comes with ZNShine ZXM8-TPLD110 panels?
The manufacturer provides a 12-year product warranty along with a 30-year linear power output warranty. This means that after 30 years of operation, the module is expected to still deliver a significant share of its initial rated power, giving investors predictable long-term yield over the lifetime of the installation.
Do ZXM8-TPLD110 panels perform well in hot weather?
Yes, the series features a favorable temperature coefficient, which limits power loss during hot summer days. In practice this means smaller efficiency drops as the modules heat up on a rooftop or ground-mounted structure, compared to standard panels that lose noticeably more output as operating temperature rises.
What installation types are ZXM8-TPLD110 panels best suited for - rooftop or ground-mount?
The series is designed for large-scale installations where every square meter counts, including industrial rooftops as well as extensive ground-mounted arrays and utility-scale PV farms. The high unit power of up to 560 Wp reduces the number of modules needed to reach a given installed capacity.
How does the double-glass variant of the ZXM8-TPLD110 differ from the standard version?
The double-glass variant offers increased resistance to moisture, microcracks, and PID degradation, which is particularly valuable in demanding environmental conditions such as large-scale PV farms exposed to variable weather. This helps the module maintain mechanical and electrical stability throughout its service life.
What benefit does the multi-busbar interconnection technology bring to ZXM8-TPLD110 panels?
Multi-busbar technology improves current collection across the cell surface and reduces the impact of microcracks on power loss. In practice, this results in higher long-term reliability and a lower risk of significant efficiency loss if minor cell defects occur during the panel's service life.
