Yingli LF580M10N-72H/BF
Yingli Brand review

LF580M10N-72H/BF

580 Wp TOPCon Bifacial 2000%
ComparePV verdict

Solid all-round for its segment

Rank 4,672 of 14,129
Compare panels Datasheet PDF
Power (Wp)
580
Typical for its class
Efficiency (%)
22.40
Typical · median 22.44%
Density (Wp/m²)
224.5
Typical · median 224.4
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
31.0
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Yingli LF600M10N-72H/BF series features advanced modules based on N-type TOPCon technology, which redefines efficiency standards in challenging lighting conditions. By utilizing bifaciality, these panels maximize energy yields by capturing light reflected from the ground, making them an ideal choice for large-scale investments and ground-mounted farms. A key advantage of this model is its high resistance to LID and LeTID degradation, resulting in stable power production for decades and a faster return on investment compared to standard P-type modules. The use of Double Glass provides exceptional mechanical strength and moisture protection, eliminating the risk of micro-cracks. This product solves the issue of limited installation space by offering high power density per square meter. It is a dedicated solution for professional commercial installations where the lowest levelized cost of energy (LCOE) is a priority. A low temperature coefficient allows the panels to operate efficiently even on hot days, outperforming the competition during summer production peaks. It is a solid choice for investors who prioritize innovation and long-term system reliability.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.40% 22.44% Typical 4,834
Power density 224.5 224.4 Typical 4,607
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 53.4 53.8 Typical 7,448
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 0 caution
Notes from the database
  • At 22.4% efficiency, this panel is on par with typical TOPCon 550-600W modules
  • At 224.5 W/m² power density, roof space requirements are typical for TOPCon 550-600W panels
  • Temperature coefficient of -0.29%/°C matches the TOPCon 550-600W median
  • In the top 34% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 580 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.40 % Typical Segment median 22.44%
Vmpp · Impp 42.87 V · 13.53 A Operating point at max power
Voc · Isc 51.43 V · 14.30 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 31.0 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 2000 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 507 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Yingli in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 580 Wp appear here. The rest cover the whole series.

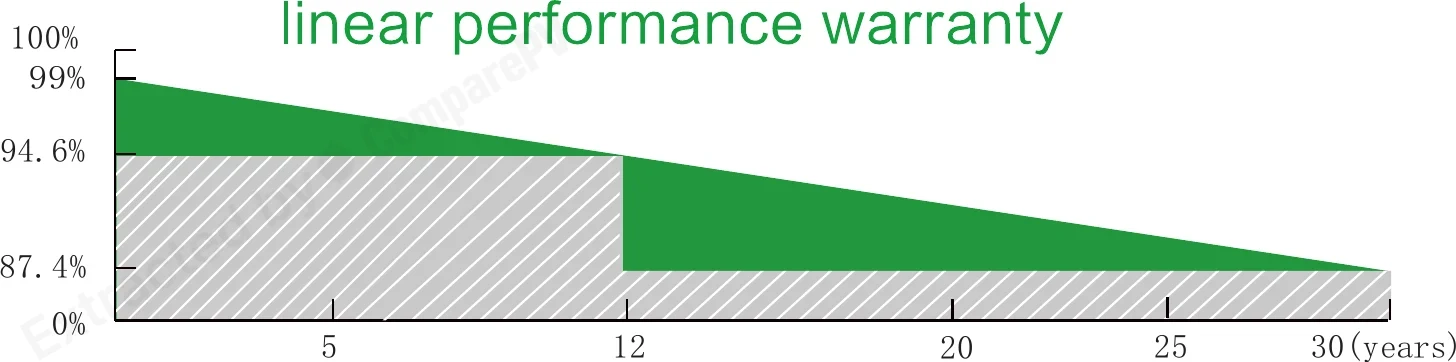

Linear Performance Warranty Linear Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Yingli LF580M10N-72H/BF 580 W 22.40% -0.290 31.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.4 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.2 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +50 W, cooler, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -30 W, lighter, +2.0 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg -40 W, lighter, +2.0 pp
YL530DF72 e/2 530 W 20.50% -0.350 32.0 kg -50 W, hotter, -1.9 pp
YL535DF72 e/2 535 W 20.70% -0.350 32.0 kg -45 W, hotter, -1.7 pp
LF535M10-72H 535 W 20.70% -0.354 28.5 kg Hotter, -1.7 pp, -5 yr warranty
YL540DF72 e/2 540 W 20.90% -0.350 32.0 kg -40 W, hotter, -1.5 pp
LF540M10-72H 540 W 20.90% -0.354 28.5 kg Hotter, -1.5 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +70 W, lighter, +2.8 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +65 W, lighter, +2.6 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the LF600M10N-72H/BF series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty comes with the Yingli LF600M10N-72H/BF solar panels?
The LF600M10N-72H/BF series comes with a 12-year product warranty and a 30-year linear power output warranty. Thanks to N-type TOPCon technology, first-year degradation is lower than in standard P-type modules, and the manufacturer guarantees strong power output even after three decades of operation, improving the return on investment.
How does bifacial technology in the Yingli LF600M10N-72H/BF differ from standard one-sided panels?
Bifacial LF600M10N-72H/BF panels generate power from both sides of the module, capturing light reflected off the ground, roof, or a bright surface. This results in an energy gain, especially noticeable in ground-mount installations with light-colored ground cover or elevated racking systems, where the rear side receives good exposure to diffuse light.
Does the double glass construction of the LF600M10N-72H/BF improve panel durability?
Yes, the Double Glass design replaces the standard backsheet and significantly improves mechanical strength and sealing. The module is better protected against moisture, microcracks, and PID degradation, translating directly into a longer service life and more stable energy output in harsh conditions such as large temperature swings or high humidity.
Are Yingli LF600M10N-72H/BF panels suitable for large commercial and utility-scale solar farms?
Yes, this is the primary use case for the series. Up to 600 Wp per module and high power density per square meter reduce the number of panels needed and simplify the mounting structure, lowering BoS costs. Combined with bifacial gain and low LCOE, these panels are a strong choice for ground-mount farms and large commercial rooftops focused on cost per kWh.
How do LF600M10N-72H/BF panels perform in high summer temperatures?
Thanks to the low temperature coefficient of TOPCon technology, the module loses less power as cell temperature rises compared to standard P-type PERC panels. This means more stable energy production during hot days and summer production peaks, when panels can reach 60-70°C, giving a notable advantage in high-irradiance climates.
Is Yingli a Tier 1 manufacturer and reliable for large-scale investment?
Yes, Yingli holds Tier 1 manufacturer status, reflecting financial stability, project bankability, and extensive manufacturing experience in China. For investors planning large commercial installations or solar farms, this is a key factor, as it makes bank and lease financing easier to secure and increases confidence in warranty fulfillment over the long term.
