WINAICO Brand review

WST-585NGX72-A7

585 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 3,641 of 14,129
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
22.60
Typical · median 22.45%
Density (Wp/m²)
226.5
Typical · median 224.5
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.7
Weak · 2.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The WST-NGX72-A7 series consists of bifacial glass-glass modules engineered for utility-scale installations where maximizing energy yield per square meter truly matters. The use of N-type monocrystalline cells in bifacial design captures light reflected from the ground surface, translating into real production gains without expanding the installation's footprint. The symmetrical construction, with tempered glass on both sides of the cells, delivers strong resistance to PID and LID degradation, allowing the modules to maintain stable output over many years of operation, even in demanding climates. This build significantly reduces microcracking and corrosion, common issues in cheaper backsheet panels. The series also stands out for improved performance under low-irradiance conditions, a key advantage in regions with variable sunlight such as Poland. With an extended product warranty and a linear performance warranty, investors gain confidence in low lifetime operating costs reflected in LCOE across the system's service life. This is a solution built for solar farm developers and commercial investors who prioritize durability, predictability, and maximum return on investment over the lowest purchase price alone.

Ranking

256 panels in the segment N-type 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.60% 22.45% Typical 3,716
Power density 226.5 224.5 Typical 3,557
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 55.9 52.5 Weak · bottom 13% 10,350
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Commercial and utility-scale.

Not ideal for

Weight-limited structures.

Watch-outs
55.9 kg per kWp

Bottom 13% of the N-type 550-600 W segment, against a median of 52.5.

Notes from the database
  • At 22.6% efficiency, this panel is on par with typical N-type 550-600W modules
  • At 226.5 W/m² power density, roof space requirements are typical for N-type 550-600W panels
  • Temperature coefficient of -0.29%/°C matches the N-type 550-600W median
  • Weight of 32.7 kg is 2.4 kg above N-type 550-600W median (30.3 kg) - verify structural support
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.60 % Typical Segment median 22.45%
Vmpp · Impp 44.22 V · 13.23 A Operating point at max power
Voc · Isc 52.16 V · 13.85 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 32.7 kg Weak Weak · 2.5 kg above median
Cells 144 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 511 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by WINAICO in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

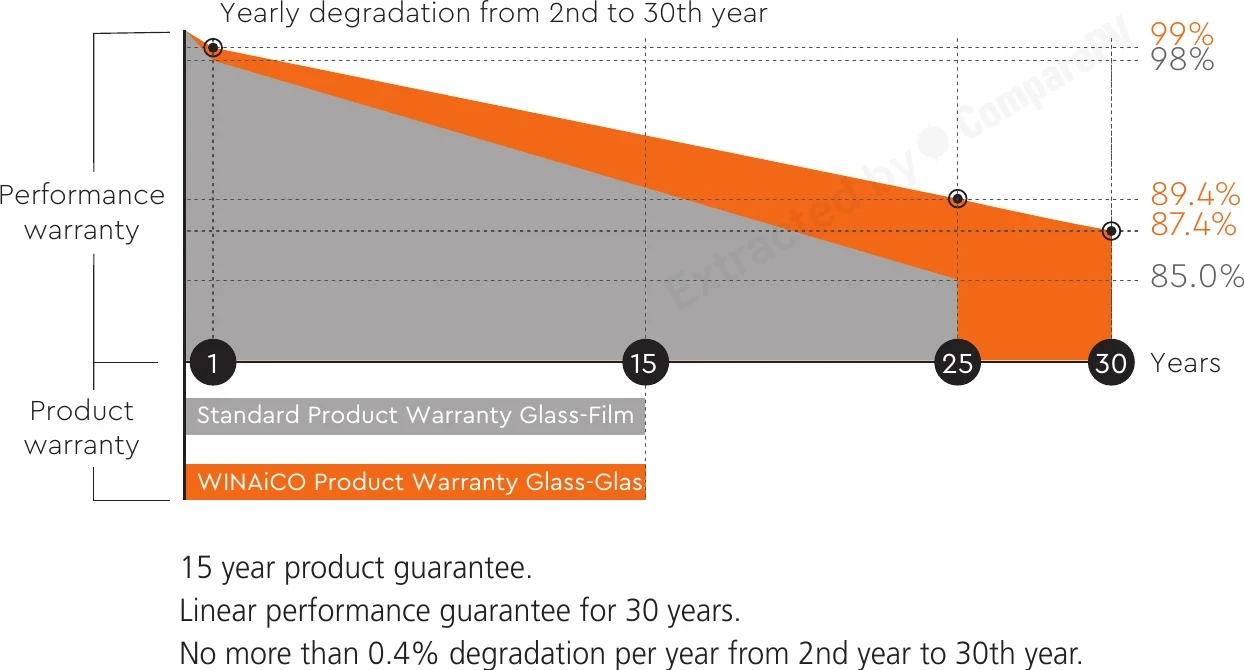

Yearly degradation from 2nd to 30th year Yearly degradation from 2nd to 30th year Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
WINAICO WST-585NGX72-A7 585 W 22.60% -0.290 32.7 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -30 W, lighter, +2.0 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, lighter, +2.0 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +45 W, cooler, +1.8 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -35 W, 16 kg lighter, +1.8 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +65 W, lighter, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the WST-NGX72-A7 Series series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

How do N-type cells in WINAICO WST-NGX72-A7 panels differ from standard P-type cells?
N-type cells contain less boron and are less prone to LID and PID degradation than conventional P-type cells. As a result, the WST-NGX72-A7 series maintains higher performance over the long term, with a smaller power drop in the first years of operation, which directly translates into higher energy yield over the system's full lifetime.
What is the maximum power output of the WINAICO WST-NGX72-A7 panel and what installations is it suited for?
Modules in the WST-NGX72-A7 series reach a maximum power of up to 585 Wp. This high unit power combined with bifacial technology makes these panels especially cost-effective for large commercial installations and utility-scale solar farms, where maximizing energy yield per square meter of roof or ground area is critical.
How much extra energy do WINAICO WST-NGX72-A7 bifacial panels generate compared to monofacial panels?
The exact gain depends on ground albedo, mounting height, and tilt angle, but under typical conditions these bifacial modules produce noticeably more energy than monofacial panels of the same rated power by capturing light reflected off bright surfaces such as gravel, roofing membrane, or snow. The gain is largest with east-west racking or elevated mounting above the ground.
What warranty comes with WINAICO WST-NGX72-A7 panels?
The WST-NGX72-A7 series includes a 15-year product warranty and a 30-year linear power output warranty. This extended coverage lowers the levelized cost of energy (LCOE) over the full lifetime of the system, which is an important factor for commercial investors planning long-term returns.
Is the glass-glass construction in WINAICO WST-NGX72-A7 panels more durable than standard backsheet panels?
Yes, the symmetrical design with tempered glass on both sides of the cells significantly reduces the risk of microcracks, corrosion, and PID or LID degradation, which are common issues in cheaper backsheet panels. This allows the modules to maintain stable performance for many years, even under harsh climate conditions such as large temperature swings or high humidity.
Is WINAICO a tier 1 manufacturer, and where is the WST-NGX72-A7 series produced?
WINAICO is headquartered in Taiwan and is classified as a tier 1 manufacturer, reflecting financial stability and long-standing experience in photovoltaic module production. This status gives investors greater confidence in warranty service availability and component quality compared to lower-tier manufacturers.
