Waaree Brand review

BiN-08-565

565 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 5,723 of 14,005
Compare panels Datasheet PDF
Power (Wp)
565
Weak · bottom 19%
Efficiency (%)
21.87
Weak · bottom 14%
Density (Wp/m²)
218.7
Weak · bottom 17%
Temp (%/°C)
-0.300
Weak · bottom 17%
Weight (kg)
32.5
Weak · 3.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

Waaree ELITE SERIES N-TYPE panels use advanced N-type cell technology, which effectively eliminates the problem of light-induced degradation (LID), resulting in more stable energy production throughout the long-term life cycle of the installation. Thanks to the use of TOPCon technology, these modules offer significantly higher conversion efficiency and excellent performance in low-light conditions, which is crucial for efficiency in the Polish climate. Choosing this series directly solves the problem of limited installation space, allowing for more power to be obtained from a smaller roof area. Low annual degradation guarantees that the investment will maintain its high profitability for decades, minimizing the risk of a sudden drop in yields. The panel design has been optimized for exceptional mechanical resistance and a better temperature coefficient, which makes them work much more effectively even during summer heat. This product is dedicated to both demanding home users and large commercial projects where the priority is the lowest levelized cost of energy. They are distinguished from the competition by above-average cell durability and precise workmanship, which, combined with innovative architecture, places them at the forefront of premium-class solutions. It is an ideal choice for investors focusing on maximizing energy yields and long-term energy security for the building.

Ranking

259 panels in the segment N-type 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.87% 22.45% Weak · bottom 14% 6,908
Power density 218.7 224.5 Weak · bottom 17% 6,841
Temperature coefficient -0.300 -0.290 Weak · bottom 17% 6,093
Weight per kWp 57.5 52.3 Weak · bottom 3% 11,263
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Residential, commercial, utility-scale, shaded-installations and hot-climate.

Not ideal for

Weight-limited structures, tight roof space and hot climates.

Watch-outs
57.5 kg per kWp

Bottom 3% of the N-type 550-600 W segment, against a median of 52.3. Ranked 11,263rd in the whole database.

21.87% module efficiency

Bottom 14% of the N-type 550-600 W segment, against a median of 22.45%.

-0.300 %/°C temperature coefficient

Bottom 17% of the N-type 550-600 W segment, against a median of -0.290.

Notes from the database
  • Module efficiency of 21.9% is 0.6pp below average for N-type 550-600W panels (median: 22.4%)
  • At 218.7 W/m², this panel generates 5.8 W/m² less per unit area than N-type 550-600W median (224.5 W/m²)
  • At -0.30%/°C, hot weather performance is typical for N-type 550-600W panels
  • At 32.5 kg, this panel is 3.0 kg heavier than the N-type 550-600W median (29.5 kg) - more demanding for installation crews
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 565 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.87 % Weak Segment median 22.45%
Vmpp · Impp 43.56 V · 12.97 A Operating point at max power
Voc · Isc 51.90 V · 13.75 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×33 mm · 2.58 m² of roof
Weight 32.5 kg Weak Weak · 3.0 kg above median
Cells 144 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 17% of its segment
Coefficient Voc · Isc -0.260 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 494 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Waaree in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 565 Wp appear here. The rest cover the whole series.

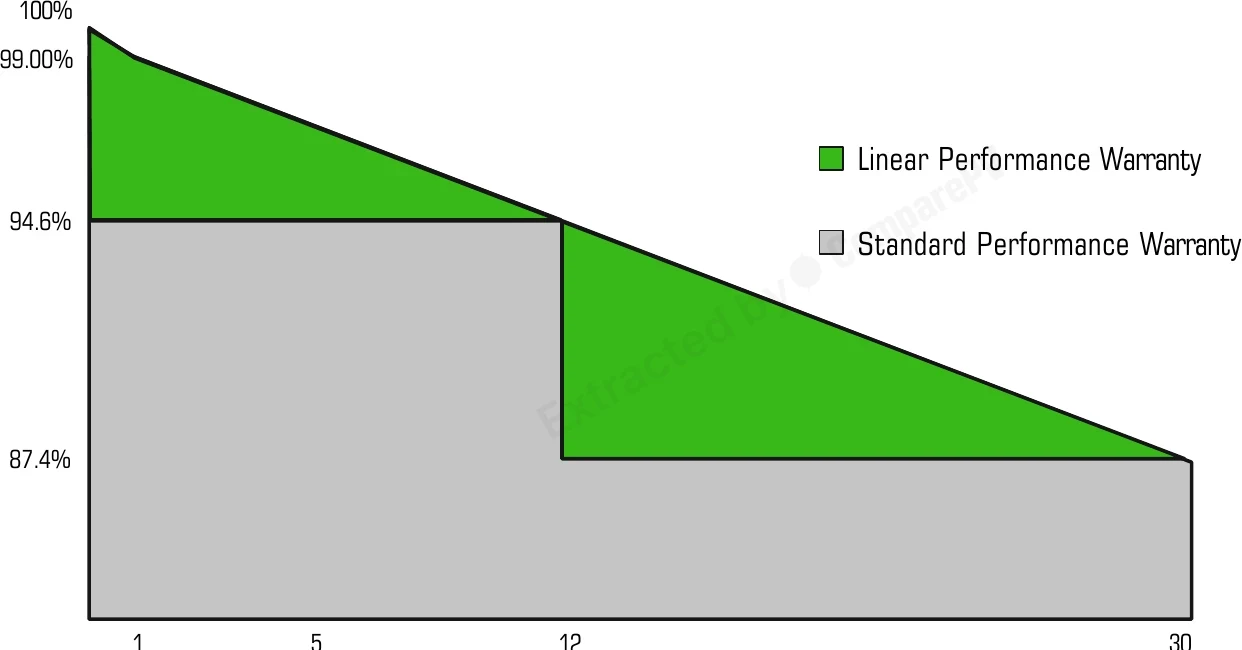

Linear Performance Warranty vs Standard Performance Warranty Linear Performance Warranty vs Standard Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Waaree BiN-08-565 565 W 21.87% -0.300 32.5 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.9 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.7 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 16 kg lighter, +2.5 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.5 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.5 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.4 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg Cooler, lighter, +2.3 pp
Bi-55-515 515 W 20.01% -0.350 32.5 kg -50 W, hotter, -1.9 pp
Bi-55-520 520 W 20.20% -0.350 32.5 kg -45 W, hotter, -1.7 pp
WSMD-525 525 W 20.39% -0.350 27.5 kg Hotter, lighter, -1.5 pp
Bi-55-530 530 W 20.59% -0.350 32.5 kg -35 W, hotter, -1.3 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +85 W, lighter, +3.3 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +80 W, lighter, +3.1 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +75 W, lighter, +2.9 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +70 W, lighter, +2.7 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +65 W, cooler, +2.5 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does the TOPCon technology in Waaree ELITE SERIES N-TYPE panels differ from standard PERC panels?
ELITE SERIES N-TYPE panels use N-type cells with TOPCon technology, which offer higher conversion efficiency and are practically immune to light-induced degradation (LID), a common issue with P-type PERC cells. As a result, the module loses less power in its first year and maintains higher output throughout its service life, especially in low-light conditions typical of the Polish climate.
How much extra energy can I actually get from the bifacial design of Waaree ELITE SERIES N-TYPE panels?
ELITE SERIES N-TYPE modules use a glass-glass construction, so the rear side of the cells also generates power from reflected light. Depending on the ground surface (light-colored roof, gravel, snow) and mounting height, the additional energy yield can range from a few to over ten percent compared to a monofacial panel of the same power rating, effectively lowering the levelized cost of energy (LCOE).
What warranty comes with Waaree ELITE SERIES N-TYPE panels, and how much power will they lose after 30 years?
The manufacturer offers a 12-year product warranty and a 30-year power output warranty. After the first year, the panel retains at least 99 percent of its rated power, and annual degradation afterward does not exceed 0.4 percent, meaning the module will still deliver at least 87.4 percent of its initial power after 30 years. This is one of the stronger warranties currently available in the PV market.
Are Waaree ELITE SERIES N-TYPE panels with up to 600 Wp suitable for a residential roof, or are they only meant for commercial installations?
The high single-module power rating, up to 600 Wp, makes this series well suited for both large commercial roofs and residential installations with limited surface area. Fewer panels are needed to reach a target system capacity, meaning fewer mounting points, faster installation, and lower racking costs — an advantage for homeowners with smaller sloped roofs.
How do Waaree ELITE SERIES N-TYPE panels perform in summer heat on the roof?
Thanks to TOPCon technology, these modules have a more favorable power temperature coefficient than standard PERC panels, meaning a smaller output drop during heat waves, when panel temperature can exceed 60°C. In practice, this results in more stable energy production on hot, sunny summer days, when conventional panels lose more power due to overheating.
Is Waaree a proven, reliable solar panel manufacturer?
Waaree is an India-based manufacturer with Tier 1 status, meaning it is listed among the most financially and technologically reliable PV module suppliers, confirmed by the bankability of projects financed by external institutions. The company operates large-scale in-house production lines, which supports consistent quality and warranty service availability beyond the Indian market.
