Ulica Solar Brand review

UL-600M-156ADGN

600 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, needs the roof space

Rank 3,512 of 14,005
Compare panels Datasheet PDF
Power (Wp)
600
Weak · bottom 5%
Efficiency (%)
22.21
Weak · bottom 14%
Density (Wp/m²)
222.1
Weak · bottom 13%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.0
Typical · median 32.7 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Ulica Solar TOPCon (N TYPE) 600-615W series is designed for installations where maximizing power output per meter of structure and stable performance over many years are crucial. The use of n-type TOPCon cells results in low initial degradation and very good long-term parameter repeatability, which facilitates precise energy production planning in commercial projects.

These are bifacial modules that can recover additional light from the rear side - particularly on a reflective surface or with an appropriately designed structure. The glass-glass construction enhances resistance to weather conditions and reduces the risk of microcracks in demanding locations, while also supporting long-term durability.

In practice, this series addresses common issues associated with large-scale investments: limited surface area, energy losses due to heat, and the need for reliable operation in harsh environments. Another key advantage is PID resistance, which is important where the stability of the entire string is paramount. They are best suited for PV farms, industrial rooftops, and C&I projects focused on long-term returns.

Ranking

1,086 panels in the segment TOPCon 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.21% 22.80% Weak · bottom 14% 5,754
Power density 222.1 227.7 Weak · bottom 13% 5,783
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 53.3 53.1 Typical 7,236
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Commercial and utility-scale.

Not ideal for

Roofs where every square metre has to count and tight roof space.

Watch-outs
222.1 watts per square metre

Bottom 13% of the TOPCon 600-650 W segment, against a median of 227.7.

22.21% module efficiency

Bottom 14% of the TOPCon 600-650 W segment, against a median of 22.80%.

Notes from the database
  • Module efficiency of 22.2% is 0.6pp below average for TOPCon 600-650W panels (median: 22.8%)
  • 222.1 W/m² power density is 5.6 W/m² below TOPCon 600-650W median (227.7 W/m²) - requires larger installation area
  • Temperature coefficient of -0.29%/°C matches the TOPCon 600-650W median
  • In the top 41% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 600 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.21 % Weak Segment median 22.80%
Vmpp · Impp 47.93 V · 12.52 A Operating point at max power
Voc · Isc 56.75 V · 13.18 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2382×1134×30 mm · 2.70 m² of roof
Weight 32.0 kg Typical Typical · median 32.7 kg
Cells 156 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 524 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Ulica Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 600 Wp appear here. The rest cover the whole series.

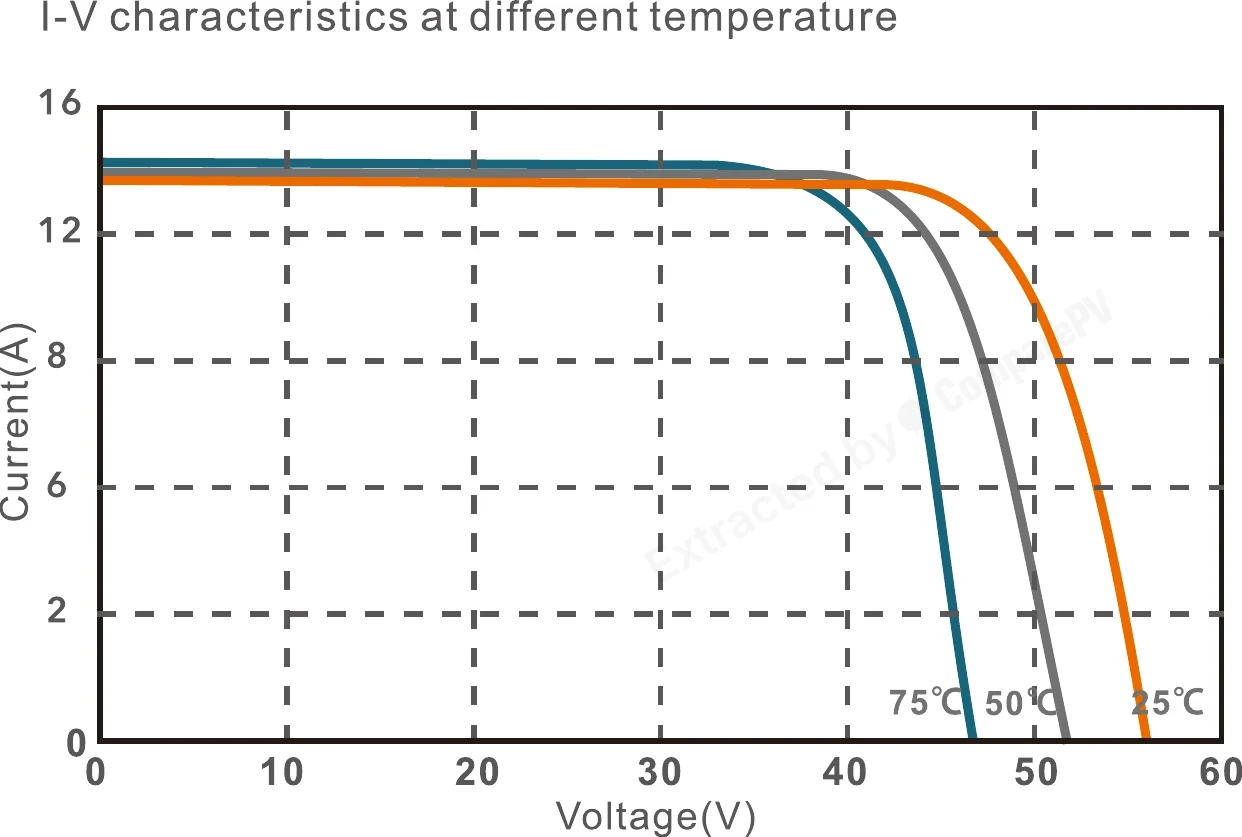

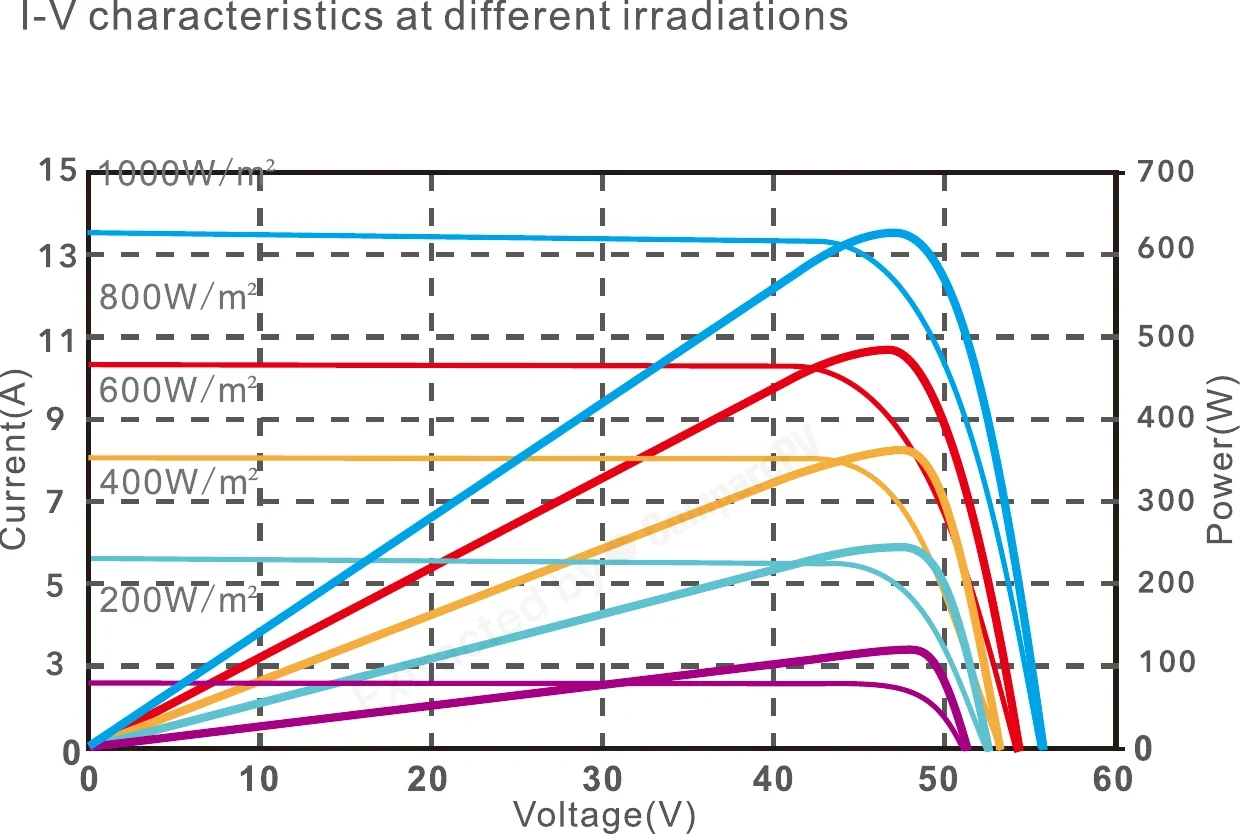

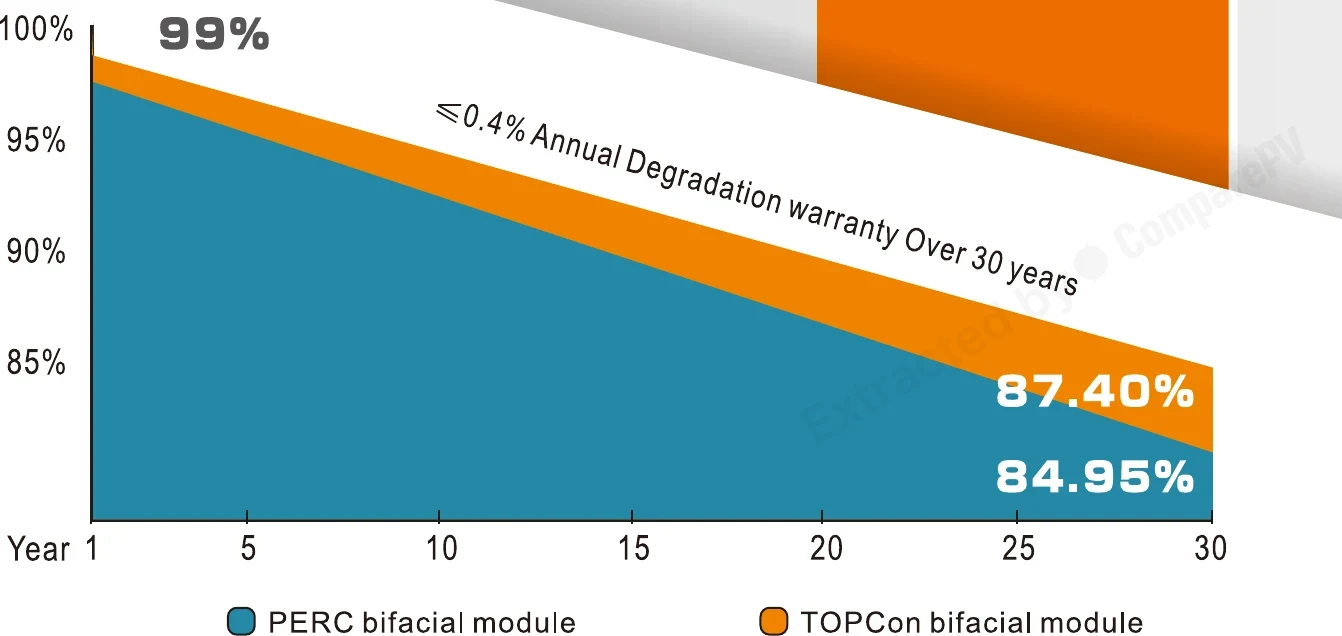

≤0.4% Annual Degradation Warranty Over 30 Years ≤0.4% Annual Degradation Warranty Over 30 Years Whole series I-V characteristics at different irradiations I-V characteristics at different irradiations Whole series I-V characteristics at different temperature I-V characteristics at different temperature Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Ulica Solar UL-600M-156ADGN 600 W 22.21% -0.290 32.0 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +50 W, lighter, +3.0 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +45 W, lighter, +2.8 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -40 W, lighter, +2.6 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +40 W, lighter, +2.6 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -45 W, lighter, +2.4 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +35 W, lighter, +2.4 pp
UL-605M-156ADGN 605 W 22.40% -0.290 32.0 kg Very close match
UL-610M-156ADGN 610 W 22.58% -0.290 32.0 kg +10 W, +0.4 pp
UL-615M-156ADGN 615 W 22.75% -0.290 32.0 kg +15 W, +0.5 pp
UL-630M-144CDGN 630 W 23.32% -0.290 32.0 kg +30 W, +1.1 pp
UL-635M-144CDGN 635 W 23.51% -0.290 32.0 kg +35 W, +1.3 pp
UL-640M-144CDGN 640 W 23.69% -0.290 32.0 kg +40 W, +1.5 pp
UL-645M-144CDGN 645 W 23.88% -0.290 32.0 kg +45 W, +1.7 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg +80 W, lighter, +3.0 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg +75 W, lighter, +2.8 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg +100 W, cooler, +2.8 pp

Found 1119 panels of the same or similar size to this one, within ±10 mm. See them here Found 1125 panels of the same or similar size to this one, within ±25 mm. See them here Found 1236 panels of the same or similar size to this one, within ±50 mm. See them here Found 1917 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty comes with the Ulica Solar TOPCon 600-615W series?
The series is covered by a 15-year product warranty and a 30-year linear power output warranty. This means the manufacturer guarantees a defined performance level over three decades, which is standard for modern n-type TOPCon cells and helps with ROI planning in commercial projects and utility-scale PV farms.
How do N-Type TOPCon cells differ from standard PERC cells?
N-type TOPCon cells have lower initial degradation and a slower power decline over the years compared to PERC. The additional passivation layer reduces recombination losses, resulting in higher module efficiency and more stable output at high temperatures - important during periods of intense summer sun.
How much extra energy does bifacial technology add in this series?
Bifacial modules capture part of the light reflected off the surface beneath the panel, boosting energy yield compared to a monofacial module of the same rated power. The effect is strongest over bright, reflective surfaces (e.g., white gravel, reflective roofing) and with elevated mounting structures, making rack selection an important factor.
Are these panels PID-resistant and suitable for large PV farms?
Yes, the modules are PID (Potential Induced Degradation) resistant, meaning they resist power loss caused by voltage differences within a string. This matters for large ground-mount installations and C&I roofs, where long strings generate higher system voltages. The glass-glass construction also improves mechanical and climate resistance in such environments.
Is Ulica Solar a Tier 1 manufacturer?
Ulica Solar is not currently listed as a Tier 1 manufacturer under BloombergNEF's classification, although it is an established Chinese PV module maker with a solid market presence. Tier 1 status mainly reflects financial standing and supply history with large bankable projects, not the quality of the product itself.
What kind of installations is the TOPCon 600-615W series best suited for?
The series is built for large commercial and industrial installations - PV farms, industrial and warehouse rooftops, and C&I projects focused on maximizing yield from limited space. The high unit power of up to 615 Wp reduces the module count and simplifies wiring in large-scale systems.
