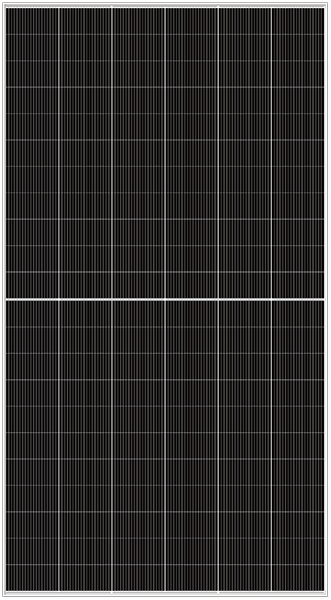

Sunova TS-BGT66(695)-G12
Sunova Brand review

TS-BGT66(695)-G12

695 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 1,100 of 14,005
Compare panels Datasheet PDF
Power (Wp)
695
Strong · top 5%
Efficiency (%)
22.40
Typical · median 23.30%
Density (Wp/m²)
223.7
Typical · median 233.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
38.5
Weak · 5.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Sunova TS-BGT66-G12 series (695-720 W) was designed with the goal of maximizing yield from large-scale installations, where every square meter of the structure and every hour of the installation team's work matters. These are bifacial modules in a glass-glass configuration, effectively utilizing reflected light from the ground as well, facilitating higher energy production without expanding the farm.

The key advantage is the N-type TOPCon cell technology - ensuring more stable performance over time and reduced susceptibility to typical initial losses, making the design stabilize over the long term. Additionally, the G12 format and the module architecture designed for high power density allow for reducing BOS costs and logistics in large volumes.

This series will excel primarily in utility-scale PV farms and projects, even in challenging environmental conditions, thanks to the high mechanical strength of the glass-glass construction, which genuinely reduces the risk of microcracks and claims. It is the choice for investors seeking predictable yields and longevity, rather than compromises.

Ranking

109 panels in the segment N-type 650-700 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.40% 23.30% Typical 4,774
Power density 223.7 233.2 Typical 4,877
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 55.4 50.9 Weak · bottom 13% 9,818
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Utility-scale.

Not ideal for

Weight-limited structures.

Watch-outs
55.4 kg per kWp

Bottom 13% of the N-type 650-700 W segment, against a median of 50.9.

Notes from the database
  • Module efficiency of 22.4% is 0.9pp below average for N-type 650-700W panels (median: 23.3%)
  • Power density of 223.7 W/m² is 9.5 W/m² below N-type 650-700W median (233.2 W/m²) - needs more roof space
  • At -0.29%/°C, hot weather performance is typical for N-type 650-700W panels
  • At 38.5 kg (5.0 kg above N-type 650-700W median of 33.5 kg), requires checking roof load capacity
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 695 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.40 % Typical Segment median 23.30%
Vmpp · Impp 40.30 V · 17.25 A Operating point at max power
Voc · Isc 48.30 V · 18.28 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2384×1303×35 mm · 3.11 m² of roof
Weight 38.5 kg Weak Weak · 5.0 kg above median
Cells 132 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.280 · 0.040 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 607 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Sunova in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 695 Wp appear here. The rest cover the whole series.

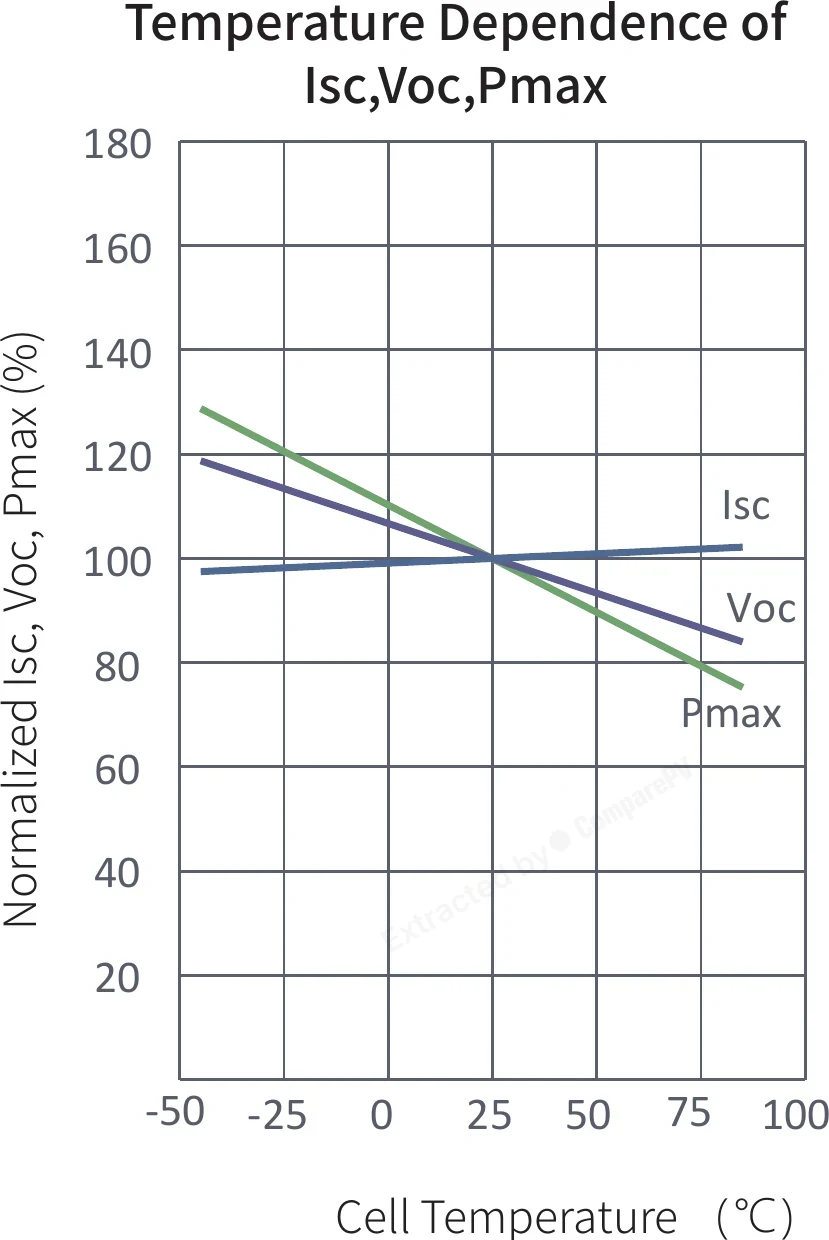

Temperature Dependence of Isc, Voc, Pmax Temperature Dependence of Isc, Voc, Pmax Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All Sunova panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sunova TS-BGT66(695)-G12 695 W 22.40% -0.290 38.5 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg -45 W, lighter, +2.8 pp
AIKO-A680-MDE72Mw 680 W 25.20% -0.260 29.0 kg Cooler, lighter, +2.8 pp
AIKO-A675-MDE72Mw 675 W 25.00% -0.260 29.0 kg Cooler, lighter, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg -50 W, lighter, +2.6 pp
AIKO-A700-MAE78Dw 700 W 25.00% -0.260 34.5 kg Cooler, lighter, +2.6 pp
AIKO-A695-MAE78Dw 695 W 24.90% -0.260 34.5 kg Cooler, lighter, +2.5 pp
AIKO-G670-MCH72Mw 670 W 24.80% -0.260 28.2 kg Cooler, lighter, +2.4 pp
RS645~665S9B-132 (645W) 645 W 20.80% -0.354 33.0 kg Hotter, lighter, -1.6 pp
RS645~665S9B-132 (650W) 650 W 20.90% -0.354 33.0 kg Hotter, lighter, -1.5 pp
RS645~665S9B-132 (655W) 655 W 21.10% -0.354 33.0 kg Hotter, lighter, -1.3 pp
RS645~665S9B-132 (660W) 660 W 21.20% -0.354 33.0 kg Hotter, lighter, -1.2 pp
RS645~665S9B-132 (665W) 665 W 21.40% -0.354 33.0 kg Hotter, lighter, -1.0 pp
AIKO-A805-GRH78Dw 805 W 25.10% -0.260 39.8 kg +110 W, cooler, +2.7 pp
AIKO-A800-GRH78Dw 800 W 24.90% -0.260 39.8 kg +105 W, cooler, +2.5 pp
AIKO-A795-GRH78Dw 795 W 24.80% -0.260 39.8 kg +100 W, cooler, +2.4 pp
AIKO-A790-GRH78Dw 790 W 24.60% -0.260 39.8 kg +95 W, cooler, +2.2 pp

Found 1390 panels of the same or similar size to this one, within ±10 mm. See them here Found 1400 panels of the same or similar size to this one, within ±25 mm. See them here Found 1400 panels of the same or similar size to this one, within ±50 mm. See them here Found 1432 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What type of installation is the Sunova TS-BGT66-G12 series suited for?
The TS-BGT66-G12 series (695-720 W) is designed for large-scale PV farms and utility-scale projects, where high unit power and low cost per watt matter most. The large G12 format and glass-glass construction work best for ground-mount installations and large industrial rooftops, rather than typical residential pitched roofs.
How does a bifacial glass-glass panel differ from a standard glass-backsheet panel?
A bifacial glass-glass panel like the TS-BGT66-G12 generates energy from both sides of the module, capturing light reflected off the ground, roof, or albedo surface beneath the array, boosting yield by several percent or more without increasing the array's footprint. The glass-on-both-sides design, instead of a rear backsheet, also improves mechanical durability and extends module lifespan in harsh conditions.
What is N-type TOPCon technology and is it worth choosing?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology that reduces surface recombination losses and delivers more stable performance over the module's lifetime than older P-type PERC cells. In practice, this means lower initial power degradation and more predictable energy yield, which translates into a better return on investment for large utility projects over the long term.
What warranty comes with Sunova TS-BGT66-G12 panels?
Sunova offers a 15-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means the panel should still retain a significant share of its original rated power after 30 years, matching the best offers currently available for bifacial N-type modules.
Is Sunova a tier-1 manufacturer, and where are TS-BGT66-G12 panels made?
Sunova is not currently listed as a tier-1 manufacturer under the BloombergNEF classification, though it produces modules in China using modern N-type TOPCon technology. Lack of tier-1 status doesn't necessarily mean lower technical quality, but it's worth considering if project financing requires panels from that list.
Are bifacial glass-glass panels more resistant to microcracks?
Yes, the glass-glass construction used in the TS-BGT66-G12 series provides significantly higher mechanical rigidity than traditional glass-backsheet designs, meaningfully reducing the risk of cell microcracks during transport, installation, and operation in harsh climates. This results in fewer warranty claims and more predictable energy production throughout the 30-year power warranty period.
