SunKean Brand review

SKT410M10-108D4

410 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, modest efficiency

Rank 10,746 of 14,005
Compare panels Datasheet PDF
Power (Wp)
410
Weak · bottom 4%
Efficiency (%)
21.00
Weak · bottom 5%
Density (Wp/m²)
210.0
Weak · bottom 5%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The SunKean SKT410~430M10-108D4 series consists of modules with N-type cells in TOPCon technology, designed for high operational stability and reduced susceptibility to performance degradation over the long term. The use of double-glass construction improves resistance to environmental factors and microcracks, which directly translates into predictable energy production in installations exposed to large temperature variations and wind and snow loads.

The variants in this series also utilize bifacial architecture, allowing them to recover additional energy from reflected light - a significant advantage on bright roofs, on gravel-covered roofs, and in ground-mounted installations. The multi-cell design also supports better performance under partial shading and reduces resistive losses.

This is a good choice for installers and investors who want to combine the aesthetics of the black version with the durability and reliability of the parameters in residential and commercial projects.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.00% 22.00% Weak · bottom 5% 9,758
Power density 210.0 220.2 Weak · bottom 5% 9,772
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 51.2 51.4 Typical 4,595
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential and commercial.

Not ideal for

Tight roof space and roofs where every square metre has to count.

Watch-outs
21.00% module efficiency

Bottom 5% of the TOPCon 400-450 W segment, against a median of 22.00%. Ranked 9,758th in the whole database.

210.0 watts per square metre

Bottom 5% of the TOPCon 400-450 W segment, against a median of 220.2. Ranked 9,772nd in the whole database.

Notes from the database
  • At 21.0% efficiency, this panel is 1.0pp below the TOPCon 400-450W median of 22.0%
  • At 210.0 W/m², this panel generates 10.2 W/m² less per unit area than TOPCon 400-450W median (220.2 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • Weight of 21.0 kg is typical for TOPCon 400-450W panels
  • Ranked #9758 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 410 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.00 % Weak Segment median 22.00%
Vmpp · Impp 31.60 V · 12.98 A Operating point at max power
Voc · Isc 38.20 V · 13.93 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 21.0 kg Typical Typical · median 22.0 kg
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 358 W guaranteed

Datasheet charts

Open datasheet PDF

Measured curves published by SunKean in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 410 Wp appear here. The rest cover the whole series.

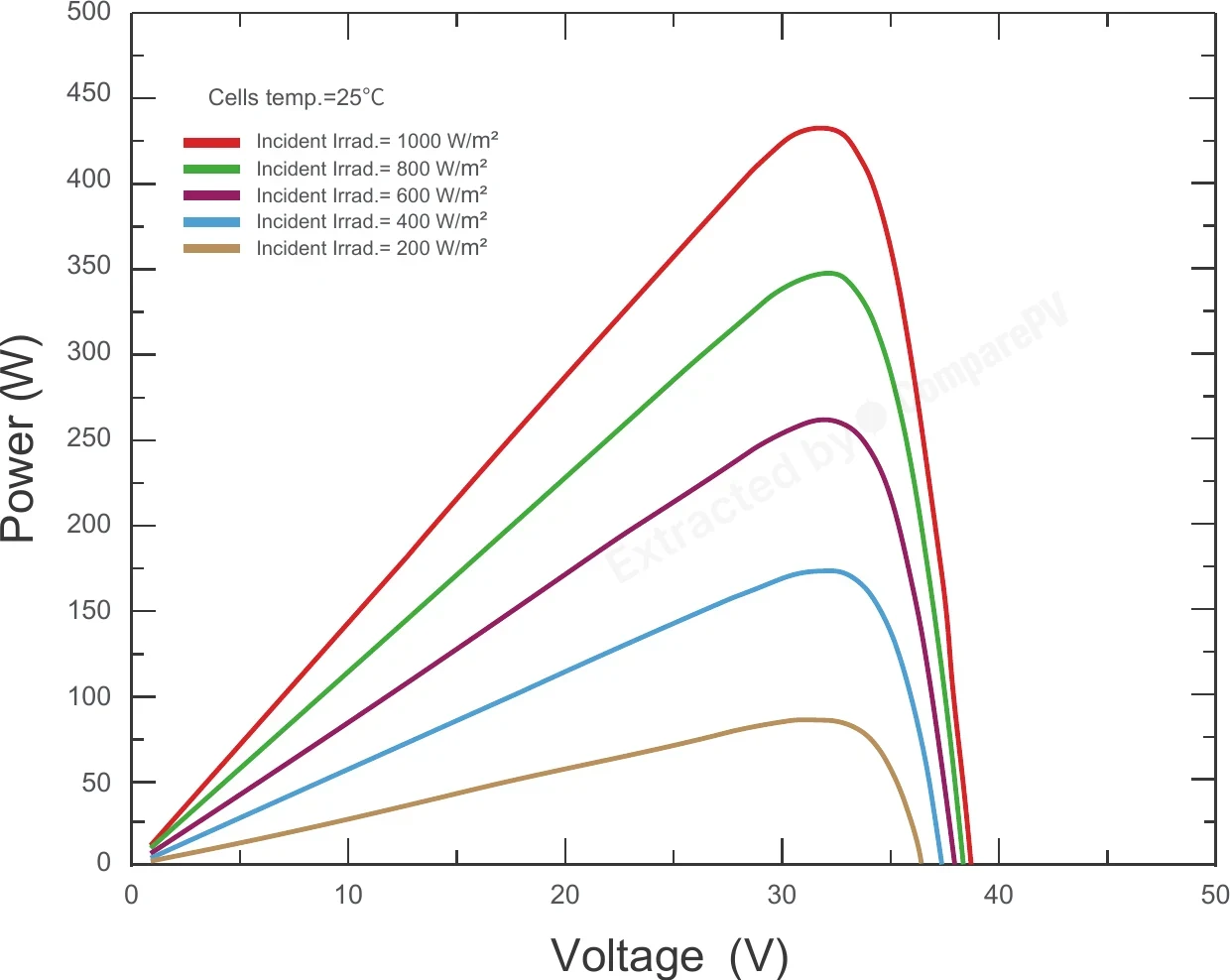

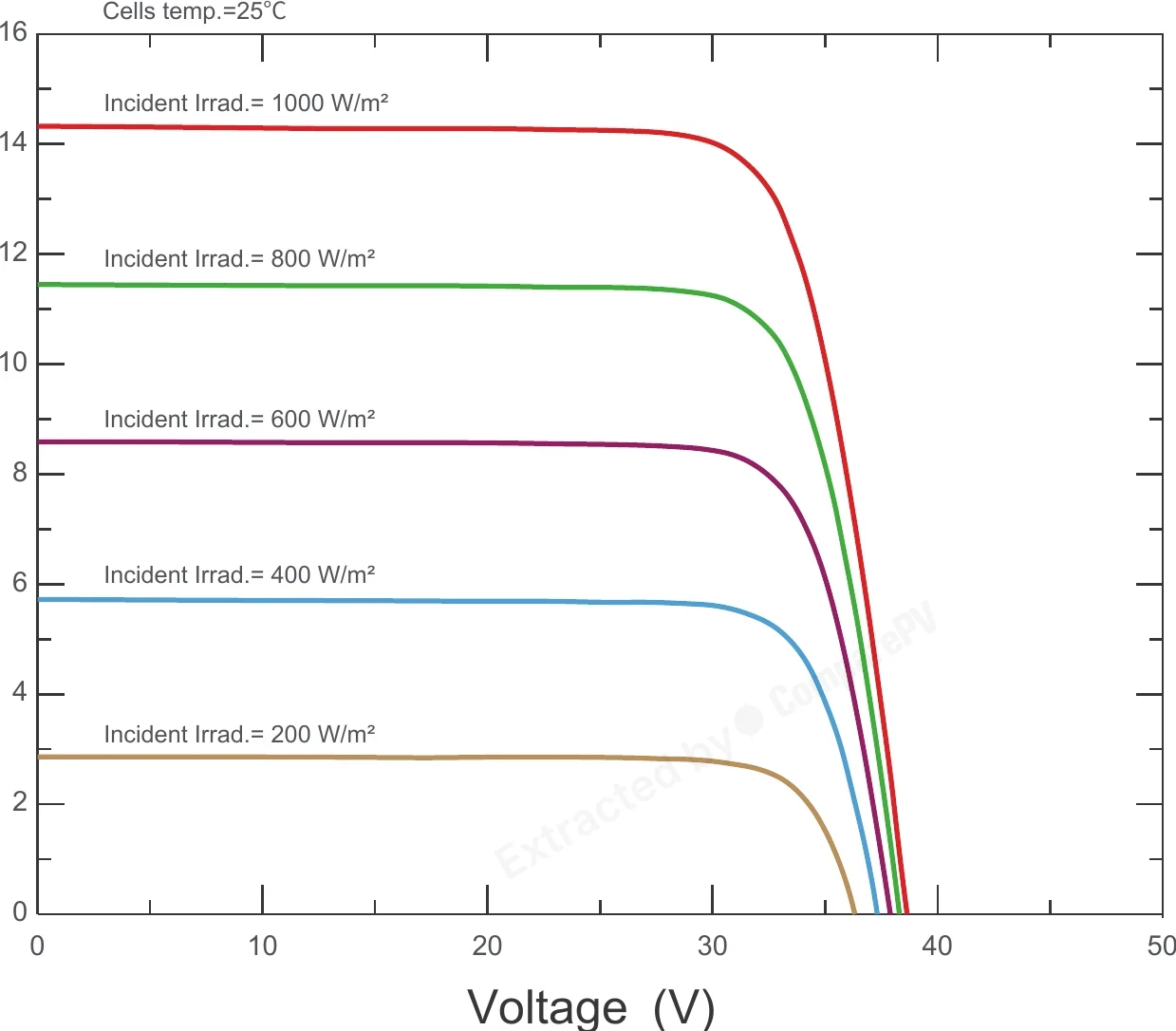

Current-Voltage (I-V) curves at varying irradiance, cell temp. 25°C Current-Voltage (I-V) curves at varying irradiance, cell temp. 25°C Whole series Power-Voltage (P-V) curves at varying irradiance, cell temp. 25°C Power-Voltage (P-V) curves at varying irradiance, cell temp. 25°C Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-

Alternatives

All SunKean panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunKean SKT410M10-108D4 410 W 21.00% -0.290 21.0 kg You are here
AIKO-A460-MAH54Mb 460 W 23.60% -0.290 20.5 kg +50 W, +2.6 pp
JST-EDMH-(445-465)W-TD (460W class) 460 W 23.56% -0.300 20.5 kg +50 W, hotter, +2.6 pp
LX-460M/182R-96+ GG 460 W 23.55% -0.260 23.5 kg +50 W, cooler, +2.6 pp
PS-MNB108(HCBF)-460W 460 W 23.53% -0.290 20.5 kg +50 W, +2.5 pp
JAT54S40-460/LR 460 W 23.50% -0.260 19.3 kg +50 W, cooler, +2.5 pp
LX-460M/182R188-108+ GG 460 W 23.35% -0.290 24.5 kg +50 W, heavier, +2.4 pp
AIKO-455-MAH54Db 455 W 23.30% -0.260 24.0 kg +45 W, heavier, +2.3 pp
LR5-54HTH-455M 455 W 23.30% -0.290 20.8 kg +45 W, +2.3 pp, -5 yr warranty
SKT345M10 345 W 17.70% -0.290 20.5 kg -65 W, -3.3 pp, -5 yr warranty
SKT350M10 350 W 17.90% -0.290 20.5 kg -60 W, -3.1 pp, -5 yr warranty
SKT355M10 355 W 18.20% -0.290 20.5 kg -55 W, -2.8 pp, -5 yr warranty
SKT360M10 360 W 18.40% -0.290 20.5 kg -50 W, -2.6 pp, -5 yr warranty
SKT365M10 365 W 18.70% -0.290 20.5 kg -45 W, -2.3 pp, -5 yr warranty
SKT385M10 385 W 19.80% -0.350 23.4 kg -25 W, hotter, -1.2 pp
SKT390M10 390 W 20.00% -0.350 23.4 kg Hotter, heavier, -1.0 pp
SKT395M10 395 W 20.20% -0.350 23.4 kg Hotter, heavier, -0.8 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +100 W, cooler, +4.0 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is TOPCon technology and why does the SunKean SKT410~430M10-108D4 series use it?
TOPCon (Tunnel Oxide Passivated Contact) is an advanced N-type cell technology that delivers higher efficiency and lower recombination losses compared to mainstream PERC cells. In the SKT410~430M10-108D4 series this translates to a maximum power output of 430 Wp, module efficiency of 21–22%, and a low Pmax temperature coefficient of just -0.29%/°C. The result is better performance on hot days and reduced degradation over the full 30-year service life.
What warranty does the SunKean SKT410~430M10-108D4 come with?
The SKT410~430M10-108D4 series is backed by a 15-year product warranty covering material and workmanship defects. SunKean also provides a 30-year linear power warranty, guaranteeing the panel retains at least 87.4% of its rated output over three decades of operation. This is among the more comprehensive warranty packages available for double-glass TOPCon modules in this power class.
Is the SKT410~430M10-108D4 bifacial, and when does bifaciality actually increase yield?
Yes, all variants in this series feature a bifacial architecture, generating power from both the front and rear sides. Rear-side gain is meaningful wherever reflected light is available: light-colored rooftops, gravel ballast on flat roofs, or ground-mount systems over pale soil or concrete. Under favorable conditions the bifacial effect can add several to over ten percent of annual yield compared to a standard monofacial module.
Are SunKean SKT410~430M10-108D4 panels suitable for a residential pitched roof?
Yes. The modules measure 1722×1134×30 mm and weigh approximately 21 kg, which is a standard footprint for 108-cell panels — fully compatible with typical racking systems on tile or standing-seam metal roofs. The 410–430 Wp power range means fewer panels are required to reach the target system capacity, a practical advantage on roofs with limited usable area.
How does the double-glass construction of the SKT410~430M10-108D4 differ from standard backsheet panels?
Instead of a polymer backsheet, the SKT410~430M10-108D4 uses a second 1.6 mm glass layer on the rear. Glass is harder and significantly more resistant to mechanical damage, moisture ingress, and UV degradation than backsheet film. This reduces the risk of microcracks and PID degradation — particularly important in installations exposed to large temperature swings, heavy snow loads, and high wind pressure — directly supporting long-term output stability.
How does the SunKean SKT410~430M10-108D4 series perform under partial shading or low-irradiance conditions?
The SKT410~430M10-108D4 uses a 16-busbar half-cut cell layout, which divides each cell into smaller electrical segments. Shading one section of the array therefore causes a much smaller drop in string output than with conventional full-cell designs. N-type TOPCon cells also exhibit superior low-light response compared to PERC, which has real-world significance in climates with frequent overcast conditions.
