SunEvo Solar SE5-72H-585
SunEvo Solar Brand review

SE5-72H-585

585 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 1,749 of 14,129
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
22.64
Typical · median 22.44%
Density (Wp/m²)
226.4
Typical · median 224.4
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
27.5
Strong · 3.7 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The SunEvo Solar EVO 5N series is designed for high energy production under real-world operating conditions, particularly when module temperatures rise or when the installation is in a challenging environment. The use of N-type cells in the TOPCon technology helps to minimize typical power losses seen in older solutions, while also improving long-term stability. In practice, this means more predictable performance and easier cost planning.

The EVO 5N modules utilize half-cut design and multi-busbar architecture (SMBB/MBB), which supports better performance under partial shading and reduces the risk of microcracks that can affect performance. Bifacial variants also allow for additional energy recovery from reflected light - particularly on bright roofs, ground, or in industrial installations.

This series is for demanding prosumers, companies, and PV farms that want to invest in more modern technology and longer-term performance guarantees rather than compromising on the performance of P-type panels.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.64% 22.44% Typical 3,657
Power density 226.4 224.4 Typical 3,689
Temperature coefficient -0.300 -0.290 Typical 6,152
Weight per kWp 47.0 53.8 Strong · top 15% 1,470
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 0 caution
Best for

Commercial, utility-scale and shaded-installations.

Strengths
47.0 kg per kWp

Top 15% of the TOPCon 550-600 W segment, against a median of 53.8.

Notes from the database
  • Efficiency of 22.6% matches the TOPCon 550-600W median
  • Power density of 226.4 W/m² matches the TOPCon 550-600W median
  • Temperature coefficient of -0.30%/°C matches the TOPCon 550-600W median
  • 27.5 kg weight - 3.7 kg lighter than TOPCon 550-600W median (31.2 kg), reducing installation effort
  • In the top 26% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.64 % Typical Segment median 22.44%
Vmpp · Impp 45.23 V · 12.94 A Operating point at max power
Voc · Isc 53.00 V · 13.54 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×35 mm · 2.58 m² of roof
Weight 27.5 kg Strong Strong · 3.7 kg below median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 511 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

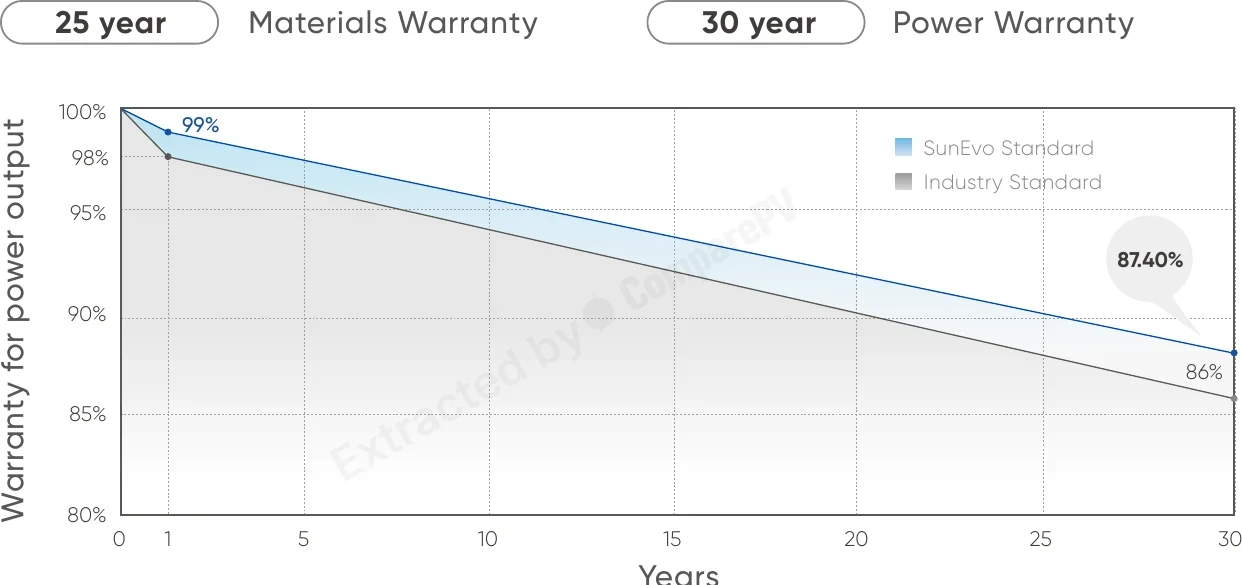

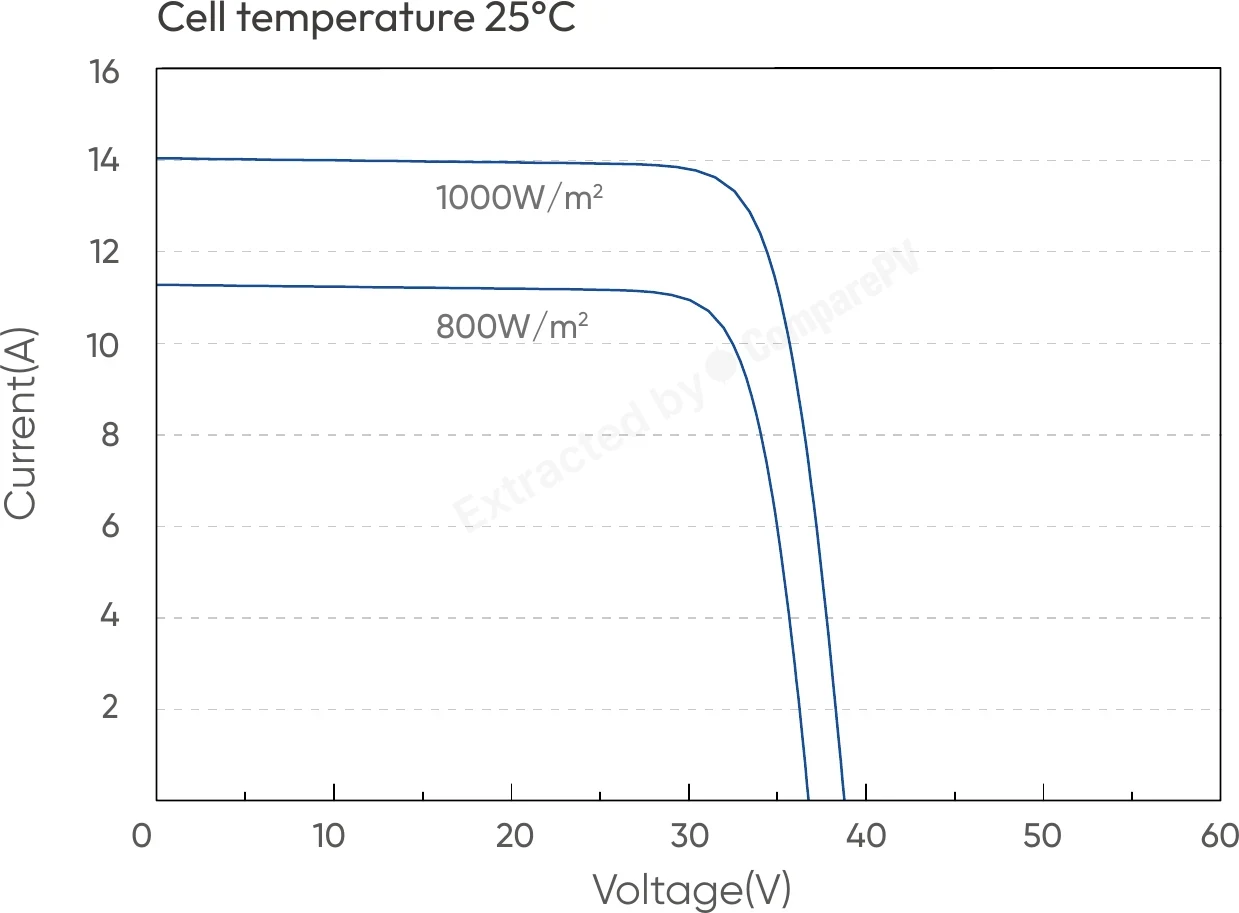

25-Year Materials Warranty and 30-Year Power Warranty 25-Year Materials Warranty and 30-Year Power Warranty Whole series I-V Curve (Cell Temperature 25°C) I-V Curve (Cell Temperature 25°C) Whole series I-V Curve at Different Cell Temperatures (1000W/m²) I-V Curve at Different Cell Temperatures (1000W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE5-72H-585 585 W 22.64% -0.300 27.5 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -25 W, cooler, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -30 W, cooler, +2.0 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, cooler, +2.0 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +45 W, heavier, +1.8 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +1.8 pp
SE5-72H-540W 540 W 21.10% -0.360 26.9 kg Hotter, -1.5 pp, -5 yr warranty
SE5-72H-545W 545 W 21.30% -0.360 26.9 kg Hotter, -1.3 pp, -5 yr warranty
SE5-72H-550W 550 W 21.50% -0.360 26.9 kg Hotter, -1.1 pp, -5 yr warranty
SE5-72H-555W 555 W 21.70% -0.360 26.9 kg Hotter, -0.9 pp, -5 yr warranty
SE5-72H-560W 560 W 21.90% -0.360 26.9 kg Hotter, -0.7 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +65 W, cooler, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +60 W, cooler, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +55 W, cooler, +2.2 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2543 panels of the same or similar size to this one, within ±100 mm. See them here

About the EVO 5N series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty does the SunEvo Solar EVO 5N series come with?
The EVO 5N series includes a 25-year product warranty covering defects and workmanship, along with a 30-year linear power output warranty. This is among the longer warranty packages available in the PV module market and reflects the manufacturer's confidence in the long-term stability of the TOPCon cell technology. Before purchasing, confirm with your local distributor that warranty claims can be serviced in your country.
How do TOPCon cells in the EVO 5N compare to older P-type PERC panels?
N-type TOPCon cells offer a lower temperature coefficient and greater resistance to PID (Potential Induced Degradation) compared to P-type PERC cells. In practice, this means higher energy production on hot days, lower annual power degradation, and more stable long-term output - particularly important over a 25-to-30-year investment horizon.
Do EVO 5N panels perform well under partial shading from a chimney or dormer window?
Yes. The EVO 5N series combines a half-cut cell design with a multi-busbar SMBB/MBB interconnection architecture. This limits the impact of partial shading on the rest of the module - shading one cell string does not shut down the entire panel. This is especially relevant for rooftop systems with chimneys, dormers, or nearby structures casting shadows at different times of day.
How many watts is the SunEvo Solar EVO 5N, and is it suitable for a residential rooftop?
The top variant of the EVO 5N series reaches a peak power of 640 Wp. This output is typical of large commercial modules and utility-scale PV farms - the physical size and weight may require a reinforced roof structure. For residential prosumer installations, lower-wattage variants within the EVO 5N lineup are usually a better fit. Always consult your installer about roof load capacity and available power variants.
Is SunEvo Solar a Tier 1 manufacturer, and does it matter when buying panels?
SunEvo Solar is not listed among Tier 1 manufacturers according to Bloomberg NEF, meaning it has lower visibility in international financial rankings. The Tier 1 classification relates primarily to a manufacturer's bankability and creditworthiness, not directly to module quality. When purchasing, the key factors to verify are whether your distributor provides in-country warranty support and how long the brand has been active in the market.
Are EVO 5N panels available in a bifacial version - can reflected light increase my energy yield?
No - the SunEvo Solar EVO 5N series in its standard configuration is a monofacial module, meaning energy is captured from the front side only. If you are planning a ground-mounted system, installation on a light-colored rooftop, or a free-standing structure where albedo could boost yield, consider comparing this series with bifacial alternatives available from other product lines or manufacturers.
