SunEvo Solar SE5-72H-555W
SunEvo Solar Brand review

SE5-72H-555W

555 Wp PERC
ComparePV verdict

Efficiency leader, weak in heat

Rank 7,345 of 14,129
Compare panels Datasheet PDF
Power (Wp)
555
Typical for its class
Efficiency (%)
21.70
Strong · top 6%
Density (Wp/m²)
214.8
Typical · median 212.9
Temp (%/°C)
-0.360
Weak · bottom 5%
Weight (kg)
26.9
Strong · 3.9 kg below median
Warranty (yrs)
25
Weak · bottom 24%

The SunEvo Solar EVO5 SE5-72H series is designed for maximum energy yield under real operating conditions. The use of a half-cut architecture and a multi-busbar layout minimizes losses at connections and improves module performance under partial shading, which is particularly important on roofs with chimneys, skylights, or complex geometries. The modules utilize monocrystalline cells based on TOPCon or advanced PERC technology - this allows for better performance at higher temperatures and slower degradation over time.

Bifacial variants can also "collect" light reflected from the ground, resulting in higher yields in PV farms, on flat roofs, and on ground-mounted structures with light-colored surfaces. EVO5 SE5-72H is a good choice for installers and investors who want to combine high production, resistance to environmental conditions, and predictable operating parameters - without the compromises typical of cheaper competitors.

Ranking

589 panels in the segment PERC 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.70% 21.29% Strong · top 6% 7,485
Power density 214.8 212.9 Typical 8,213
Temperature coefficient -0.360 -0.350 Weak · bottom 5% 12,425
Weight per kWp 48.5 52.7 Strong · top 8% 2,305
Performance warranty 25 yrs 27 yrs Weak · bottom 24% 9,912
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 2 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Hot climates and owners who want a long output guarantee.

Strengths
21.70% module efficiency

Top 6% of the PERC 550-600 W segment, against a median of 21.29%. Ranked 7,485th in the whole database.

48.5 kg per kWp

Top 8% of the PERC 550-600 W segment, against a median of 52.7. Ranked 2,305th in the whole database.

Watch-outs
-0.360 %/°C temperature coefficient

Bottom 5% of the PERC 550-600 W segment, against a median of -0.350. Ranked 12,425th in the whole database.

25 year performance warranty

Bottom 24% of the PERC 550-600 W segment, against a median of 27 yrs.

Notes from the database
  • At 21.7% efficiency, this panel is on par with typical PERC 550-600W modules
  • At 214.8 W/m² power density, roof space requirements are typical for PERC 550-600W panels
  • Temperature coefficient of -0.36%/°C matches the PERC 550-600W median
  • At 26.9 kg, this panel is 3.9 kg lighter than PERC 550-600W median (30.8 kg) - easier handling during installation
  • #7485 for efficiency, #12425 for temperature performance out of 14129 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 555 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.70 % Strong Segment median 21.29%
Vmpp · Impp 42.93 V · 12.93 A Operating point at max power
Voc · Isc 50.45 V · 13.73 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×35 mm · 2.58 m² of roof
Weight 26.9 kg Strong Strong · 3.9 kg below median
Cells 144 · PERC Monocrystalline
Coefficient Pmax -0.360 %/°C Weak bottom 5% of its segment
Coefficient Voc · Isc -0.280 · 0.050 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 24% · median 27 yrs
End-of-warranty output 84.8 % Equals 455 W guaranteed
Degradation 2.00 % First year

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 555 Wp appear here. The rest cover the whole series.

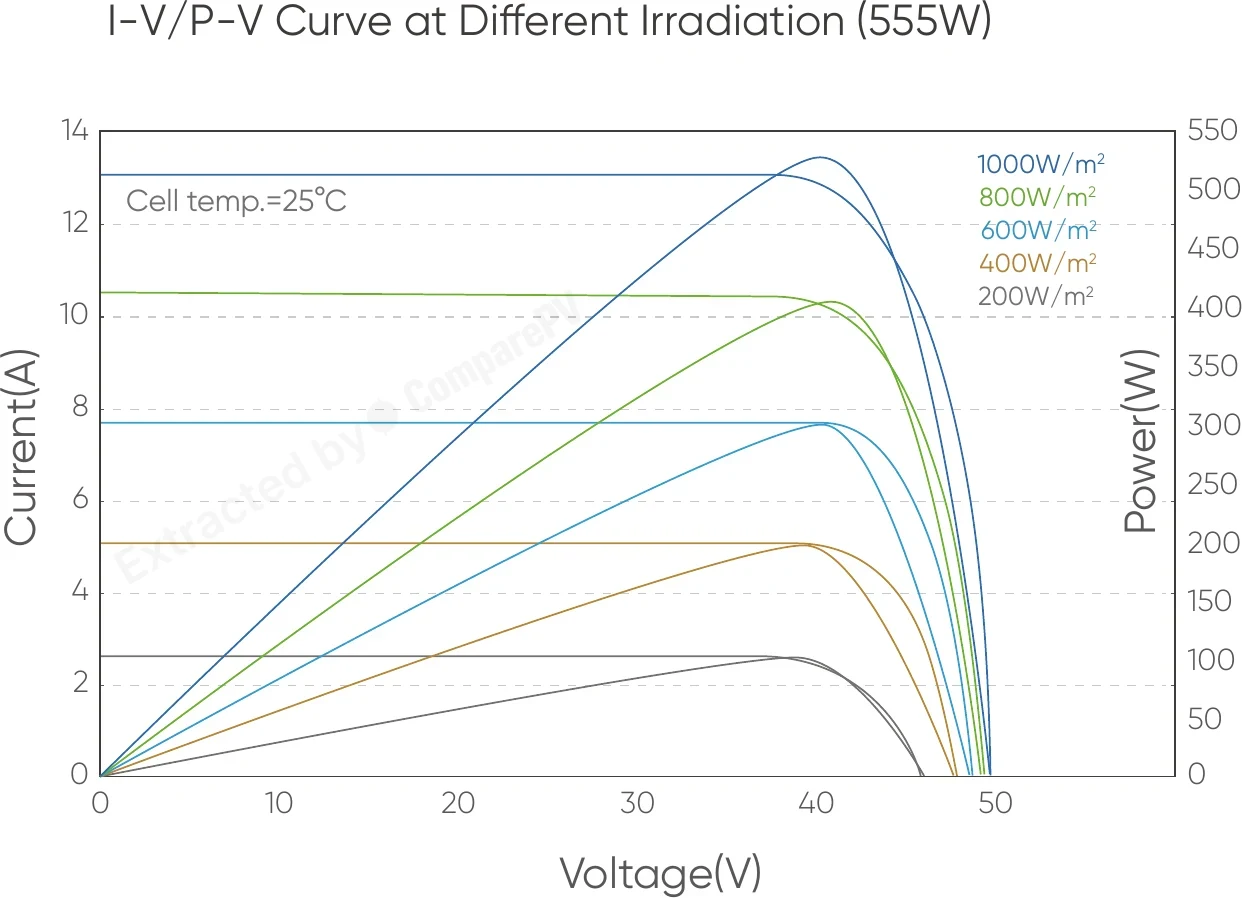

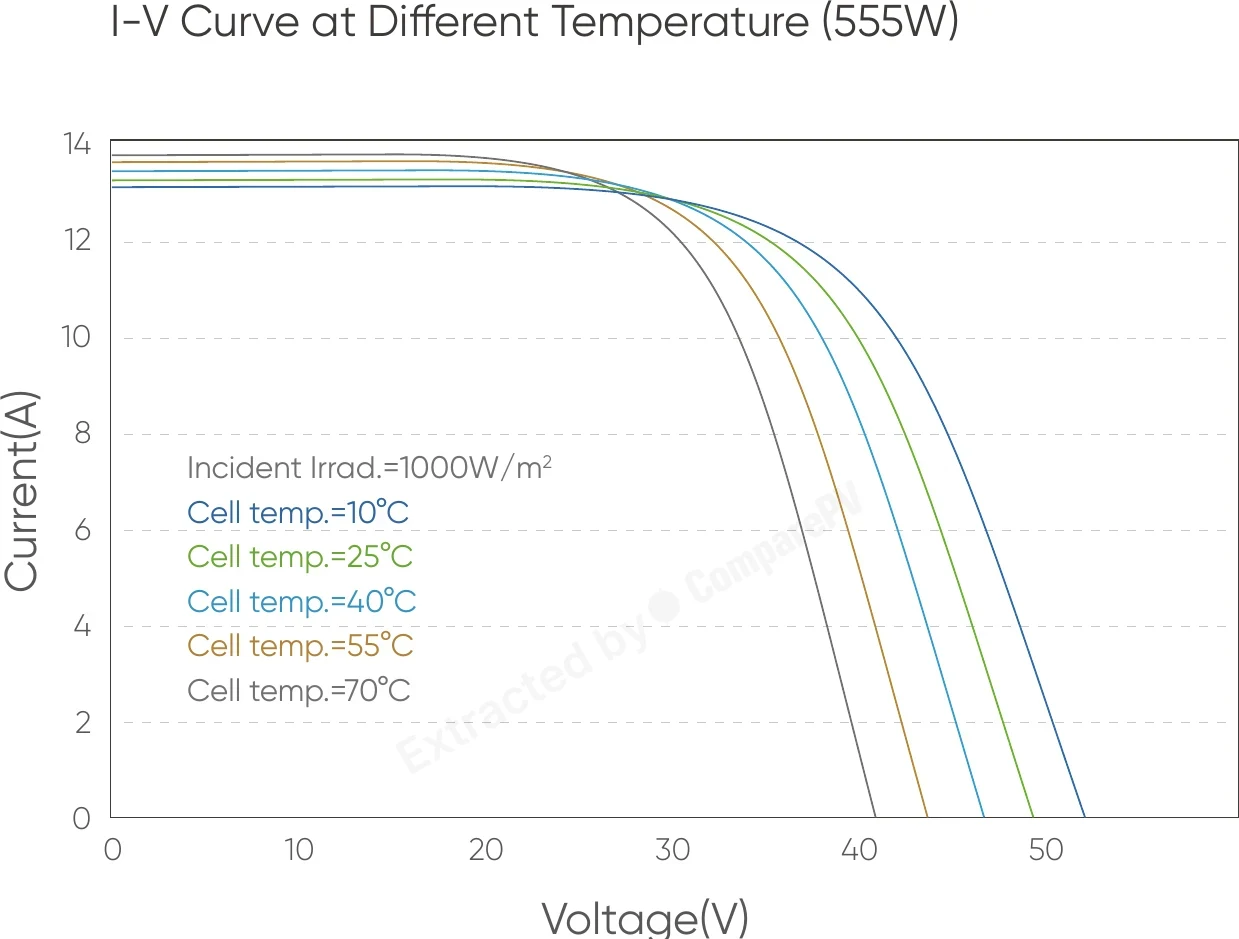

I-V Curve at Different Temperature (555W) I-V Curve at Different Temperature (555W) 555 W I-V/P-V Curve at Different Irradiation (555W) I-V/P-V Curve at Different Irradiation (555W) 555 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.360 %/°C against a segment median of -0.350
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE5-72H-555W 555 W 21.70% -0.360 26.9 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, +3.3 pp, +5 yr warranty
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, +3.1 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg -50 W, cooler, +3.0 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg -50 W, cooler, +3.0 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, +2.9 pp, +5 yr warranty
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +2.7 pp
SE5-72H-540W 540 W 21.10% -0.360 26.9 kg -15 W, -0.6 pp
SE5-72H-545W 545 W 21.30% -0.360 26.9 kg -10 W, -0.4 pp
SE5-72H-550W 550 W 21.50% -0.360 26.9 kg Very close match
SE5-72H-560W 560 W 21.90% -0.360 26.9 kg Very close match
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +95 W, cooler, +3.5 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +90 W, cooler, +3.3 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +85 W, cooler, +3.1 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +80 W, cooler, +2.9 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +75 W, cooler, +2.7 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2543 panels of the same or similar size to this one, within ±100 mm. See them here

About the EVO5 SE5-72H series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty does SunEvo Solar offer on the EVO5 SE5-72H panels?
SunEvo Solar provides a 12-year product warranty covering material and workmanship defects, along with a 25-year linear power output warranty. After 25 years the module should retain at least 80-87% of its rated output. These are standard terms for this market segment; always confirm the exact conditions with your local distributor and check whether additional warranty insurance is available.
Are the SE5-72H panels suitable for a pitched roof with chimneys or dormers?
Yes. The half-cut cell architecture and multi-busbar layout reduce the impact of partial shading - the module continues generating power more efficiently than a conventional panel when part of its surface is shaded by a chimney or dormer. The module weighs 26.9 kg and measures 2278×1134 mm, so plan the installation with an experienced contractor who has the right lifting equipment.
What is PERC technology in the EVO5 SE5-72H and is it worth choosing?
PERC (Passivated Emitter and Rear Cell) is a monocrystalline technology featuring an additional passivation layer on the rear side of the cell that reflects unabsorbed photons back into the silicon structure. This translates to a module efficiency of approximately 22% and slower power degradation over the system's lifetime. It is a proven, mature technology and a solid choice for rooftop and ground-mounted systems where the budget does not extend to premium TOPCon modules.
How many SunEvo EVO5 SE5-72H panels do I need for a 10 kWp system?
The top variant of the series delivers 560 Wp, so a 10 kWp system requires approximately 18 modules (18 × 560 W = 10,080 W). Check the availability of specific power bins (540-560 W) with your distributor - using modules from the same power bin within a single string minimizes mismatch losses and maximizes MPPT efficiency.
Are the SunEvo Solar EVO5 SE5-72H panels bifacial?
No. The EVO5 SE5-72H in this configuration is a monofacial (single-sided) module and does not harvest albedo light reflected from the ground. If you are planning a ground-mounted system with a light-colored surface or a flat roof where bifacial gain can add 10-20% additional yield, ask your distributor about the bifacial variant available within the same product family.
Is SunEvo Solar a Tier 1 manufacturer, and does that affect my purchase decision?
SunEvo Solar is not listed on the current Bloomberg NEF Tier 1 rankings, placing it among smaller manufacturers with a shorter market track record. This does not directly reflect the quality of any individual module, but it may be relevant for project financing - most lenders require Tier 1 suppliers - and for assessing long-term warranty execution risk. Consider choosing a distributor that offers a warranty backstop or securing independent warranty insurance.
