Solar N Plus SP-N16/144H-600
Solar N Plus Brand review

SP-N16/144H-600

600 Wp N-type
ComparePV verdict

Light for its output, no clear weak spot

Rank 2,312 of 14,005
Compare panels Datasheet PDF
Power (Wp)
600
Weak · bottom 3%
Efficiency (%)
23.20
Strong · top 24%
Density (Wp/m²)
232.3
Strong · top 22%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
28.5
Strong · 4.0 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Solar N Plus SP-N16/144H series is designed for high energy production from the same roof area - these are modules based on N-type TOPCon cells, which maintain their efficiency better in real operating conditions. A key advantage is low sensitivity to high temperatures, which ensures more stable operation in summer and in poorly ventilated areas. In practice, this means more predictable yields and easier planning of self-consumption.

This series of modules also stands out due to high resistance to LID and PID degradation, which limits power losses over time and improves profitability throughout the product lifecycle. The use of half-cut and multi-busbar technology results in better performance under partial shading and reduced losses due to microcracks.

SP-N16/144H is a good choice for PV farms, industrial facilities, and large commercial roofs, where low long-term energy costs and comparable reliability to top-tier N-type modules on the market are important.

Ranking

359 panels in the segment N-type 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.20% 22.77% Strong · top 24% 1,306
Power density 232.3 227.7 Strong · top 22% 1,252
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 47.5 52.7 Strong · top 20% 1,726
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 0 caution
Best for

Utility-scale, commercial, hot-climate and shaded-installations.

Strengths
47.5 kg per kWp

Top 20% of the N-type 600-650 W segment, against a median of 52.7.

232.3 watts per square metre

Top 22% of the N-type 600-650 W segment, against a median of 227.7.

23.20% module efficiency

Top 24% of the N-type 600-650 W segment, against a median of 22.77%.

Notes from the database
  • Efficiency of 23.2% matches the N-type 600-650W median
  • At 232.3 W/m² power density, this panel generates 4.6 W/m² more per unit area than N-type 600-650W median (227.7 W/m²)
  • At -0.29%/°C, hot weather performance is typical for N-type 600-650W panels
  • 28.5 kg weight - 4.0 kg lighter than N-type 600-650W median (32.5 kg), reducing installation effort
  • #1306 for efficiency, #2165 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 600 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.20 % Strong Segment median 22.77%
Vmpp · Impp 45.95 V · 13.06 A Operating point at max power
Voc · Isc 53.40 V · 13.77 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 28.5 kg Strong Strong · 4.0 kg below median
Cells 144 · N-type Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 524 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Solar N Plus in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 600 Wp appear here. The rest cover the whole series.

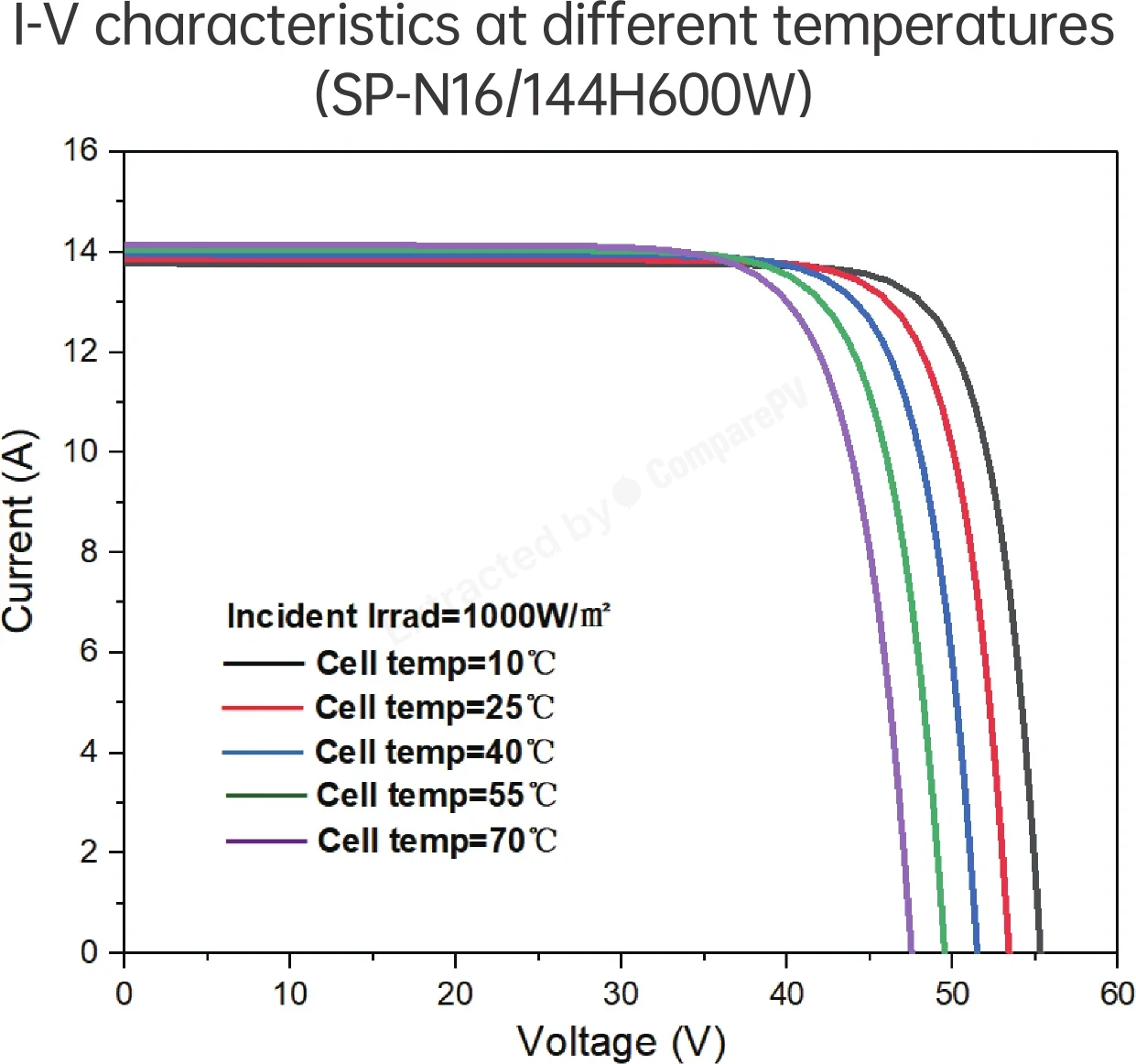

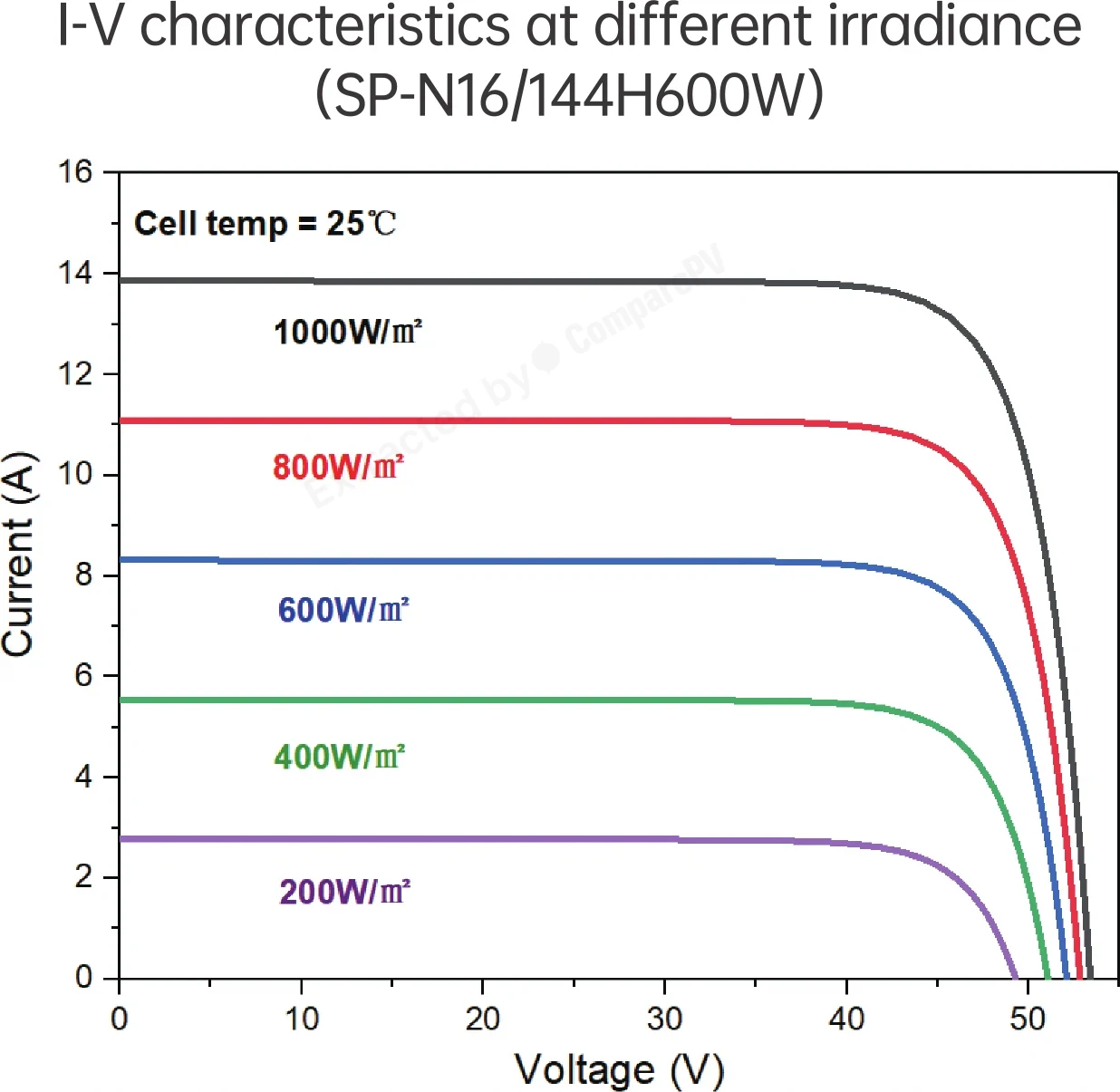

30-year linear power output warranty: Solar N Plus Module vs Standard Module 30-year linear power output warranty: Solar N Plus Module vs Standard Module Whole series I-V characteristics at different irradiance (SP-N16/144H600W) I-V characteristics at different irradiance (SP-N16/144H600W) 600 W I-V characteristics at different temperatures (SP-N16/144H600W) I-V characteristics at different temperatures (SP-N16/144H600W) 600 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solar N Plus SP-N16/144H-600 600 W 23.20% -0.290 28.5 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +50 W, cooler, +2.0 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +45 W, cooler, +1.8 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -40 W, lighter, +1.6 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +40 W, cooler, +1.6 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -45 W, lighter, +1.4 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +35 W, cooler, +1.4 pp
SP-M10/144HG-540 540 W 20.90% -0.350 32.0 kg -60 W, hotter, -2.3 pp
SP-M10/144HG-545 545 W 21.10% -0.350 32.0 kg -55 W, hotter, -2.1 pp
SP-M10/144HG-550 550 W 21.30% -0.350 32.0 kg -50 W, hotter, -1.9 pp
SP-M10/144HG-555 555 W 21.50% -0.350 32.0 kg -45 W, hotter, -1.7 pp
SP-M10/144HG-560 560 W 21.70% -0.350 32.0 kg -40 W, hotter, -1.5 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +30 W, heavier, +1.2 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Solar N Plus SP-N16/144H come with?
The manufacturer provides a 15-year product warranty covering physical defects and material faults, plus a 30-year power output warranty. Over those 30 years the module is guaranteed to maintain at least the minimum efficiency stated in the datasheet. This coverage is standard for commercial-grade N-type modules and protects the investment throughout the typical service life of a PV system.
How does TOPCon technology in the SP-N16/144H differ from standard PERC cells?
TOPCon N-type cells feature an ultra-thin tunnel oxide passivation layer that significantly reduces charge-carrier recombination. The result is higher efficiency and stronger resistance to both LID (Light Induced Degradation) and PID (Potential Induced Degradation) compared to P-type PERC cells. In practice, this means a slower power decline over the full 30-year system life and a lower overall LCOE for the installation.
Do SP-N16/144H modules perform well during hot summer days?
Yes, this is one of the key advantages of the series. N-type TOPCon cells have a lower temperature coefficient than older PERC modules, meaning smaller power losses at elevated cell temperatures. Installations on heavily sun-exposed industrial rooftops or facilities with limited airflow maintain higher efficiency on hot days, resulting in more predictable annual energy yield and easier self-consumption planning.
Do SP-N16/144H panels handle partial shading well — for example from a chimney or dormers?
Yes. The half-cut cell layout with 144 cells combined with multi-busbar technology reduces the impact of partial shading on the entire string. Lower operating currents minimize resistive losses and hotspot risk. This is a significant advantage for rooftops where a chimney, neighboring building, or dormers may cast shadows across part of the array during the day.
Is the SP-N16/144H a bifacial module — does it generate power from both sides?
No, the SP-N16/144H is a monofacial module — energy is harvested from the front surface only. The manufacturer did not use a transparent backsheet or glass-glass construction, which simplifies installation and lowers overall BoS costs. The design is well suited for pitched and flat roofs with standard racking where albedo reflection from the surface would be minimal anyway.
What type of projects is the Solar N Plus SP-N16/144H series best suited for?
With a maximum output of 600 Wp per module, the SP-N16/144H targets utility-scale PV farms, industrial buildings, and large commercial rooftops. The high per-module wattage reduces the number of panels needed per megawatt of installed capacity, cutting BoS costs including racking, cabling, and labor. It is not a typical residential module intended for small rooftop prosumer systems.
