590Wp

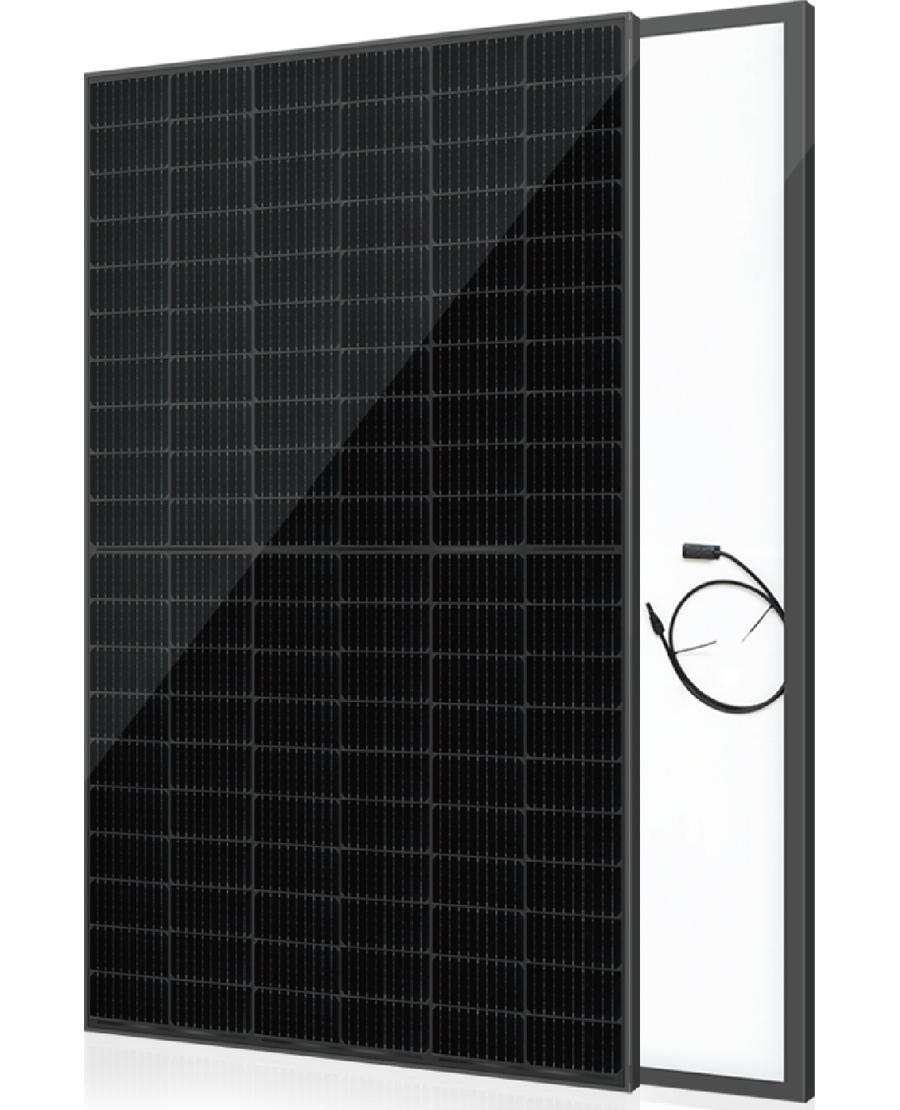

Shinson Technology S590M72HT3BF
Shinson Technology Review

S590M72HT3BF

MonocrystallineBifacial
Datasheet
22.84%
Efficiency
228.4 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
524W from 590W
Power after 30 years
Smart Insights (data-driven)
  • At 22.8% efficiency, this panel is on par with typical HJT 550-600W modules
  • Power density of 228.4 W/m² packs 10.0 W/m² more into the same footprint vs HJT 550-600W median (218.4 W/m²)
  • Temperature coefficient of -0.26%/°C matches the HJT 550-600W median
  • Weight of 32.0 kg (2.4 kg below HJT 550-600W median of 34.4 kg) allows easier transport and roof mounting
  • Ranked #2030 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series S-Max 28 variants
Efficiency Range 21.1% - 23.2%
Avg. Efficiency 22.25%
Technology HJT
Dimensions 1722 × 1134 mm
Show series description

The Shinson Technology S-Max series consists of modules designed for commercial installations and large-scale PV farms, where maximizing energy yield from each module and quickly reducing construction and cabling costs are key. A key advantage of this series is its high power density, which allows for greater energy generation from the same area and simplifies the BOS (Balance of System) design. Depending on the variant, S-Max utilizes modern approaches to solar cells, including N-type and HJT technology - which is valued for its stable operation at higher temperatures and good performance in low-sunlight conditions.

For investors, long warranties and a focus on durability are also important. The series was marketed as being tested for hail resistance, which increases the safety of operation in more challenging conditions. S-Max is a sensible choice for C&I (Commercial and Industrial) applications, farms, and roofs with limited surface area, when you want to combine high reliability with above-average energy production without paying extra for competitor marketing.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)590 Wp
Module Efficiency22.84%
Voltage at Max Power (Vmpp)45.42 V
Current at Max Power (Impp)12.99 A
Open Circuit Voltage (Voc)54.31 V
Short Circuit Current (Isc)13.45 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.240%/°C
Temp. Coeff. Isc0.040%/°C
NOCT44°C
Cell Technology
Cell TypeMonocrystalline
Cell Count144
BifacialYes
Bifaciality Factor-
Dimensions & Weight
Length2278 mm
Width1134 mm
Height30 mm
Weight32.0 kg
Area2.58 m²
Power Density228.4 Wp/m²
Warranty
Product Warranty30 years
Performance Warranty30 years
End-of-Warranty Output-
First Year Degradation-
Annual Degradation0.35%/year
Key Specifications
22.84%
Efficiency
590 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
