SL65-72TDP-570R

570 Wp TOPCon Bifacial 70%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 5,309 of 14,005
Compare panels Datasheet PDF
Power (Wp)
570
Typical for its class
Efficiency (%)
22.08
Typical · median 22.44%
Density (Wp/m²)
220.8
Typical · median 224.4
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
32.0
Weak · bottom 18%
Warranty (yrs)
30
Typical · median 30 yrs

S-Energy SL65-72TDP photovoltaic panels represent an advanced response to the needs of demanding industrial installations and solar farms. This module series focuses on ensuring maximum parameter stability over a long-term horizon, which is possible thanks to the use of full resistance to the PID effect. The use of 72 cells in a proven format allows for a significant reduction in system costs when building large-scale power plants, while offering an excellent price-to-power ratio. The construction of the SL65-72TDP series has been optimized for operation in extreme weather conditions, offering increased resistance to snow and wind pressure, which directly translates to the safety of the entire infrastructure. What sets these modules apart from the competition are rigorous quality control standards and the brand's technological heritage, guaranteeing premium-class reliability. They solve the problem of premature aging of components, delivering stable energy yields even after many years of operation. By choosing these panels, investors receive a product with high bankability that performs perfectly in the Polish climate, combining traditional robustness with modern cell protection solutions. This is an optimal solution for projects where the priority is durability and predictability of energy production without unnecessary technical compromises.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.08% 22.44% Typical 6,116
Power density 220.8 224.4 Typical 6,015
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 56.1 53.8 Weak · bottom 18% 10,413
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Not ideal for

Weight-limited structures.

Watch-outs
56.1 kg per kWp

Bottom 18% of the TOPCon 550-600 W segment, against a median of 53.8.

Notes from the database
  • At 22.1% efficiency, this panel is on par with typical TOPCon 550-600W modules
  • 220.8 W/m² power density is 3.6 W/m² below TOPCon 550-600W median (224.4 W/m²) - requires larger installation area
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • Bifacial design (70% factor) captures reflected light - adds 4-10% yield on ground-mount or white roof
  • Ranked #6116 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 570 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.08 % Typical Segment median 22.44%
Vmpp · Impp 42.70 V · 13.35 A Operating point at max power
Voc · Isc 50.95 V · 14.32 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1133×30 mm · 2.58 m² of roof
Weight 32.0 kg Weak Weak · bottom 18%
Cells 144 · TOPCon Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 498 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by S-Energy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 570 Wp appear here. The rest cover the whole series.

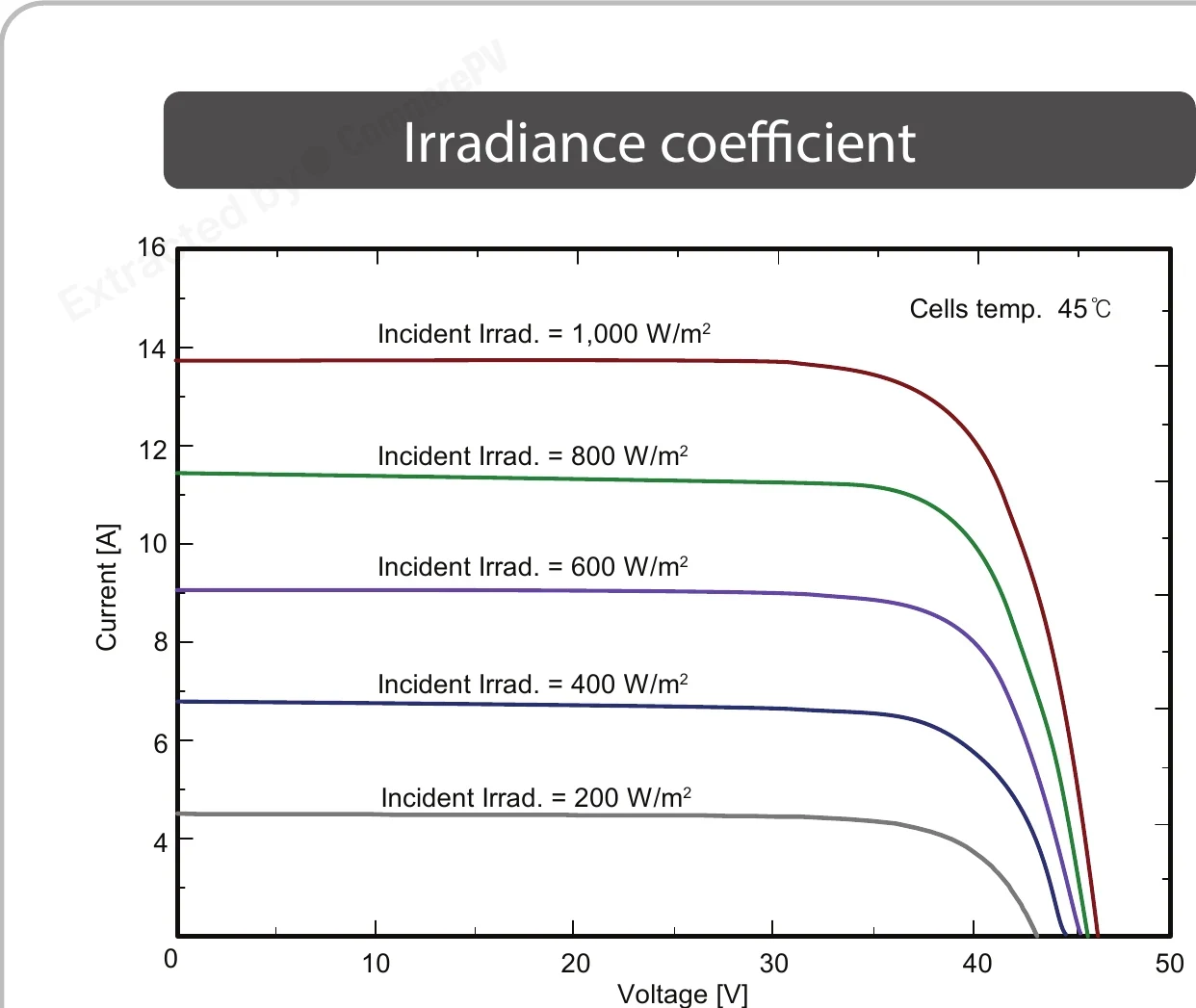

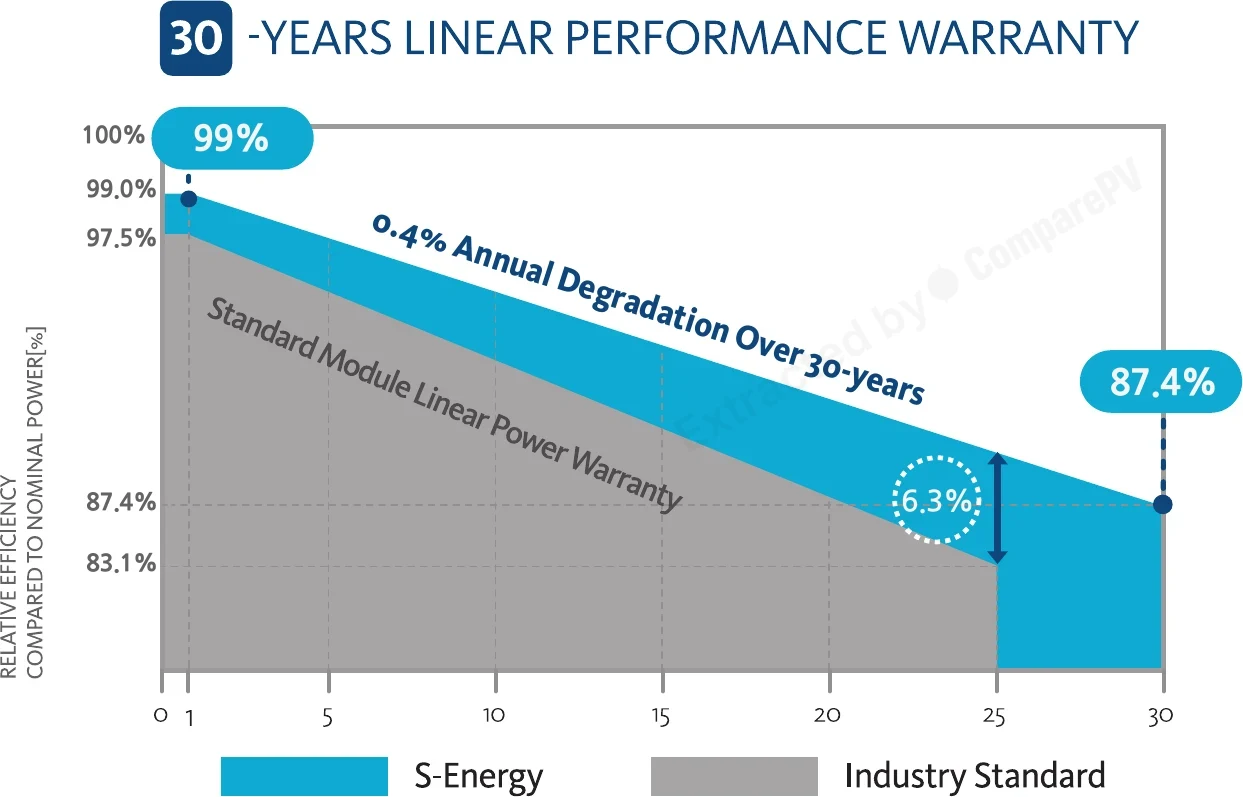

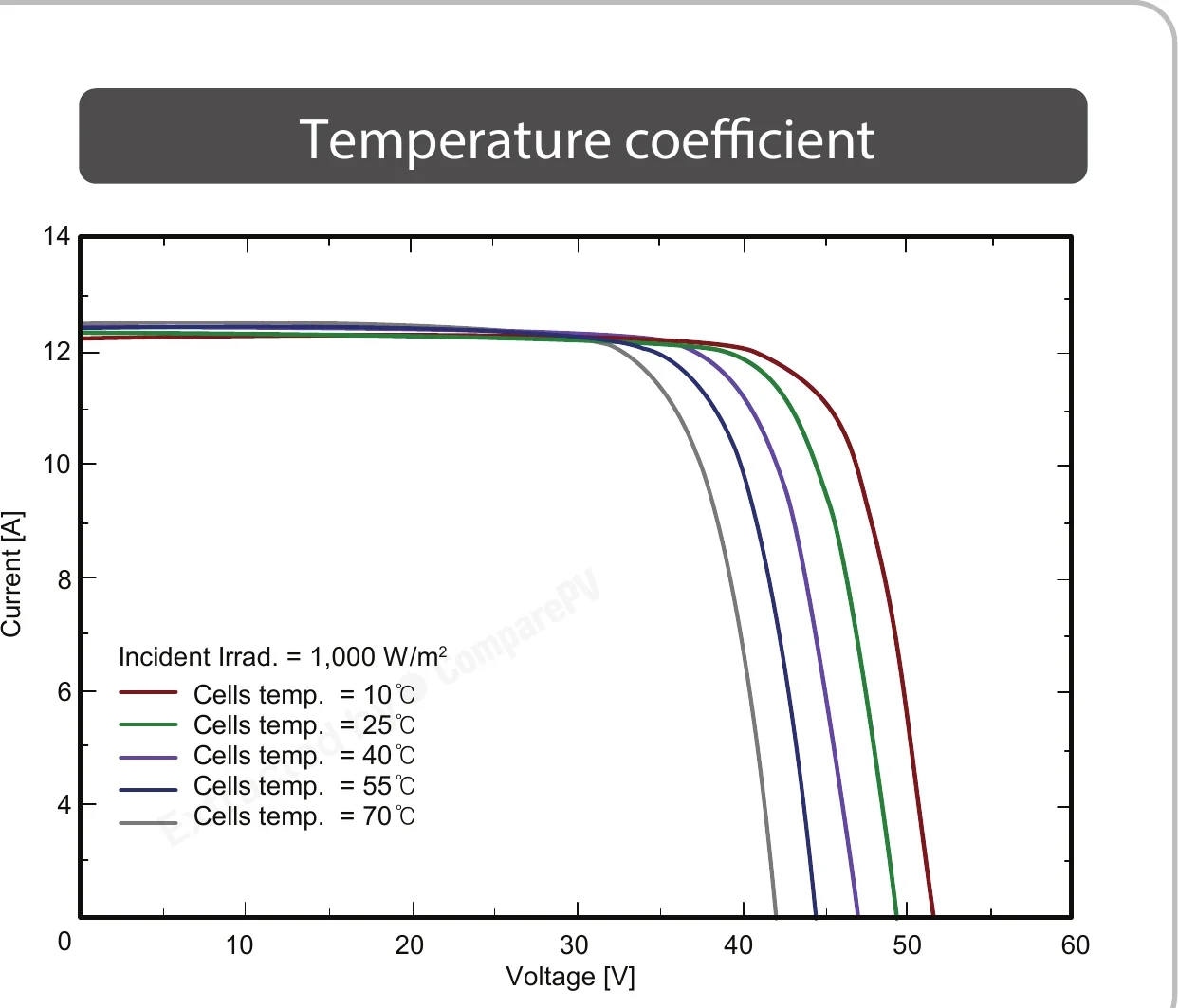

30-Years Linear Performance Warranty 30-Years Linear Performance Warranty Whole series Irradiance coefficient Irradiance coefficient Whole series Temperature coefficient Temperature coefficient Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All S-Energy panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
S-Energy SL65-72TDP-570R 570 W 22.08% -0.300 32.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.7 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.5 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 16 kg lighter, +2.3 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.3 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.3 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.2 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg Cooler, lighter, +2.1 pp
SL65-72BDJ-525Z 525 W 20.32% -0.350 31.5 kg -45 W, hotter, -1.8 pp
SL65-72BDJ-530R 530 W 20.53% -0.350 32.0 kg -40 W, hotter, -1.5 pp
SL65-72BDJ-530Z 530 W 20.52% -0.350 31.5 kg -40 W, hotter, -1.6 pp
SE65-72BGJ-535S 535 W 20.70% -0.350 28.5 kg Hotter, -1.4 pp, -5 yr warranty
SL65-72BDJ-535R 535 W 20.73% -0.350 32.0 kg -35 W, hotter, -1.3 pp
SL65-72BDJ-540R 540 W 20.92% -0.350 32.0 kg -30 W, hotter, -1.2 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +80 W, lighter, +3.1 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +75 W, lighter, +2.9 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +70 W, lighter, +2.7 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the S-Energy SL65-72TDP come with and what does it cover?
The SL65-72TDP series includes a 12-year product warranty covering material and workmanship defects, plus a 30-year linear power warranty. The panel is guaranteed to retain at least 99% of its rated output in the first year, degrading to no less than 87.4% of nameplate power after 30 years. A 30-year power guarantee is a critical input for LCOE calculations on utility-scale solar projects.
Is the S-Energy SL65-72TDP bifacial and what energy gain can I expect?
Yes, the SL65-72TDP is a bifacial module – it generates power from both the front and rear glass surfaces. Under favorable conditions (light-colored ground surface, albedo above 20%), the rear side can contribute an additional 5–15% of energy on top of the rated 575 W front-side output. This bifacial gain is most pronounced in ground-mounted installations over grassy or gravel-covered terrain, which is common on Polish solar farms.
What is TOPCon technology in the S-Energy SL65-72TDP and is it worth the premium?
TOPCon (Tunnel Oxide Passivated Contact) is a next-generation cell architecture and a significant step up from PERC. The additional tunnel oxide passivation layer boosts cell efficiency to around 22–23%, lowers the temperature coefficient to approximately -0.30%/°C, and slows long-term degradation. In practice this means more kilowatt-hours per square meter and better summer performance when modules run hot.
Does the S-Energy SL65-72TDP perform well in a cold climate with heavy snow loads?
The SL65-72TDP is engineered for demanding weather conditions. Its frame and tempered glass are rated for high mechanical loads from snow pressure and wind, which is especially relevant for open-field installations exposed to strong gusts. The low temperature coefficient inherent to TOPCon cells also means the module generates power more efficiently on cold sunny days, making it a solid choice for climates with harsh winters.
Are S-Energy SL65-72TDP panels better suited for utility-scale farms or residential rooftops?
The 72-cell format and 575 W nameplate power make the SL65-72TDP best suited for utility-scale and industrial ground-mount installations. Larger modules reduce the number of electrical connections, lower BoS costs, and shorten installation time on large arrays. For residential rooftops, the module's physical size and weight make handling difficult; smaller 60- or 54-cell formats are a better fit for typical pitched-roof structures.
Is the S-Energy SL65-72TDP resistant to PID and why does it matter for long-term performance?
Yes, the SL65-72TDP series features full PID (Potential Induced Degradation) resistance. PID occurs when high system voltages cause leakage currents that permanently degrade cell performance — a significant risk in the long string configurations typical of utility-scale plants. Full PID resistance ensures stable electrical output over the entire operational lifetime and is a standard bankability requirement for project financing in the renewable energy sector.
