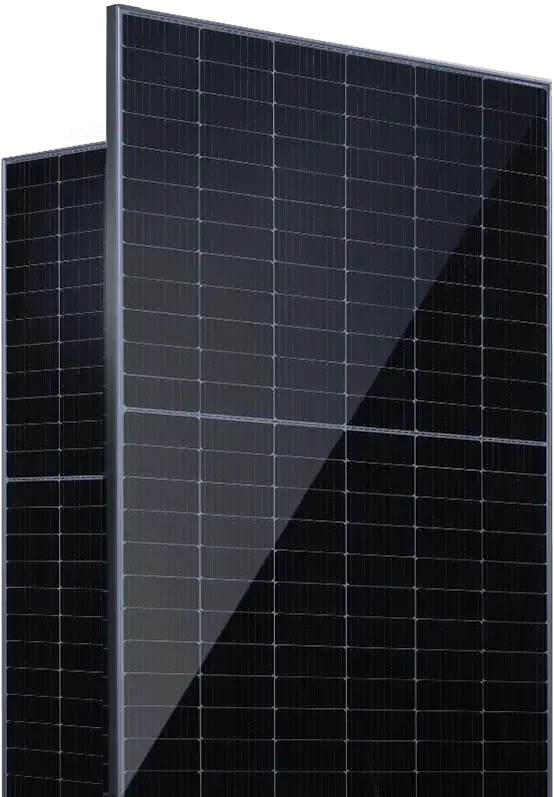

Runergy HY-DH144N8-585
Runergy Brand review

HY-DH144N8-585

585 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 4,212 of 14,005
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
22.60
Typical · median 22.45%
Density (Wp/m²)
226.5
Typical · median 224.5
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.7
Weak · 3.2 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Runergy HY-DH144N8 Plus series consists of photovoltaic modules built on N-Type cells manufactured in TOPCon technology, combining high efficiency with strong resistance to degradation over time. The half-cut cell architecture paired with a multi-busbar (SMBB) layout reduces resistive losses and improves low-light performance, translating into a real gain in energy yield during overcast conditions or in early morning and late afternoon light. Thanks to its bifacial dual-glass design, the module also captures irradiance reflected from the ground on its rear side - a feature that pays off particularly well on ground-mounted arrays or rooftops with light-colored surfaces, gravel, or snow, where ambient albedo is high. The panels stand out for their low annual degradation, characteristic of N-Type cells, allowing them to maintain stable power output throughout the entire service life, a factor investors value when planning long-term return on investment. Compatibility with 1500V DC systems enables longer strings and reduces cabling and balance-of-system (BoS) costs, lowering the overall cost of the installation. The HY-DH144N8 Plus series is well suited for both commercial installations and large-scale solar farms, where the ratio of output to surface area and predictable long-term ROI matter most.

Ranking

259 panels in the segment N-type 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.60% 22.45% Typical 3,658
Power density 226.5 224.5 Typical 3,500
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 55.9 52.3 Weak · bottom 13% 10,266
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
55.9 kg per kWp

Bottom 13% of the N-type 550-600 W segment, against a median of 52.3.

Notes from the database
  • At 22.6% efficiency, this panel is on par with typical N-type 550-600W modules
  • At 226.5 W/m² power density, roof space requirements are typical for N-type 550-600W panels
  • Temperature coefficient of -0.29%/°C matches the N-type 550-600W median
  • At 32.7 kg, this panel is 3.2 kg heavier than the N-type 550-600W median (29.5 kg) - more demanding for installation crews
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.60 % Typical Segment median 22.45%
Vmpp · Impp 44.22 V · 13.23 A Operating point at max power
Voc · Isc 52.16 V · 13.85 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 32.7 kg Weak Weak · 3.2 kg above median
Cells 144 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 511 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

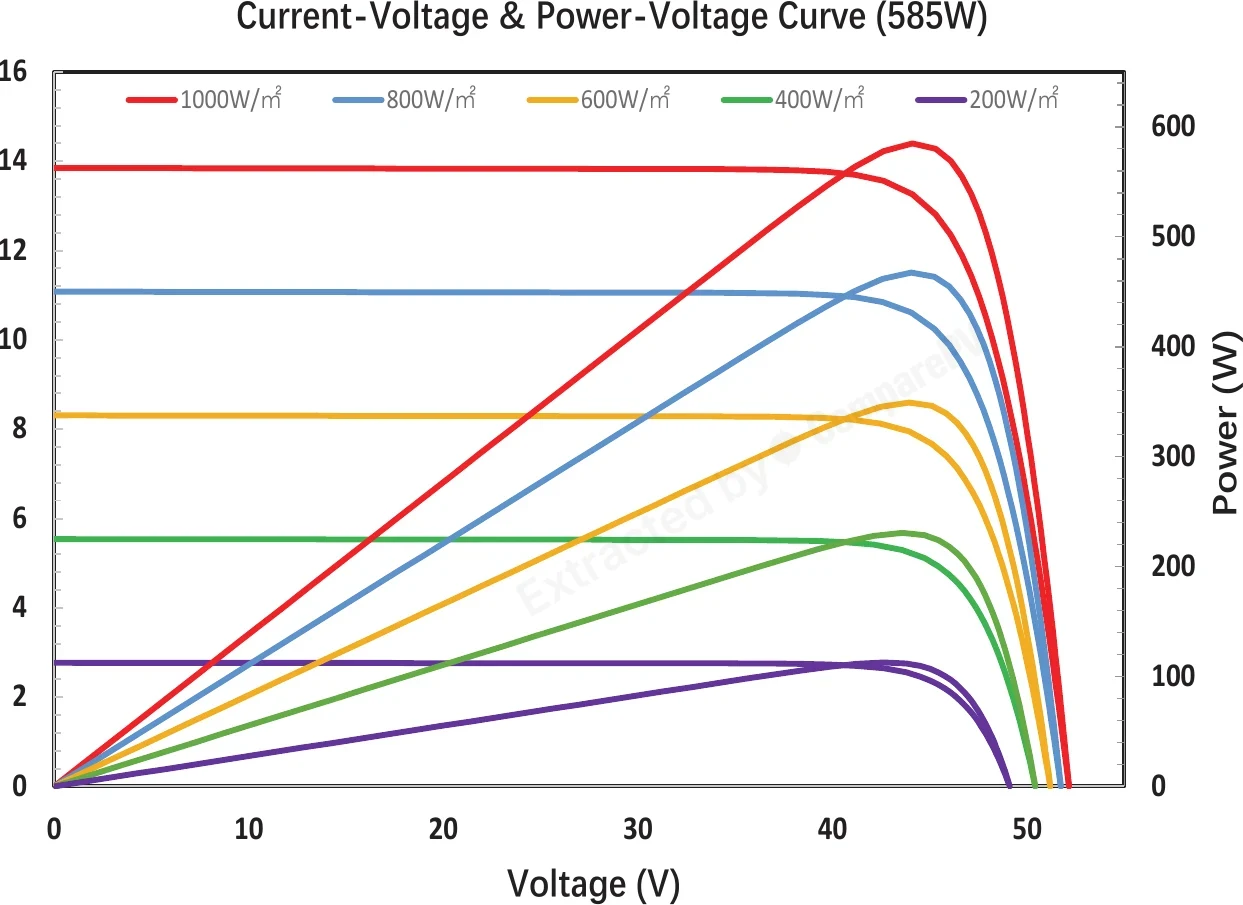

Runergy N-Type Dual Glass Product Performance Warranty Runergy N-Type Dual Glass Product Performance Warranty Whole series Current-Voltage & Power-Voltage Curve (585W) Current-Voltage & Power-Voltage Curve (585W) 585 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH144N8-585 585 W 22.60% -0.290 32.7 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -30 W, lighter, +2.0 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, lighter, +2.0 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +45 W, cooler, +1.8 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -35 W, 16 kg lighter, +1.8 pp
HY-DH144P8-535 535 W 20.70% -0.350 32.0 kg -50 W, hotter, -1.9 pp
HY-DH144P8-540 540 W 20.90% -0.350 32.0 kg -45 W, hotter, -1.7 pp
HY-WH144P8-545 545 W 21.10% -0.350 27.6 kg Hotter, lighter, -1.5 pp
HY-WH144P8-550 550 W 21.30% -0.350 27.6 kg Hotter, lighter, -1.3 pp
HY-WH144P8-555 555 W 21.50% -0.350 27.6 kg Hotter, lighter, -1.1 pp
HY-WH144P8-560 560 W 21.70% -0.350 27.6 kg Hotter, lighter, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +65 W, lighter, +2.6 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of Runergy HY-DH144N8 Plus panels?
The HY-DH144N8 Plus series reaches up to 600 Wp, made possible by N-type TOPCon cells in a half-cut architecture combined with SMBB multi-busbar technology. This high per-unit power output means fewer modules are needed to reach a given system size, reducing mounting structure and labor costs.
How does bifacial technology in Runergy HY-DH144N8 Plus differ from standard one-sided panels?
Bifacial panels with a double-glass design capture light not only on the front but also on the rear side, using radiation reflected from the ground. This delivers extra energy yield, especially in ground-mounted installations, light-colored roofs, or surfaces covered with gravel or snow, where albedo is high. Standard monofacial panels cannot capture this additional gain.
What warranty comes with Runergy HY-DH144N8 Plus panels?
The HY-DH144N8 Plus series carries a 12-year product warranty and a 30-year linear power warranty. Thanks to the low annual degradation typical of N-type cells, the panels maintain stable output over their entire service life, helping investors forecast long-term project profitability more reliably.
Are Runergy HY-DH144N8 Plus panels compatible with 1500V DC systems?
Yes, this series is compatible with 1500V DC systems, allowing for longer strings connected to a single inverter. This reduces the number of required BoS components, such as cabling and junction boxes, lowering the overall cost of the installation.
What types of installations are Runergy HY-DH144N8 Plus panels suited for?
Given their high per-unit power, bifacial design, and 1500V DC compatibility, the HY-DH144N8 Plus series is primarily intended for commercial installations and large PV farms, where the ratio of output to occupied area and predictable long-term return on investment are critical.
Is Runergy a Tier 1 manufacturer and where are the panels made?
Yes, Runergy is listed as a Tier 1 manufacturer, reflecting its financial stability and production scale as recognized by project financing institutions. The HY-DH144N8 Plus panels are manufactured in China, where the company operates facilities producing both cells and finished PV modules.
