Resun Solar RS9V-M-DG-590
Resun Solar Brand review

RS9V-M-DG-590

590 Wp TOPCon Bifacial 1000%
ComparePV verdict

Space saver, no clear weak spot

Rank 2,826 of 14,005
Compare panels Datasheet PDF
Power (Wp)
590
Strong · top 18%
Efficiency (%)
23.08
Strong · top 3%
Density (Wp/m²)
230.8
Strong · top 3%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
31.2
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The RS9V-M-DG series consists of bifacial photovoltaic modules built around N-type TOPCon cells, combining high conversion efficiency with a lower temperature coefficient than conventional P-type designs. The use of MBB (multi-busbar) technology reduces resistive losses and improves current collection uniformity across the cell surface, resulting in more stable energy yield under partial shading conditions. The panel features a dual glass construction, boosting mechanical strength and module lifespan, and thanks to its high bifaciality it captures additional energy reflected from the ground, making it especially well suited for ground-mount installations and light-colored roof surfaces. Strong resistance to PID (potential-induced degradation) together with compatibility with 1500V systems helps lower BoS costs and simplifies design for large commercial installations and utility-scale PV farms. This is a solution for investors seeking modules with long service life, predictable power degradation over time, and rugged construction able to withstand demanding operating conditions, setting it apart from standard monofacial P-type panels.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.08% 22.44% Strong · top 3% 1,677
Power density 230.8 224.4 Strong · top 3% 1,650
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 52.9 53.8 Typical 6,589
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 0 caution
Best for

Commercial and utility-scale.

Strengths
230.8 watts per square metre

Top 3% of the TOPCon 550-600 W segment, against a median of 224.4. Ranked 1,650th in the whole database.

23.08% module efficiency

Top 3% of the TOPCon 550-600 W segment, against a median of 22.44%. Ranked 1,677th in the whole database.

Notes from the database
  • At 23.1% efficiency, this panel is 0.6pp above typical TOPCon 550-600W modules (median: 22.4%)
  • 230.8 W/m² power density - 6.4 W/m² more than TOPCon 550-600W median (224.4 W/m²), more power per roof area
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • #1677 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 590 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.08 % Strong Segment median 22.44%
Vmpp · Impp 33.80 V · 17.46 A Operating point at max power
Voc · Isc 40.25 V · 18.51 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1962×1303×35 mm · 2.56 m² of roof
Weight 31.2 kg Typical Typical · median 31.2 kg
Cells 108 · TOPCon Monocrystalline
Bifaciality 1000 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
Degradation 0.50 % Per year after the first

Datasheet charts

Open datasheet PDF

Measured curves published by Resun Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 590 Wp appear here. The rest cover the whole series.

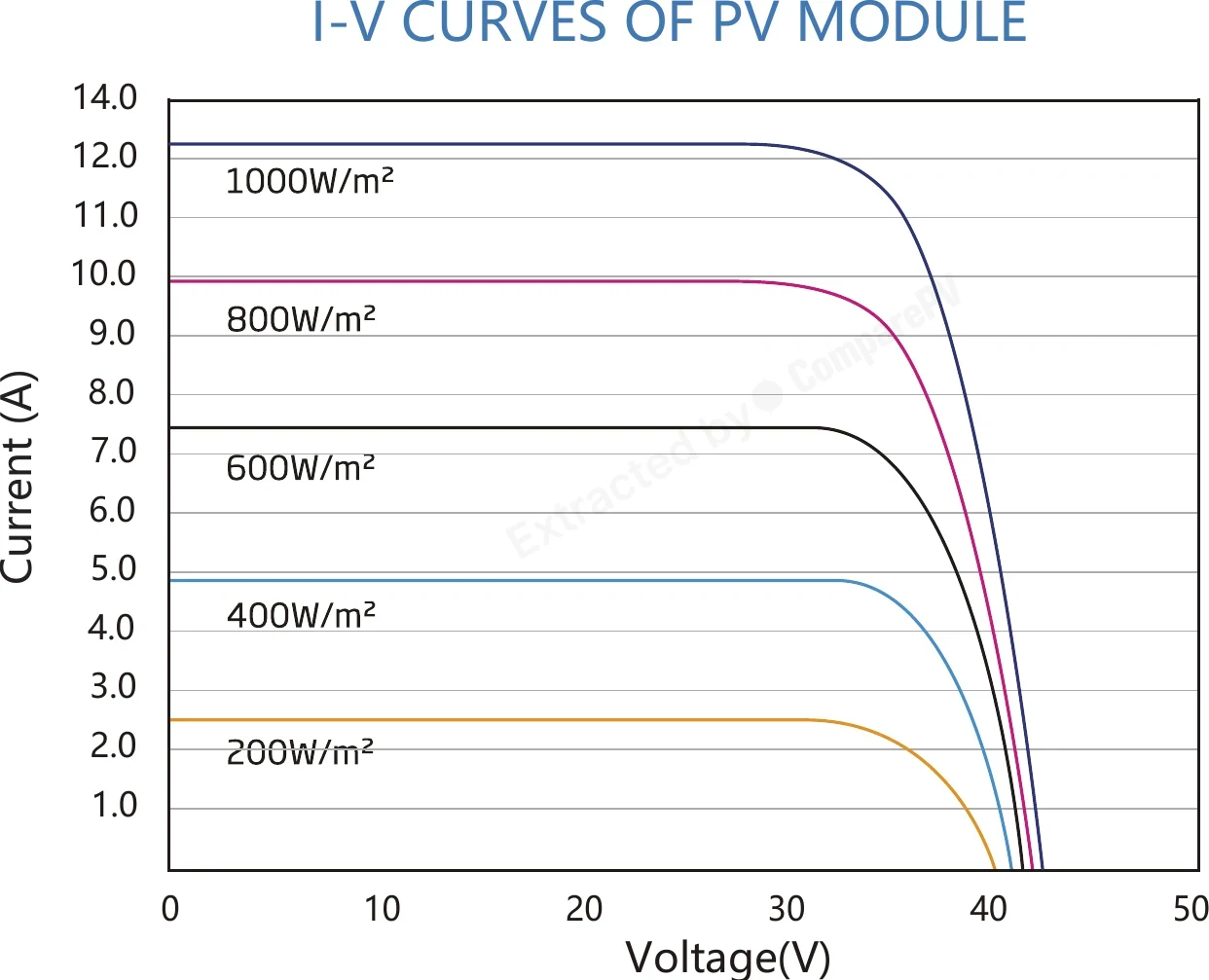

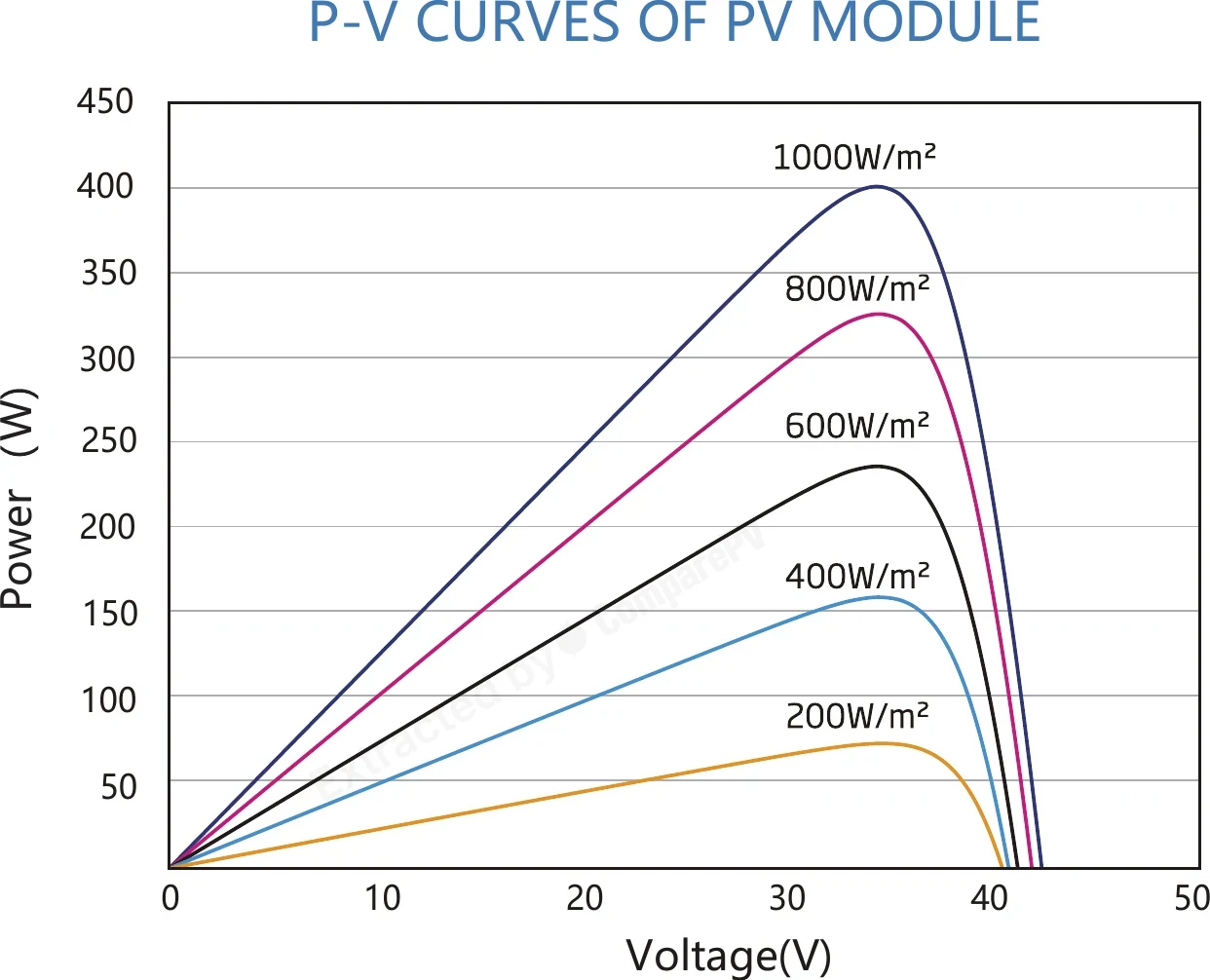

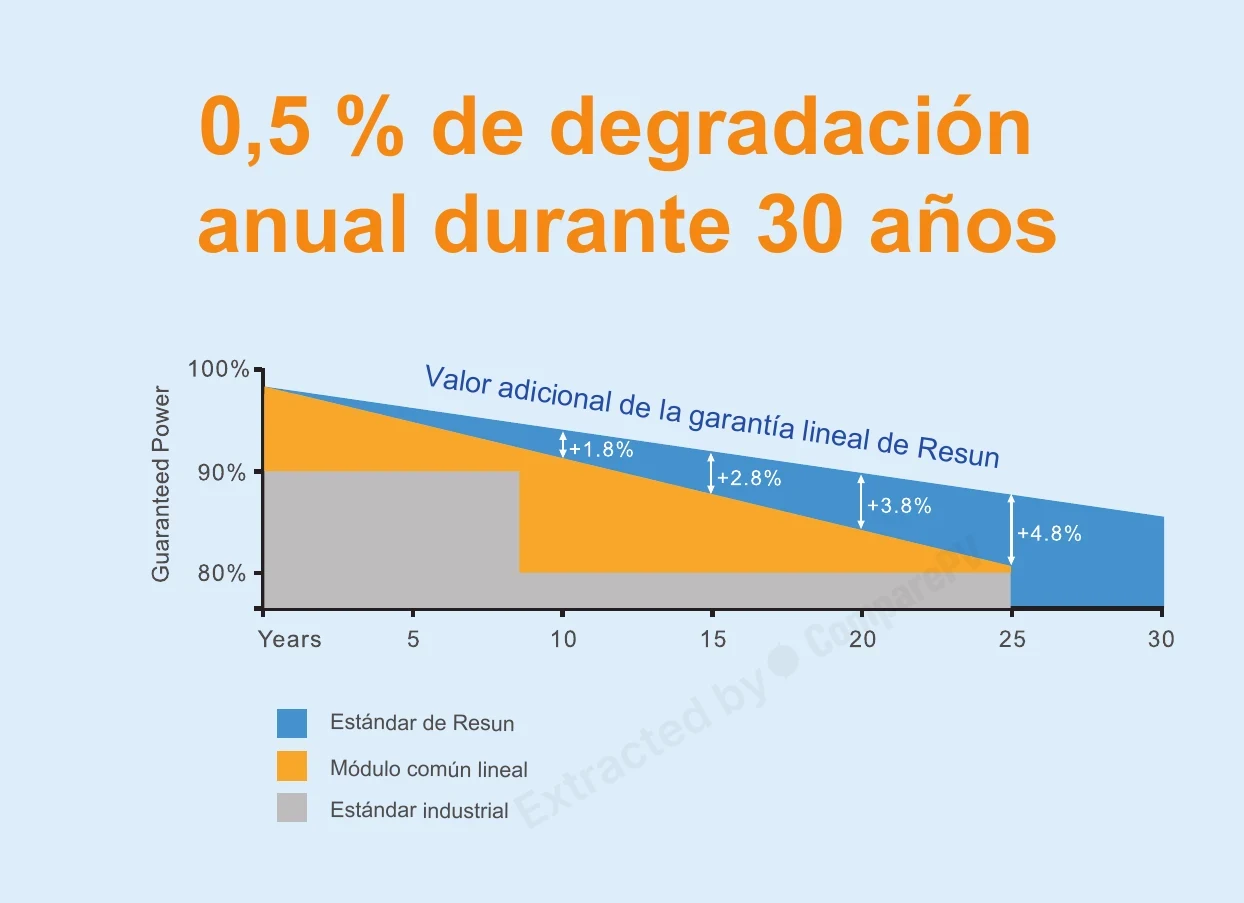

0.5% Annual Degradation Over 30 Years 0.5% Annual Degradation Over 30 Years Whole series I-V Curves of PV Module I-V Curves of PV Module Whole series P-V Curves of PV Module P-V Curves of PV Module Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All Resun Solar panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Resun Solar RS9V-M-DG-590 590 W 23.08% -0.300 31.2 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +1.7 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +50 W, lighter, +1.7 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +1.5 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +45 W, lighter, +1.5 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +40 W, cooler, +1.3 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -40 W, lighter, +1.3 pp
RS9V-M-DG-550 550 W 21.51% -0.300 31.2 kg -40 W, -1.6 pp
RS9V-M-DG-555 555 W 21.71% -0.300 31.2 kg -35 W, -1.4 pp
RS9V-M-DG-560 560 W 21.91% -0.300 31.2 kg -30 W, -1.2 pp
RS9V-M-DG-565 565 W 22.10% -0.300 31.2 kg -25 W, -1.0 pp
RS9V-M-DG-570 570 W 22.30% -0.300 31.2 kg -20 W, -0.8 pp
RS9V-M-DG-575 575 W 22.49% -0.300 31.2 kg -15 W, -0.6 pp
RS9V-M-DG-580 580 W 22.69% -0.300 31.2 kg -10 W, -0.4 pp
RS9V-M-DG-585 585 W 22.88% -0.300 31.2 kg Very close match
JT590SJk(B) 590 W 23.10% -0.240 30.7 kg Cooler
JT585SJk(B) 585 W 22.90% -0.240 30.7 kg Cooler

Found 31 panels of the same or similar size to this one, within ±10 mm. See them here Found 41 panels of the same or similar size to this one, within ±25 mm. See them here Found 41 panels of the same or similar size to this one, within ±50 mm. See them here Found 85 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How do the N-type TOPCon cells in the RS9V-M-DG differ from classic P-type cells?
The N-type TOPCon cells used in the RS9V-M-DG series deliver higher conversion efficiency and a lower temperature coefficient than P-type PERC cells, meaning less power loss on hot days. They also degrade more slowly over time and resist LID better, resulting in higher annual energy yield, especially in warmer climates.
Do bifacial RS9V-M-DG panels actually generate more energy?
Yes, thanks to the dual glass design and transparent rear side, the module captures additional light reflected off the ground, which over a bright surface, gravel, or white roof membrane can boost yield by several to over a dozen percent compared to a standard monofacial panel. The effect is strongest in ground-mount installations and elevated racking systems where light can freely reach the panel's underside.
What warranty comes with Resun Solar RS9V-M-DG panels?
Resun Solar provides a 15-year product warranty and a 30-year linear power output warranty for the RS9V-M-DG series. This warranty length is typical for modern TOPCon modules and reflects a predictable, gradual power decline over the years, making return-on-investment planning easier.
Are RS9V-M-DG panels compatible with 1500V systems and large-scale PV farms?
Yes, RS9V-M-DG modules are designed for systems up to 1500V, allowing longer string configurations and fewer cables and inverters in large installations. Combined with strong resistance to potential-induced degradation (PID), this reduces balance-of-system (BoS) costs on commercial projects and utility-scale solar farms.
What is the maximum power output of the RS9V-M-DG, and how many panels are needed for a typical home installation?
The highest-power version in the RS9V-M-DG series reaches 590 Wp. A typical 10 kWp residential system requires roughly 17 such panels, though the exact number depends on available roof area and inverter configuration. The high per-module power output helps fit more kilowatts onto a limited roof surface.
Does the multi-busbar (MBB) technology in the RS9V-M-DG affect performance under partial shading?
Yes, MBB technology spreads more narrow conductive paths across the cell surface, reducing resistive losses and improving current collection uniformity. In practice, this means a smaller performance drop when part of the panel is shaded, such as by a chimney, antenna, or passing cloud, compared to older designs with fewer busbars.
