Renew Photovoltaics Brand review

RPS2MH72BD560

560 Wp PERC Bifacial 70%
ComparePV verdict

Strong in heat, no clear weak spot

Rank 6,124 of 14,005
Compare panels Datasheet PDF
Power (Wp)
560
Typical for its class
Efficiency (%)
21.68
Strong · top 10%
Density (Wp/m²)
216.8
Strong · top 8%
Temp (%/°C)
-0.320
Strong · top 3%
Weight (kg)
32.5
Typical · median 30.8 kg
Warranty (yrs)
30
Strong · top 25%

The RPS2MH72BDXXX series consists of bifacial photovoltaic modules built on M10 PERC cells using half-cut cell technology, designed to maximize energy yield in both rooftop and ground-mounted installations. Thanks to gallium-doped cells and a multi busbar layout, these panels reduce power losses caused by micro-cracking and hot-spot effects, delivering greater reliability under demanding operating conditions. The rear side uses a high-transmission glass cover, allowing the cells to capture additional reflected light from the ground - a feature that performs especially well on solar farms with light-colored surfaces or rooftops covered with reflective membranes. The anodized aluminum frame combined with a reinforced front glass gives the series strong resistance to heavy snow and wind loads, making it a solid choice for installers working in regions with variable climate conditions. The modules also stand out for stable performance in low-light conditions - early morning, sunset, or overcast weather - which meaningfully boosts annual energy output. This solution is aimed at both commercial investors and residential installers looking for a balance between performance, durability, and predictable LCOE over the system's lifetime.

Ranking

589 panels in the segment PERC 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.68% 21.29% Strong · top 10% 7,542
Power density 216.8 212.9 Strong · top 8% 7,452
Temperature coefficient -0.320 -0.350 Strong · top 3% 8,312
Weight per kWp 58.0 52.7 Typical 11,535
Performance warranty 30 yrs 27 yrs Strong · top 25% 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 0 caution
Best for

Utility-scale, commercial, shaded-installations and cold-climate.

Strengths
-0.320 %/°C temperature coefficient

Top 3% of the PERC 550-600 W segment, against a median of -0.350. Ranked 8,312th in the whole database.

216.8 watts per square metre

Top 8% of the PERC 550-600 W segment, against a median of 212.9. Ranked 7,452nd in the whole database.

21.68% module efficiency

Top 10% of the PERC 550-600 W segment, against a median of 21.29%.

Notes from the database
  • At 21.7% efficiency, this panel is on par with typical PERC 550-600W modules
  • Power density of 216.8 W/m² packs 3.9 W/m² more into the same footprint vs PERC 550-600W median (212.9 W/m²)
  • -0.32%/°C temperature coefficient (median: -0.35%/°C) - retains ~1% more power at high temperatures
  • At 32.5 kg, this panel is 1.7 kg heavier than the PERC 550-600W median (30.8 kg) - more demanding for installation crews
  • 70% bifaciality enables rear-side power generation, boosting yield by 4-10% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 560 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.68 % Strong Segment median 21.29%
Vmpp · Impp 41.15 V · 13.61 A Operating point at max power
Voc · Isc 49.84 V · 14.22 A Sizes the string length
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 32.5 kg Typical Typical · median 30.8 kg
Cells 144 · PERC Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.320 %/°C Strong top 3% of its segment
Coefficient Voc · Isc -0.250 · 0.060 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Strong top 25% · median 27 yrs
End-of-warranty output 85.0 % Equals 476 W guaranteed
Degradation 2.00 → 0.45 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Renew Photovoltaics in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 560 Wp appear here. The rest cover the whole series.

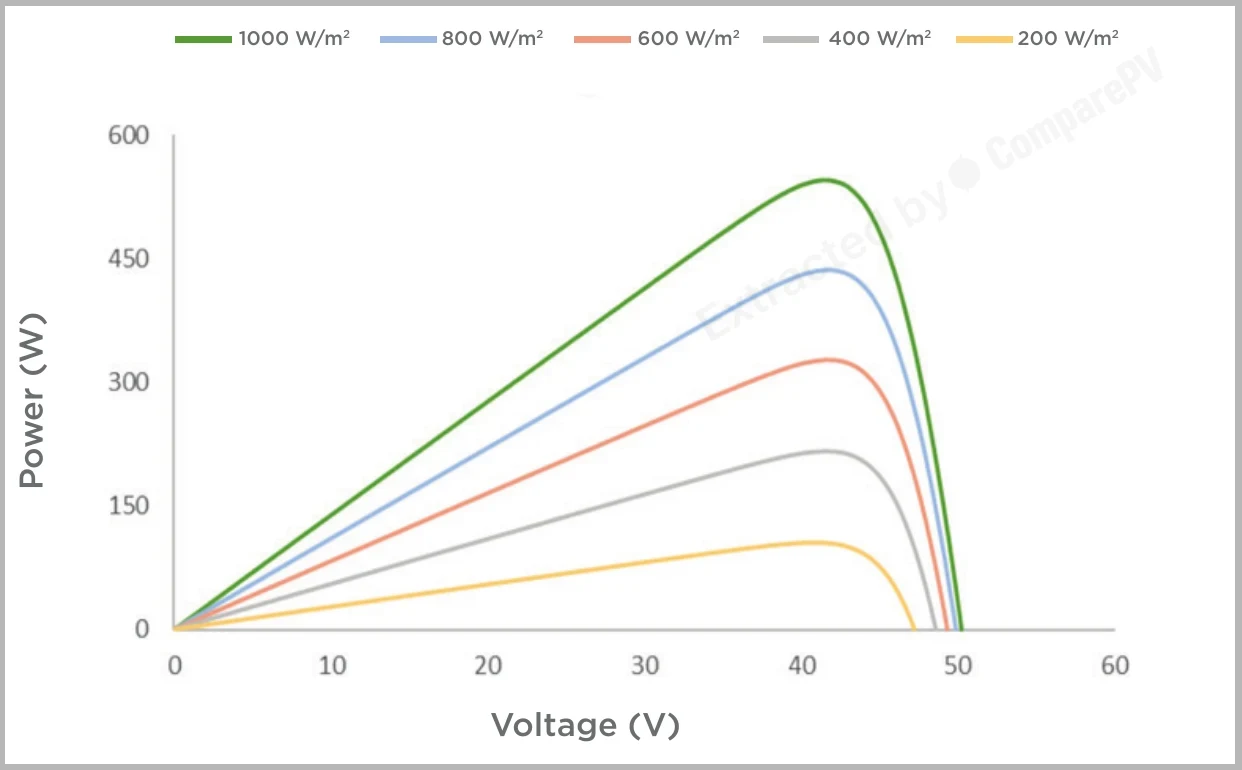

Power vs. Voltage (P-V) Curves at Different Irradiance Levels Power vs. Voltage (P-V) Curves at Different Irradiance Levels Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.320 %/°C against a segment median of -0.350
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Renew Photovoltaics RPS2MH72BD560 560 W 21.68% -0.320 32.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +3.3 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +3.1 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.9 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 16 kg lighter, +2.7 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.7 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.7 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.6 pp
RPS2MH72BD530 530 W 20.52% -0.320 32.5 kg -30 W, -1.2 pp
RPS2MH72BD535 535 W 20.71% -0.320 32.5 kg -25 W, -1.0 pp
RPS2MH72BD540 540 W 20.90% -0.320 32.5 kg -20 W, -0.8 pp
RPS2MH72BD545 545 W 21.10% -0.320 32.5 kg -15 W, -0.6 pp
RPS2MH72BD550 550 W 21.29% -0.320 32.5 kg -10 W, -0.4 pp
RPS2MH72BD555 555 W 21.48% -0.320 32.5 kg Very close match
RPS2MH72BD570 570 W 22.07% -0.300 32.5 kg +10 W, cooler, +0.4 pp
RPS2MH72BD575 575 W 22.26% -0.300 32.5 kg +15 W, cooler, +0.6 pp
RPS2MH72BD580 580 W 22.45% -0.300 32.5 kg +20 W, cooler, +0.8 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +90 W, cooler, +3.5 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does the bifacial RPS2MH72BDXXX panel differ from a standard monofacial module?
The RPS2MH72BDXXX captures light on both the front and rear side thanks to high-transmission glass on the back of the module. Extra energy comes from light reflected off the ground surface - light-colored gravel, roof membrane, or snow. In practice this delivers several to over ten percent higher annual yield compared to a classic single-sided panel of the same footprint.
What warranty comes with the RPS2MH72BDXXX series?
Manufacturer Renew Photovoltaics provides a 12-year product warranty covering material and workmanship defects, plus a 30-year power output warranty. This means that even after three decades of operation, the panel should still deliver its guaranteed percentage of nominal power, which directly supports predictable return on investment.
Is the 560 Wp RPS2MH72BDXXX suitable for large ground-mount installations?
Yes, power output up to 560 Wp combined with bifacial technology and half-cut M10 PERC cells makes this series a strong fit for PV farms. A higher per-module power rating means fewer panels per string, shorter DC wiring runs, and lower mounting structure costs, while a light-colored ground surface further boosts rear-side output.
Do these panels perform well in low-light conditions, such as early morning or overcast days?
Yes, the gallium-doped PERC cells used in the RPS2MH72BDXXX maintain stable performance under low irradiance, reducing generation drops at dawn, dusk, and on cloudy days. The multi busbar structure also lowers series resistance across the cells, resulting in higher real-world annual yield than nominal power alone would suggest.
Can the RPS2MH72BDXXX frame withstand heavy snow load and strong wind?
Yes, the module features an anodized aluminum frame and reinforced front glass designed for elevated mechanical loads. This construction matters especially in regions with variable climates, where heavy winter snowfall and strong summer wind gusts are common, reducing the risk of microcracks and frame damage.
Is the RPS2MH72BDXXX series better suited for commercial or residential prosumer installations?
The series works well in both settings. The high 560 Wp power rating and bifacial technology appeal to commercial investors and PV farms, where LCOE at scale matters most. At the same time, its resistance to microcracks, hot spots, and low-light conditions makes it equally reliable in typical residential installations on sloped or flat roofs.
