Premier Energies PE-580 TB M10_1A
Premier Energies Brand review

PE-580 TB M10_1A

580 Wp TOPCon Bifacial
ComparePV verdict

Light for its output, no clear weak spot

Rank 4,476 of 14,005
Compare panels Datasheet PDF
Power (Wp)
580
Typical for its class
Efficiency (%)
22.44
Typical · median 22.44%
Density (Wp/m²)
224.5
Typical · median 224.4
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
28.0
Strong · 3.2 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Premier Energies 144 Half Cut TOPCon Cell (Bifacial Transparent Backsheet) series is designed for maximum energy yield in installations where every square meter counts. The use of n-type TOPCon cells and the 144 half-cut configuration helps minimize losses and improves module performance under partial shading, which provides real stability in typical roof and PV farm conditions.

A key feature of this series is the bifacial design with a transparent backsheet - it allows for additional energy gain from reflected light from the ground, without the need for a heavier glass-glass solution. This is a good option for installations on bright roofs, flat roofs with membranes, and elevated ground-mounted systems, where the albedo works to the investor's advantage.

Compared to the competition, these modules combine high TOPCon technology efficiency with the practical, "design-oriented" flexibility of the transparent backsheet - for commercial, industrial, and utility investors who want to improve their energy balance without complicating installation and logistics.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.44% 22.44% Typical 4,716
Power density 224.5 224.4 Typical 4,547
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 48.3 53.8 Strong · top 21% 2,172
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 1 caution
Best for

Commercial, utility-scale and shaded-installations.

Strengths
48.3 kg per kWp

Top 21% of the TOPCon 550-600 W segment, against a median of 53.8.

What owners get
Efficiency on par with segment leaders

Peak efficiency of 22.83% matches top TOPCon competitors (AE Solar HORIZON CMD-144BDS at 22.86%, SunEvo SE5-72H and Luxen N5 both at 22.83%), placing the series in the top tier of available 144 half-cut bifacial modules.

Transparent backsheet instead of glass-glass

The bifacial design with a transparent backsheet (rather than dual-glass) captures additional albedo gain while keeping module weight lower (~28 kg per manufacturer datasheet) than typical glass-glass modules, easing transport and installation on roofs with limited load capacity.

N-type TOPCon cells, 10-busbar layout

N-type TOPCon cells combined with a 144 half-cut, 10-busbar architecture reduce resistive losses and improve partial-shading performance compared to older PERC/lower-busbar designs.

30-year linear power warranty

The 12-year product warranty and 30-year linear power warranty match the current market standard for tier-1 TOPCon modules, giving investors predictable long-term energy yield.

Established Tier-1 manufacturer

Premier Energies (India, founded 1995) is listed among BNEF Tier 1 manufacturers for 2026, improving project bankability and access to non-recourse debt financing.

Trade-offs
12-year product warranty - standard, not premium

The 12-year product warranty meets the current tier-1 market baseline for 2026, while some competitors (including certain Korean and Chinese premium TOPCon lines) already offer 15-year product warranties alongside the same 30-year power warranty.

Notes from the database
  • Efficiency of 22.4% matches the TOPCon 550-600W median
  • At 224.5 W/m² power density, roof space requirements are typical for TOPCon 550-600W panels
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • 28.0 kg weight - 3.2 kg lighter than TOPCon 550-600W median (31.2 kg), reducing installation effort
  • Ranked #4716 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 580 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.44 % Typical Segment median 22.44%
Vmpp · Impp 44.07 V · 13.17 A Operating point at max power
Voc · Isc 51.34 V · 13.83 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 28.0 kg Strong Strong · 3.2 kg below median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.270 · 0.040 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Premier Energies in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 580 Wp appear here. The rest cover the whole series.

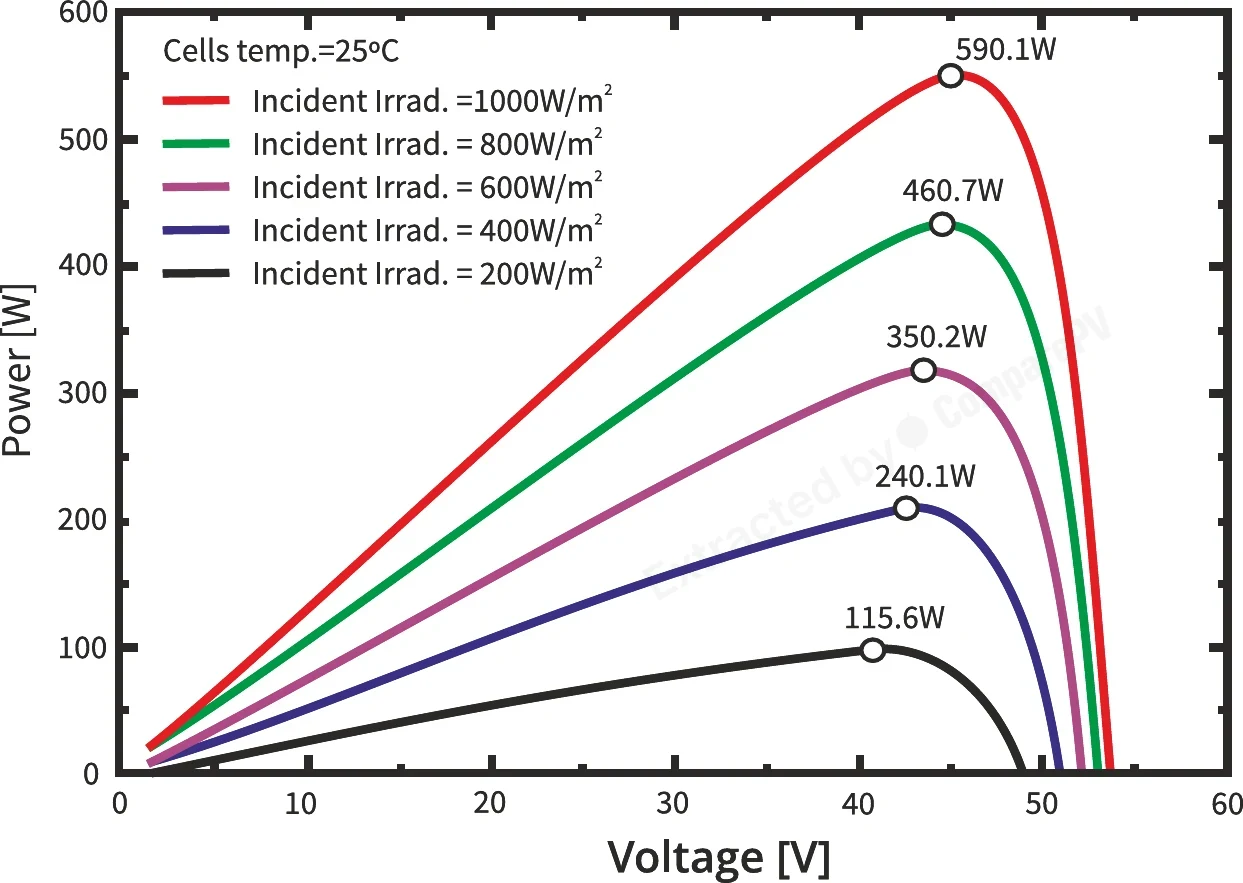

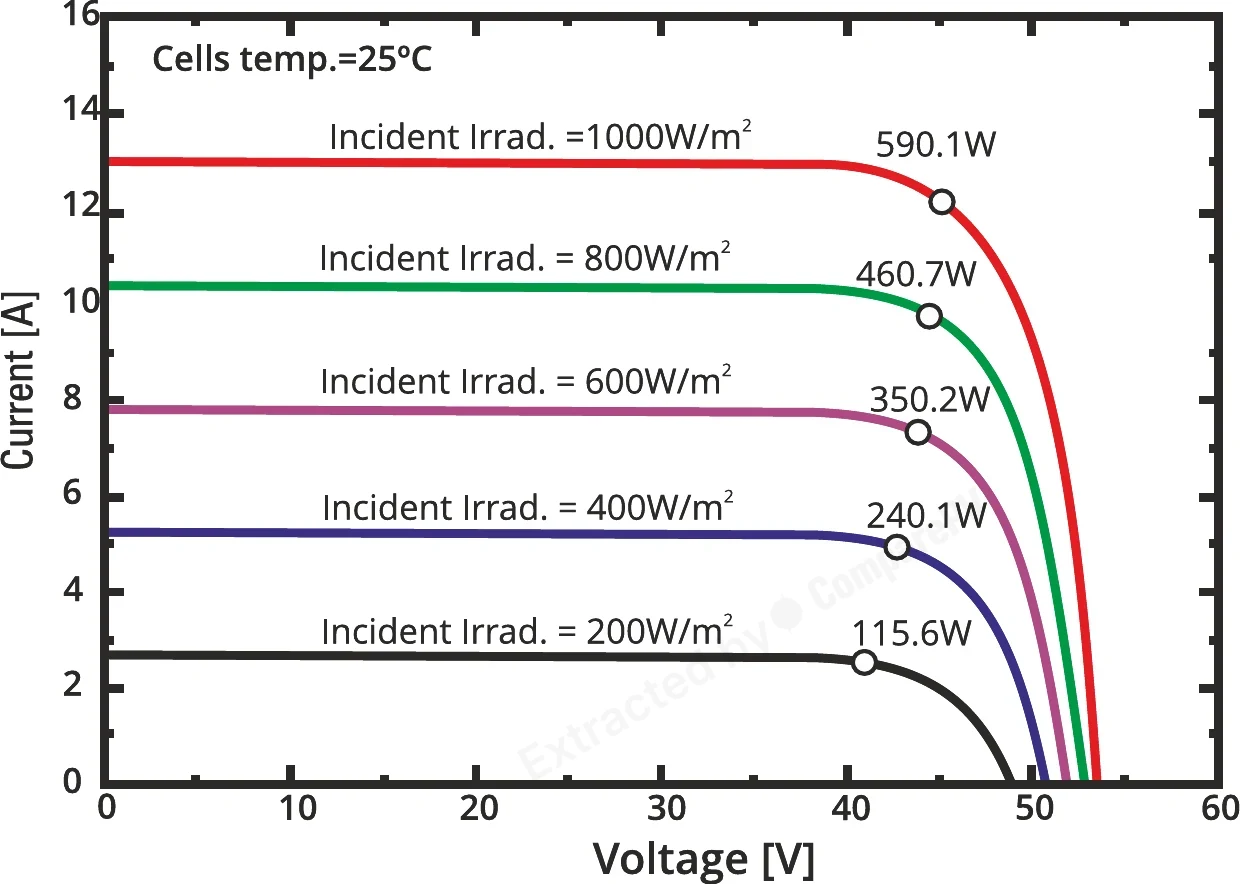

I-V Curves at Different Irradiance Levels I-V Curves at Different Irradiance Levels Whole series P-V Curves at Different Irradiance Levels P-V Curves at Different Irradiance Levels Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Premier Energies PE-580 TB M10_1A 580 W 22.44% -0.300 28.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.4 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.2 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +50 W, heavier, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +2.0 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg -40 W, lighter, +2.0 pp
PE 515HM 515 W 19.93% -0.350 29.0 kg -65 W, -2.5 pp, -5 yr warranty
PE 520HM 520 W 20.12% -0.350 29.0 kg -60 W, -2.3 pp, -5 yr warranty
PE 525HM 525 W 20.31% -0.350 29.0 kg -55 W, -2.1 pp, -5 yr warranty
PE-525HB 525 W 20.32% -0.350 28.0 kg -55 W, hotter, -2.1 pp
PE 530HM 530 W 20.51% -0.350 29.0 kg -50 W, -1.9 pp, -5 yr warranty
PE-530HG 530 W 20.52% -0.350 34.0 kg -50 W, heavier, -1.9 pp
PE 535HM 535 W 20.70% -0.350 29.0 kg Hotter, -1.7 pp, -5 yr warranty
PE-535HG 535 W 20.71% -0.350 34.0 kg Hotter, heavier, -1.7 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +70 W, cooler, +2.8 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +65 W, cooler, +2.6 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +60 W, cooler, +2.4 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the warranty on the Premier Energies 144 Half Cut TOPCon (Bifacial Transparent Backsheet) series?
This series comes with a 12-year product warranty and a 30-year linear power output warranty. At the end of 30 years, each module is guaranteed to retain at least 85.4% of its rated power. These are strong warranty terms for commercial and utility-scale investments, providing reliable, predictable energy yield over the full system lifetime.
What is the difference between a bifacial transparent backsheet module and a glass-glass bifacial module?
A transparent backsheet module weighs approximately 28 kg, significantly less than a glass-glass equivalent, making transport and rooftop installation considerably easier. It still captures reflected irradiance from the rear side, preserving the bifacial energy gain. However, the backsheet is less mechanically robust than rear glass, so glass-glass construction is preferable in highly aggressive environmental conditions.
How does the Premier Energies 144 HC TOPCon Bifacial series perform in high summer temperatures?
The series features a temperature coefficient of Pmax at -0.30%/°C, which outperforms typical PERC modules rated at -0.35%/°C. This translates to smaller power losses on hot days. N-type TOPCon cells also exhibit lower light-induced degradation (LID) compared to p-type technologies, resulting in more stable long-term output over the module's entire service life.
What is the maximum power output and efficiency of the modules in this series?
The top model in this series reaches 590 Wp, with module efficiency up to 22.83% at dimensions of 2,278 x 1,134 mm. This places it among leading n-type TOPCon modules currently on the market. Higher efficiency means more energy harvested from the same roof area or land footprint, a critical advantage wherever installation space is constrained in residential, commercial, or industrial projects.
Is the Premier Energies 144 HC TOPCon Bifacial series well suited for ground-mount systems with reflective surfaces?
Yes, ground-mount installations are one of its primary use cases. The bifacial transparent backsheet design captures reflected irradiance from below — light-colored gravel, white TPO membranes, or reflective ground cover can add several percentage points to annual energy yield compared to a monofacial module. With up to 590 Wp per module, it scales effectively for utility and C&I ground-mount projects where per-module output is a key performance driver.
What is the benefit of the 144 half-cut cell layout in these TOPCon modules, and does it help under partial shading?
Each module contains 144 half-cut, 182 mm cells in a 10-busbar configuration. Splitting cells in half reduces internal resistance and limits mismatch losses under partial shading conditions — when shade falls on part of the module, the unshaded half continues generating power independently. This results in higher real-world output on rooftops with chimneys or dormers and on ground-mount arrays where vegetation or obstacles cause intermittent shading.
