510Wp

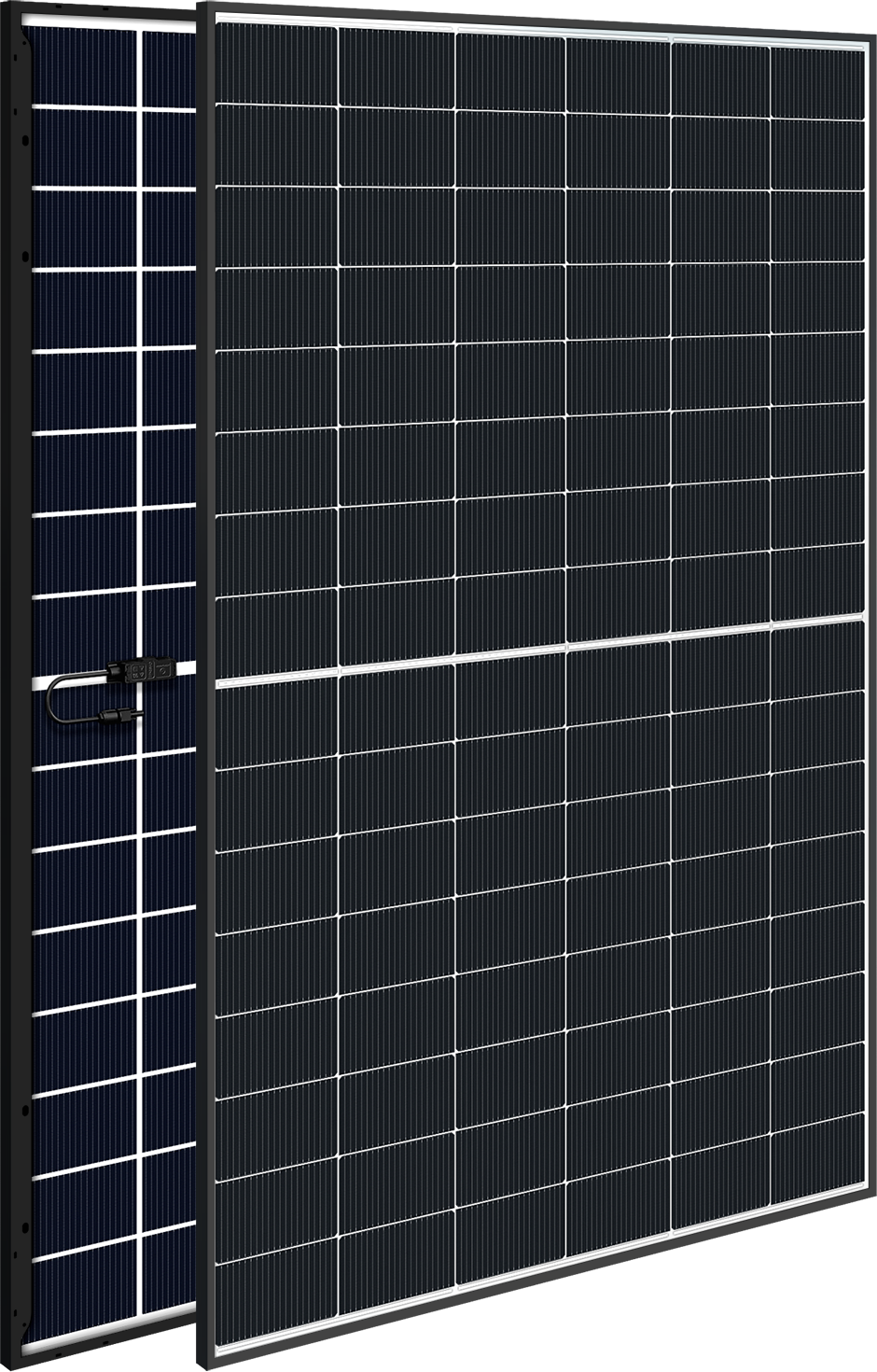

Astronergy CHSM54RN(DG)/F-BH-510
Astronergy Review

CHSM54RN(DG)/F-BH-510

MonocrystallineBifacial
Datasheet
22.90%
Efficiency
229.3 Wp/m²
Power Density
-0.290%/°C
Temp. Coeff. Pmax chart
446W from 510W
Power after 30 years
Smart Insights (data-driven)
  • At 22.9% efficiency, this panel is on par with typical TOPCon 500-550W modules
  • Power density of 229.3 W/m² matches the TOPCon 500-550W median
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof
  • #1817 for efficiency, #1739 for temperature performance out of 11672 panels
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series ASTRO N7s 2.0 Bifacial Series (CHSM54RN(DG)/F-BH) 5 variants
Efficiency Range 22.9% - 23.8%
Avg. Efficiency 23.38%
Technology TOPCon
Dimensions 1961 × 1134 mm
Show series description

The Astronergy ASTRO N7s 2.0 Bifacial (CHSM54RN(DG)/F-BH) series was designed for maximum yield from the same rooftop surface – without compromising on durability and aesthetics. These bifacial glass-glass modules feature n-type TOPCon 5.0 cells, which better withstand high operating temperatures and experience slower degradation over time, translating to more stable energy production year after year.

A key highlight is the ZBB (zero busbar) technology, which minimizes shading on the cells and resistive losses while enhancing resistance to microcracking. In practical terms, this ensures reliable performance in real-world installation conditions and under mechanical stress.

Compared to competitors, the series stands out thanks to the Light Redirecting black film, which optimizes light distribution and helps better utilize sunlight, and the format facilitating transportation and installation on roofs with limited space. This is a smart choice for residential and premium segments, where performance, appearance, and long-term reliability are key.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)510 Wp
Module Efficiency22.90%
Voltage at Max Power (Vmpp)34.29 V
Current at Max Power (Impp)14.87 A
Open Circuit Voltage (Voc)41.21 V
Short Circuit Current (Isc)15.70 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.290%/°C
Temp. Coeff. Voc-0.250%/°C
Temp. Coeff. Isc0.043%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count108
BifacialYes
Bifaciality Factor80%
Dimensions & Weight
Length1961 mm
Width1134 mm
Height30 mm
Weight26.9 kg
Area2.22 m²
Power Density229.3 Wp/m²
Warranty
Product Warranty25 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
22.90%
Efficiency
510 Wp
Power
-0.29%/°C
Temp Coeff
30 yrs
Warranty
