AmoSolar Brand review

AS575M10-144

575 Wp TOPCon
ComparePV verdict

Solid all-round for its segment

Rank 4,270 of 14,005
Compare panels Datasheet PDF
Power (Wp)
575
Typical for its class
Efficiency (%)
22.25
Typical · median 22.44%
Density (Wp/m²)
222.5
Typical · median 224.4
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
28.6
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The AmoSolar AS565-590M10-144 series comprises modules based on N-type TOPCon technology, designed for stable operation under real-world conditions, including high temperatures, where minimizing power loss is crucial. The use of half-cut monocrystalline cells helps to reduce power losses and improves the module's performance under partial shading, which is particularly important on roofs with skylights, chimneys, or installations near trees.

A key feature of this series is the 144-cell format in a modern size, which simplifies the construction of strings in commercial and industrial installations, where power density is a key factor. The modules have a sealed junction box with IP68 protection, which supports long-term reliability in the Polish climate (rain, frost, dust).

This is a good choice for investors seeking high efficiency, predictable yields, and cost-effectiveness in rooftop and solar farm projects.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.25% 22.44% Typical 5,689
Power density 222.5 224.4 Typical 5,668
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 49.7 53.8 Typical 3,212
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Best for

Residential, commercial, utility-scale and shaded-installations.

What owners get
Efficiency of up to 22.83% – among the best in the segment

The AS590 module achieves an efficiency of 22.83%, placing it in direct competition with the top monofacial TOPCon modules in this power class (DAH DHN-72X16: 22.84%, Horay HS 182-144 TC-D: 22.80%, Talesun TM7G72M: 22.80%). For roof-mounted installations with limited space, the difference in power density per square meter is noticeable.

N-type TOPCon Technology

N-type TOPCon solar cells exhibit a lower LID (Light-Induced Degradation) coefficient and a better temperature coefficient of power (typically around -0.30%/°C) compared to PERC (-0.35%/°C). This translates to higher annual energy yield in Poland, where there is a high degree of variability in solar irradiance and temperatures.

182 mm half-cut M10 connectors

The half-cut format, combined with the M10 (182 mm) cell size, reduces resistive losses and improves the module's performance under partial shading – which is particularly important in roof installations with chimneys, skylights, or structures near trees, where shading losses can exceed 10% of the annual energy yield.

30-year power guarantee

The manufacturer offers a 30-year warranty on power output, which is standard for premium-grade products. In comparison, many Tier 2 and Tier 3 manufacturers offer warranties of 25 years or less. A longer warranty period improves the LCOE (Levelized Cost of Energy) calculation for projects with long lifespans.

The IP68 sealing of the junction box

An IP68 protection rating indicates resistance to prolonged submersion in water – exceeding the minimum requirements (IP65/IP67) and ensures reliability in Polish climatic conditions, characterized by heavy rainfall, snowmelt, and condensation on roofs.

Trade-offs
Manufacturer not on the BNEF Tier 1 list

AmoSolar is not listed as a Tier 1 manufacturer in the BloombergNEF (Q1 2026) bankable manufacturers list. For projects financed with bank loans or requiring insurance reinsurance, the lack of Tier 1 status may make it difficult or impossible for financial institutions to approve the modules.

Monopolistic strategy in a competitive environment

All three comparable modules in this segment (DAH DHN-72X16/DG(BB), Horay HS 182-144 TC-D Ocean, Talesun TM7G72M BIPRO) are bifacial modules. A typical additional gain from the rear side of bifacial panels is 5-15% in bright sunlight or on snow – a performance level that monofacial AS565-590M10-144 series panels cannot achieve.

The product warranty is only 15 years.

The 15-year warranty on workmanship is 10 years shorter than the 25-year standard offered by Tier 1 manufacturers (Jinko Solar, LONGi, Trina Solar). In the event of manufacturing defects discovered after 15 years, the investor bears the risk of replacement costs without warranty coverage.

Notes from the database
  • Efficiency of 22.2% matches the TOPCon 550-600W median
  • Power density of 222.5 W/m² matches the TOPCon 550-600W median
  • Temperature coefficient of -0.30%/°C matches the TOPCon 550-600W median
  • 28.6 kg weight - 2.6 kg lighter than TOPCon 550-600W median (31.2 kg), reducing installation effort
  • In the top 41% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 575 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.25 % Typical Segment median 22.44%
Vmpp · Impp 43.66 V · 13.18 A Operating point at max power
Voc · Isc 52.93 V · 13.72 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×35 mm · 2.58 m² of roof
Weight 28.6 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 503 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by AmoSolar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 575 Wp appear here. The rest cover the whole series.

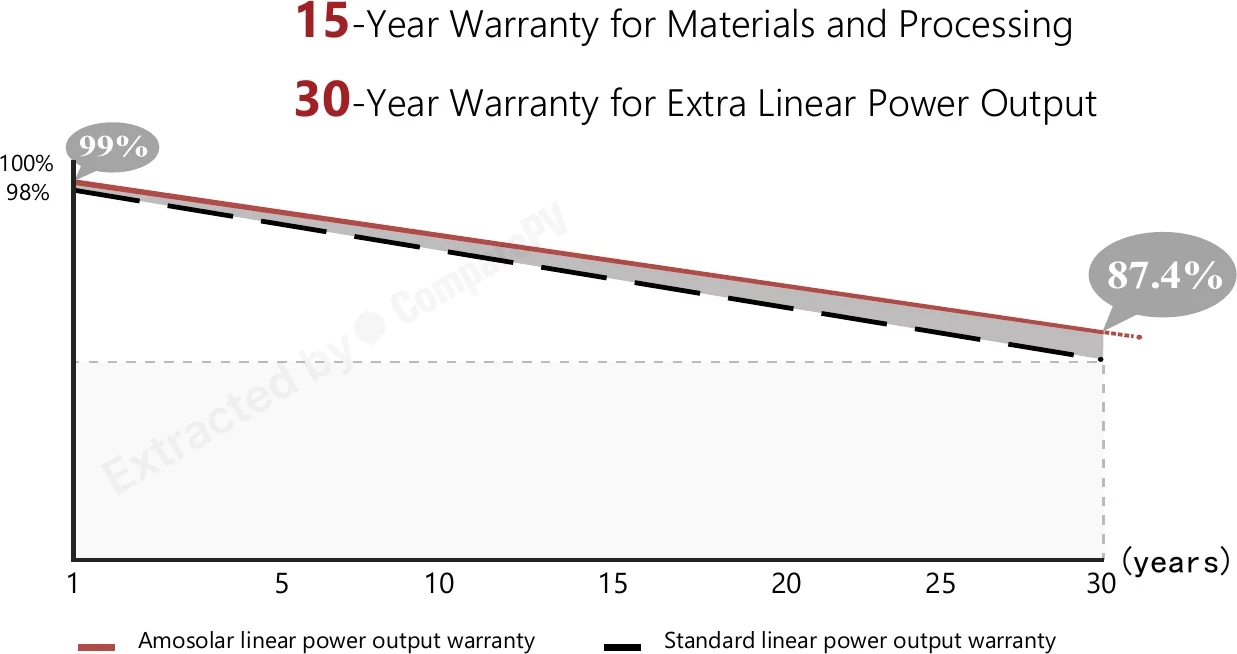

15-Year Warranty for Materials and Processing / 30-Year Linear Power Output Warranty 15-Year Warranty for Materials and Processing / 30-Year Linear Power Output Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-

Alternatives

All AmoSolar panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
AmoSolar AS575M10-144 575 W 22.25% -0.300 28.6 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.6 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.4 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +2.1 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.1 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.1 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg -30 W, cooler, +2.0 pp
AIKO-A625-MAH72Dw 625 W 24.20% -0.260 32.5 kg +50 W, cooler, +1.9 pp
AS530M10-144 530 W 20.51% -0.350 28.6 kg Hotter, -1.7 pp, -5 yr warranty
AS535M10-144 535 W 20.70% -0.350 28.6 kg Hotter, -1.6 pp, -5 yr warranty
AS540M10-144 540 W 20.89% -0.350 28.6 kg Hotter, -1.4 pp, -5 yr warranty
AS545M10-144 545 W 21.09% -0.350 28.6 kg Hotter, -1.2 pp, -5 yr warranty
AS550M10-144 550 W 21.28% -0.350 28.6 kg Hotter, -1.0 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +75 W, cooler, +2.9 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +70 W, cooler, +2.8 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +65 W, cooler, +2.6 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +60 W, cooler, +2.4 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2542 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty is provided for the AmoSolar AS565-590M10-144 series?
The AS565-590M10-144 series comes with a 15-year product warranty covering physical defects and material failures, along with a 30-year linear power output warranty. This means the manufacturer guarantees a specified minimum power yield over three decades, enabling predictable return on investment. It is worth noting that AmoSolar does not appear on Tier 1 manufacturer lists, so prospective buyers should verify the warranty service terms and local support availability before purchase.
What is TOPCon technology and why should I choose the AmoSolar AS565-590M10-144 over older PERC modules?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology that reduces charge carrier recombination at the cell surface. In practice, this translates into higher efficiency (approximately 22–23%) and lower power degradation at elevated temperatures compared to conventional PERC modules. The AS565-590M10-144 series delivers up to 590 W per module, allowing more installed capacity on the same roof area.
Will the AmoSolar AS565-590M10-144 panels perform well on a roof with partial shading from chimneys, dormers, or nearby trees?
Yes. The use of monocrystalline half-cut cells — 144 cells split into two independent halves — reduces the impact of partial shading on the entire module. When a section of the panel is shaded, power losses are lower than in a conventional full-cell configuration. This is particularly relevant on roofs with chimneys, dormers, or surrounding trees. For more complex shading patterns, it is advisable to additionally consider power optimizers or microinverters.
What are the installation requirements for the AmoSolar AS565-590M10-144 series — are they suitable for a typical pitched roof in Poland?
144-cell modules in the M10 format typically measure approximately 2094 × 1134 mm and weigh around 28–30 kg, which falls within the load capacity of standard pitched roofs. The IP68-rated junction box provides reliable protection against rain, snow, and dust typical of the Polish climate. Prior to installation, a structural engineer should be consulted regarding the permissible roof load, particularly for older timber roof trusses.
Are the AmoSolar AS565-590M10-144 modules monofacial or do they also generate power from the rear (bifacial)?
The AS565-590M10-144 series consists of monofacial modules — power is generated exclusively by the front side of the cells. There is no capability to harvest additional energy reflected from the ground surface, as is the case with bifacial panels. For rooftop installations, the difference is minimal; however, for ground-mounted systems with a high-albedo surface, a bifacial series from another manufacturer may be worth considering.
What types of installations are best suited for the AmoSolar AS565-590M10-144 series — residential, commercial, or utility-scale solar farms?
The high unit power output (up to 590 W) and 144-cell format make this series best suited for commercial and industrial installations — such as warehouses, manufacturing facilities, and larger flat roofs — as well as ground-mounted solar farms, where power density per unit area and ease of string configuration are critical. While the series can be used in typical prosumer systems of 6–10 kW on single-family homes, smaller-format modules are often easier to handle logistically and to install on steeply pitched roofs.
