485Wp
AIKO AIKO-A485-MCE54Db
AIKO Review

AIKO-A485-MCE54Db

Monocrystalline
24.30%
Efficiency
242.7 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
431W from 485W
Power after 30 years
  • Efficiency of 24.3% is 0.8pp above the Back Contact 450-500W median (23.5%)
  • 242.7 W/m² power density - 7.5 W/m² more than Back Contact 450-500W median (235.2 W/m²), more power per roof area
  • At -0.26%/°C, hot weather performance is typical for Back Contact 450-500W panels
  • Weight of 24.5 kg is 3.1 kg above Back Contact 450-500W median (21.4 kg) - verify structural support
  • In the top 1% for efficiency among all Back Contact panels
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Neostar 3S+54 (AIKO-A-MCE54Db) 6 variants
Efficiency Range 23.0% - 24.3%
Avg. Efficiency 23.65%
Technology Back Contact
Dimensions 1762 × 1134 mm
Show series description

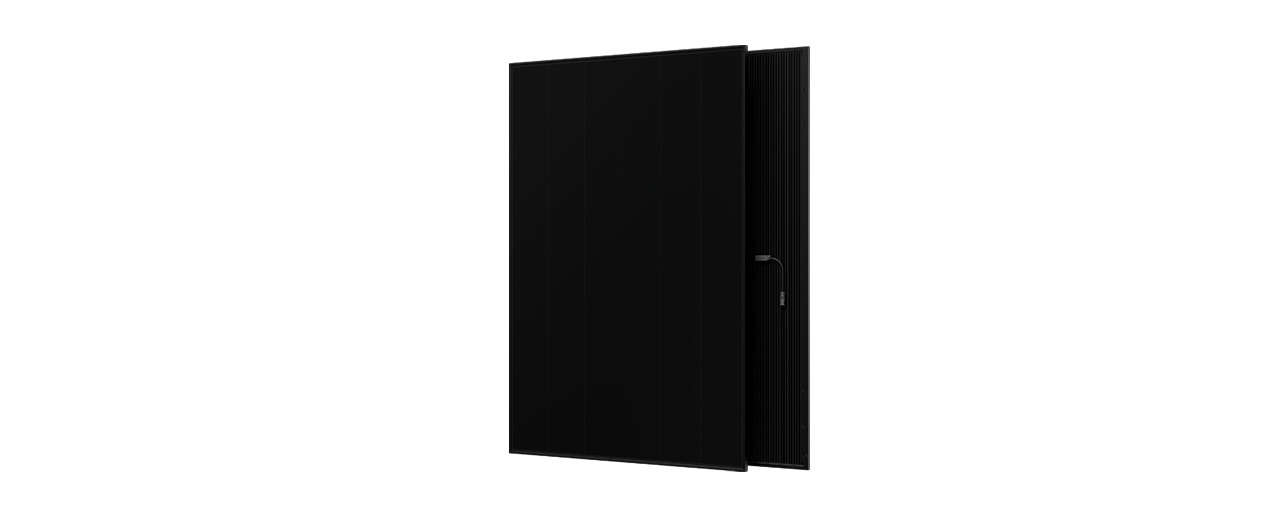

The AIKO Neostar 3S+54 (AIKO-A-MCE54Db) is a glass-glass module in the 54-cell format, designed for maximum yield from limited rooftop space. Its key feature is the ABC (all-back-contact/xBC) technology - no metalization on the front, which improves light usage and maintains high efficiency even in less-than-ideal conditions. In practice, this means higher energy production per square meter, which is especially appreciated by investors who cannot "add more panels" due to small or shaded roofs.

The dual-glass construction increases resistance to micro-cracks and mechanical stress, while also stabilizing parameters over the long term. The Neostar 3S+54 is also a choice for those expecting a consistent installation appearance – the full black variants support the aesthetics of modern homes. The entire package is complemented by a long, premium warranty, reducing investment risk and improving profitability over several decades. This series was mainly created for roof installations – residential and small commercial, where every square meter and predictable yield matter.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)485 Wp
Module Efficiency24.30%
Voltage at Max Power (Vmpp)34.30 V
Current at Max Power (Impp)14.15 A
Open Circuit Voltage (Voc)40.90 V
Short Circuit Current (Isc)14.88 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.220%/°C
Temp. Coeff. Isc0.050%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count108
BifacialNo
Bifaciality Factor-
Dimensions & Weight
Length1762 mm
Width1134 mm
Height30 mm
Weight24.5 kg
Area2.00 m²
Power Density242.7 Wp/m²
Warranty
Product Warranty25 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
24.30%
Efficiency
485 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
