Yingli YL585D-41f 1/2 / YL585D-41f 1500V 1/2
Yingli Brand review

YL585D-41f 1/2 / YL585D-41f 1500V 1/2

585 Wp PERC
ComparePV verdict

Middle of its segment, needs the roof space

Rank 7,532 of 14,129
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
20.70
Weak · bottom 8%
Density (Wp/m²)
206.7
Weak · bottom 6%
Temp (%/°C)
-0.340
Typical · median -0.350
Weight (kg)
31.0
Typical · median 30.8 kg
Warranty (yrs)
25
Weak · bottom 24%

The Yingli YLM 3.0 Plus 1 series is designed for high energy production on limited mounting surfaces, making it ideal where every square meter of roof or field space counts. These modules utilize p-type monocrystalline PERC solar cells, and their refined interconnection architecture ensures stable performance even under partial shading and uneven irradiance, common in many Polish installations. A key feature is the glass-glass construction, which enhances environmental resistance and facilitates maintaining parameters over a long period - a real advantage in projects exposed to wind, humidity, and temperature fluctuations. The series targets high reliability in challenging conditions thanks to high-quality lamination materials and robust construction. The YLM 3.0 Plus 1 is a solid choice for commercial and utility-scale PV projects, where dependable power generation and long-term durability take precedence over catalog specifications.

Ranking

589 panels in the segment PERC 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.70% 21.29% Weak · bottom 8% 10,842
Power density 206.7 212.9 Weak · bottom 6% 11,004
Temperature coefficient -0.340 -0.350 Typical 8,846
Weight per kWp 53.0 52.7 Typical 6,755
Performance warranty 25 yrs 27 yrs Weak · bottom 24% 9,912
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial and utility-scale.

Not ideal for

Roofs where every square metre has to count, tight roof space and owners who want a long output guarantee.

Watch-outs
206.7 watts per square metre

Bottom 6% of the PERC 550-600 W segment, against a median of 212.9. Ranked 11,004th in the whole database.

20.70% module efficiency

Bottom 8% of the PERC 550-600 W segment, against a median of 21.29%. Ranked 10,842nd in the whole database.

25 year performance warranty

Bottom 24% of the PERC 550-600 W segment, against a median of 27 yrs.

Notes from the database
  • Module efficiency of 20.7% is 0.6pp below average for PERC 550-600W panels (median: 21.3%)
  • 206.7 W/m² power density is 6.2 W/m² below PERC 550-600W median (212.9 W/m²) - requires larger installation area
  • At -0.34%/°C, hot weather performance is typical for PERC 550-600W panels
  • Ranked #10842 out of 14129 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.70 % Weak Segment median 21.29%
Vmpp · Impp 34.00 V · 17.21 A Operating point at max power
Voc · Isc 41.00 V · 18.26 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2172×1303×35 mm · 2.83 m² of roof
Weight 31.0 kg Typical Typical · median 30.8 kg
Cells 120 · PERC Monocrystalline
Coefficient Pmax -0.340 %/°C Typical median -0.350 of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 24% · median 27 yrs
End-of-warranty output 84.8 % Equals 480 W guaranteed
Degradation 2.00 → 0.55 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Yingli in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

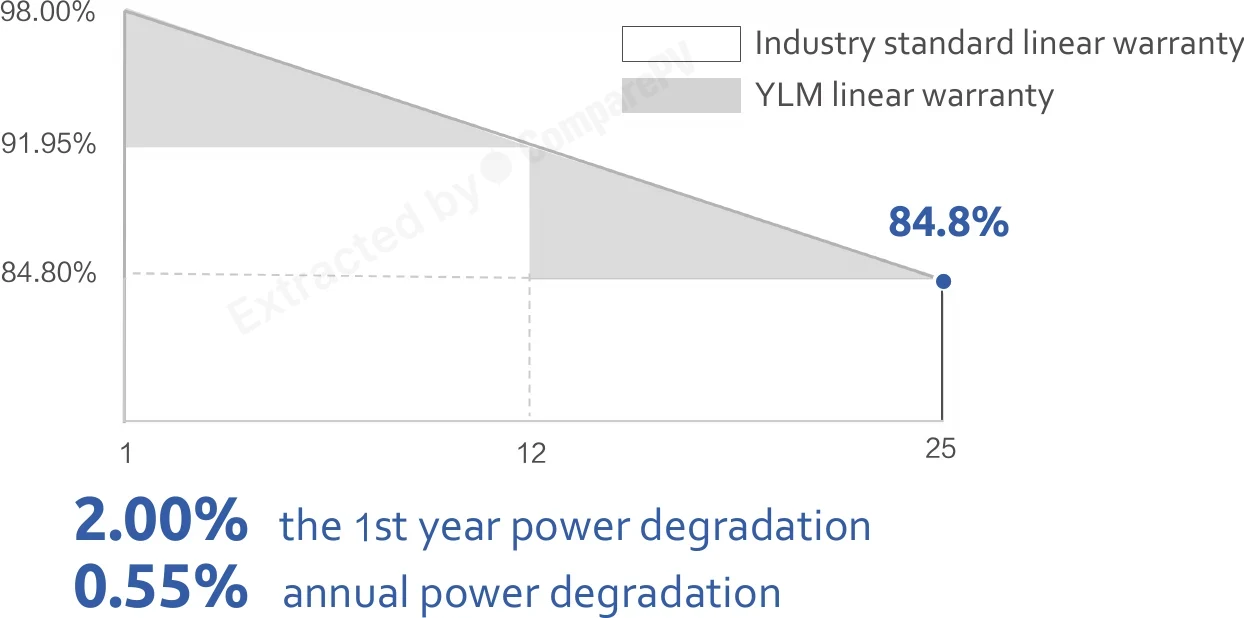

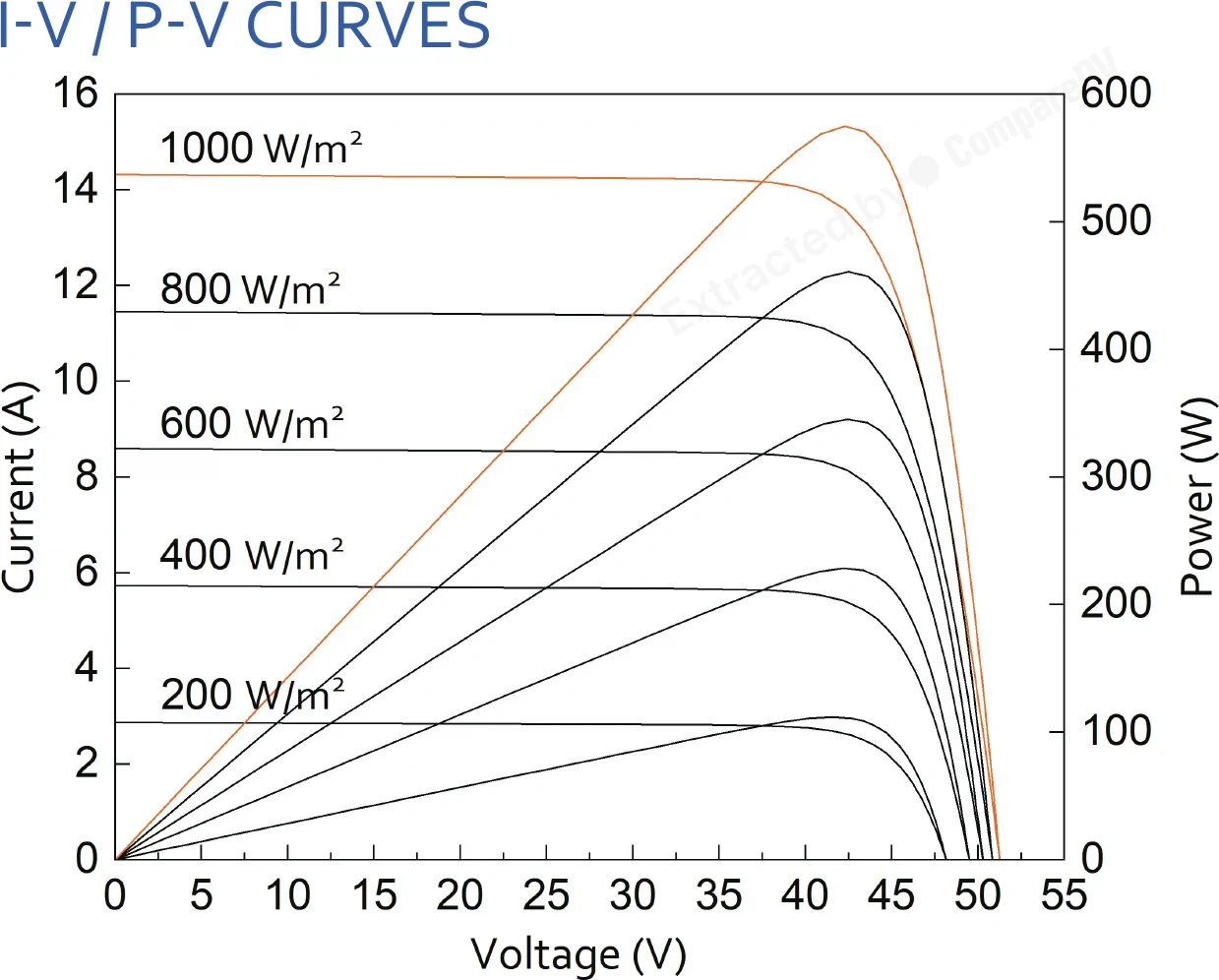

30-Year Linear Power Warranty (degradation curve) 30-Year Linear Power Warranty (degradation curve) Whole series I-V / P-V Curves I-V / P-V Curves Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.350
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Yingli YL585D-41f 1/2 / YL585D-41f 1500V 1/2 585 W 20.70% -0.340 31.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +4.1 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +3.9 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, cooler, +3.9 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg Cooler, +3.7 pp, +5 yr warranty
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +3.7 pp
YL580DF60f/2 580 W 20.50% -0.340 35.1 kg Heavier, +5 yr warranty
YL590DF60f/2 590 W 20.80% -0.340 35.1 kg Heavier, +5 yr warranty
YL595D-41f 1/2 / YL595D-41f 1500V 1/2 595 W 21.00% -0.340 31.0 kg +10 W, +0.3 pp
YL600DF60f/2 600 W 21.20% -0.340 35.1 kg Heavier, +0.5 pp, +5 yr warranty
GKA210N120 680 W 24.03% -0.340 28.0 kg +95 W, +3.3 pp, +5 yr warranty
GKA210N120-675 675 W 23.85% -0.340 28.0 kg +90 W, +3.2 pp, +5 yr warranty
QN-670HJT-01 670 W 23.70% -0.240 35.5 kg +85 W, cooler, +3.0 pp
GKA210N120-670 670 W 23.67% -0.340 28.0 kg +85 W, +3.0 pp, +5 yr warranty
QN-665HJT-01 665 W 23.50% -0.240 35.5 kg +80 W, cooler, +2.8 pp
GKA210N120-665 665 W 23.50% -0.340 28.0 kg +80 W, +2.8 pp, +5 yr warranty
SPDG660-N120M12 660 W 23.32% -0.300 34.2 kg +75 W, +2.6 pp, +5 yr warranty

Found 497 panels of the same or similar size to this one, within ±10 mm. See them here Found 502 panels of the same or similar size to this one, within ±25 mm. See them here Found 502 panels of the same or similar size to this one, within ±50 mm. See them here Found 502 panels of the same or similar size to this one, within ±100 mm. See them here

About the YLM 3.0 Plus 1 series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the maximum power output of the Yingli YLM 3.0 Plus 1 panel?
The top variant of the YLM 3.0 Plus 1 series reaches up to 670 Wp, thanks to 132 large p-type monocrystalline PERC cells. This allows high energy yield from fewer modules, which meaningfully reduces installation time and mounting structure costs in commercial installations and utility-scale PV farms.
How does the glass-glass construction of the YLM 3.0 Plus 1 differ from standard glass-backsheet panels?
Unlike typical panels with a rear backsheet layer, the YLM 3.0 Plus 1 encapsulates its cells between two glass panes. This design better protects the cells from moisture, microcracks, and PID degradation, resulting in a slower power decline over time and greater resistance to harsh weather conditions such as strong wind or hail.
What warranty comes with the Yingli YLM 3.0 Plus 1 panels?
The manufacturer offers a 12-year product warranty along with a 30-year linear power output warranty. This means that after 30 years of operation, the panel should still retain the guaranteed minimum percentage of its initial output, a standard expectation for modern glass-glass modules from a tier 1 manufacturer.
Is the YLM 3.0 Plus 1 suited for large-scale PV farms or more for residential roofs?
This series is designed primarily for commercial installations and utility-scale PV farms, where predictable energy yield and long-term durability matter more than raw datasheet figures. Its large format and high unit power (up to 670 Wp) make it better suited to large mounting areas than to a typical single-family sloped roof.
Are the YLM 3.0 Plus 1 panels bifacial, generating power from the rear side?
No, the YLM 3.0 Plus 1 series uses standard monofacial PERC cell architecture. The glass-glass construction here is meant to boost durability and environmental resistance, not add rear-side power generation - this sets it apart from bifacial models in Yingli's lineup.
Who manufactures the YLM 3.0 Plus 1 panels, and is it a reliable tier 1 supplier?
The YLM 3.0 Plus 1 panels are made by Yingli, a Chinese manufacturer with decades of industry experience, classified as a tier 1 supplier. This reflects solid financial standing and proven manufacturing capacity, which matters when pursuing warranty claims over the multi-decade lifespan of a PV installation.
