Talesun TM7G72M/590W
Talesun Brand review

TM7G72M/590W

590 Wp TOPCon Bifacial 80%
ComparePV verdict

Space saver, no clear weak spot

Rank 3,801 of 14,005
Compare panels Datasheet PDF
Power (Wp)
590
Strong · top 18%
Efficiency (%)
22.80
Strong · top 22%
Density (Wp/m²)
228.4
Strong · top 17%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
31.8
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Talesun TM7G72M (BIPRO) 144-cell series is designed to maximize returns where every square meter counts. Its key advantage is the bifacial dual-glass structure, enabling efficient utilization of reflected light from the ground - a real benefit for flat roofs, carports, and PV farms with light gravel or membrane. Modules are based on N-type TOPCon cells, ensuring better performance in low light conditions and greater stability over the long term. The application of half-cut technology improves resilience to partial shading and minimizes internal losses, benefiting installations with complex roof geometries. Enhanced resistance to degradation and high PID resistance increase investment safety in high-humidity conditions. This series is particularly recommended for commercial and industrial projects, where lower energy costs and predictable long-term production are top priorities.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.80% 22.44% Strong · top 22% 2,714
Power density 228.4 224.4 Strong · top 17% 2,598
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 53.9 53.8 Typical 8,021
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 0 caution
Best for

Commercial, utility-scale and shaded-installations.

Strengths
228.4 watts per square metre

Top 17% of the TOPCon 550-600 W segment, against a median of 224.4.

22.80% module efficiency

Top 22% of the TOPCon 550-600 W segment, against a median of 22.44%.

Notes from the database
  • Efficiency of 22.8% matches the TOPCon 550-600W median
  • At 228.4 W/m² power density, this panel generates 4.0 W/m² more per unit area than TOPCon 550-600W median (224.4 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
  • Ranked #2714 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 590 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.80 % Strong Segment median 22.44%
Vmpp · Impp 44.43 V · 13.28 A Operating point at max power
Voc · Isc 52.38 V · 13.94 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 31.8 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.240 · 0.043 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 516 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Talesun in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 590 Wp appear here. The rest cover the whole series.

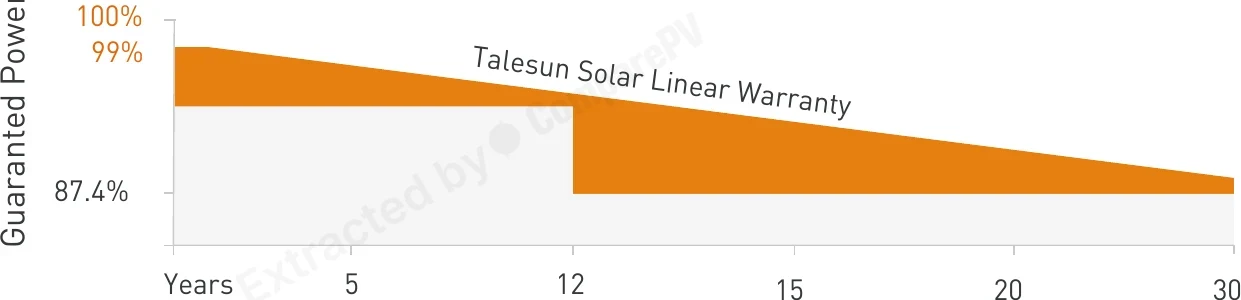

Talesun Solar Linear Warranty Talesun Solar Linear Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Talesun TM7G72M/590W 590 W 22.80% -0.290 31.8 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -30 W, lighter, +2.0 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +50 W, lighter, +2.0 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -35 W, lighter, +1.8 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +45 W, lighter, +1.8 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +40 W, cooler, +1.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -40 W, 16 kg lighter, +1.6 pp
TP7F72M-530W 530 W 20.50% -0.350 28.0 kg -60 W, hotter, -2.3 pp
TP7F72M-535W 535 W 20.70% -0.350 28.0 kg -55 W, hotter, -2.1 pp
TP7F72M-540W 540 W 20.90% -0.350 28.0 kg -50 W, hotter, -1.9 pp
TP7F72M-545W 545 W 21.10% -0.350 28.0 kg Hotter, -1.7 pp, -5 yr warranty
TP7F72M-550W 550 W 21.30% -0.350 28.0 kg Hotter, -1.5 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How much extra energy do I actually gain from the bifacial design of Talesun TM7G72M panels?
The rear-side gain depends on the ground surface and mounting height - on light gravel, a white roof membrane, or snow you can realistically expect a few to low-teens percent more energy than a mono-facial panel, while the manufacturer states up to 30% extra yield under ideal conditions. Flat roofs, carports, and ground-mount PV farms with elevated racking benefit the most.
What is N-type TOPCon technology in Talesun panels, and is it worth paying more for?
TOPCon cells use N-type silicon and, compared to the widely used PERC technology, offer higher efficiency (up to 22.80% in this series), slower degradation over time (under 1% in the first year and a maximum of 0.4% per year afterward), and better performance under weak or diffuse light. For installations planned for 25-30 years of operation, this is a real advantage over older cell technologies.
What warranty comes with Talesun TM7G72M (BIPRO) panels?
The manufacturer provides a 12-year product warranty against manufacturing defects and a 30-year linear power warranty, which is standard for modern N-type TOPCon modules. Talesun is a Tier 1 manufacturer, so the warranty is backed by the company's financial stability - an important factor for bank financing on larger commercial installations.
Are TM7G72M panels suited for flat roofs, carports, or utility-scale PV farms?
This series performs best wherever the panel can be mounted with clearance above a reflective surface - flat roofs, carports, and ground-mount PV farms with light-colored gravel or membrane. The half-cut, 144-cell layout and 590 Wp power rating also work well with the wider string spacing typical of commercial and industrial sites.
Are Talesun BIPRO panels hail-resistant and suitable for harsh weather?
Yes, the modules feature a reinforced 3.2 mm tempered front glass, tested against 55 mm hailstones at 33.9 m/s, making them suitable for regions with frequent hailstorms. The dual-glass construction also improves mechanical stiffness and adds better moisture and PID resistance compared to panels with a standard backsheet.
Is Talesun a bankable, trustworthy manufacturer for a large commercial investment?
Talesun is a Tier 1 manufacturer headquartered in China with many years of presence in the PV market, which makes bank financing and insurance for installations easier to secure. The TM7G72M series is not discontinued, so module availability and spare-part supply should remain stable in the coming years - relevant for long-term service planning.
