SunEvo Solar SE5-54HBD-420
SunEvo Solar Brand review

SE5-54HBD-420

420 Wp TOPCon Bifacial 2500%
ComparePV verdict

Middle of its segment, needs the roof space

Rank 8,617 of 14,005
Compare panels Datasheet PDF
Power (Wp)
420
Weak · bottom 16%
Efficiency (%)
21.51
Weak · bottom 20%
Density (Wp/m²)
215.1
Weak · bottom 19%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
23.5
Weak · 1.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The SunEvo Solar EVO 5N series is designed for high energy production under real-world operating conditions, particularly when module temperatures rise or when the installation is in a challenging environment. The use of N-type cells in the TOPCon technology helps to minimize typical power losses seen in older solutions, while also improving long-term stability. In practice, this means more predictable performance and easier cost planning.

The EVO 5N modules utilize half-cut design and multi-busbar architecture (SMBB/MBB), which supports better performance under partial shading and reduces the risk of microcracks that can affect performance. Bifacial variants also allow for additional energy recovery from reflected light - particularly on bright roofs, ground, or in industrial installations.

This series is for demanding prosumers, companies, and PV farms that want to invest in more modern technology and longer-term performance guarantees rather than compromising on the performance of P-type panels.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.51% 22.00% Weak · bottom 20% 7,894
Power density 215.1 220.2 Weak · bottom 19% 7,882
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 56.0 51.4 Weak · bottom 23% 10,286
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Roofs where every square metre has to count, tight roof space and weight-limited structures.

Watch-outs
215.1 watts per square metre

Bottom 19% of the TOPCon 400-450 W segment, against a median of 220.2.

21.51% module efficiency

Bottom 20% of the TOPCon 400-450 W segment, against a median of 22.00%.

56.0 kg per kWp

Bottom 23% of the TOPCon 400-450 W segment, against a median of 51.4.

Notes from the database
  • At 21.5% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • Power density of 215.1 W/m² is 5.1 W/m² below TOPCon 400-450W median (220.2 W/m²) - needs more roof space
  • At -0.29%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • Weight of 23.5 kg is 1.5 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • Ranked #7894 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 420 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.51 % Weak Segment median 22.00%
Vmpp · Impp 32.92 V · 12.76 A Operating point at max power
Voc · Isc 38.85 V · 13.57 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 23.5 kg Weak Weak · 1.5 kg above median
Cells 108 · TOPCon Monocrystalline
Bifaciality 2500 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 367 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 420 Wp appear here. The rest cover the whole series.

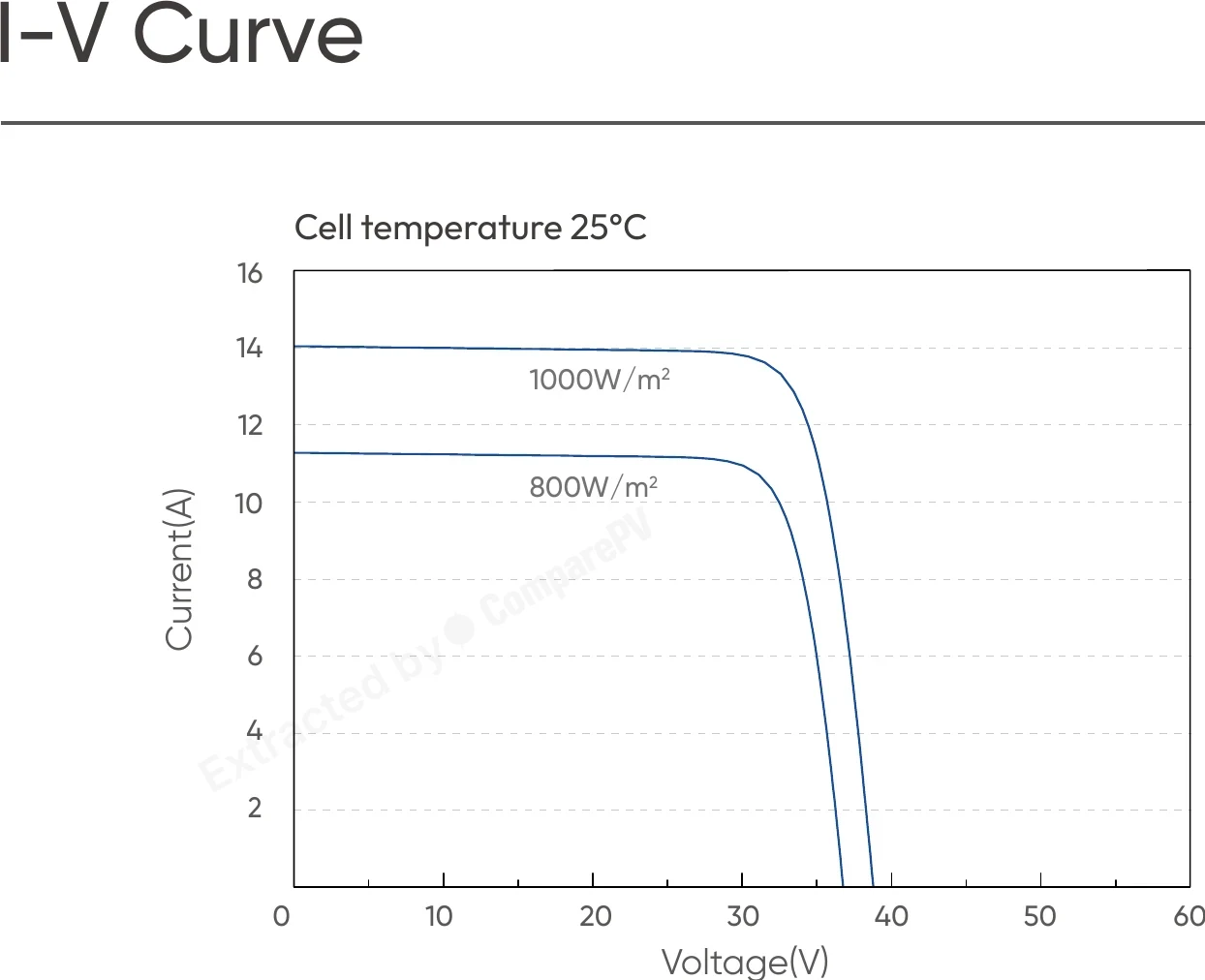

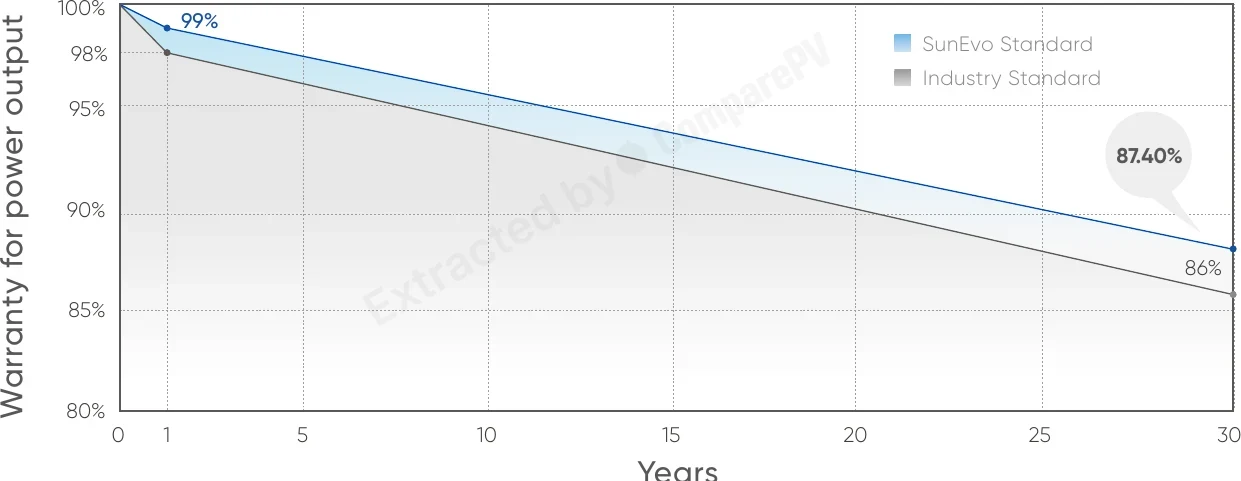

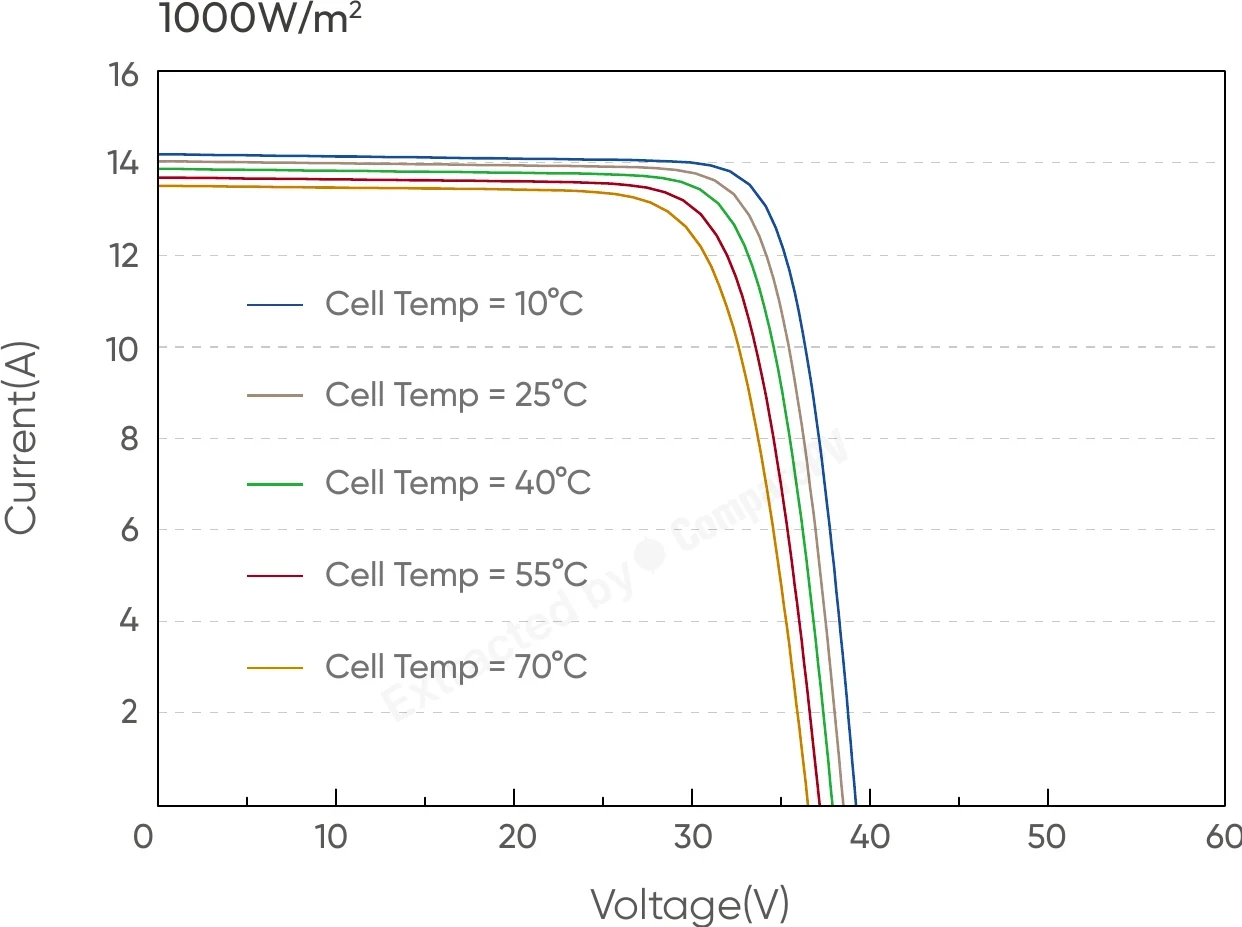

Linear power output warranty over 30 years: SunEvo Standard vs Industry Standard Linear power output warranty over 30 years: SunEvo Standard vs Industry Standard Whole series I-V Curve (Cell temperature 25°C) I-V Curve (Cell temperature 25°C) Whole series I-V Curves at Different Cell Temperatures (1000W/m²) I-V Curves at Different Cell Temperatures (1000W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE5-54HBD-420 420 W 21.51% -0.290 23.5 kg You are here
JST-EDMH-(445-465)W-TD (465W class) 465 W 23.81% -0.300 20.5 kg +45 W, lighter, +2.3 pp
LX-465M/182R-96+ GG 465 W 23.80% -0.260 23.5 kg +45 W, cooler, +2.3 pp
SPR-MAX7-470 470 W 23.70% -0.270 21.1 kg +50 W, +2.2 pp, +10 yr warranty
AIKO-A470-MAH54Mb 470 W 23.60% -0.260 21.5 kg +50 W, cooler, +2.1 pp
AIKO-A460-MAH54Mb 460 W 23.60% -0.290 20.5 kg +40 W, lighter, +2.1 pp
HSM-BD54-LA470 470 W 23.60% -0.260 21.5 kg +50 W, cooler, +2.1 pp
SE5-54H-400W 400 W 20.50% -0.350 20.5 kg Hotter, -1.0 pp, -5 yr warranty
SE5-54H-405W 405 W 20.70% -0.350 20.5 kg Hotter, -0.8 pp, -5 yr warranty
SE5-54H-410W 410 W 21.00% -0.350 20.5 kg Hotter, lighter, -5 yr warranty
SE5-54H-415W 415 W 21.30% -0.350 20.5 kg Hotter, lighter, -5 yr warranty
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +90 W, cooler, +3.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +75 W, cooler, +3.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +85 W, cooler, +3.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +70 W, cooler, +3.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +80 W, cooler, +3.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +80 W, cooler, +3.0 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the SunEvo Solar EVO 5N series come with?
The EVO 5N series includes a 25-year product warranty covering defects and workmanship, along with a 30-year linear power output warranty. This is among the longer warranty packages available in the PV module market and reflects the manufacturer's confidence in the long-term stability of the TOPCon cell technology. Before purchasing, confirm with your local distributor that warranty claims can be serviced in your country.
How do TOPCon cells in the EVO 5N compare to older P-type PERC panels?
N-type TOPCon cells offer a lower temperature coefficient and greater resistance to PID (Potential Induced Degradation) compared to P-type PERC cells. In practice, this means higher energy production on hot days, lower annual power degradation, and more stable long-term output — particularly important over a 25-to-30-year investment horizon.
Do EVO 5N panels perform well under partial shading from a chimney or dormer window?
Yes. The EVO 5N series combines a half-cut cell design with a multi-busbar SMBB/MBB interconnection architecture. This limits the impact of partial shading on the rest of the module — shading one cell string does not shut down the entire panel. This is especially relevant for rooftop systems with chimneys, dormers, or nearby structures casting shadows at different times of day.
How many watts is the SunEvo Solar EVO 5N, and is it suitable for a residential rooftop?
The top variant of the EVO 5N series reaches a peak power of 640 Wp. This output is typical of large commercial modules and utility-scale PV farms — the physical size and weight may require a reinforced roof structure. For residential prosumer installations, lower-wattage variants within the EVO 5N lineup are usually a better fit. Always consult your installer about roof load capacity and available power variants.
Is SunEvo Solar a Tier 1 manufacturer, and does it matter when buying panels?
SunEvo Solar is not listed among Tier 1 manufacturers according to Bloomberg NEF, meaning it has lower visibility in international financial rankings. The Tier 1 classification relates primarily to a manufacturer's bankability and creditworthiness, not directly to module quality. When purchasing, the key factors to verify are whether your distributor provides in-country warranty support and how long the brand has been active in the market.
Are EVO 5N panels available in a bifacial version — can reflected light increase my energy yield?
No — the SunEvo Solar EVO 5N series in its standard configuration is a monofacial module, meaning energy is captured from the front side only. If you are planning a ground-mounted system, installation on a light-colored rooftop, or a free-standing structure where albedo could boost yield, consider comparing this series with bifacial alternatives available from other product lines or manufacturers.
