SunEvo Solar SE5-54HBC-455
SunEvo Solar Brand review

SE5-54HBC-455

455 Wp Back Contact
ComparePV verdict

Middle of its segment, short guarantee

Rank 8,248 of 14,005
Compare panels Datasheet PDF
Power (Wp)
455
Weak · bottom 11%
Efficiency (%)
23.30
Typical · median 23.50%
Density (Wp/m²)
233.0
Typical · median 235.2
Temp (%/°C)
-0.290
Weak · bottom 5%
Weight (kg)
20.8
Typical · median 23.5 kg
Warranty (yrs)
25
Weak · bottom 3%

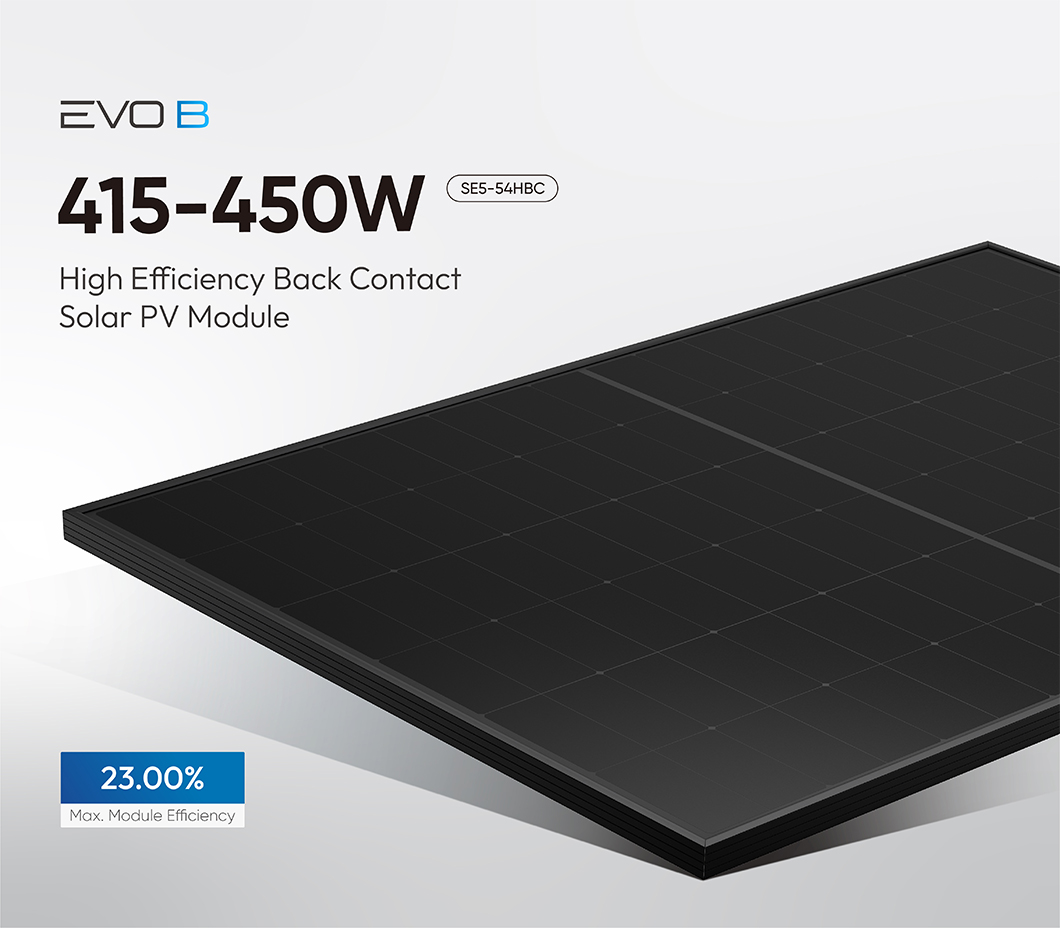

The SunEvo Solar EVO B series consists of modules with Back Contact (BC) technology, where all metallization and electrical connections are located on the back of the cells. This makes the front of the panel optically cleaner, and the installation looks consistent on both the roof and the facade - without the visible grid of conductors that often detract from the appearance in traditional modules. In practice, EVO B also ensures more stable performance over time, thanks to full back soldering, which increases resistance to micro-cracks and reduces the risk of energy yield losses after transport or long-term operation.

A key feature of the series is the combination of aesthetics with real practical benefits: reduced shading losses from the front elements and improved performance in challenging installation conditions. For installers, the option of prefabricated integration with an intelligent optimizer is also important, which simplifies management of safety and monitoring at the module level.

EVO B is suitable for single-family homes, commercial buildings, and projects where appearance, reliability, and predictable energy yield are important.

Ranking

156 panels in the segment Back Contact 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.30% 23.50% Typical 1,017
Power density 233.0 235.2 Typical 1,098
Temperature coefficient -0.290 -0.260 Weak · bottom 5% 2,165
Weight per kWp 45.7 48.0 Typical 847
Performance warranty 25 yrs 30 yrs Weak · bottom 3% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Owners who want a long output guarantee and hot climates.

Watch-outs
25 year performance warranty

Bottom 3% of the Back Contact 450-500 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

-0.290 %/°C temperature coefficient

Bottom 5% of the Back Contact 450-500 W segment, against a median of -0.260. Ranked 2,165th in the whole database.

Notes from the database
  • Efficiency of 23.3% matches the Back Contact 450-500W median
  • Power density of 233.0 W/m² matches the Back Contact 450-500W median
  • At -0.29%/°C, loses 0.03pp more power per degree than Back Contact 450-500W median (-0.26%/°C)
  • At 20.8 kg, this panel is 2.7 kg lighter than Back Contact 450-500W median (23.5 kg) - easier handling during installation
  • Ranked #1017 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 455 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.30 % Typical Segment median 23.50%
Vmpp · Impp 33.84 V · 13.45 A Operating point at max power
Voc · Isc 40.13 V · 14.52 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 20.8 kg Typical Typical · median 23.5 kg
Cells 108 · Back Contact Monocrystalline
Coefficient Pmax -0.290 %/°C Weak bottom 5% of its segment
Coefficient Voc · Isc -0.230 · 0.050 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 25 years Weak bottom 3% · median 30 yrs
End-of-warranty output 88.9 % Equals 395 W guaranteed
Degradation 1.50 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 455 Wp appear here. The rest cover the whole series.

15-year Warranty for Materials and Processing / 25-year Warranty for Extra Linear Power Output 15-year Warranty for Materials and Processing / 25-year Warranty for Extra Linear Power Output Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.260
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE5-54HBC-455 455 W 23.30% -0.290 20.8 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +40 W, +1.5 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +50 W, +1.4 pp, +5 yr warranty
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +35 W, +1.2 pp, +5 yr warranty
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, +1.2 pp, +5 yr warranty
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +45 W, +1.2 pp, +5 yr warranty
GK-3-54HGb-500M 500 W 24.50% -0.260 21.4 kg +45 W, +1.2 pp, +5 yr warranty
SE5-54H-400W 400 W 20.50% -0.350 20.5 kg -55 W, hotter, -2.8 pp
SE5-54H-405W 405 W 20.70% -0.350 20.5 kg -50 W, hotter, -2.6 pp
SE5-54H-410W 410 W 21.00% -0.350 20.5 kg -45 W, hotter, -2.3 pp
SE5-54H-415W 415 W 21.30% -0.350 20.5 kg -40 W, hotter, -2.0 pp
SE5-54HBD-420 420 W 21.51% -0.290 23.5 kg -35 W, -1.8 pp, +5 yr warranty
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +55 W, +1.7 pp, +5 yr warranty

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the Back Contact technology in SunEvo Solar EVO B panels and is it worth it?
In Back Contact (BC) technology, all metal conductors and electrical connections are moved to the rear side of the cell. This means the front surface of the EVO B panel has no visible electrode grid, which eliminates shading losses from front contacts and improves conversion efficiency. In practice, this translates to higher energy yield for the same roof area and a clean, uniform aesthetic on the installation.
What warranty does the SunEvo Solar EVO B series carry?
The EVO B series comes with a 15-year product warranty covering material and workmanship defects, and a 25-year linear power output warranty. This means the manufacturer guarantees a defined performance level for a quarter century of operation. Before purchasing, confirm that your local distributor provides warranty support in your country.
What is the maximum power output of the SunEvo Solar EVO B and what installations is it suited for?
The EVO B module reaches a peak power of up to 600 Wp, making it suitable for residential prosumer systems as well as commercial projects. The high unit power output reduces the number of panels needed to reach the target system capacity, which lowers installation labor costs and roof load.
Do SunEvo Solar EVO B panels perform well under partial shading, for example from a chimney or antenna?
Yes, the Back Contact technology in the EVO B series handles partial shading better than conventional front-contact modules because there are no front busbars to cast additional shadows on the active cell area. The series also supports prefabricated integration with a smart module-level power optimizer (MLPE), allowing each panel to operate independently and minimizing MPPT losses caused by localized shade.
How do SunEvo Solar EVO B panels differ from standard TOPCon or PERC monocrystalline modules?
Unlike TOPCon and PERC modules, the EVO B series places all electrical contacts on the rear of the cell, fully eliminating shading of the active surface by front-side metallization. The result is a lower temperature coefficient and higher yield on hot days. EVO B modules also feature full-back welding, which improves micro-crack resistance compared to conventional front-side metallization found in PERC and standard TOPCon designs.
Is SunEvo Solar a Tier 1 manufacturer and how does that affect the investment risk?
SunEvo Solar is not currently listed as a Tier 1 manufacturer by major PV rating agencies. This means you should carefully verify the supplier's financial stability and local warranty support before purchasing. It does not necessarily mean lower product quality, but banks financing large-scale PV projects typically require modules from certified Tier 1 manufacturers.
